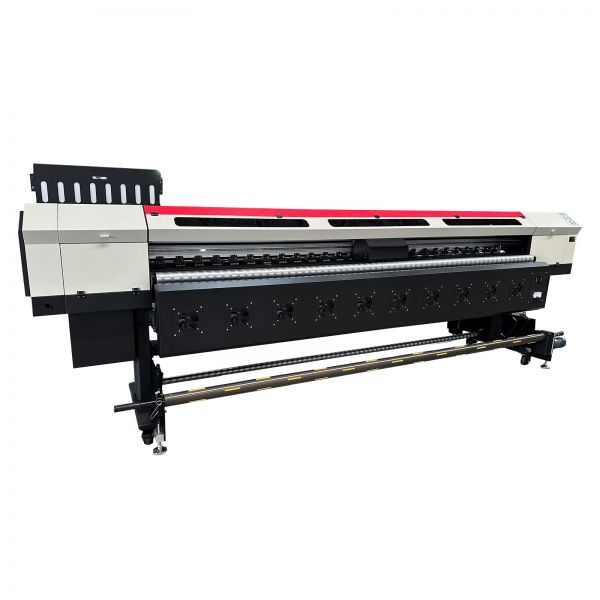

ST3204 3.2m Sublimation Printer for Fiber Fabric with 4 Epson i3200A1 Printhead
ราคาต่อชิ้น
MXN 431,111.00
/ชิ้น
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1
0%
MXN 431,111.00
ค่าใช้จ่ายรวม
MXN 431,111.00
จำนวน
/ชิ้น
1

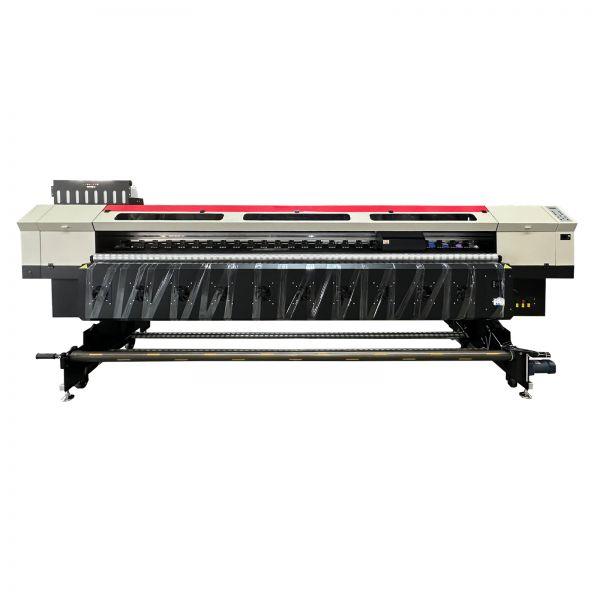

ST3204 3.2m Sublimation Printer for Fiber Fabric with 4 Epson i3200A1 Printhead
Features:
- We adopt AT board for all Epson print heads, from 1 to 36 print heads.
- We have different print width for 8 print heads printer: 2m, 2.3m, 2.6m, 3.2m
- Anti-collision system,when an emergency occurs during the printing process, the car will stop in time.
- Paper shortage alarm system and ink shortage alarm system, 4. Paper shortage alarm system and ink shortage alarm system, remind operators promptly to avoid unnecessary losses for users.
- A paper guide rod is added to the front of the machine to ensure smooth printing on paper.
- Large-capacity ink tank reduces the need for frequent ink refills.7. Users from different industries involved, such as clothing digital printing, bed sheets, curtains, T-shirts, towels, bath towels, shower curtains, tents, umbrellas,banners, background cloth, decorative paintings, mouse pads, yoga mats, sofa fabric printing, etc.
Specification:
| Model | ST3204 | |
| Print Head | 4H i3200 | |
| Maximum Print Width | 3100mm | |
| Print Resolution/Speed | Produce Mode | 170m²/h |
| Resolution Mode | 130m²/h | |
| High Resolution Mode | 80m²/h | |
| Ink | Sort | Sublimation Ink |
| Capacity | 1.5L Empty Ink Supply System | |
| Media | Width | 3200mm |
| Thickness | 1.5mm to 8mm adjustable | |
| Maximum Roll Weight | 75KG | |
| Sort | Sublimation paper | |
| High Printing Quality | VSD technology | |

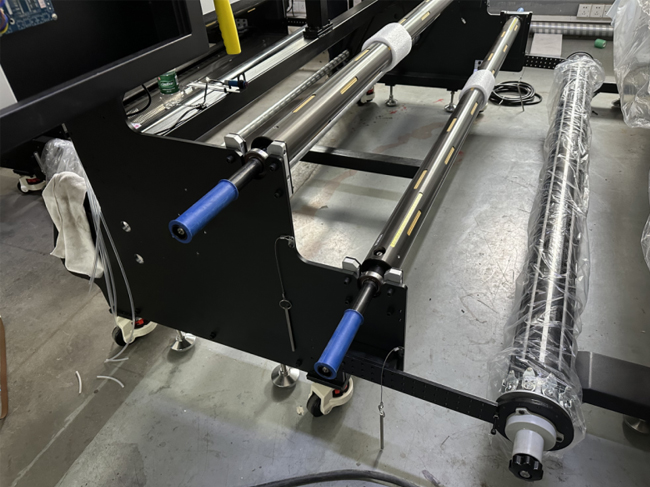

| Media Take-up Device | Gas infatuation shaft receiving system | |
| Drying System | Infrared ray drying system | |
| Guide Rail | THK from Japan | |
| Interface | 1000Mbit/s | |
| RIP Software | Maintop,Photoprint | |
| Voltage | AC 110V ± 10 %、AC 220 V ± 10 %、50 / 60 ± 1Hz | |
| Operation Environments | Temperature: 15°C-30°C, Humidity: 35%RH-65%RH | |
| Power | 7800W | |

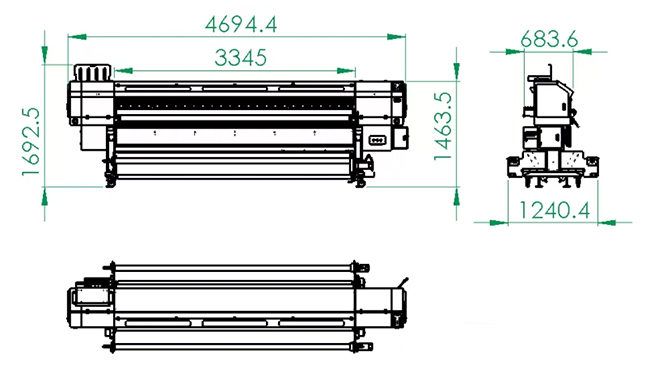

| Dimensions of Printer | 4690x960x1390mm | |
| Dimensions of Packing | 4880x1135x1540mm | |
| Net Weight | 840KG | |
| Weight | 1000KG | |
Details:

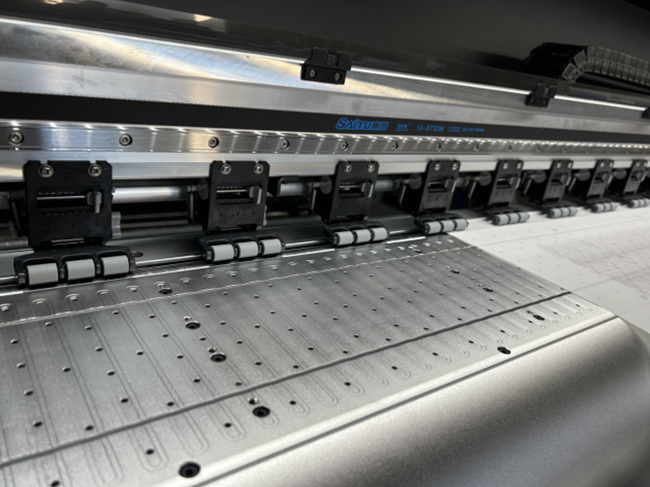

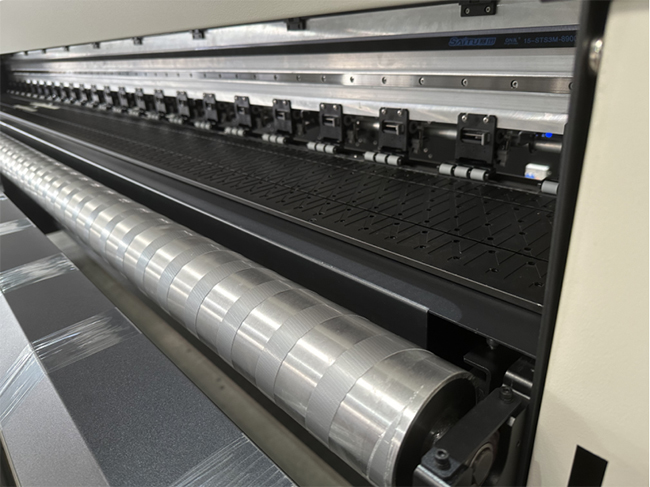

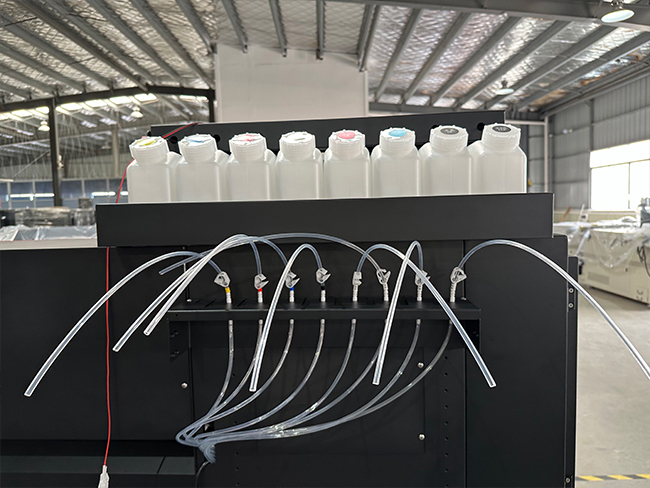

The grooved printing platform ensures better flatness for printing more materials. The ink station is more convenient for engineers to install, efficiently saving installation time.

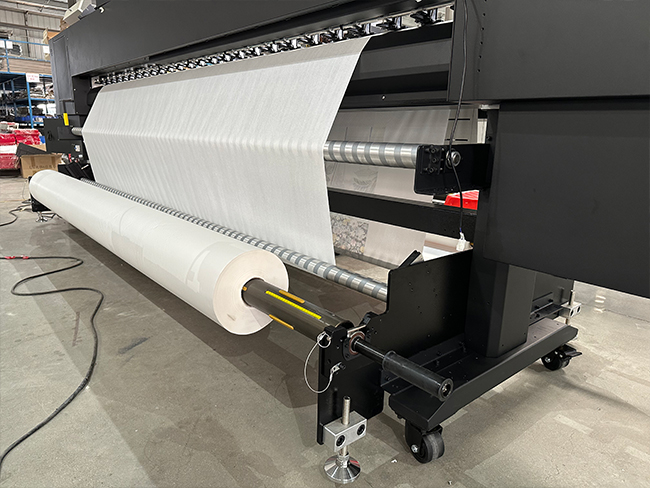

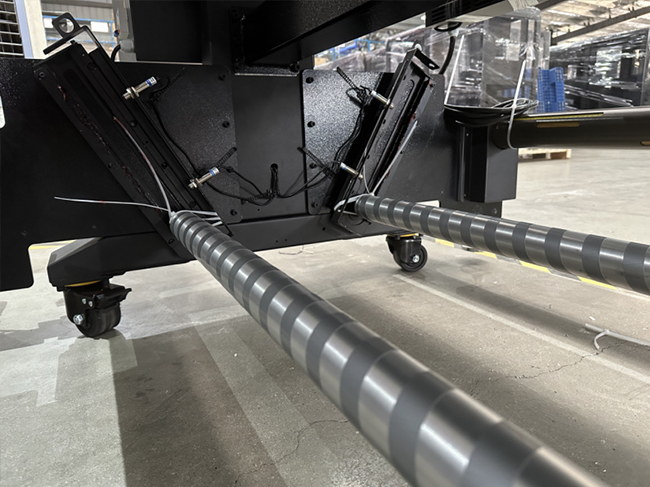

The sliding-slot rod design ensures smoother material printing and is applicable to a wider range of materials.

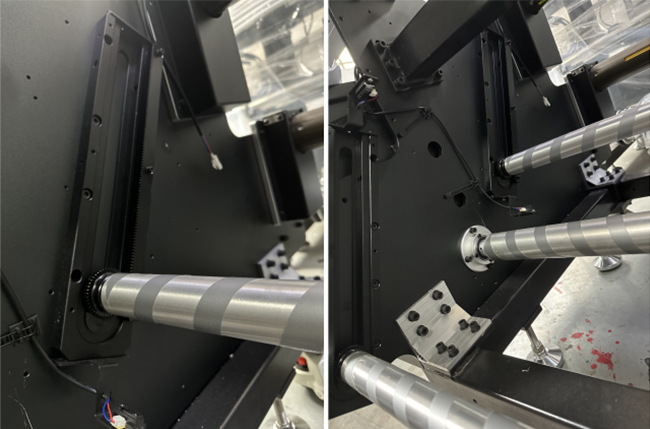

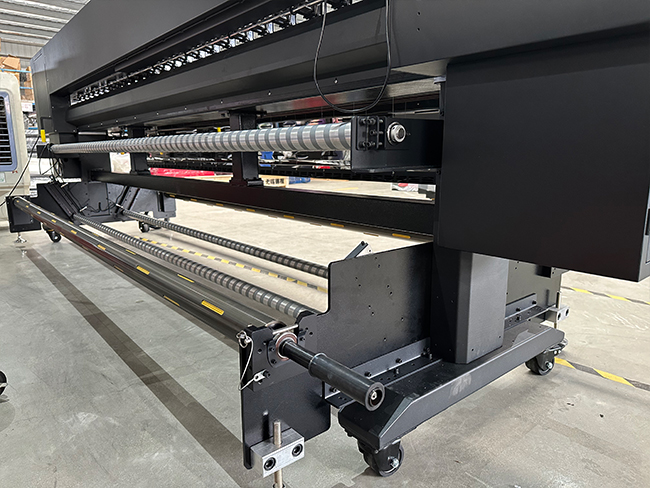

Reinforced tripod ensures the machine's stability, reduces shaking, and prevents various issues during transportation.
Application:
