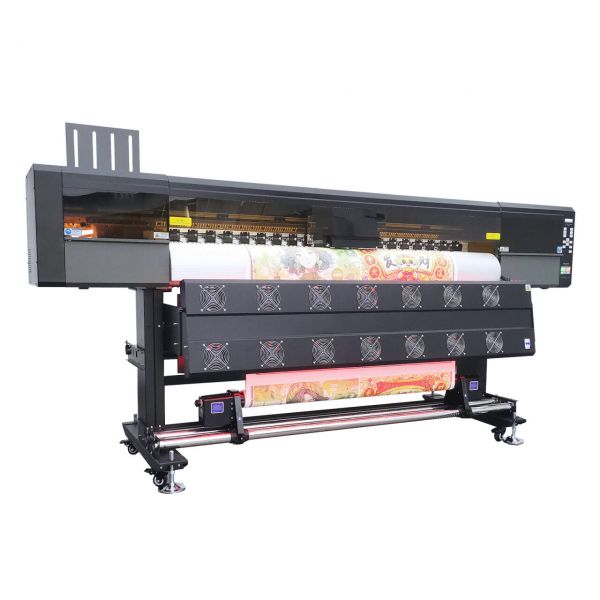

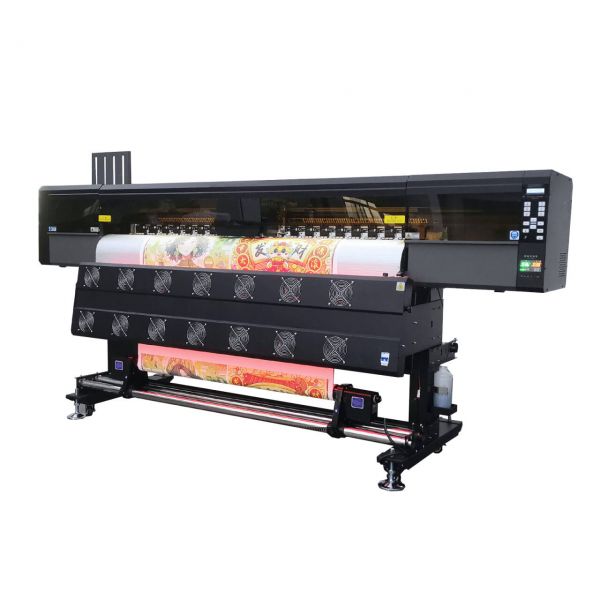

1.8m Eco Solvent Printer with 4 Epson I3200E Printheads
ราคาต่อชิ้น
MXN 226,726.00
/set
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1
0%
MXN 226,726.00
ค่าใช้จ่ายรวม
MXN 226,726.00
จำนวน
/set
1
1.8m Eco Solvent Printer with 4 Epson I3200E Printheads
Specification:
| Printhead | 4pcs i3200E | |
| Maximum print | 1800mm | |
| Print resolution speed | Produce: 84m²/h | |
| Resolution: 53m²/h | ||
| High Resolution: 42m²/h | ||
| Ink | Sort | Waterbase ink, Sublimation ink |
| Capacity | Empty ink supply system | |
| Media | Width | 1850mm |
| Thickness | 1.5 to 1.8mm adjustable | |
| Weight | 75kg | |
| Sort | PP Syghentic Paper, Backit, PhotographicPaper, Sublimation paper, Banrer, Leather and so on | |
| High printing quality | VSD technology | |
| Interface | 1000Mbiu/s | |
| Voltage | AC220V, 50HZ | |
| Operating environment | Temperature: 15°C-30°C. Humidity: 35%RH-65%RH | |
| Power | 4000w | |
| Dimensions of printer | 3100*700*1450mm | |
| Dimensions of packing | 2700*570*650mm | |
| Net weight | 240KG | |
| Gross weight | 300KG | |
| Boards&RIP | Boards | Hoson Boards |
| Password | Build In Boards & Showing In Software | |
| Rip Software | Maintop Rip Software | |
| Body | Main Girder Structure | 200*100*5mm Square Tube |
| Y-Axis | 20mm Diameter | |
| Beam | Aluminium Beam | |
| Linear Guide Way | THK Linear Guide Way With Two Block | |
| Pinch Roller | High Precision 3 Level Pinch Roller | |
| Printing Bed | 178mm Wide Printing Bed | |
| Suction System | Adjustable Vacuum Suction System | |
| LED lighting | Printing Bed Lighting System | |
| Carriage | Belt | Italy MEGADYNE Belt |
| Chain | Germany Igus Drag Chain | |
| Cable | Fiber | |
| Power Cable | Germany Igus Power Cable | |
| Encoder | 180DPI(9730) | |
| Carraige Lifting | Manual Screw Type Carraige Lifting System | |
| Capping | Automatic Capping &Wipping System | |
| Anti Collision | Anti Collision System | |
| Motor | X Motor | Leadshine 400w DC Servo Motor |
| Y Motor | Leadshine 180w DC Servo Motor | |
| XY Motor Bracket | Metal Brackets | |
| F&T | Paper Sensor | Paper Out Waming Sensor |
| Feeding And Take Up | Double Industry Motor | |
| Leveling Stand | Leveling Stand | |
| Ink Supply | Ink Supply System | Bulk Ink Supply System |
| Main Ink Tank | 1.5L Main Ink Tank | |
| Damper | Negative Type Damper | |
| Ink Pump | SPD Ink Pump | |
| Heating&Drying | Dryging System | 3000W IR Heater |
| Heating Control Panel | 3 in 1 Heating Control Panel | |
| Heating System | Rear-Printing Bed-Front 3 Heaters | |
| Carriage Plate Heater | 24V DC Heater |
Details:
Applications:
