X3/X6 Automatic Channel Letter High Edge Full Function Bending Machine
X3
Precio unitario
MXN 144.065,00
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 144.065,00
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
MXN 144.065,00
Cantidad
/set
1

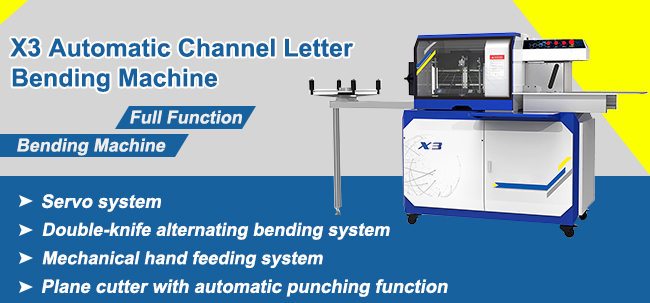

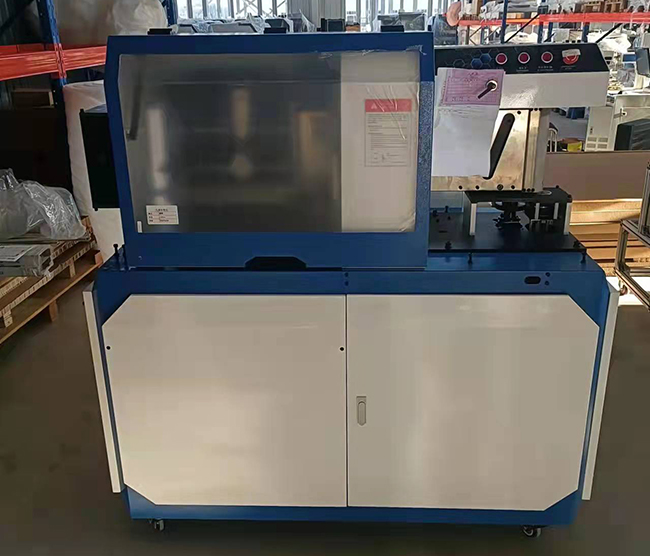

X3 Automatic Channel Letter Full Function Bending Machine

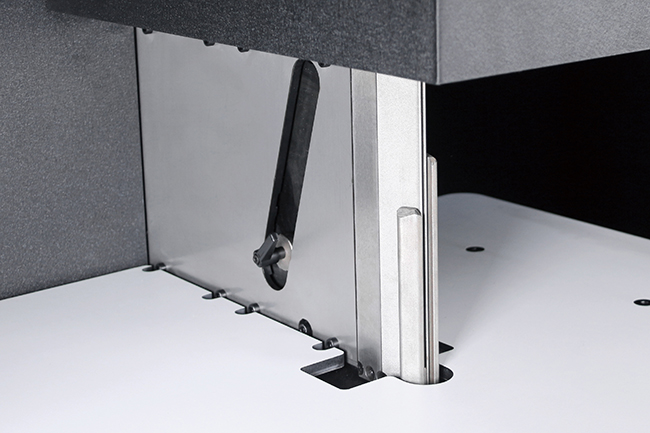

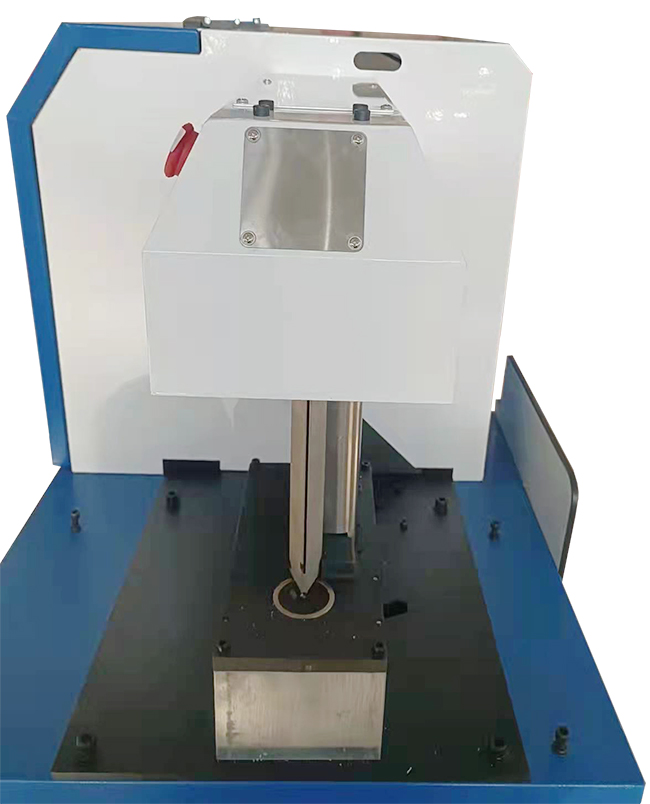

1.Bending system
Double knife alternating bending,specially designed cutlasses and edge structure,compatible with plate and profile processing.More suitable for small Angle small radian bending.

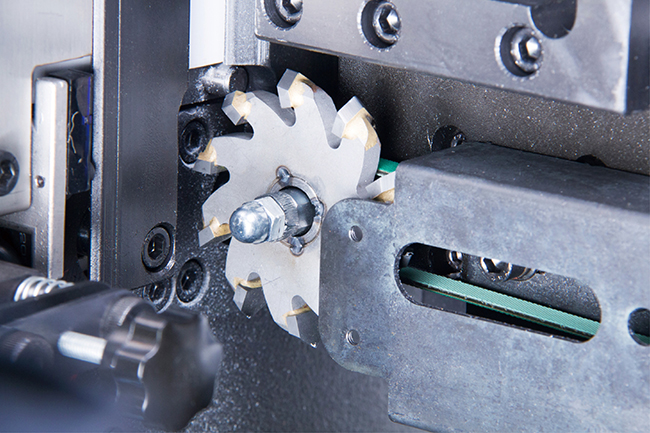

2. Slotting system
Plane cutter works for stainless steel, galvanized board and aluminum plate.

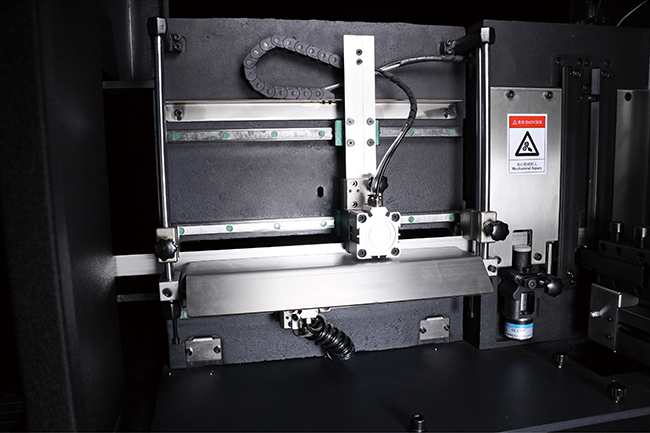

3. Feeding system

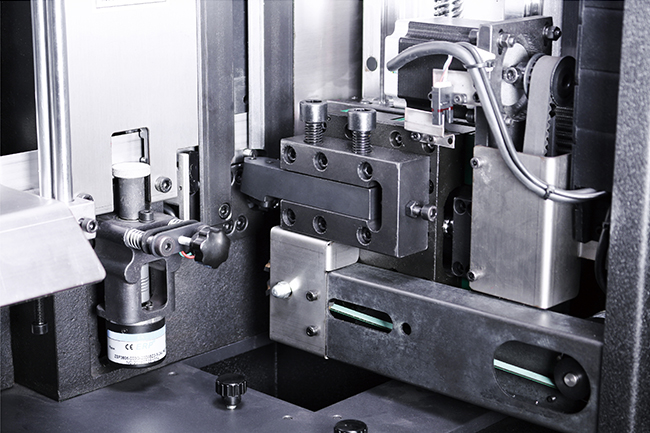

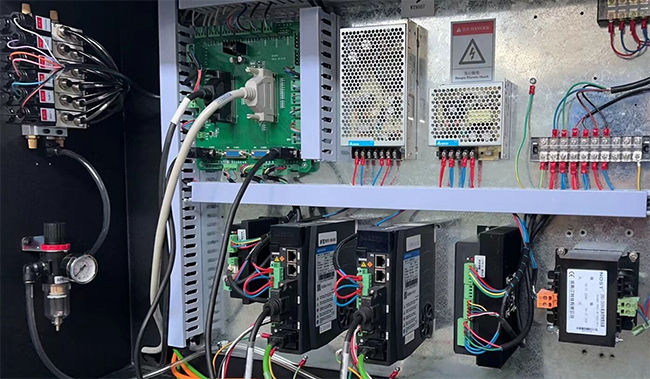

The design of circulating clamping feeding,manipulator circulating clamping feeding,the configuration of servo drive+high quality ball screw and linear guide rail makes the feeding smooth and smooth without causing deformation to the material,and the closed-loop control composed of length encoder and system makes the finished products perfectly match with the source files.
Features:
1.13cm processing range,equipped with fixed cutlery with a small Angle of 44°. In the higher processing range,to achieve high speed,stable bending.

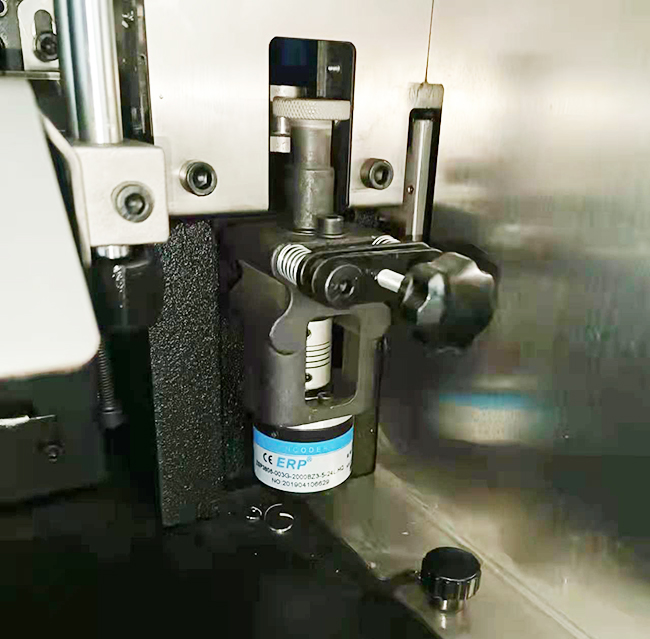

2.Part of the structure adopts precision casting,making the bending machine precise and efficient (casting includes:fixed scimitar,fixed scimitar safety,encoder,manipulator,feeding bracket,feeding bracket presser,etc.)

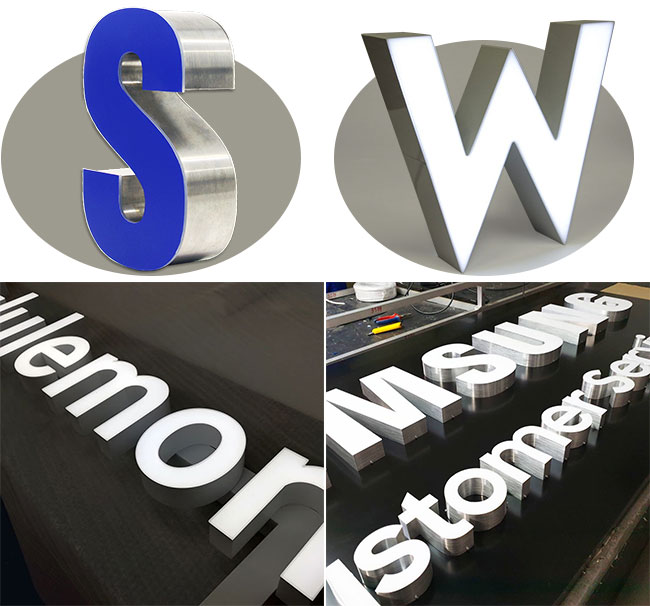

3.Can produce stainless steel,galvanized board,aluminum plate,and other flat materials.

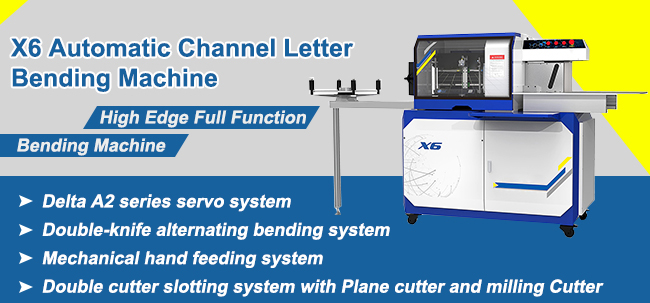

X6 Automatic Channel Letter High Edge Full Function Bending Machine
| Model | X3 | X6 |

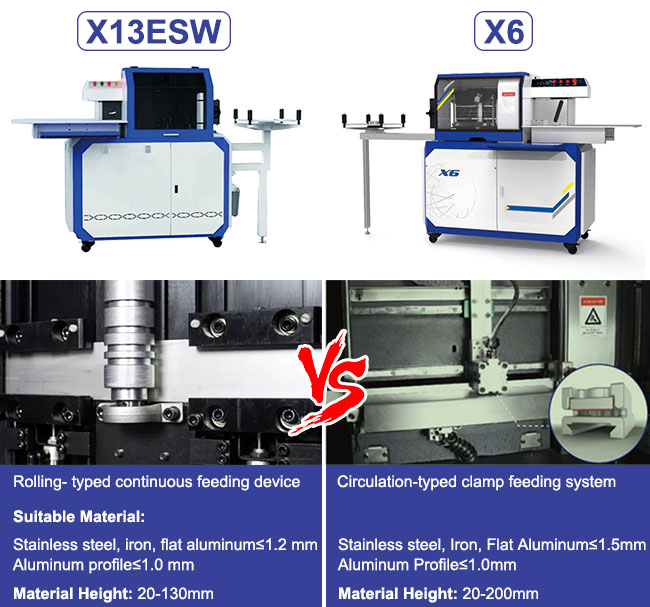

| Feeding system | Circulation-typed clamp feeding system | |
| Slotting system | Plane&milling cutter slotting system | |
| Bending system | Double blade alternating bendingsystem | |
| Material Apecification | Stainless steel, Iron,Flat Aluminum≤1.5mm,Aluminum Profile≤1.0mm | |
| Material Height | 20-130mm | 20-200mm |
| Accuracy | ±0.1mm | |
| Input File format | *.dxf | |
| Power supply | AC220V/50HZ/2.5KW | |
| Air supply | 0.6m³/min | |
| Dimensions | L2453mm×W915mm×H1671mm | |
| Machine weight | 450kg | 480kg |
