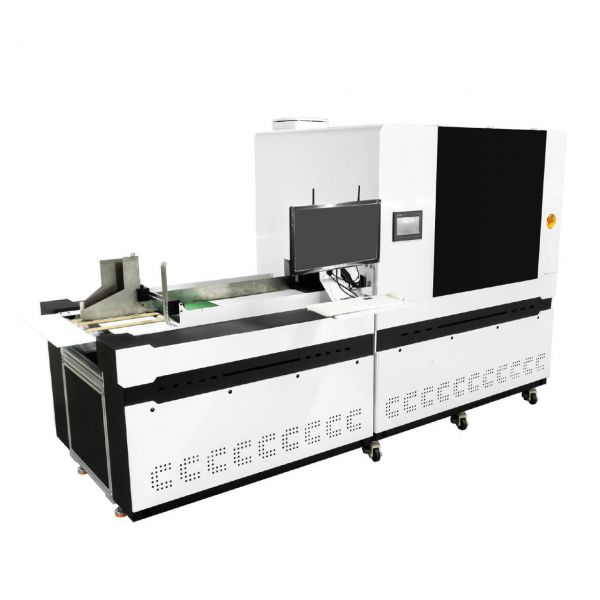

UV One Pass Digital Printer with Toshiba CF3 Industrial Printhead
D-54 (2H)
Precio unitario
MXN 434.386,00
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 434.386,00
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
MXN 434.386,00
Cantidad
/set
1
UV One Pass Digital Printer with Toshiba CF3 Industrial Printhead
Specification:
| Printhead Model | Toshiba Industrial Printhead CF3 | |||
| Product Model | D-54(2H) | D-108(4H) | S-54(4H) | S-108(8H) |
| Printhead Number | 2 Heads | 4 Heads | 4 Heads | 8 Heads |
| Nozzle Number | Maximum color count per head 2 (300dpi) | Maximum color count per head 2 (300dpi) | Maximum color count per head 1 (600dpi) | Maximum color count per head 1 (600dpi) |
| Print width | 54mm | 108mm | 54mm | 108mm |
| Feeding width | Customized according to materials | |||
| Resolution | 300/600/900/1200dpi | |||
| Print mode | UV Onepass Printing | |||
| Inkjet technology | ALL MEMS /VSDT | |||
| Print height | 15cm(Support customization) | |||
| Print speed | 0-30m/min | |||
| Feeding method | automatic feeding | |||
| Colors | CMYK (white optional) | |||
| Ink | UV curable ink | |||
| Ink supply | Multilayer filtration/negative pressure system/Automatic ink supply/ink constant temperature thermal cycle | |||
| Fuselage structure | Steel frame structure gantry milling | |||
| Power requirements | 220VAC 50Hz 5300W (Excluding automatic feeding and UV curing system) |
|||
Details:
Application:
