Universal External Cooling Twist Drill 3D Carbide Bits For Cast Iron
DP3D040C
Precio unitario
MXN 562,00
/pc
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 562,00
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
MXN 562,00
Cantidad
/pc
1

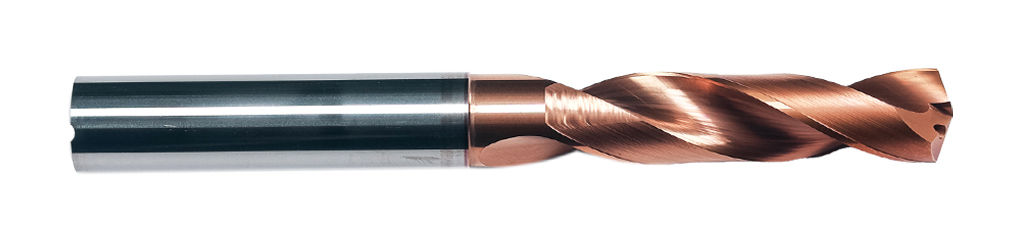

Universal Internal Cooling Twist Drill 3D Carbide Bits For Cast Iron - Shank Ø4
Suitable for drilling cast iron of automobile industry and other industries.
Wave formed cutting lips provides lowered machining torque.
Four margin design, improves hole wall quality and accuracy.
Increased Drills point strength through optimized chisel edge.
Material: Tungsten Carbide
Type: Twist Drill Bit
Cooling Method: External Cooling
Use: Metal Drilling
Remark: Please Choose the Model when ordering.
|
|||||

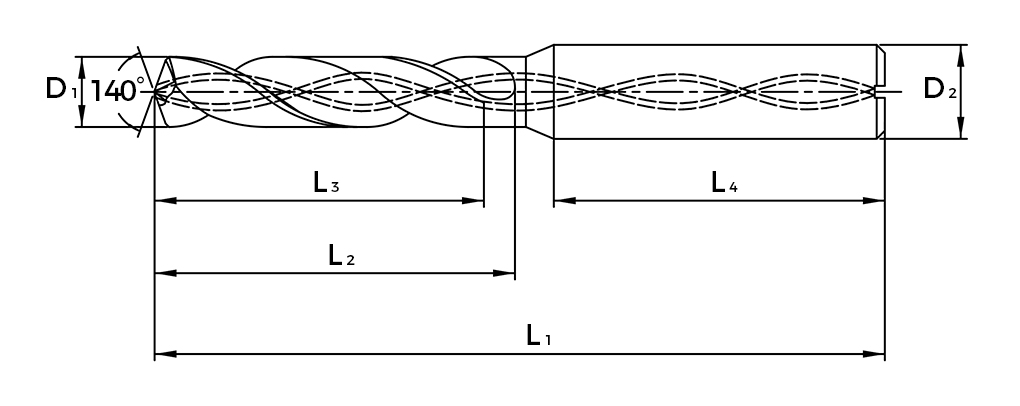

| Model | D1(mm) | /D(mm) | L2(mm) | L1(mm) | D2 |
| DP3D030C | 3.0 | 3D | 20 | 62 | 4 |
| DP3D031C | 3.1 | 3D | 20 | 62 | 4 |
| DP3D032C | 3.2 | 3D | 20 | 62 | 4 |
| DP3D033C | 3.3 | 3D | 20 | 62 | 4 |
| DP3D034C | 3.4 | 3D | 20 | 62 | 4 |
| DP3D035C | 3.5 | 3D | 20 | 62 | 4 |
| DP3D036C | 3.6 | 3D | 20 | 62 | 4 |
| DP3D037C | 3.7 | 3D | 20 | 62 | 4 |
| DP3D038C | 3.8 | 3D | 24 | 66 | 4 |
| DP3D039C | 3.9 | 3D | 24 | 66 | 4 |
| DP3D040C | 4.0 | 3D | 24 | 66 | 4 |
