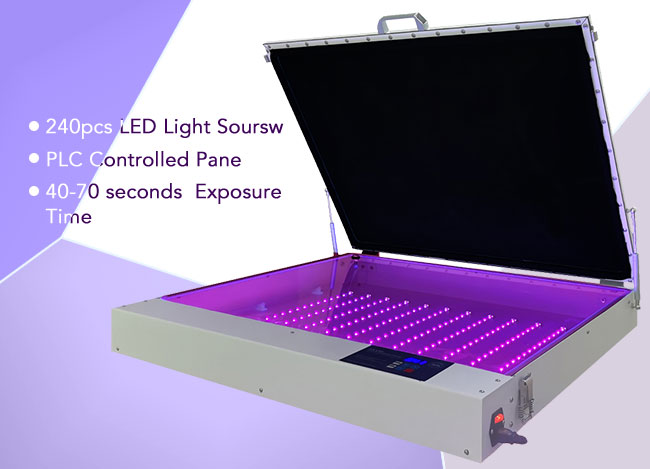

LED exposure unit is used in the filed of plate-making such as pad plate, screen plate, hot stamper plate,resin plate. when you put the film onto the plate into UV LED exposure machine, start it, the emulsion on the plate will appear a unseen imagine. this is important process on all plate-making technology.
Parameter:

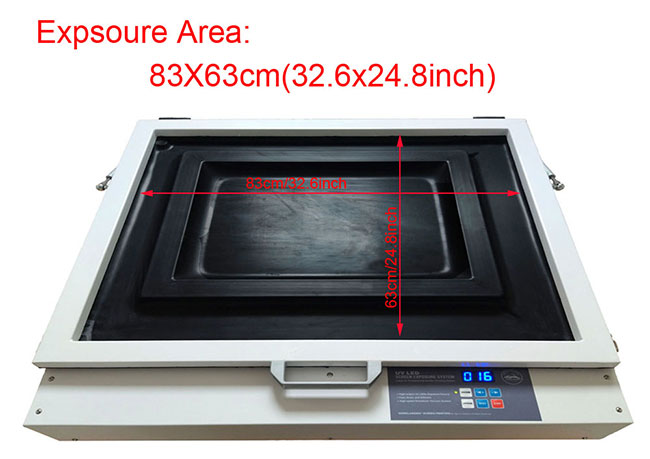

Max.exposing area/Max screen size: 60cmx80cm
Voltage (single phase ): 110V ~ 220V
Vacuum Degree:80 kpa
Time control: 0-999s

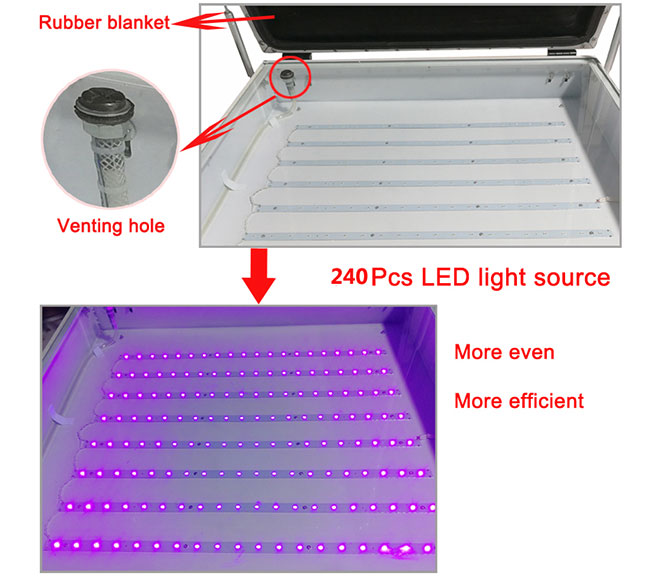

Power of lamps: 120W (12 10w UV LED-line)
wavelength: 395NM
Angle of diffusion: 120
Distance between strips and glass:3.5"/90mm
Feature:
Adopting high efficiency UV LED light source, which save 50% electricity than ordinary model.
Vacuum model, use high quality rubber cloth, longer lifetime.
Built-in vacuum pump, very fast to vacuum

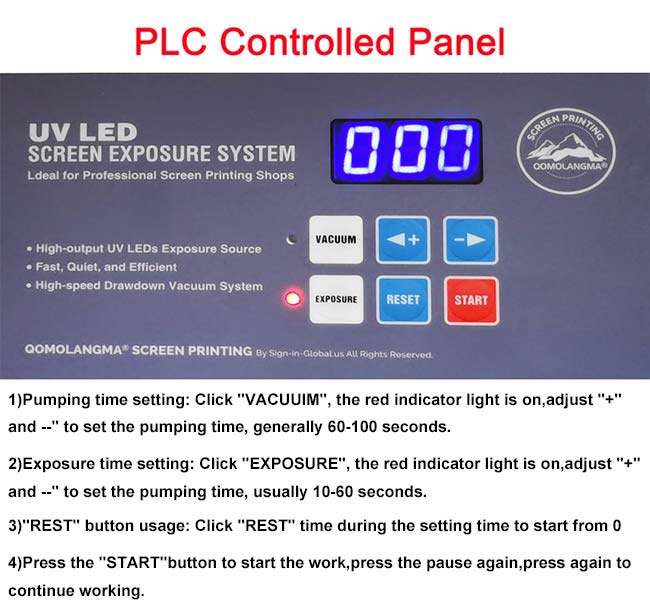

PLC controlled panel, very easy to operate.
Automatic memory function for working as original seting next time
Perfect exposure effect because of LED light.
Fast exposure time, about 40-70 seconds.
Energy saving and environment friendly.
Stable exposure quality, more lifetime.

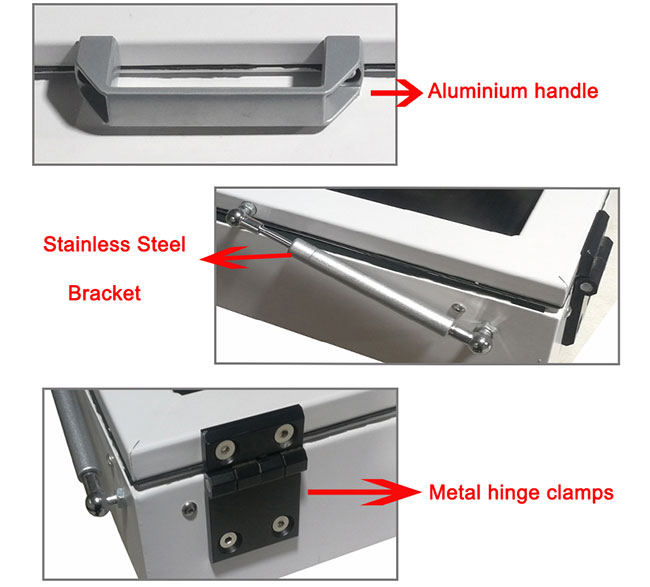

Durable and beautiful with steel coat.

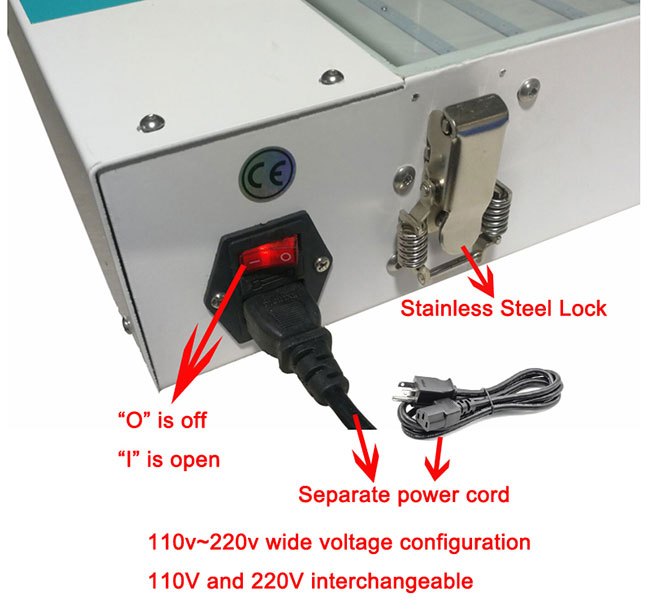

Outside connecting power plug, safety and convenience.
Easy to transport, LED light is not fragile in delivery.
Details:

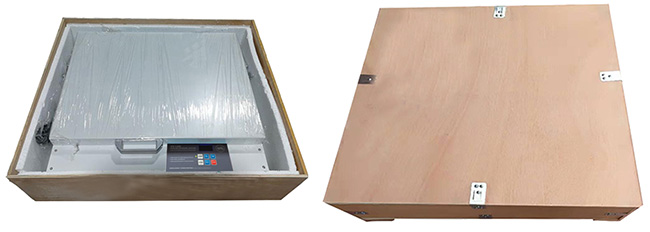

Package:
Gross weight: 110 lb /50 kg
Packing size: 41 x 36 x 9.8 inch /105 x 92 x 25 cm
