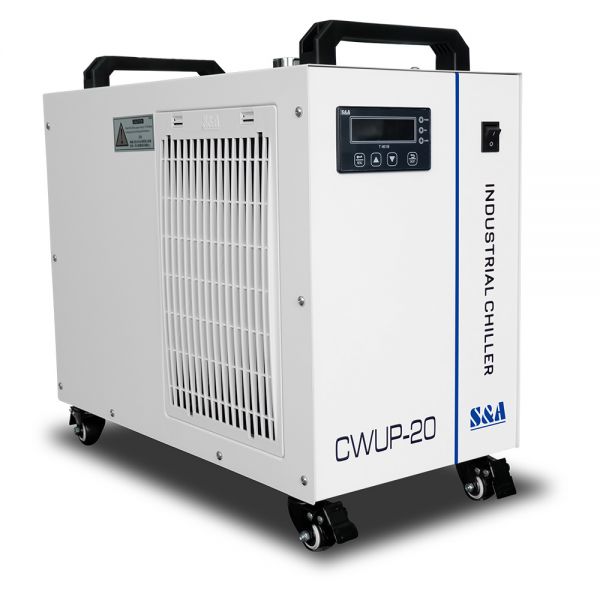

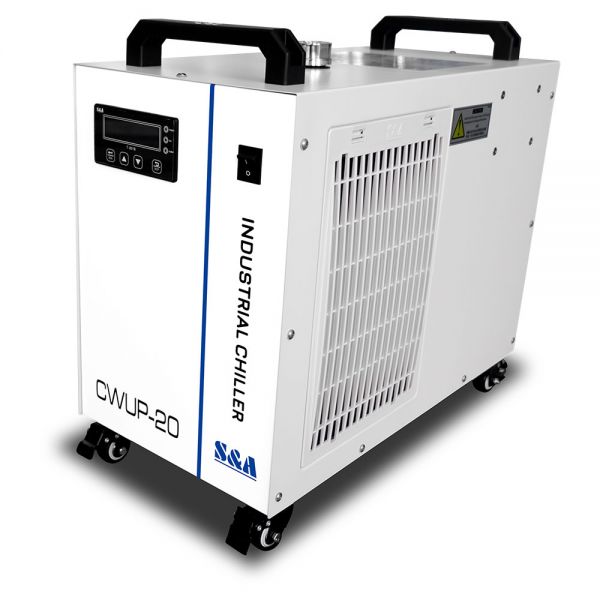

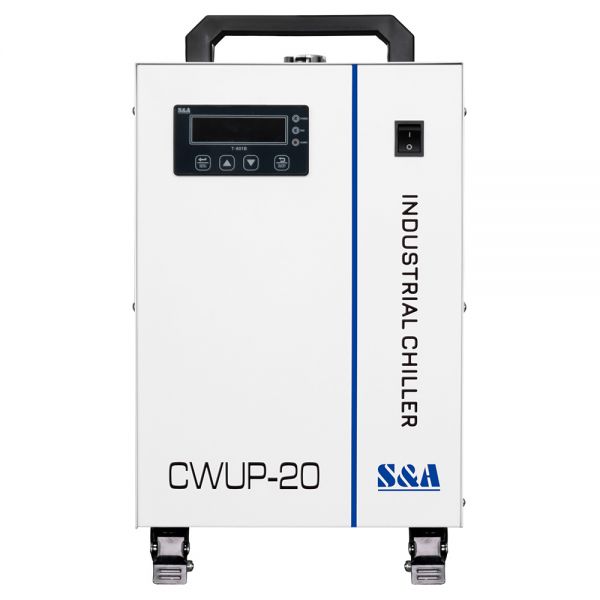

S&A Small Water Chiller CWUP-20 For 20W Solid State Ultrafast Laser

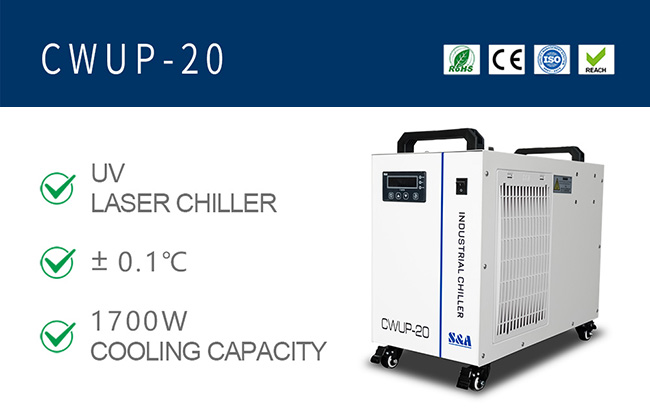

Ultra-precise small water chiller unit CWUP-20 is applicable to cool 20W solid state ultrafast lasers including picosecond laser, femtosecond laser, nanosecond laser and so on. It features cooling capacity of 1700W together with ±0.1℃ temperature stability.
Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.
SPECIFICATION
| Model | CWUP-20AITY |
| Voltage | AC1P 220~240V, 50Hz |
| Current | 0.6~7.7A |
| Max. power | 1.26kW |
| Compressor power | 0.59kW, 0.8HP |
| Nominal cooling capacity | 4879Btu/h, 1.43kW, 1229Kcal/h |
| Refrigerant | R-410a |
| Refrigerant charge | 650g |
| Precision | ±0.1℃ |
| Reducer | Capillary |
| Pump power | 0.11kW |
| Tank Capacity | 6L |
| Inlet and Outlet | Rp1/2" |
| Max. Pump pressure | 2.5bar |
| Max.flow | 15L/min |
| Net Weight | 25Kg(55lb) |
| Gross Weight | 28Kg(61.7lb) |
| Dimension | 22.8" x 11.4" x 20.5" (58 x 29 x 52cm) |
| Package Dimension | 25.6" x 14.2" x 22" (65 x 36 x 56cm) |
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.
PRODUCT INTRODUCTION
Independent production of sheet metal, evaporator and condenser
Adopt IPG fiber laser for welding and cutting sheet metal.

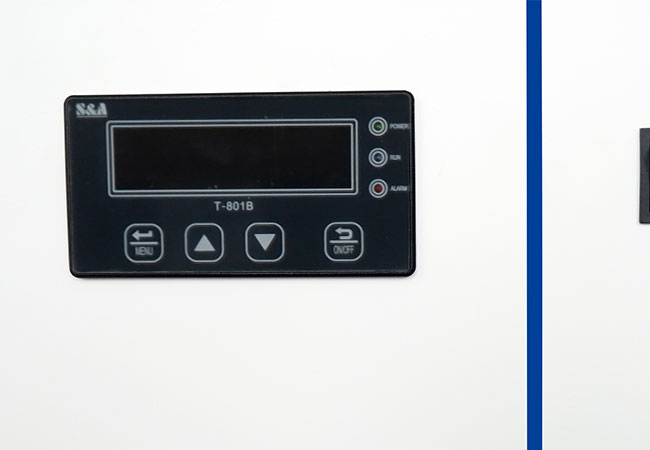

Temperature control accuracy can reach ±0.1°C.

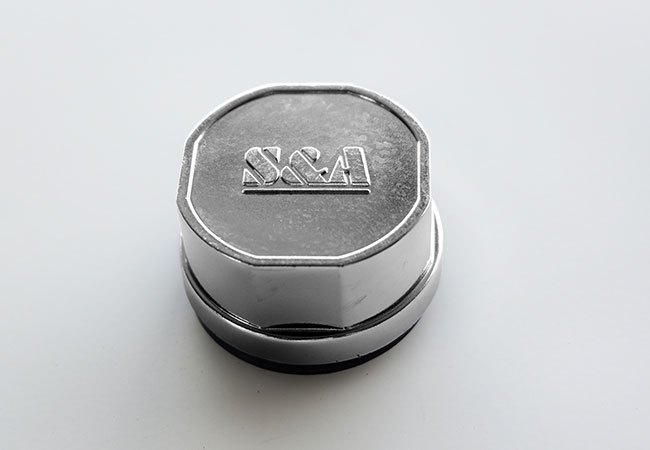

Ease of moving and water filling.
The firm handle can help move the water chillers easily.

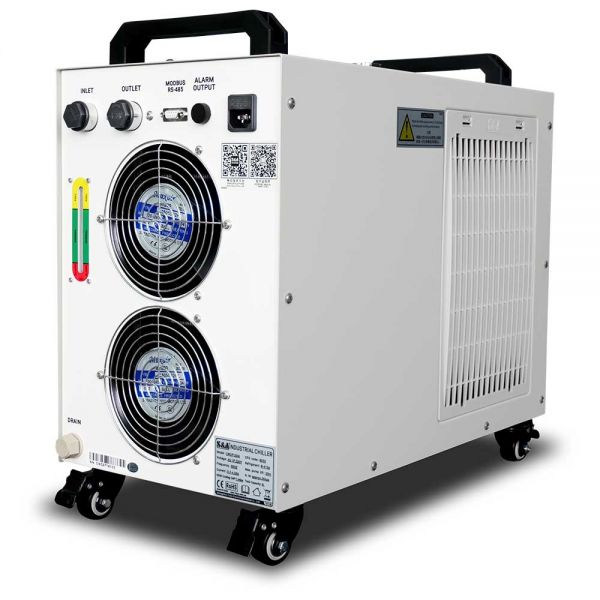

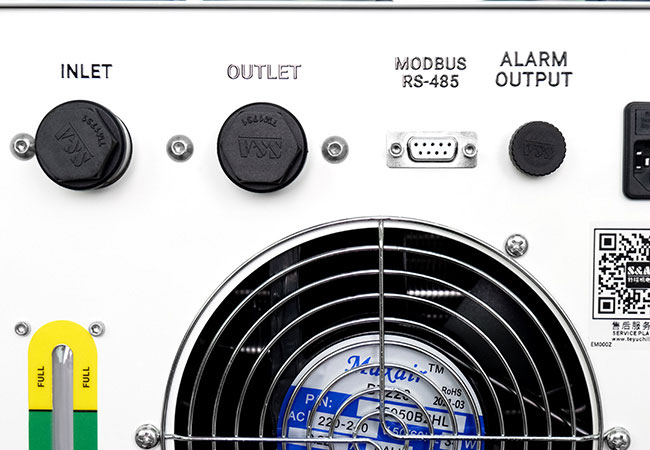

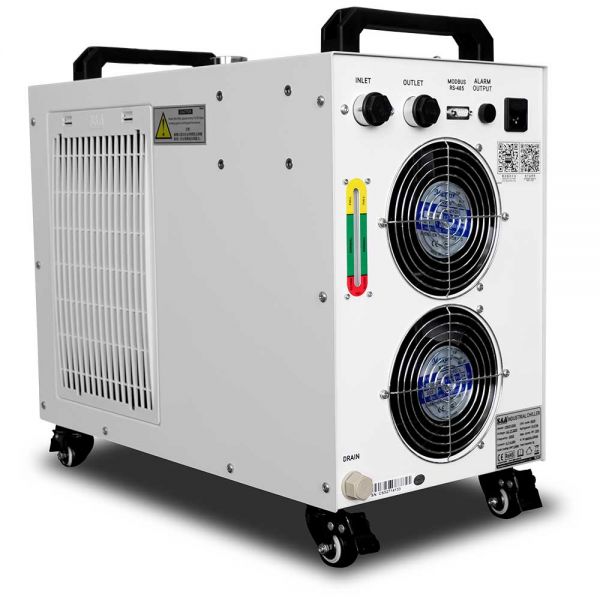

Inlet and outlet connector equipped
Multiple alarm protection.
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

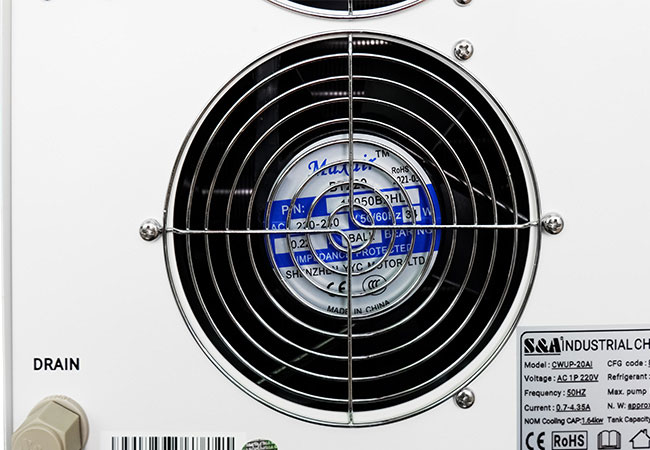

Cooling fan of famous brand installed.

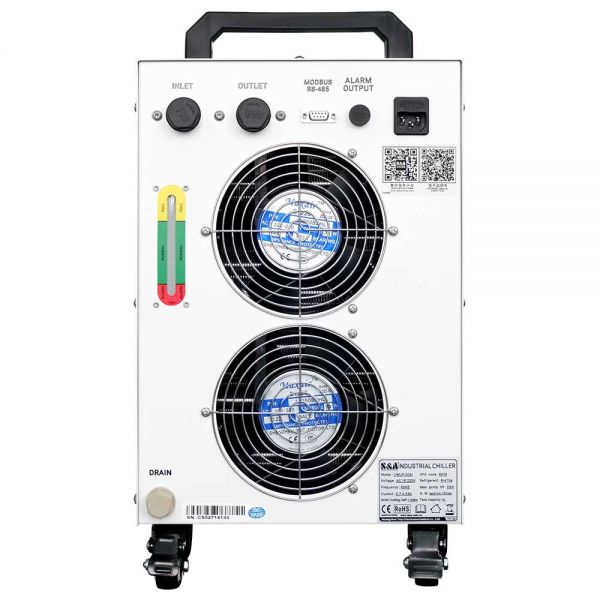

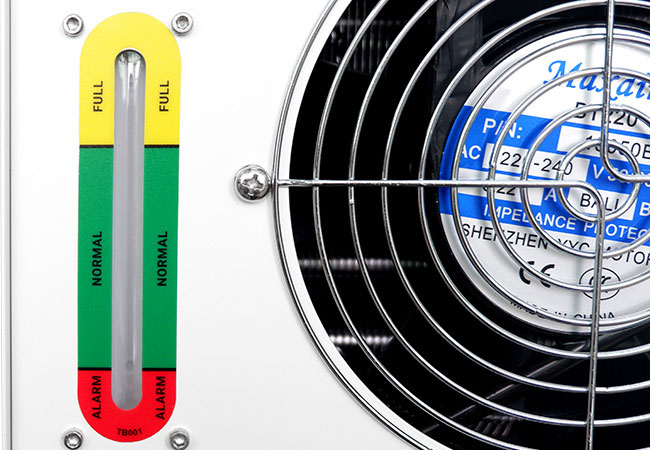

Level gauge equipped.
Cooling fan with high quality and low failure rate.

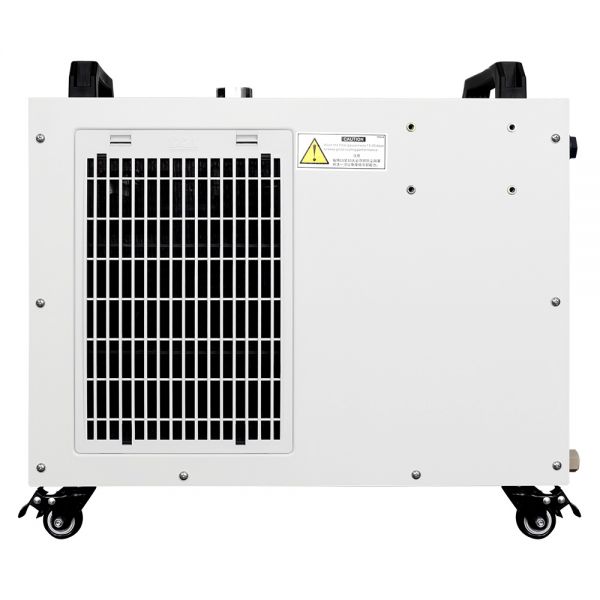

Customized dust gauze available and easy to take apart.

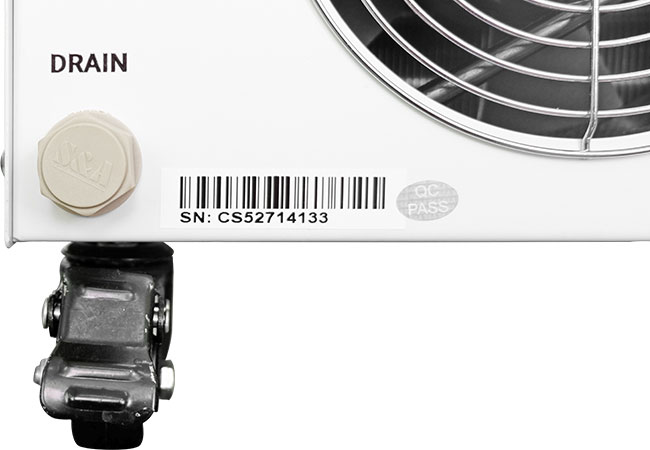

Equipped with universal wheels.
While univeral wheels facilitate the moving of the chiller.
