S&A RMUP-500AI 6U Rack Mount Industrial Chiller Unit for Cooling 10W-15W UV Lasers Ultrafast Laser
Precio unitario
MXN 26.780,00
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 26.780,00
Costo total
MXN 26.780,00
Cantidad
/unidad
1

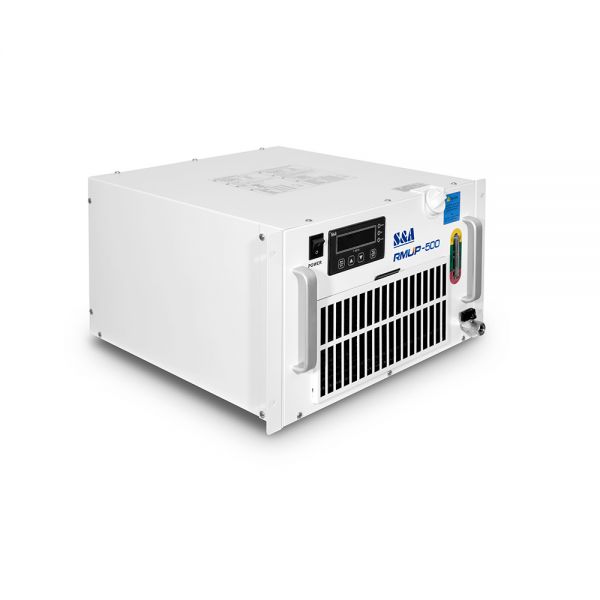

S&A RMUP-500 6U Rack Mount Industrial Chiller Unit for Cooling 10W-15W UV Lasers Ultrafast Laser
TEYU rack mount water chiller RMUP-500 features a 6U rack mount design and is perfect for 10W-15W UV laser and ultrafast laser applications. Mountable in a 6U rack, this industrial water cooling system allows the stacking of related devices, indicating a high level of flexibility and mobility.
It delivers extremely precise cooling of ±0.1°C stability with PID control technology. A water level check is installed in the front with thoughtful indications. Water temperature can be set between 5°C and 35°C with constant temperature mode or intelligent temperature control mode for selection.
Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.
Features:
1. With environmental refrigerant.
2. Rack mount design, long working life and simple operation.
3. ±0.1℃ precise temperature control.
4. Equipped with RS485 Modbus RTU protocol
5. 12 types of alarm codes
6. Intelligent detection functions such as water level, flow rate and water temperature
7. Heating of the coolant water at low ambient temperature
8. Toolless maintenance of dustproof filter screen
9. CE approval; RoHS approval; REACH approval
| Specification | |
| Model | CW-RMUP-500AI |
| Voltage | AC 1P 220~240V |
| Frequency | 50Hz |
| Current | 0.6~5.2A |
| Max. power consumption | 0.98KW |
| Compressor power | 0.32kW |
| 0.44HP | |
| Nominal cooling capacity | 2217Btu/h |
| 0.65kW | |
| 558Kcal/h | |
| Pump power | 0.09 kW |
| Max. Pump pressure | 2.5bar |
| Pump flow | 15 L/min |
| N.W | 21Kgs(46.3lb) |
| G.W | 24Kgs(52.9lb) |
| Refrigerant | R-134a |
| Precision | ±0.1℃ |
| Reducer | Capillary |
| Tank capacity | 5.5L |
| Inlet and outlet | Rp1/2" |
| Dimension | 19.3" x 18.9" x 10.2" (490 x 480 x 260mm) |
| Package dimension | 23" x 21" x 13.4" (590 x 530 x 340mm) |

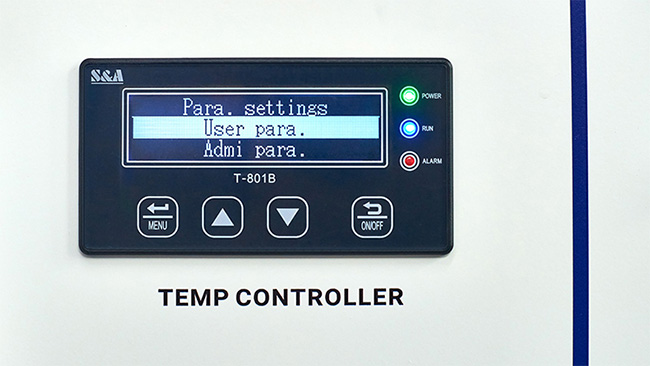

Digital temperature controller
The T-801B temperature controller offers high precision temperature control of ±0.1°C.

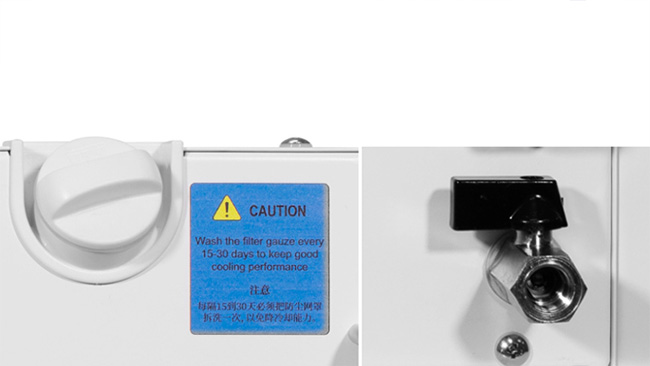

Front mounted water fill port and drain port
The water fill port and drain port are mounted in the front for easy water filling and draining.
Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

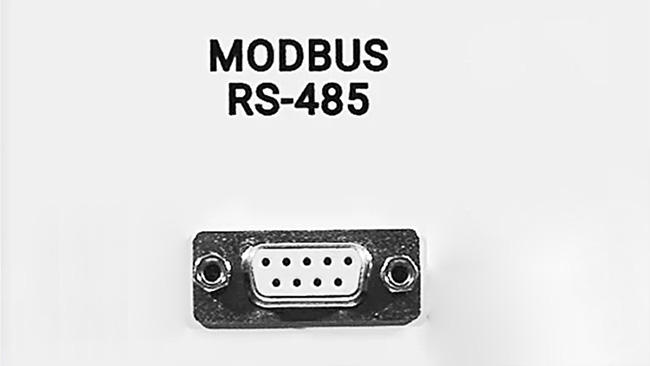

Modbus RS485 communication port
The RS485 communication port enables communication with the laser system.
Cooling fan of famous brand installed.
With high quality and low failure rate.
