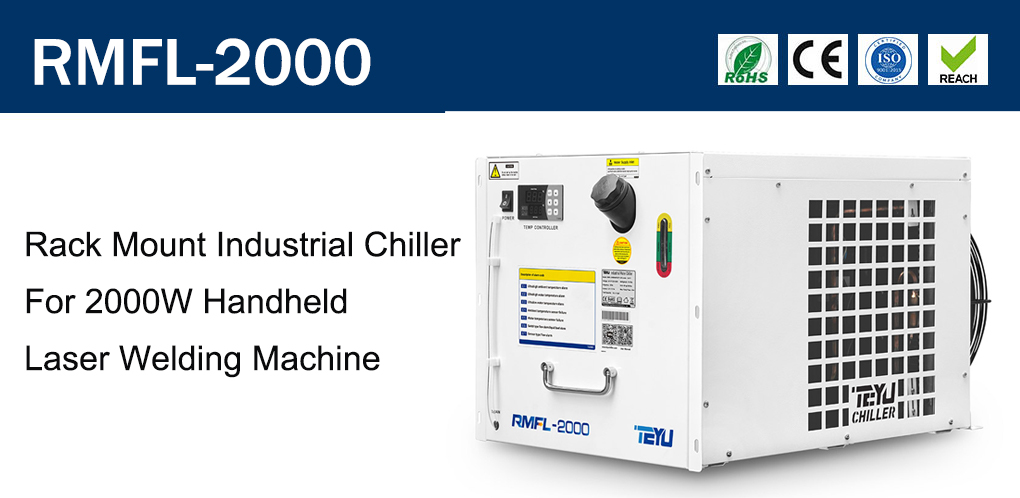

S&A Rack Mount Recirculating Laser Chiller RMFL-2000 For 2KW Handheld Fiber Laser Welding Machine(2.28HP AC 1P 220V 50HZ)
Precio unitario
MXN 18.313,00
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 18.313,00
Costo total
MXN 18.313,00
Cantidad
/unidad
1
S&A Rack Mount Recirculating Laser Chiller RMFL-2000 For 2KW Handheld Fiber Laser Welding Machine(2.28HP AC 1P 220V 50HZ)
Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.
Rack mount recirculating laser chiller RMFL-2000 is applicable to cool 2KW handheld fiber laser welding machine. Rack mount water chiller RMFL-2000 features ±0.5℃ temperature stability with dual temperature control system which is capable of cooling the fiber laser and the laser head at the same time. In addition, it is designed with intelligent & constant temperature modes which can meet different demands in different situations.
Features
1. With environmental refrigerant;
2. ±0.5℃ precise temperature control;
3. The intelligent temperature controller has 2 control modes applicable in different occasions; with various setting and display functions;
4. Dual temperature control system to satisfy different needs of fiber laser device and laser head;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. CE approval; RoHS approval; REACH approval;
7. Optional heater and water filter.
THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.
| Specification | |
| Model | CW-RMFL-2000ANT03TY |
| Voltage | AC 1P 220~240V, 50Hz |
| Current | 1.5~12.1A |
| Machine powe | 2.81kW |
| Compressor power | 1.36kW |
| 1.82HP | |
| Refrigerant | R-32/R-410a |
| Refrigerant charge | 780g |
| Precision | ±0.5℃ |
| Reducer | Capillary |
| Pump power | 0.2kW |
| Tank Capacity | 16L |
| Inlet and Outlet | Φ6+Φ12 Fast connector |
| Max.lift | 40M |
| Max.flow | 2L/min+＞15L/min |
| Net Weight | 51Kgs (112.4lb) |
| Gross Weight | 61Kgs (134.5lb) |
| Dimension | 77cm x 48cm x 43cm (30.3" x 19" x 17.7") |
| Package Dimension | 88cm x 58cm x 61cm (34.6" x 23" x 24") |
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.

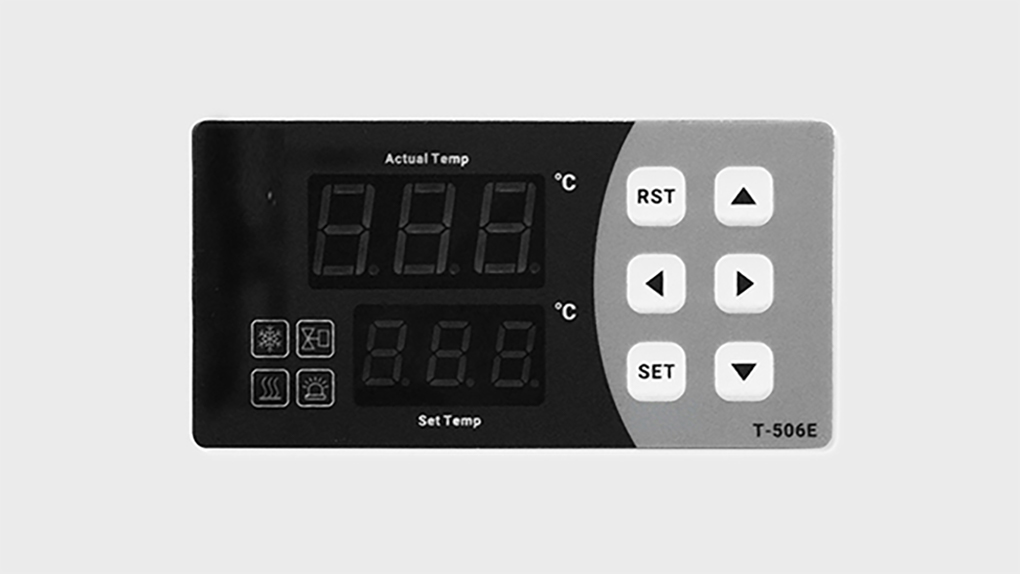

Dual temperature control
Two intelligent temperature controllers are installed. One is for controlling the temperature of the fiber laser and the other is for controlling the optics.

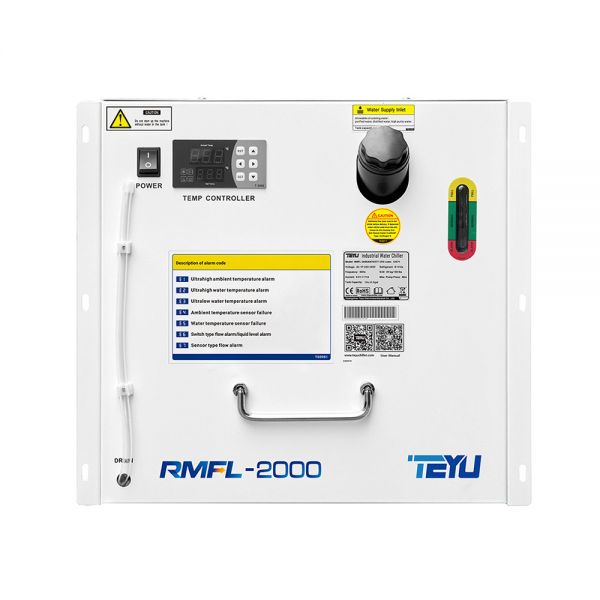

Front mounted water fill port and drain port
The water fill port and drain port are mounted in the front for easy water filling and draining.
Integrated front handles
The front-mounted handles help move the chiller very easily.

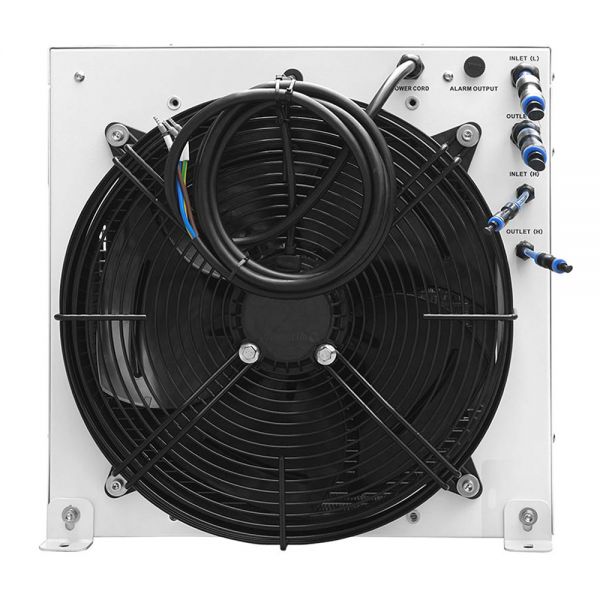

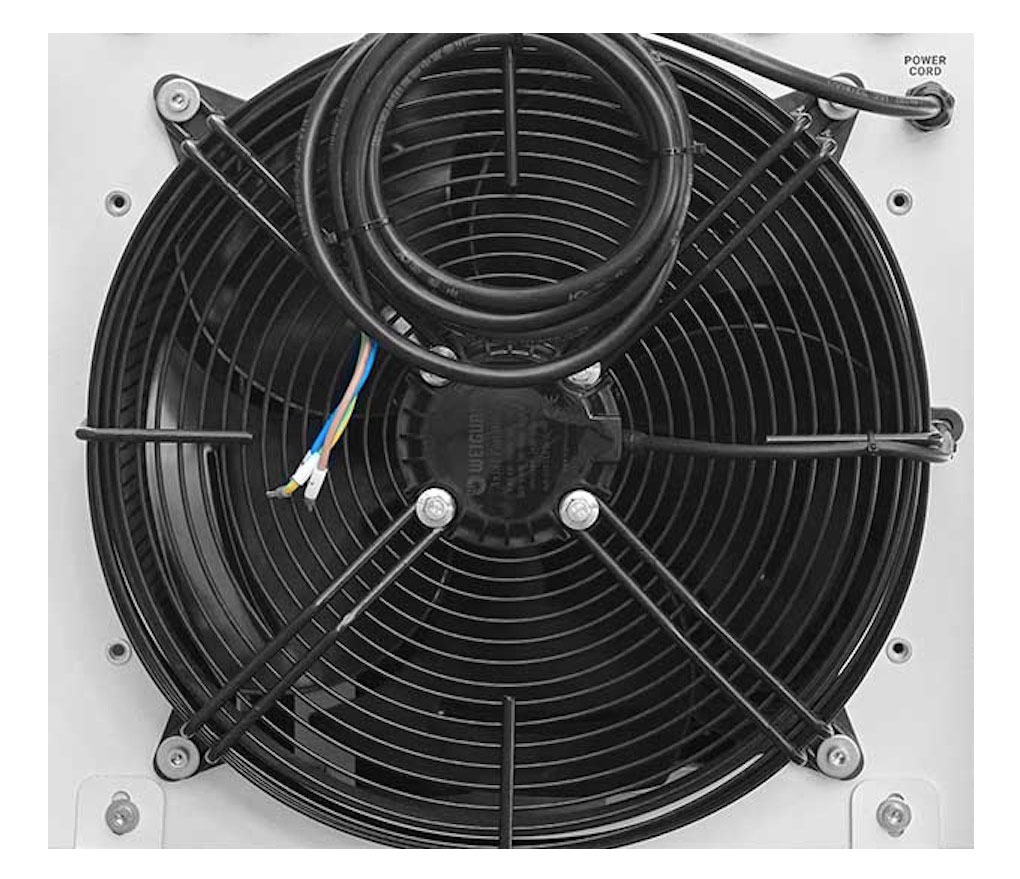

Cooling fan of famous brand installed.
With high quality and low failure rate.
