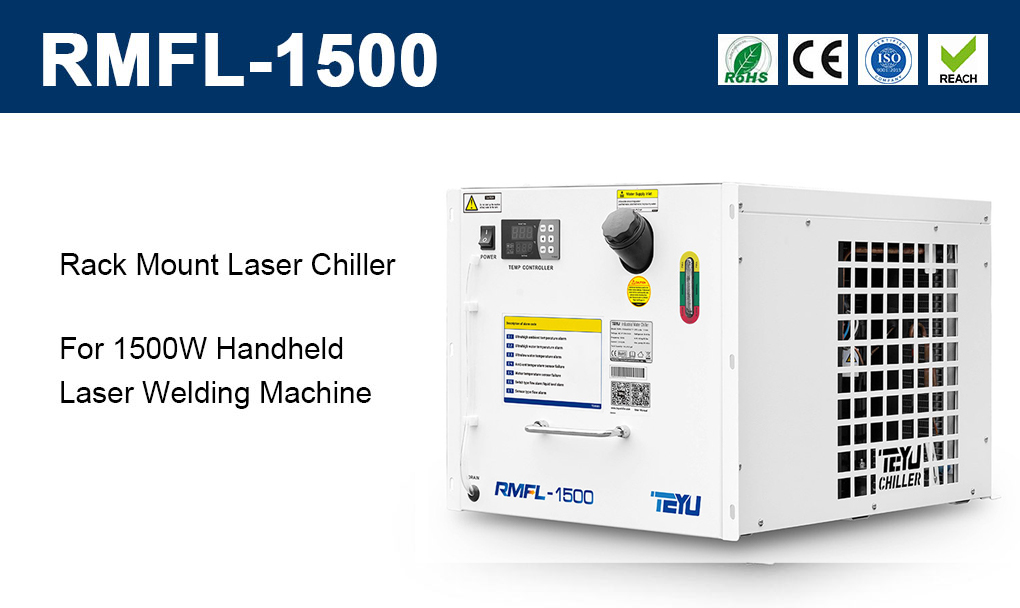

S&A Rack Mount Chiller RMFL-1500 for 1500W Handheld Laser Welding Machine (1.48HP AC 1P 220V 50HZ)
Precio unitario
MXN 16.121,00
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 16.121,00
Costo total
MXN 16.121,00
Cantidad
/unidad
1
S&A Rack Mount Chiller RMFL-1500 for 1500W Handheld Laser Welding Machine (1.48HP AC 1P 220V 50HZ)
Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.
Rack mount chiller RMFL-1500 is designed for cooling 1.5KW handheld laser welding machine and mountable in a 19-inch rack. Because of the rack mount design, this compact air cooled chiller allows stacking of related device, indicating a high level of flexibility and mobility. Temperature stability is ±0.5°C while the temperature control range is 5°C to 35°C. This refrigerated recirculating chiller comes with a high performance water pump. Water fill port and drain port are mounted on the front together with a thoughtful water level check.
Features
1. Rack mount design

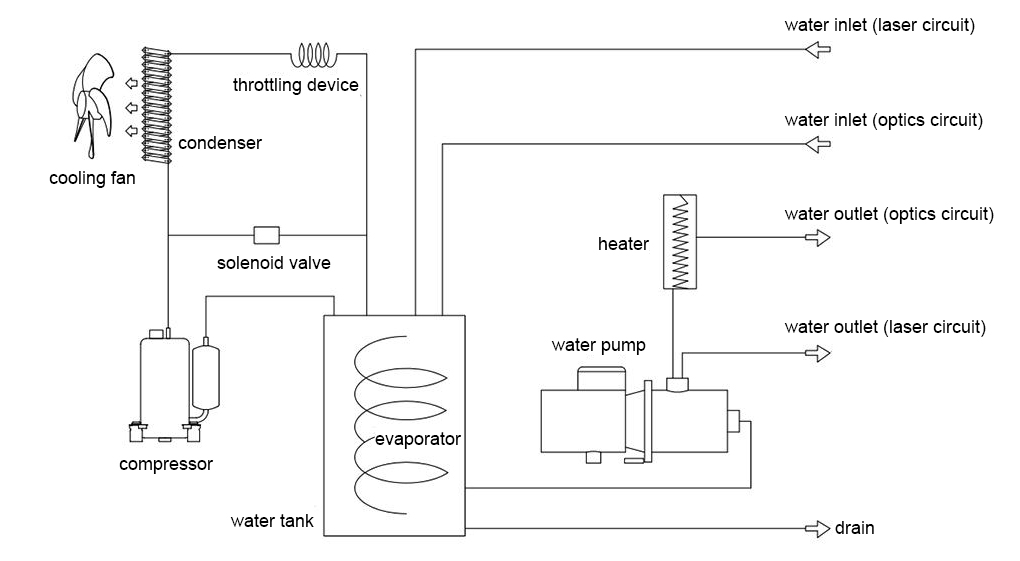

2. Dual cooling circuit
3. Active cooling
4. Temperature stability: ±0.5°C
5. Temperature control range: 5°C ~35°C
6. Refrigerant: R-410a
7. Intelligent digital control panel
8. Integrated alarm functions
9. Front mounted water fill port and drain port
10. Integrated front handles
11. High level of flexibility and mobility
| Specification | |
| Model | RMFL-1500ANT03TY |
| Voltage | 1P 220-240V, 50Hz |
| Current | 0.9~6.5A |
| Machine powe | 1.33kW |
| Compressor power | 1.1kW |
| 1.48HP | |
| Refrigerant | R-410a |
| Precision | ±0.5℃ |
| Reducer | Capillary |
| Pump power | 0.13kW |
| Tank Capacity | 16L |
| Inlet and Outlet | Φ6+Φ12 Fast connector |
| Max.lift | 40M |
| Max.flow | 2L/min+＞10L/min |
| Net Weight | 45Kg(99.2lb) |
| Gross Weight | 56Kg(123.5lb) |
| Dimension | 30" x 19" x 17" (76 x 48 x 43cm) |
| Package Dimension | 38.2" x 22.8" x 24" (88 x 58 x 61cm) |
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.

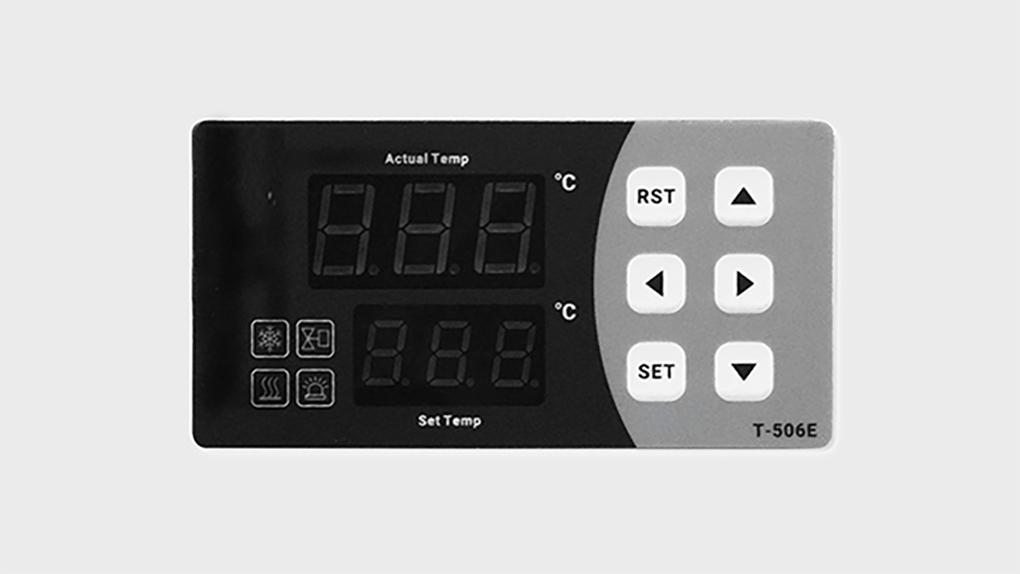

Dual temperature control
Intelligent temperature controller. Controlling the temperature of the fiber laser and optics at the same time.

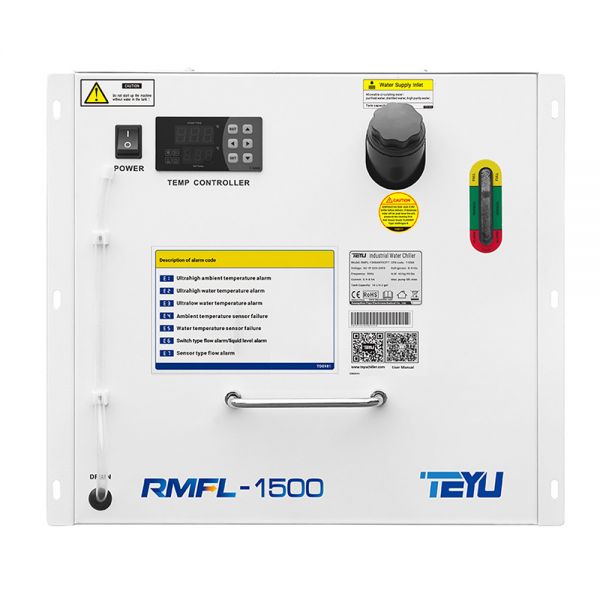

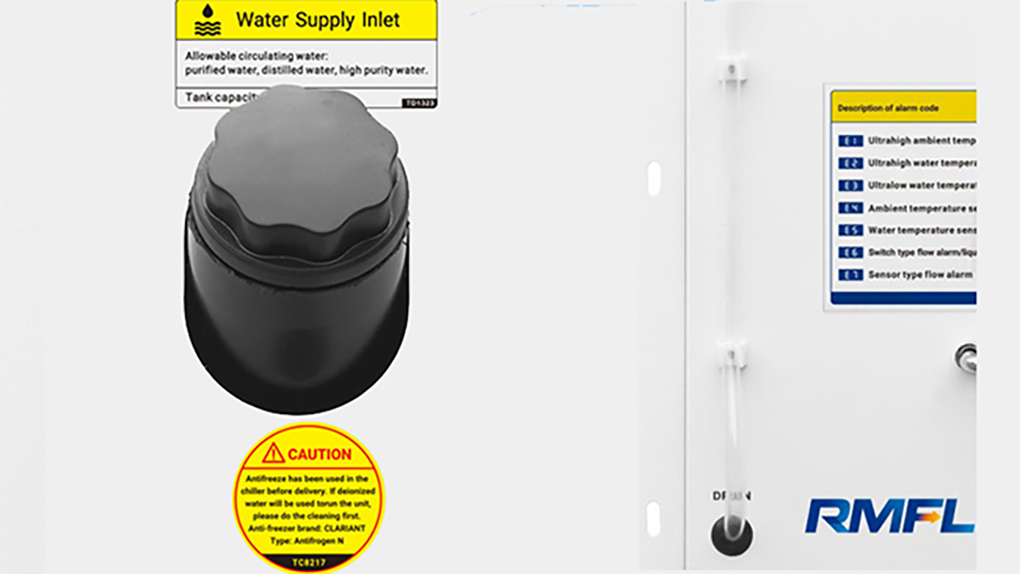

Front mounted water fill port and drain port
The water fill port and drain port are mounted in the front for easy water filling and draining.

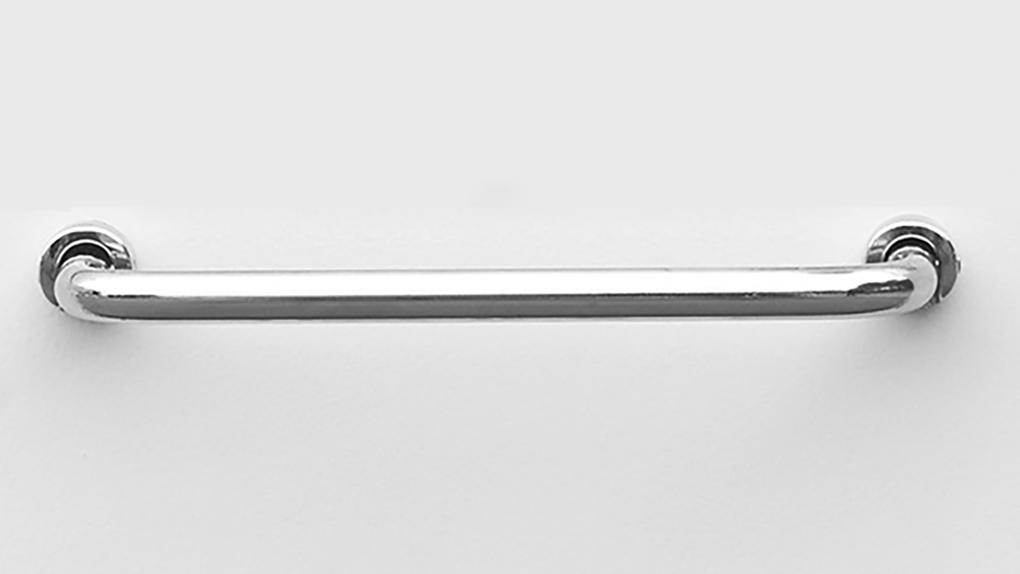

Integrated front handles
The front-mounted handles help move the chiller very easily.
