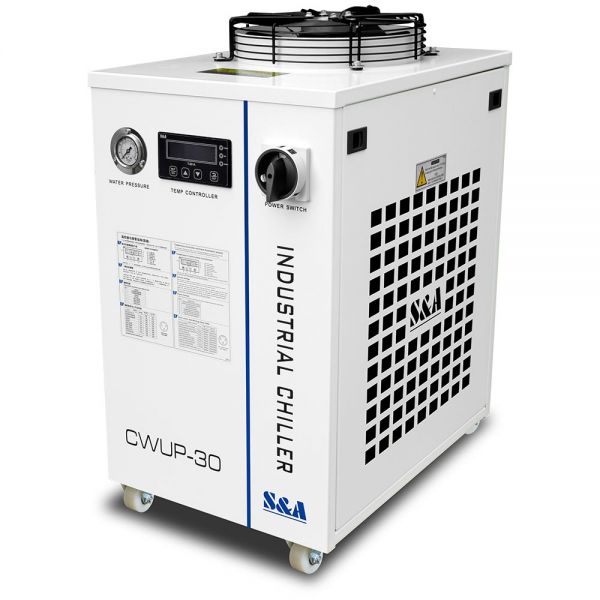

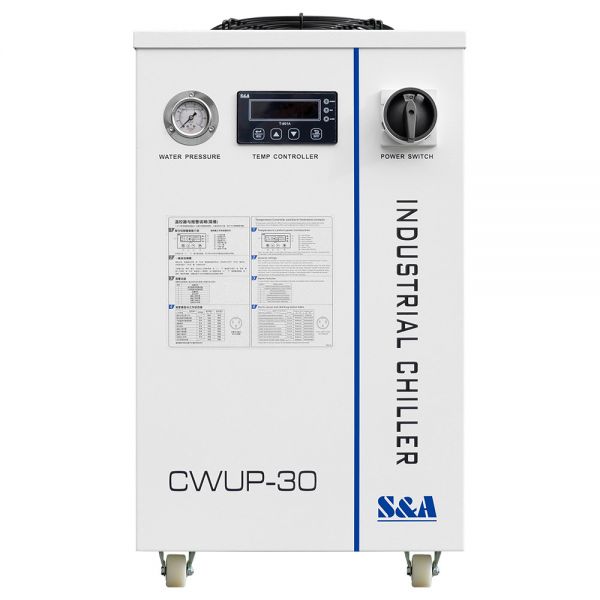

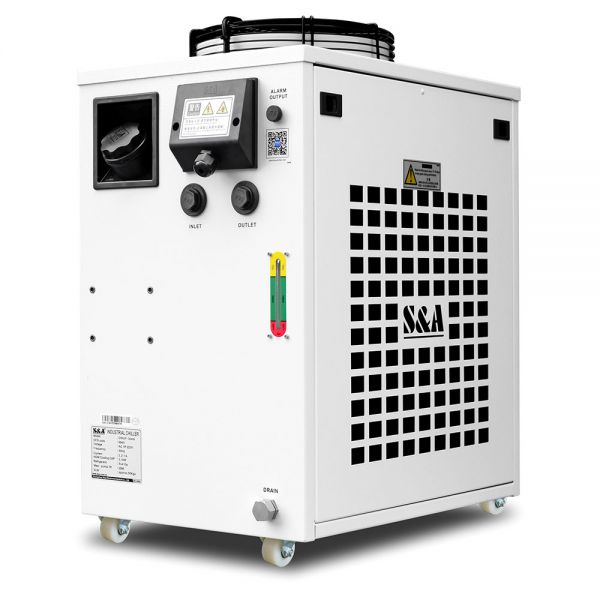

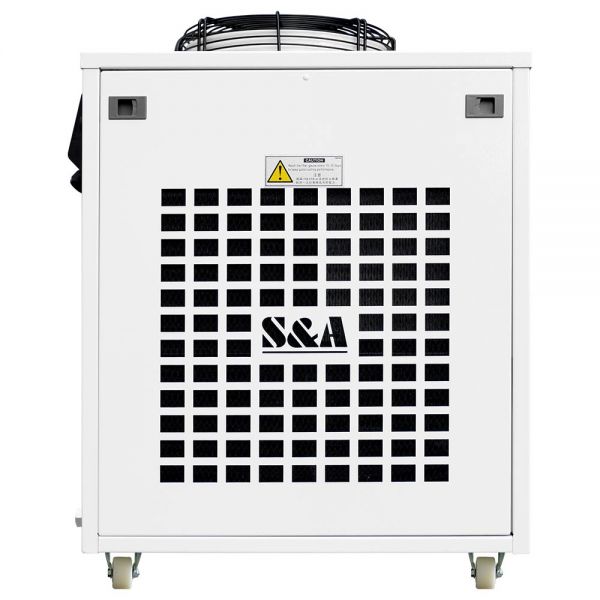

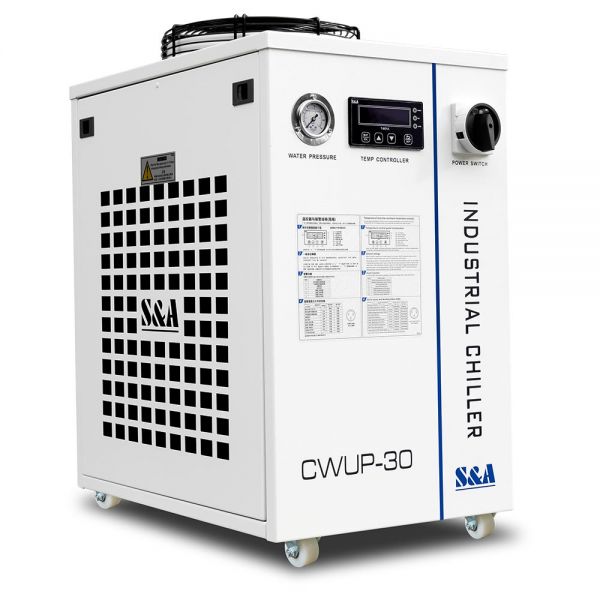

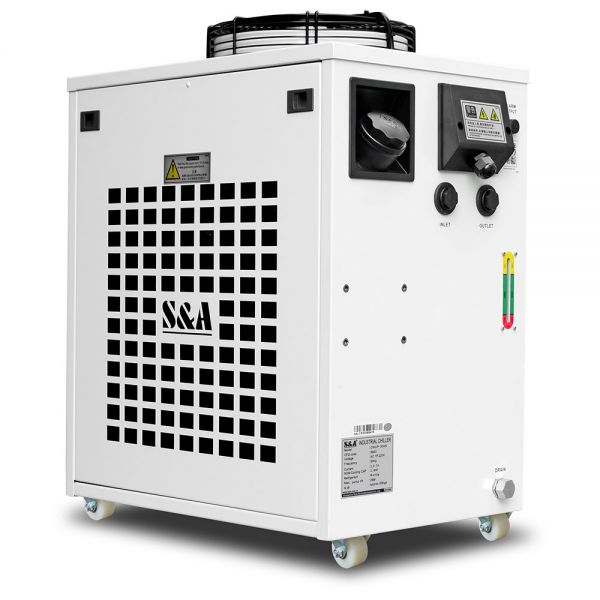

Laser Chiller CWUP-30 For 30W Solid State Ultrafast Laser
Portable water chiller unit CWUP-30 with ±0.1℃ temperature stability is developed and manufactured by S&A to meet the market demand. Featuring ultra-precise temperature control and compact design, water chiller machine CWUP-30 breaks the domination of oversea manufacturers on ±0.1℃ laser cooling technique and better serves the domestic solid state ultrafast laser market.
Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.
Features:
1. Cooling capacity of 3.27KW; With environmental refrigerant;
2. Compact size, long working life and simple operation;
3. ±0.1℃ precise temperature control;
4. The temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. CE approval; RoHS approval; REACH approval;
7. Optional heater and water filter.
| Specification | |
| Model | CWUP-30ANTY |
| Voltage | AC 1P 220V 50Hz |
| Current |
2.3~9A
|
| Power consumption |
1.9KW
|
| Compressor power | 0.87kW |
|
1.17HP
|
|
| Nominal cooling capacity | 8188Btu/h |
| 2.4kW | |
| 2063Kcal/h | |
| Refrigerant charge | 550g |
| Pump power | 0.37KW |
| Max. Pump pressure | 2.7bar |
| Pump flow | 75L/min |
| Refrigerant | R-410a |
| Precision | ±0.1℃ |
| Reducer | Capillary |
| Tank capacity | 10L |
| Inlet and outlet | Rp1/2" |
| N.W | 52Kgs(114.6lb) |
| G.W | 58Kgs(127.9lb) |
| Dimension | 590 x 380 x 740mm (23.2" x 15" x 29") |
| Package dimension | 660 x 480 x 920mm (26" x 19" x 36.2") |
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.
Independent production of sheet metal, evaporator and condenser
Adopt IPG fiber laser for welding and cutting sheet metal.
Temperature control accuracy can reach ±0.1°C.

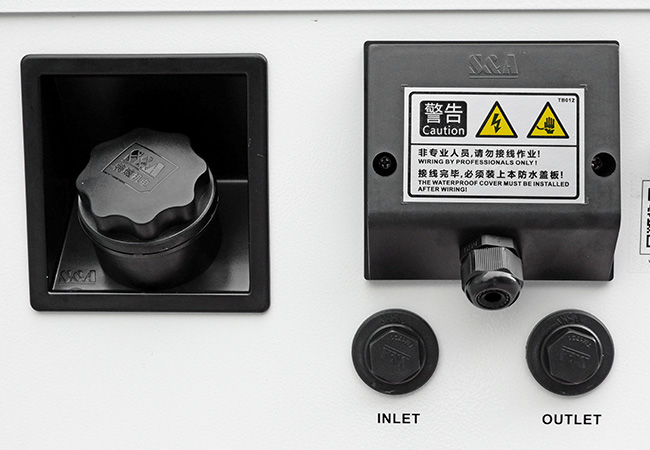

Inlet and outlet connector equipped
Multiple alarm protection.
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

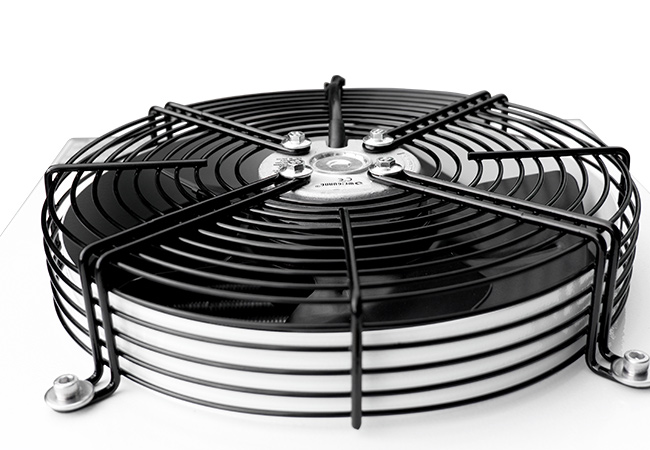

Cooling fan of famous brand installed.

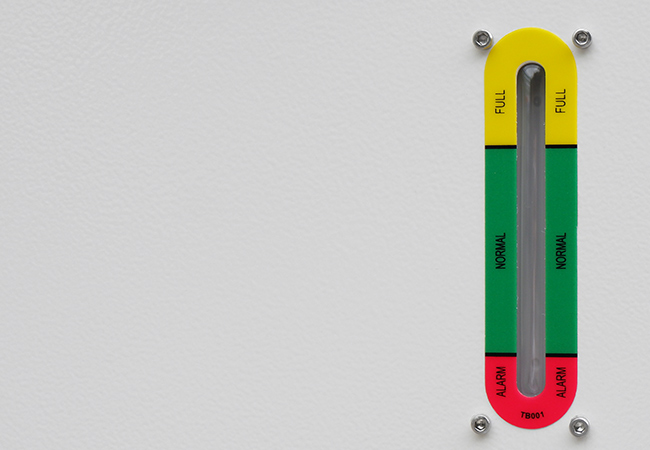

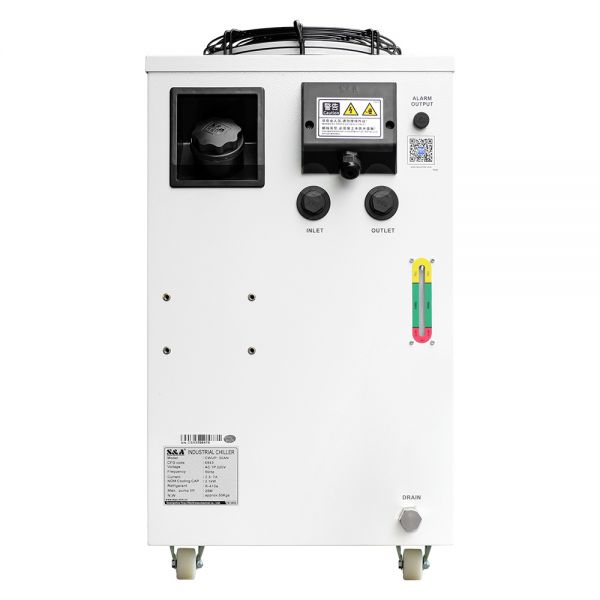

Level gauge equipped.
Cooling fan with high quality and low failure rate.

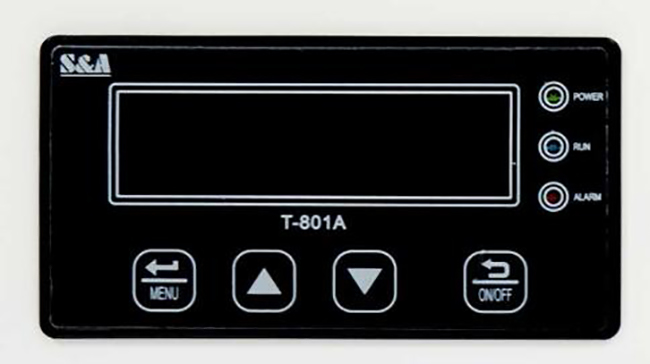

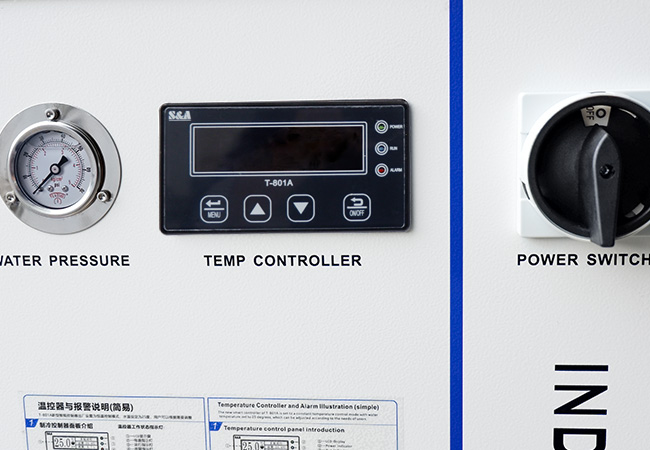

The intelligent temperature controller does not need to adjust the controlling parameters under normal circumstance. It will self-adjust controlling parameters according to room temperature for meeting equipment cooling requirements.
User also can adjust the water temperature as needed.

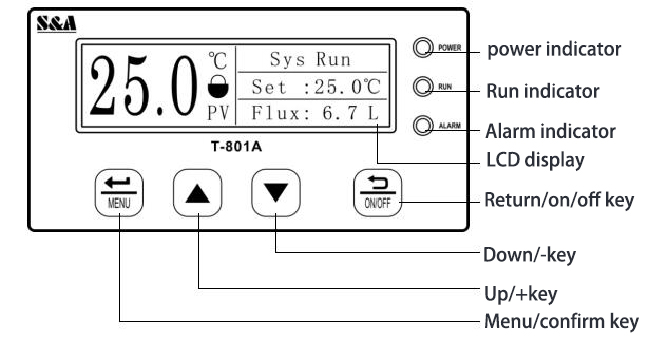

Temperature controller panel description：
In order to guarantee the equipment will not be affected while abnormal situation happens on the chiller, CWUP series chillers are designed with alarm protection function.

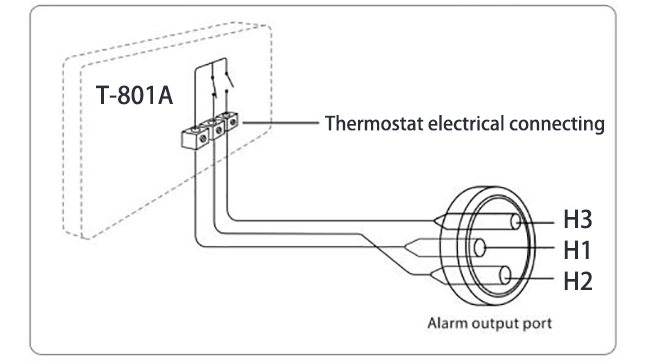

1. Alarm output terminals and wiring diagram.

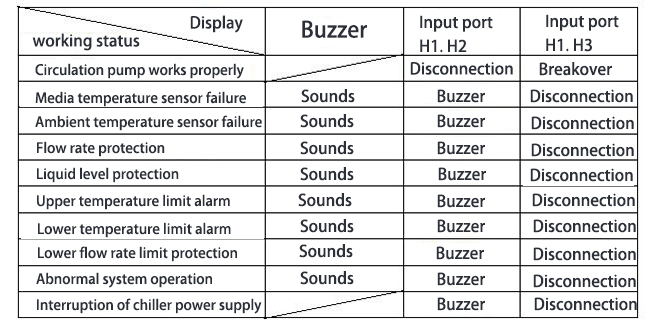

2. Alarm causes and working status table.
Note: The flow alarm is connected to the normally open relay and normally closed relay contacts, requiring operating current less than 3A, working voltage less than 300V.
