S&A 5300AH Industrial Water Chiller for 150W CO2 Cutting Machine, AC 1P 220-240V 50Hz
Precio unitario
MXN 19.398,00
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 19.398,00
Costo total
MXN 19.398,00
Cantidad
/unidad
1

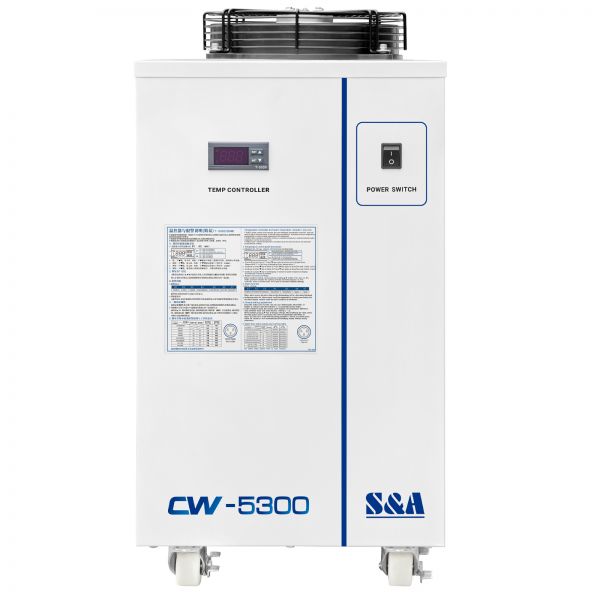

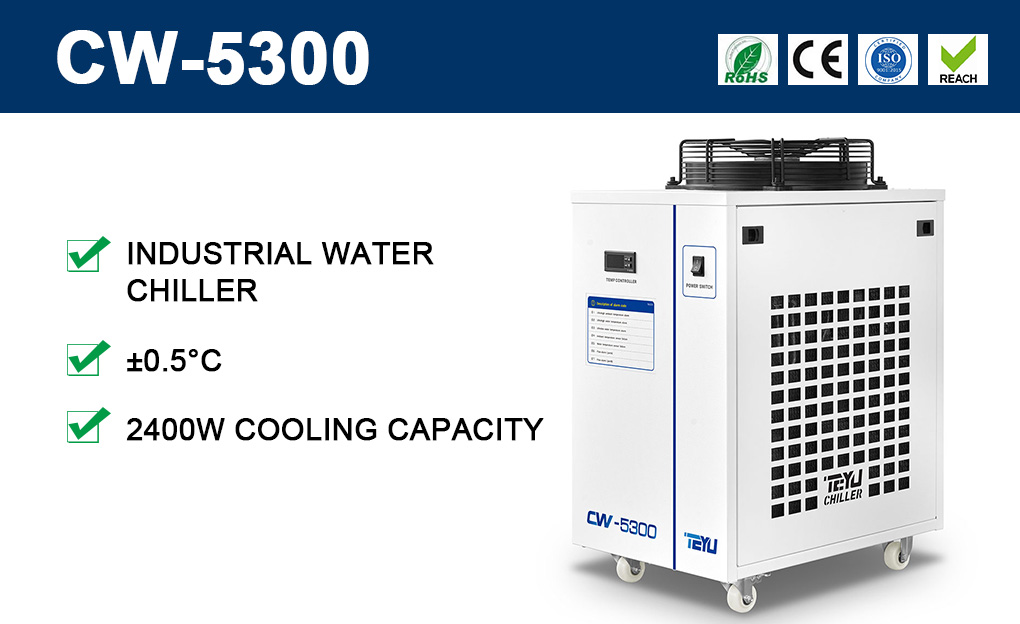

S&A CW-5300 series is high-precision compression refrigeration small water chiller,with intelligent temperature control,completed configuration,perfect protection and alarm system. S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.
• 2400W cooling capacity; optional environmental refrigerant;
• ±0.5°C precisely temperature control;
• The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
• Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
• Multiple power specifications; CE approval; RoHS approval;
• Long working life and simple operation;
• Optional heater and water filter;
• High-precision compression refrigeration water chiller, with intelligent temperature control, completed configuration, perfect protection and alarm system.
|
Model |
CW-5300AHTY |
|
Power Supply |
AC 1P 220~240V, 50Hz |
|
Current |
0.5~5.2A |
|
Machine power |
1.08kW |
|
Compressor Power |
0.94kW |
|
1.26HP |
|
|
Refrigerating Capacity |
8188Btu/h |
|
2.4kW |
|
|
2063Kcal/h |
|
|
Refrigerant |
R-410A |
|
Refrigerant Charge |
610g |
|
Precision |
±0.5℃ |
|
Tank Capacity |
10L |
|
Reducer |
Capillary |
|
Protection |
Over current protection for compressor, flow alarm, over temperature alarm |
|
Pump Power |
0.05KW |
|
Maximum Flow |
13L / min |
|
Pump pressure |
1.2bar |
|
Inlet and Outlet |
Rp1/2" |
|
Net Weight |
37Kgs(81.6lb) |
|
Gross Weight |
46Kgs(101.4lb) |
|
Product Dimension |
23.2" x 15" x 29" (590 x 380 x 740mm) |
|
Package Dimension |
26" x 19" x 36.2" (66 x 48 x 92cm) |

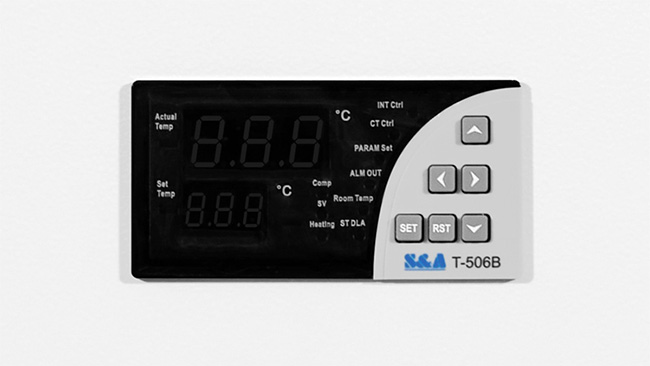

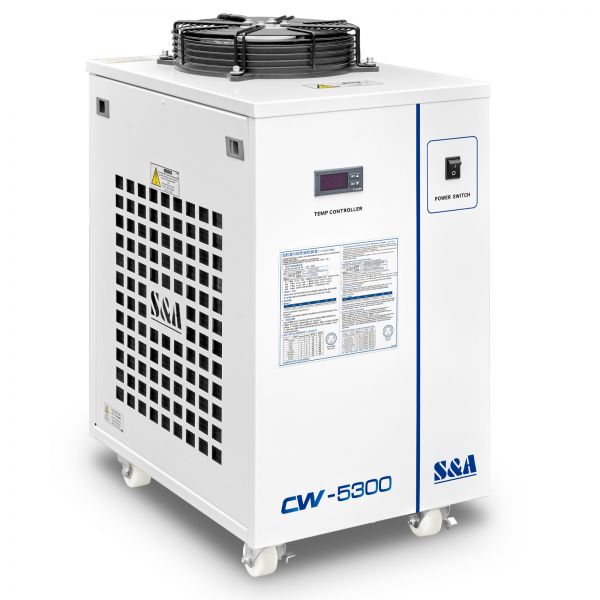

The temperature controller offers high precision temperature control of ±0.3°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

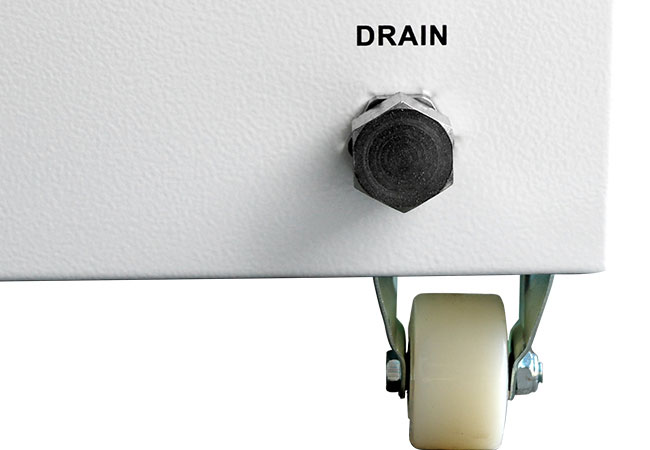

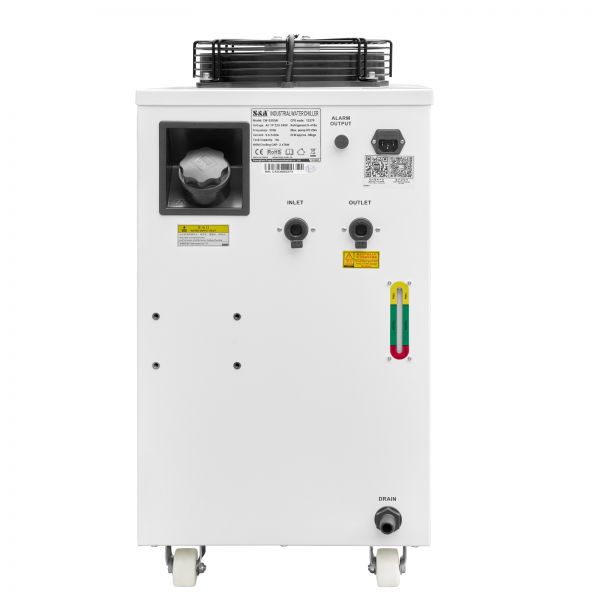

Water pressure gauges help monitor the discharge pressure of water pump while univeral wheels facilitate the moving of the chiller.

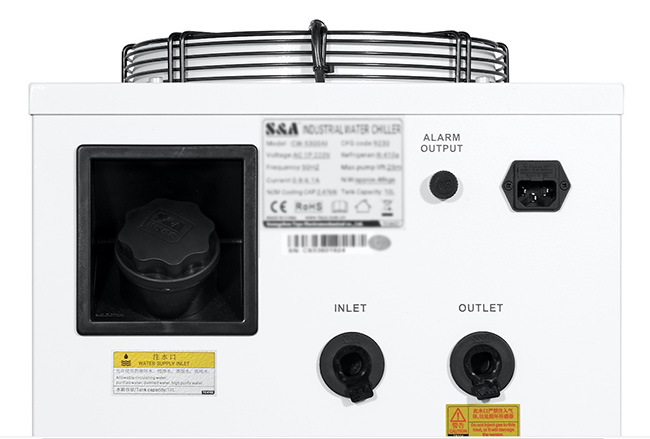

The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

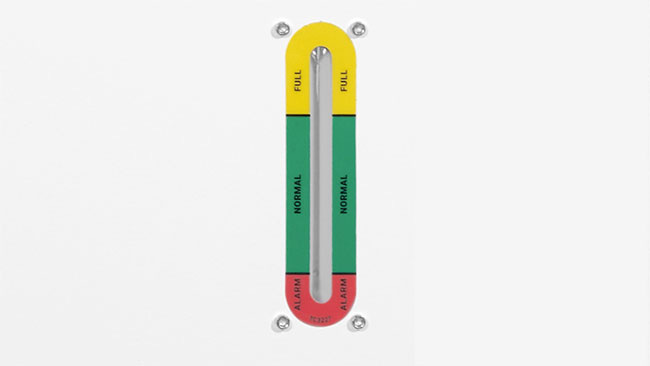

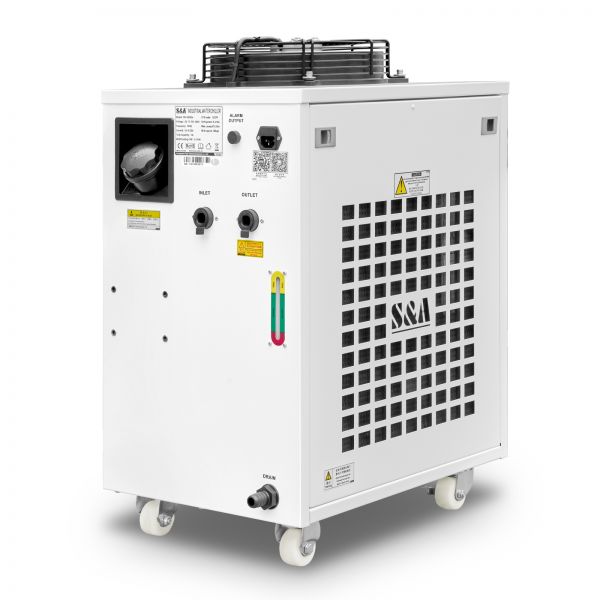

The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

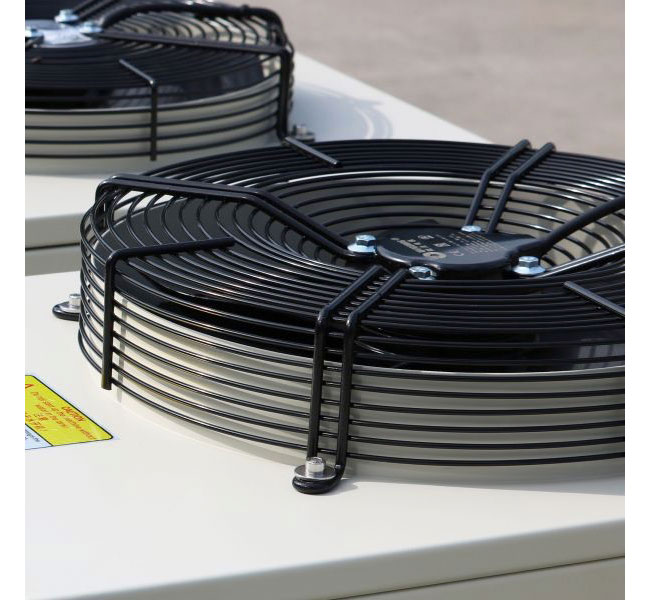

Cooling fan of famous brand installed.
Adopt SAN JU cooling fan with high quality and low failure rate.

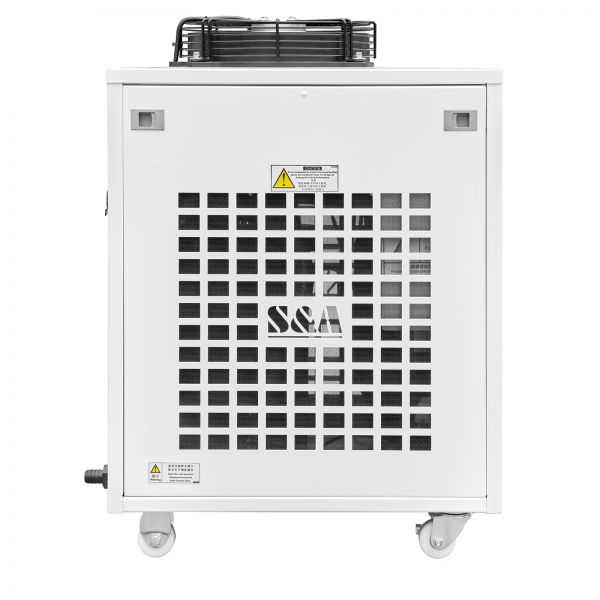

Customized dust gauze available and easy to take apart.
Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.
Note: The Water Chiller is ordering production, need 3 to 5 days of stock up time.
