RMUP-300AH 4U Rack Mount Water Chiller for 3W-5W UV Laser Ultrafast Laser
Precio unitario
MXN 22.693,00
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 22.693,00
Costo total
MXN 22.693,00
Cantidad
/unidad
1
RMUP-300AH 4U Rack Mount Water Chiller for 3W-5W UV Laser Ultrafast Laser
Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.
TEYU rack mount water chiller RMUP-300 is only 4U tall and ideally suited for 3W-5W UV laser and ultrafast laser. It delivers extremely precise cooling of ±0.1°C stability with PID control technology. RMUP-300 water chiller can satisfy your demanding laser processes.
Rack mount water chiller RMUP-300 incorporates standard features like highly durable water pump, high performance cooling fan and integrated front handles which allow for easy mobility. The water fill port and drain port are mounted in the front, which is very convenient to use. The refrigerant used complies with environmental standards. Small, lightweight, ultra-precise, space-saving, mini dimension for superior performance, RMUP-300 water chiller can realize all your imagination of a small laser cooling unit.
1. With environmental refrigerant.
2. Rack mount design, long working life and simple operation.
3. ±0.1℃ precise temperature control.
4. Equipped with RS485 Modbus RTU protocol
5. 12 types of alarm codes
6. Intelligent detection functions such as water level, flow rate and water temperature
7. Heating of the coolant water at low ambient temperature
8. Toolless maintenance of dustproof filter screen
9. CE approval; RoHS approval; REACH approval
THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.
| Model | CW-RMUP-300AH |
| Voltage | AC 1P 220-240V |
| Frequency | 50Hz |
| Current | 0.5~5A |
| Max. power consumption | 0.84KW |
| Compressor power | 0.21KW |
| 0.29HP | |
| Nominal cooling capacity | 1296Btu/h |
| 0.38kW | |
| 326Kcal/h | |
| Pump power | 0.05KW |
| Max. Pump pressure | 1.2bar |
| Max. pump flow | 13L/min |
| N.W | 19Kg (50.7lb) |
| G.W | 21Kg (50.7lb) |
| Refrigerant | R-134a |
| Precision | ±0.1℃ |
| Reducer | Capillary |
| Tank capacity | 3L |
| Inlet and outlet | Rp1/2" |
| Dimension | 19.3" x 18.9" x 7.1" (490 x 480 x 180mm) |
| Package dimension | 23" x 21" x 10.2" (590 x 530 x 260mm) |

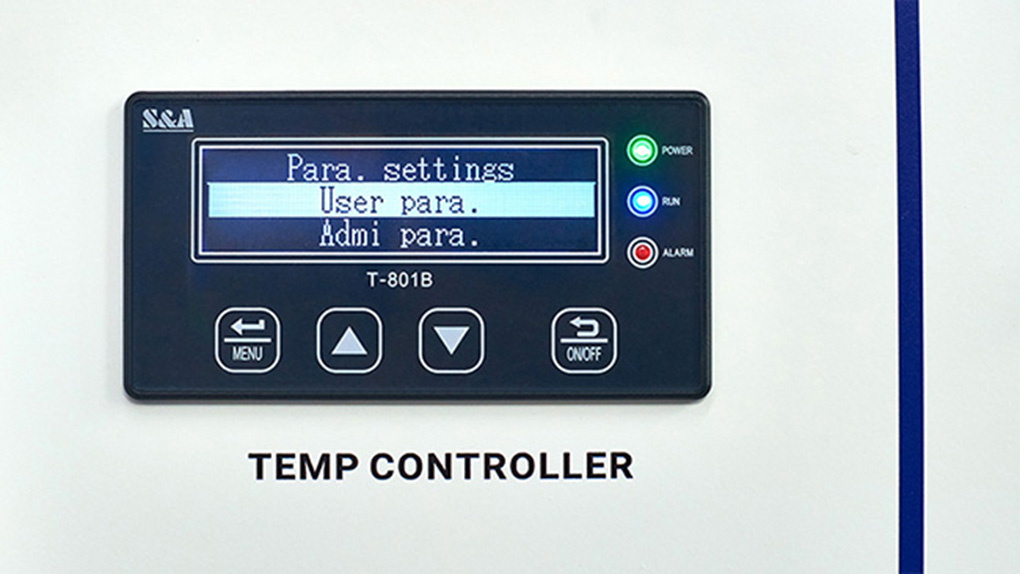

Digital temperature controller
The T-801B temperature controller offers high precision temperature control of ±0.1°C.

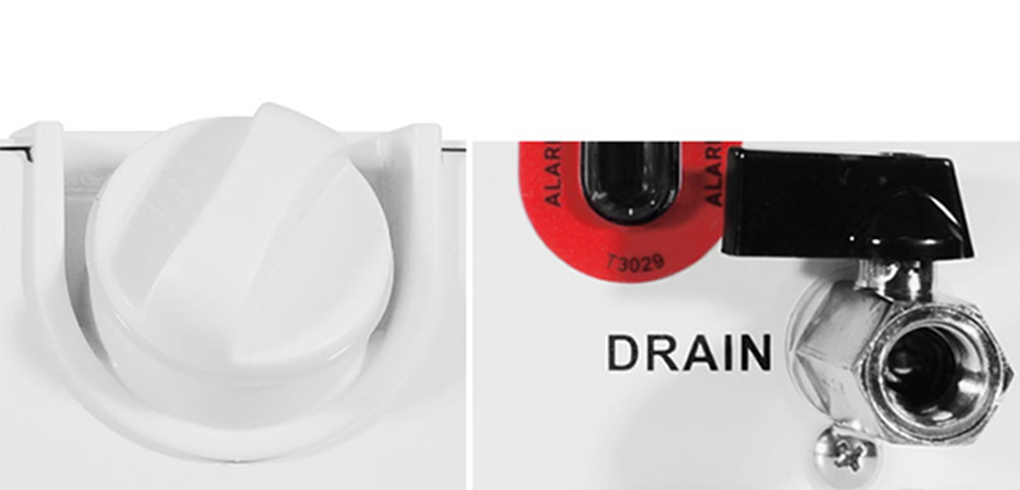

Front mounted water fill port and drain port
The water fill port and drain port are mounted in the front for easy water filling and draining.

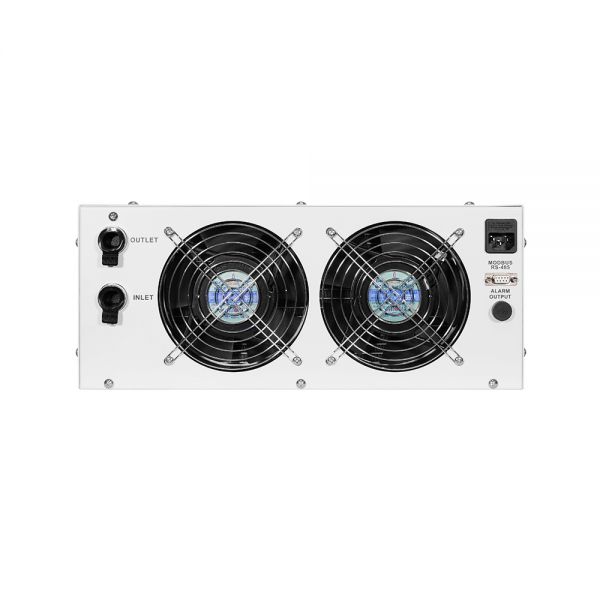

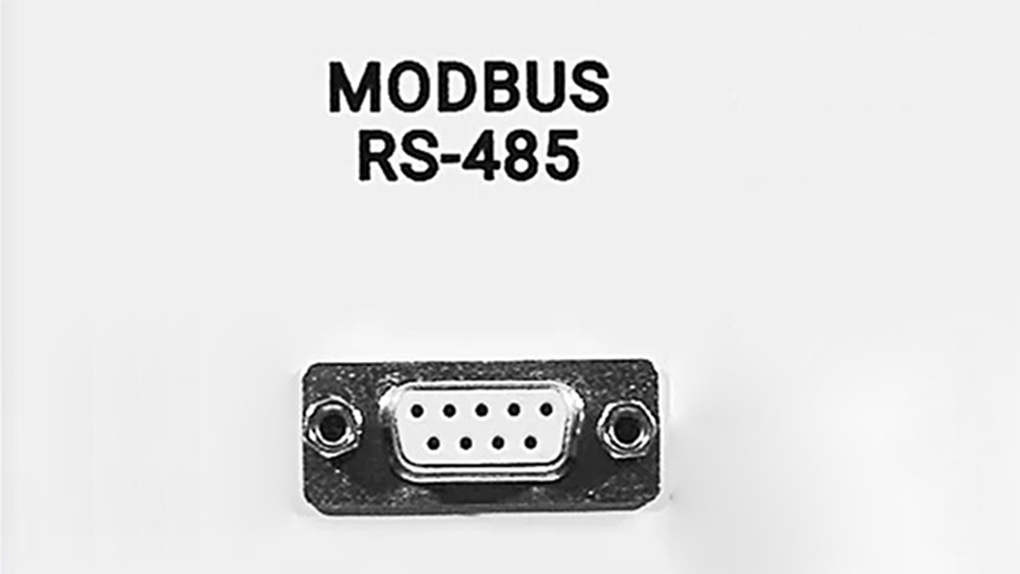

Modbus RS485 communication port
The RS485 communication port enables communication with the laser system.

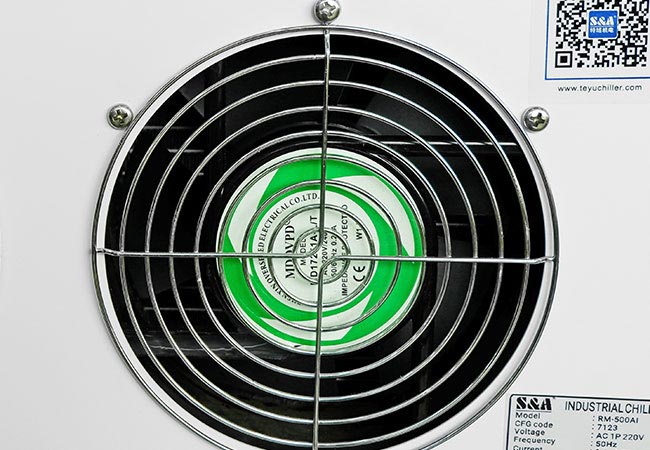

Cooling fan of famous brand installed.
With high quality and low failure rate.

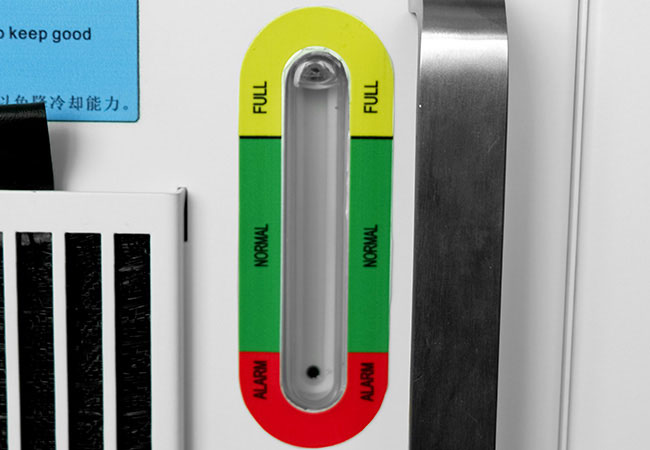

Ease of draining waterLevel gauge equipped.
