Reinforced Purpose 2-Edge Milling Cutter AlCr Coating
DPEX2-01
Precio unitario
MXN 527,00
/pc
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 527,00
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
MXN 527,00
Cantidad
/pc
1
Reinforced Purpose 2-Edge Milling Cutter AlCr Coating
Unequal tooth pitch, suitable for high and medium speed machining of alloy steel, die steel and pre hardened steel below HRC50 degrees. It has higher accuracy and service life than the general model.
Material: Cemented Carbide(Tungsten Steel)
Coating: AlCr-based Coatings
Suitable for CNC Machining Centers, CNC Milling Machines, Not suitable for low-speed machines such as bench drills and hand drills.
Applicable Machining Range: Cast Iron, Carbon Steel, Stainless Steel, Alloy Steel.
Features:
1. The milling cutter is made of high-quality tungsten steel material, with high wear resistance and good corrosion resistance.
2. The milling cutter has an AlCr coating, which provides high temperature and wear resistance, reducing the need for tool changes and increasing its service life.
3. Sharp double-edged, anti-vibration design, improving cutting of the cutting efficiency of the tool.
Remark: Please Choose the Model when ordering.

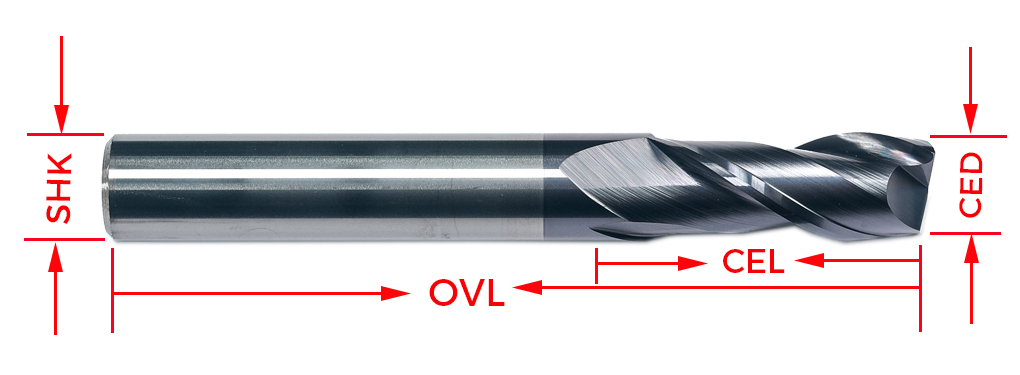

| Model | CED(mm) | CEL(mm) | SHK(mm) | OVL(mm) |
| DPEX2-01 | 1 | 3 | 4 | 50 |
| DPEX2-015 | 1.5 | 4 | 4 | 50 |
| DPEX2-02 | 2 | 6 | 4 | 50 |
| DPEX2-025 | 2.5 | 8 | 4 | 50 |
| DPEX2-03 | 3 | 8 | 4 | 50 |
| DPEX2-04 | 4 | 12 | 4 | 50 |
| DPEX2-04A | 4 | 15 | 4 | 75 |
| DPEX2-04B | 4 | 20 | 4 | 100 |
| DPEX2-05T | 5 | 13 | 5 | 50 |
| DPEX2-05 | 5 | 13 | 6 | 50 |
| DPEX2-06 | 6 | 16 | 6 | 50 |
| DPEX2-06A | 6 | 20 | 6 | 75 |
| DPEX2-06B | 6 | 30 | 6 | 100 |
| DPEX2-06C | 6 | 35 | 6 | 150 |
| DPEX2-08 | 8 | 20 | 8 | 60 |
| DPEX2-08A | 8 | 25 | 8 | 75 |
| DPEX2-08B | 8 | 35 | 8 | 100 |
| DPEX2-08C | 8 | 40 | 8 | 150 |
| DPEX2-10 | 10 | 25 | 10 | 75 |
| DPEX2-10B | 10 | 40 | 10 | 100 |
| DPEX2-10C | 10 | 55 | 10 | 150 |
| DPEX2-12 | 12 | 30 | 12 | 75 |
| DPEX2-12B | 12 | 45 | 12 | 100 |
| DPEX2-12C | 12 | 60 | 12 | 150 |
| DPEX2-14 | 14 | 45 | 14 | 100 |
| DPEX2-14C | 14 | 60 | 14 | 150 |
| DPEX2-16 | 16 | 45 | 16 | 100 |
| DPEX2-16C | 16 | 70 | 16 | 150 |
| DPEX2-18 | 18 | 45 | 18 | 100 |
| DPEX2-18C | 18 | 70 | 18 | 150 |
| DPEX2-20 | 20 | 45 | 20 | 100 |
| DPEX2-20C | 20 | 70 | 20 | 150 |
