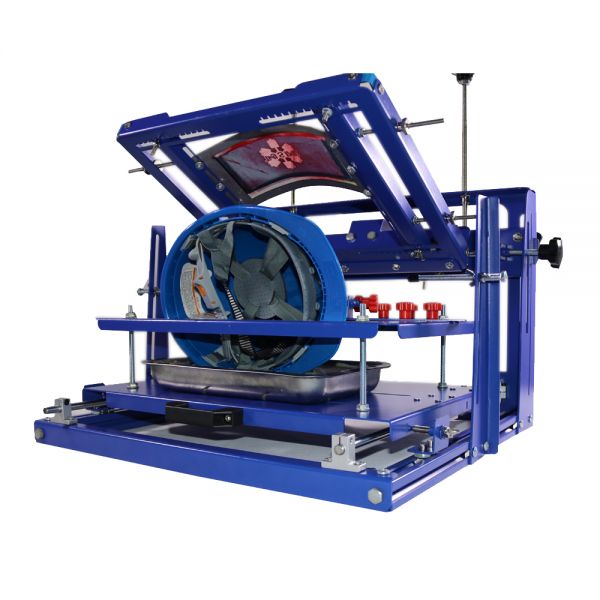

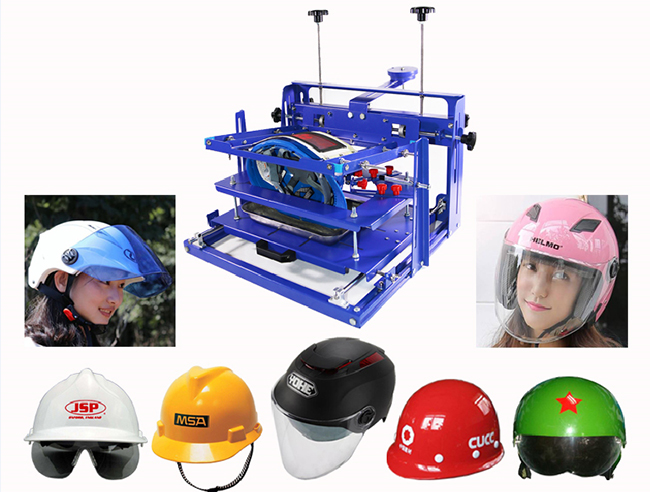

One Color Safety Helmet Hard Material Hat Screen Printing Machine
Advantage:

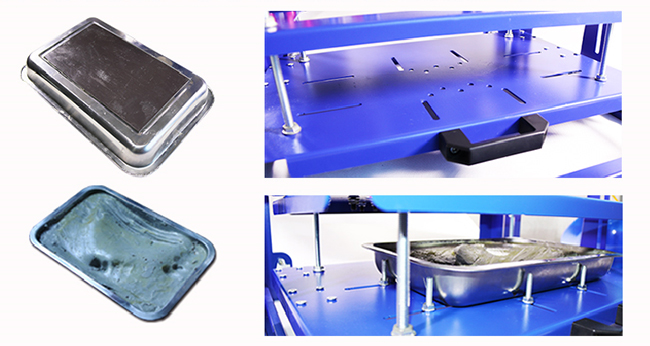

1.Positioning of the bottom of the hat: the bottom of the hat shall be positioned in an all-round way by the shaping resin to ensure the stability of the bottom of the hat; Any material, any shape of the hat can be accurately positioned.
Functions:
1.The bottom of the machine and the positioning platform can be moved back and forth, and a drag positioning device is set; Pull the platform out before putting the hat and push into the machine after the hat put into . Pulling out and pushing in can be accurately positioned by positioning ball screws on both sides of the platform.

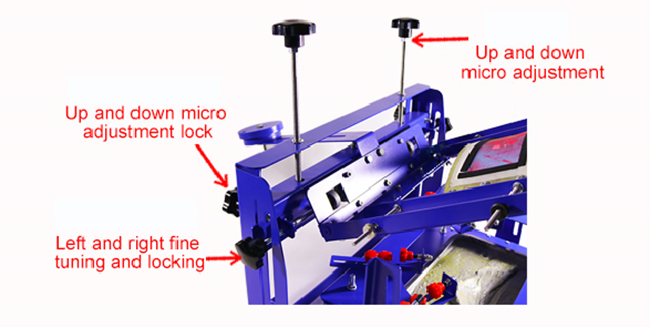

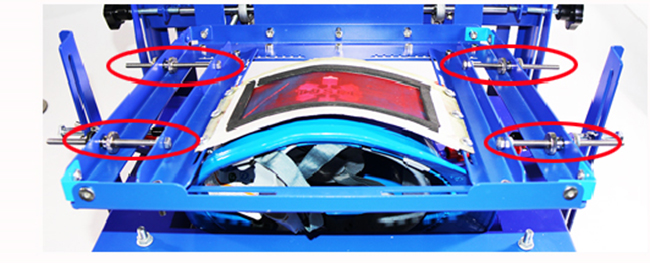

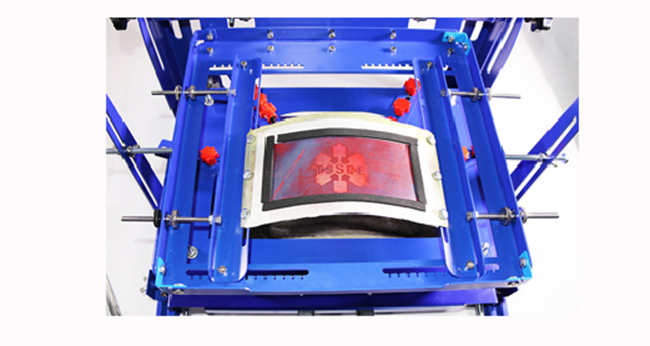

4.The machine adopts 0.04""/1 mm stainless steel plate, the screen frame directly fixed on both sides of the frame beam; Screen plate can move 5""/130mm front and rear; Screen plate installation beam can finished by adjusting the screen radian by hand screw; After adjusting to the same radian as the printing surface, lock the screws at both ends of the two beams.

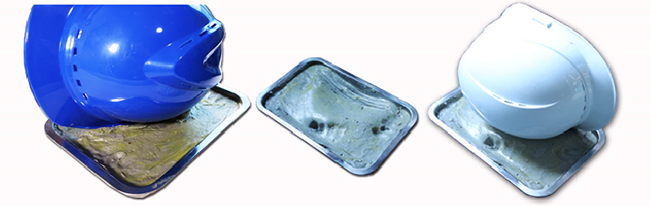

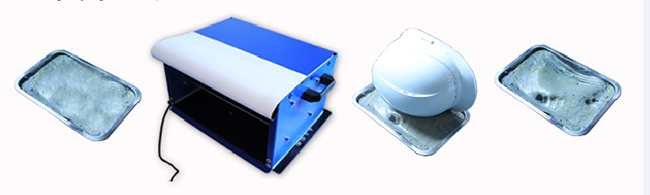

5.The shaping resin has the characteristics of softening by heating and hardening by cooling; After heating to 60-100 degrees Celsius, the resin softens , place and press the bottom of the hat
into the resin; After the resin cools and hardens, remove the hat, leave the outer contour shape of the hat inside the resin, and complete the positioning of the bottom. This type of resin can be repeatedly heated and cooled (user can choose electric oven heating or high temperature hot air gun heating, also can use our company supporting SPE- arc screen special heating drying cabinet).
8.All parts of the machine are advanced electrostatic spraying surface treatment, corrosion resistance, acid and alkali resistance, cleaning resistance, long - term use without rust.
Usage methods and procedures (for reference only):
1.Heating the shaping resin until soft and put it on the lower platform of the machine; And push into the machine to position.
2.Install the screen frame with blank mesh on the frame rack.
3.Cover the bottom of the hat with teflon cloth and press it into the shaping resin, adjust the radian of the screen frame and the printing arc of the hat, and basically determine the position of the printing pattern on the screen.
4.Adjust the positioning position of the hat, and push the soft resin beside to the four sides of the hat by hand to strengthen and fix.

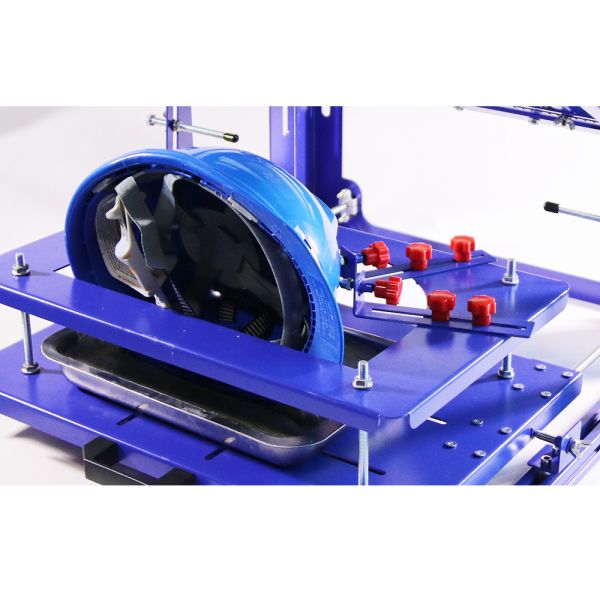

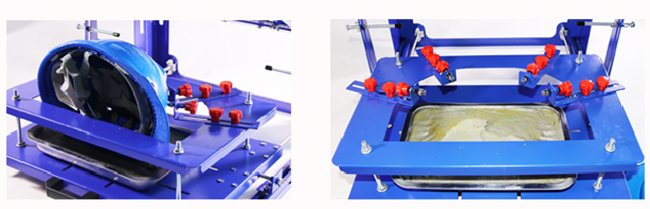

5.After the resin is cooled, hold the four positioning handles of the second-floor platform against the four fixing points in the lower part of the hat and lock them.
6.Take out the hat, take out the teflon cloth, the hat positioning is completed (special note: after the positioning is completed, do not move the positioning resin tray).
7.Take down the screen plate and make plate according to the position of the pattern.
8.In order to prevent ink overflow, screen plate around can be affixed with sealing strip.
9.Install the finished screen plate and adjust it to the appropriate position ,Install the fixed screws on both sides of the screen plate to lock and print.
Details:
Package:
Gross weight:77 lb /35 kg
Packing size:25.6 x 22.5 x 20.9 inch /65 x 57 x 53 cm

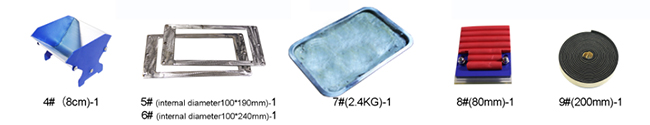

Configured with relevant tools and materials:
1.1 piece 3""/8 cm scoop coater
2. One for each of the two stainless steel cambered screen plates
3. Positioning resin 5.3lbs /2.4 kg
4.1 piece 3"" /8cm metal scraper (including rubber strip)
5.11.8"" x 11.8""/30 x 30 cm teflon cloth 1 sheet
6. 1 roll screen plate edge sealing tape
