M1210/M1613 126x96cm/166cmx130cm Flatbed UV Printer with Ricoh Gen6 Printheads
Maglev
Precio unitario
MXN 98.470,00
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 98.470,00
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
MXN 98.470,00
Cantidad
/set
1

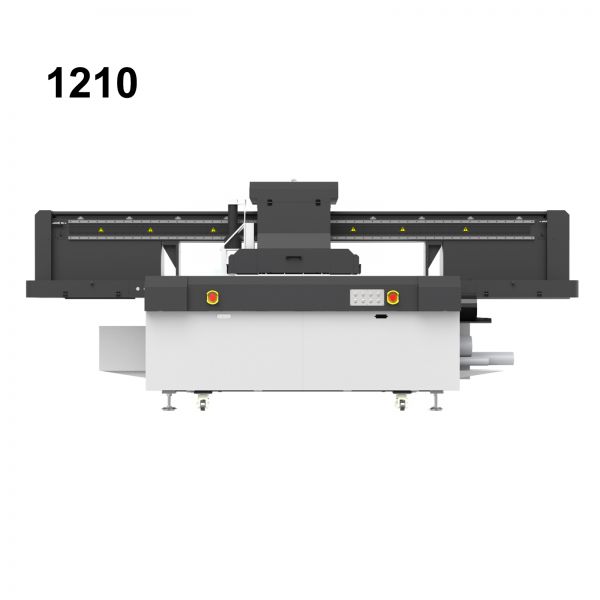

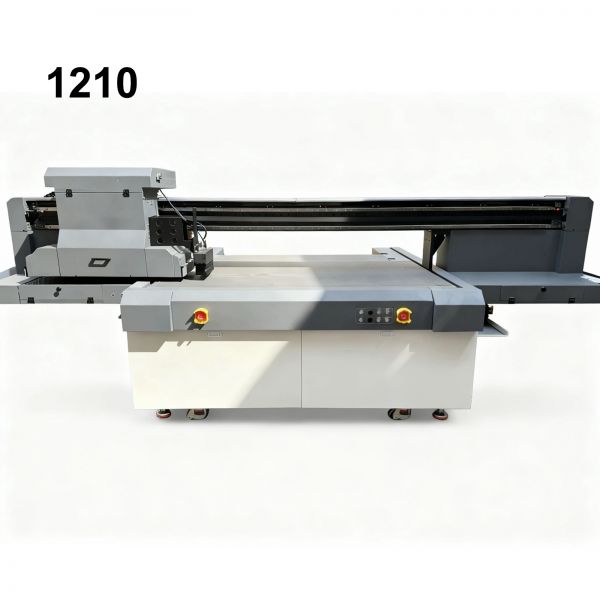

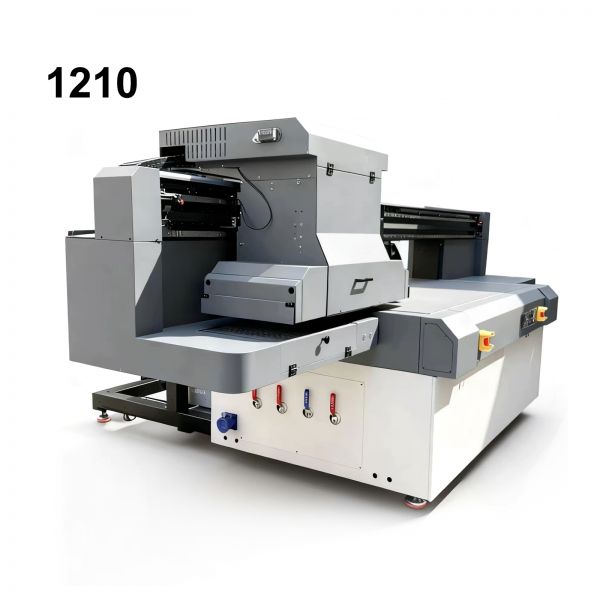

M1210/M1613 126x96cm/166cmx130cm Flatbed UV Printer
Specification:
| Model | M1210 | M1613 | |
| Printhead | Ricoh G6 | ||
| Number of nozzles | 2-4 optional | ||
| Print size(mm) | 1260*960 | 1660*1300 | |
| Printing Speed | Standard Model | Linear motor | |
| 4 pass | 32m²/h | 42m²/h | |
| 6 pass | 24m²/h | 33m²/h | |
| 8 pass | 18m²/h | 24m²/h | |
| Maximun thickness: | 0.1-250mm(Ultra-high customizable) | ||
| Color configuration: | C,M,Y,K,Lc,Lm,W,V free combination | ||
| Curing System | LED UV Lights | ||
| lmage Format | TIFF/JPG/EPS/PDF/BMP | ||
| Rip Software | PHOTOPRINT/Maintop/Riin Rip-honson | ||
| Negative pressure | White and color separate negative pressure/ink cup print head circulation/water circulation | ||
| Power Supply | AC 220V(±10%),50Hz | ||
| Temperature | 20-32°C | ||
| Humidity | 40-75% | ||
| Power | 3500W | 5500W | |
| Appearance Size(mm) | L*W*H:2500/1600/1340(Trolley head adjustable height 175mm) | ||
| Data Transmission | TCP/lP network interface | ||
| Net Weight(kg) | 550kg | 1300kg | |
| Wooden box size(mm) | 2760X1650X1550mm | 3800X2300X1700mm | |
| Suction system | 2 partitions, two 750W brand fans | 4 partitions, two 750W brand fans | |
| Y-axis | Servo motor drive | Double servo motor drive,with reducer | |
| Lead screw | Imported brand double Y screw | ||
| Auteaatie neidht | The system drives the automatic height measurement function | ||
Application:
