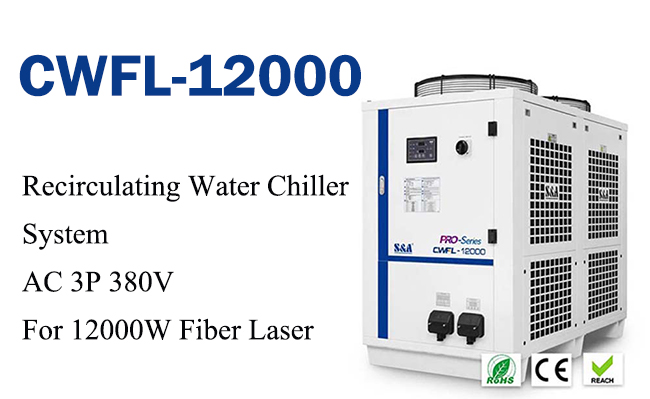

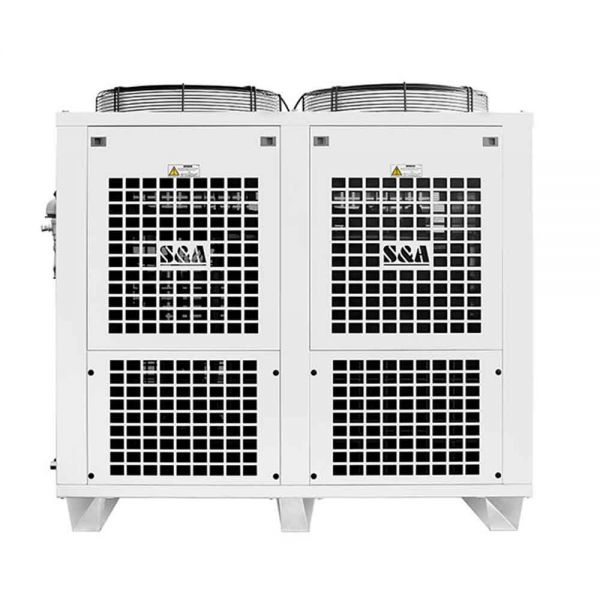

Large Capacity Industrial Refrigeration Unit CWFL-12000 for 12KW Fiber Laser(AC 3P 380V, 50Hz)
Precio unitario
MXN 106.948,00
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 106.948,00
Costo total
MXN 106.948,00
Cantidad
/unidad
1

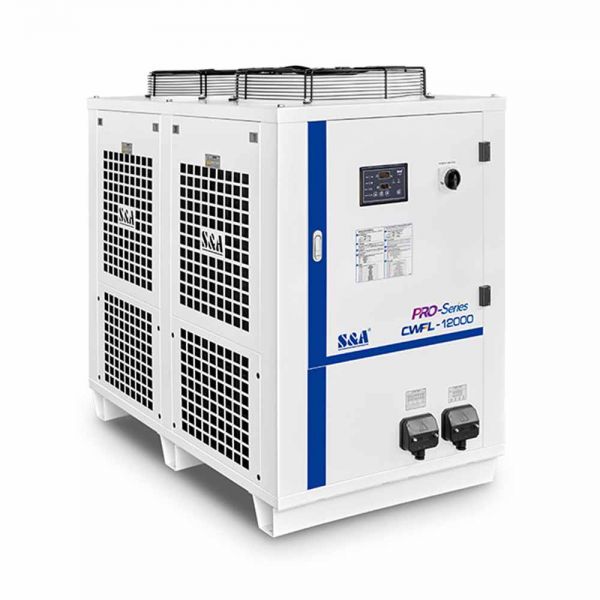

Large Capacity Industrial Refrigeration Unit CWFL-12000 for 12KW Fiber Laser(AC 3P 380V, 50Hz)
Large capacity industrial refrigeration unit CWFL-12000 is specifically developed to meet the demanding requirements of fiber laser up to 12000W. It integrates a 200L reservoir and a reliable condenser which offers high level of energy efficiency. The refrigerant circuit system adopts solenoid valve bypass technology to avoid frequent start and stop of the compressor to prolong its service life. The smart temperature controller of the chiller can not only display water & room temperature but also alarm information, providing full-time protection for the chiller and the laser system as well. Modbus-485 communication protocol is supported.
1. Dual cooling circuit
2. Active cooling
3. Temperature stability: ±1°C
4. Temperature control range: 5°C ~35°C
5. Refrigerant:R-410A
6. Intelligent digital control panel
7. Integrated alarm functions
8. Back mounted fill port and easy-to-read water level check
9. RS-485 Modbus communication function
10. High reliability, energy efficiency and durability
Tips:
Make sure the refrigerant is filled before running the chiller.
Refrigerant is forbidden by express company, so we could not put it into the package.You can buy it locally and fill it out.
If the compressor of this chiller has not been filled with refrigerant.
Please make sure it has been filled correctly according to the Filling Requirements paper put in the accessories box before running the chiller.
| Model | CW-FL-12000ENPTY |
| Voltage | AC 3P 380V |
| Frequency | 50Hz |
| Current | 4.3~37.1A |
| Power consumption | 18.42kW |
| Heater power | 0.6kW+3.6kW |
| Refrigerant | R-410A |
| Precision | ±1℃ |
| Reducer | Capillary |
| Pump power | 2.2kW |
| Tank capacity | 170L |
| Inlet and outlet | Rp1/2"+Rp1-1/4" |
| Max. Pump pressure | 7.5bar |
| Rated flow | 2.5 L/min+>100 L/min |
| N.W | 306Kg(674.6lb) |
| G.W | 348Kg(767.2lb) |
| Dimension | 1550mm x 800mm x 1350mm (61" x 31.5" x 53") |
| Package dimension | 1700mm x 930mm x 1520mm(67" x 36.6" x 60") |

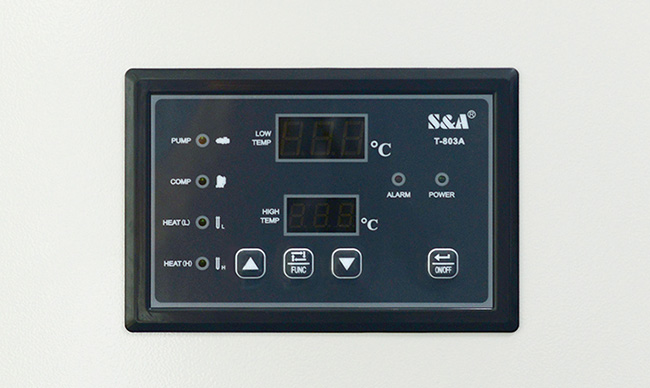

Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the optics.

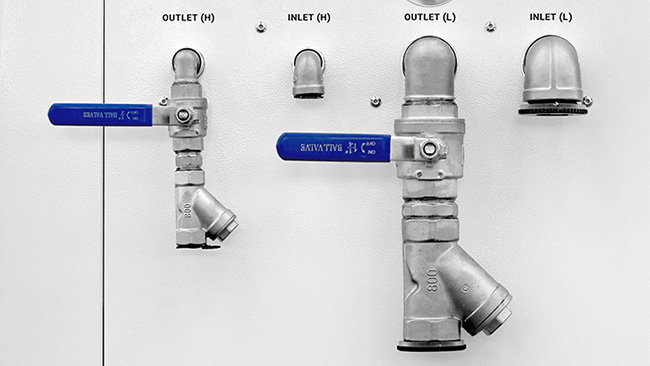

Dual water inlet and water outlet
Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

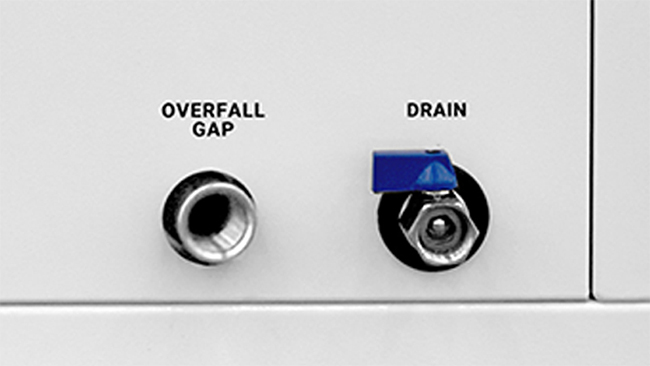

Easy drain port with valve
Draining process can be controlled very easily.
