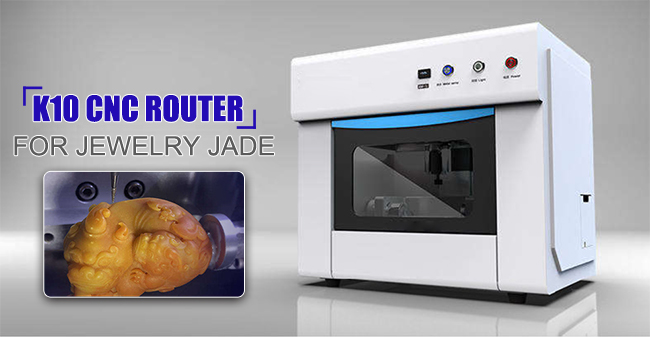

K10 CNC Router for Jewelry jade

K10 small CNC engraving machine is a four axis desktop CNC engraving machine with three-dimensional relief multi-function, which is very suitable for personal household or studio people.

It is suitable for processing all kinds of jade, wood, soft metal and other materials. It is used in the jewelry and jade industry, as well as the processing of jade ornaments, arts and crafts.

Specification:

Model	K10
X Y Z Structure	152mm82mm62mm
Stereo processing size	Φ70*L 90mm
Relief processing size	1018242mm
Material	aluminum alloy
Engraving and clamping mode	Top pressure, adhesive
Engraving accuracy	±0.01mm
Spindle speed	0- 24000rpm/min
Processing speed	0-3000mm/min
Spindle power	800W water spindle
Guide rail	imported 15 square rails
Screw rod	imported 16 screw rod
Drive mode	hybrid servo
Clamping tool diameter	2.3mm/3mm/4mm/6mm
Rated voltage	AC220V/50-60HZ
Overall power	1KW
Control system	XIANGKE

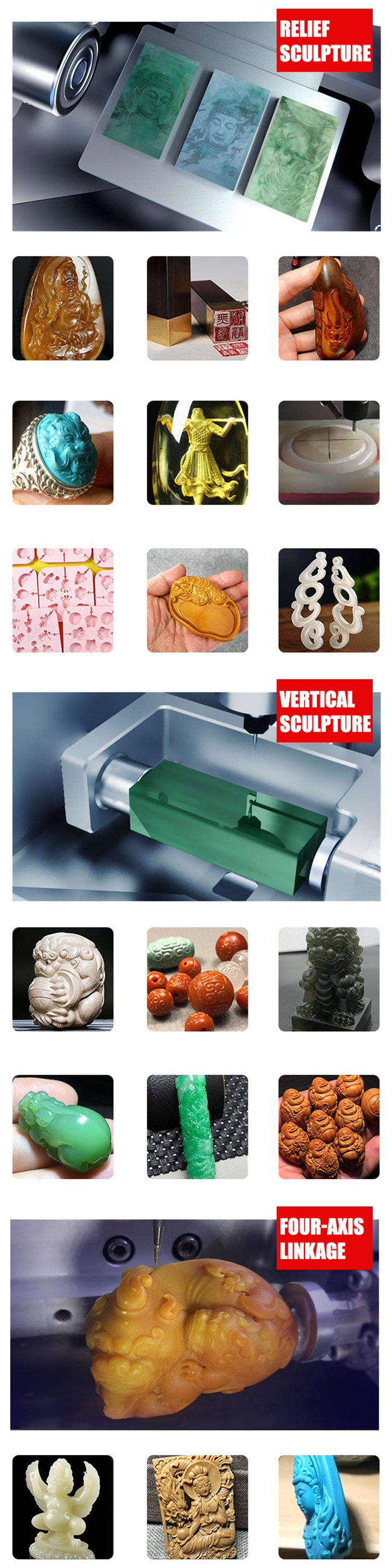

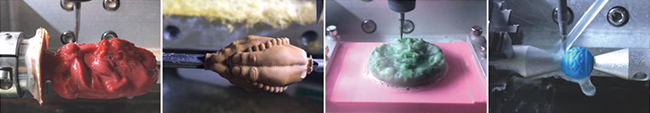

Application:
