Infinity 5.2m Hybrid UV Printer With SPT1024GS Ricoh Gen 5/6 PrintheadsSPT1024GS/8 Heads

Name: Infinity 5.2m Hybrid UV Printer With SPT1024GS Ricoh Gen 5/6 Printheads
SKU: SIT-FY-UV5300W
Price: 1484636.31 MXN
Availability: InStock

Precio unitario

MXN 1.484.636,31

/set

Descuentos por volumen

Cantidad

Descuento

Precio por unidad

MXN 1.484.636,31

Opciones

Por Favor Eliga el Tipo Por Favor Eliga el Tipo

Costo total

MXN 1.484.636,31

Cantidad

/set

Detalles del producto

Descripción

Infinity 5.2m Hybrid UV Printer With SPT1024GS Ricoh Gen 5/6 Printheads

Features:

- Reinforced carriage plate for multiple combinations of different color matches.

- Powerful vacuum blower to attach media onto the belt tight and flat, featuring compact size, light weight, silent and long continuous working hours.

- With double rollers for both feeding and take-up, media with different thicknesses and stretchabilities are well catered and conveniently loaded.

- Power linear motor.

- One-press pneumatic shaft controller, for straight and flat media feeding, with ease of use and maintenance.

- Strengthful chrome plated shaft, to secure the feeding of media straight and flat, for better print output.

Specification:

Model		FY-UV5300W

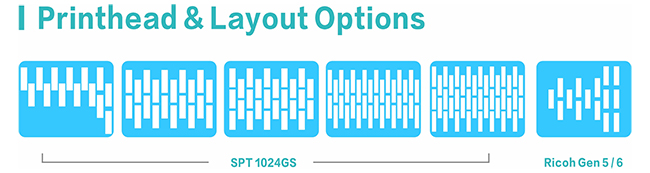

Printhead		SPT1024GS		Gen5	Gen6
Printhead Number		8pcs	16pcs	8pcs	8pcs
	4 pass	50m²/h	103m²/h	80m²/h	86m2/h
Print Speed	6 pass	35m²/h	70m²/h	60m²/h	65m2/h
	8 pass	26m²/h	50m²/h	38m²/h	45m2/h
Print width		5200mm
Air Compressor Requirement		Positive 0.6~0.8MPa
Media Type		Vinyl, Spread Flex, PVC Soft Film, PET Film, Clear Film in Roll
Ink		UV Curable Ink
Ink Supply System		Negative pressure ink supply
Curing Method		LED UV Lamp
RIP		UnitedFancy, FlexiPRINT, Maintop
Printer		AC220V 50HZ 4130W
Print Platform Vacuum Hold Down Area		AC220V 50HZ 6000W

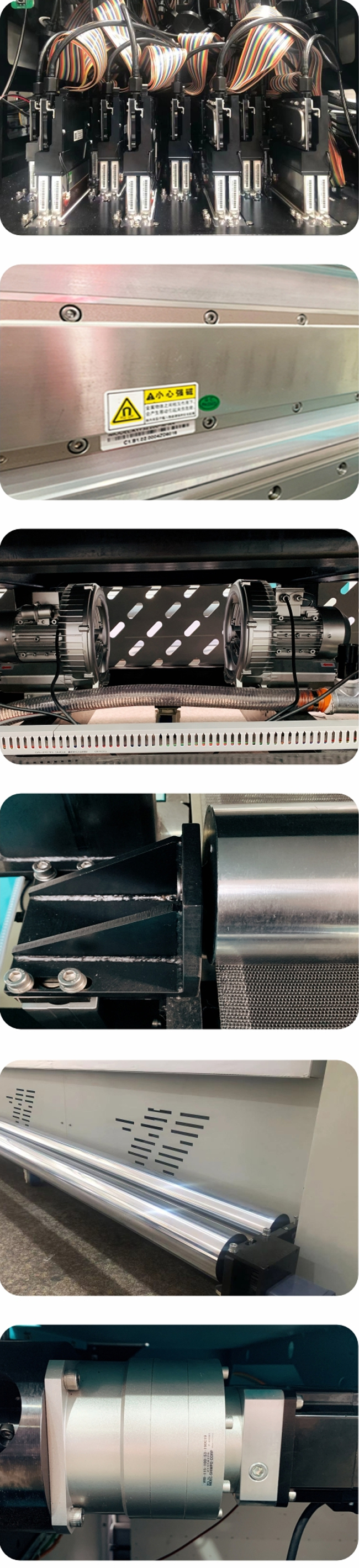

Details:

Application:
