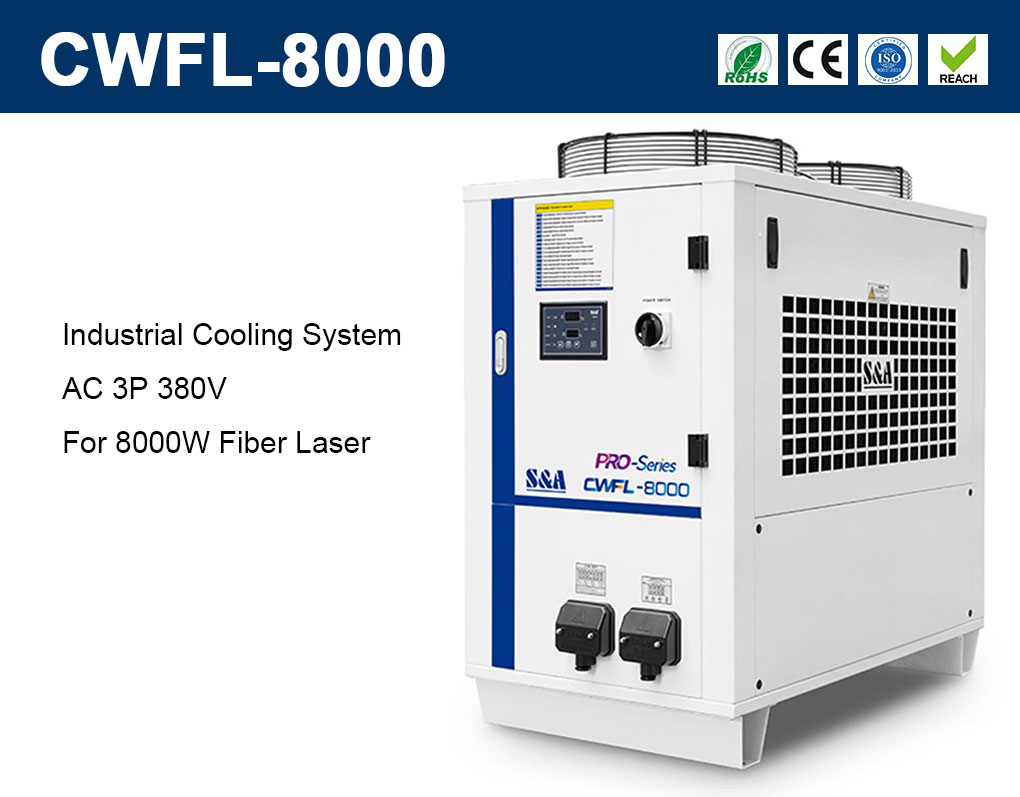

Industrial Water Cooling System CWFL-8000 for 8KW Fiber Laser Machine(AC 3P 380V,50Hz)
Precio unitario
MXN 95.969,00
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 95.969,00
Costo total
MXN 95.969,00
Cantidad
/unidad
1
Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.

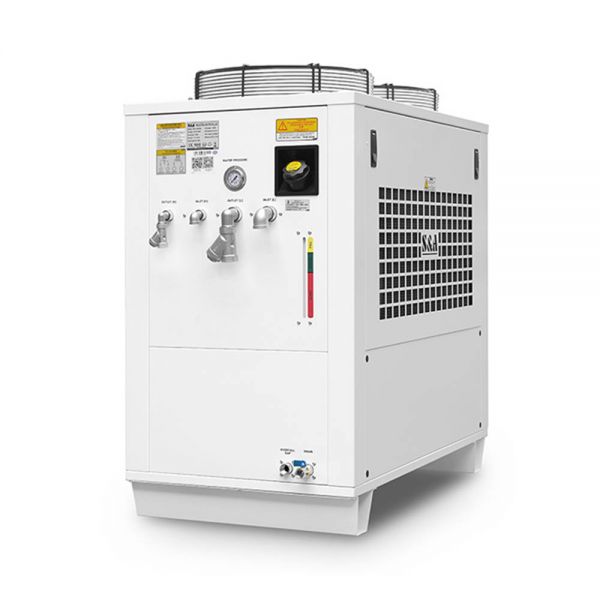

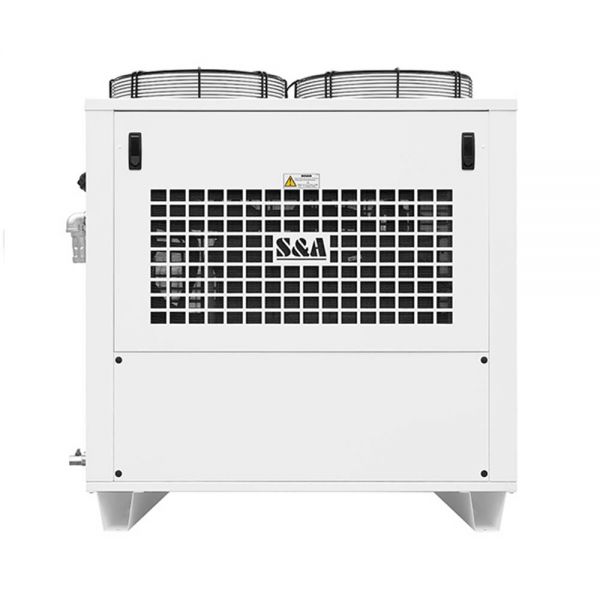

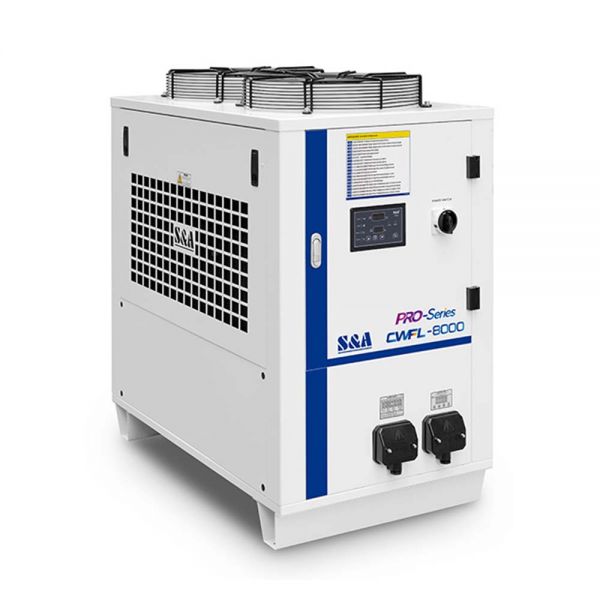

Industrial Water Cooling System CWFL-8000 for 8KW Fiber Laser Machine(AC 3P 380V,50Hz)

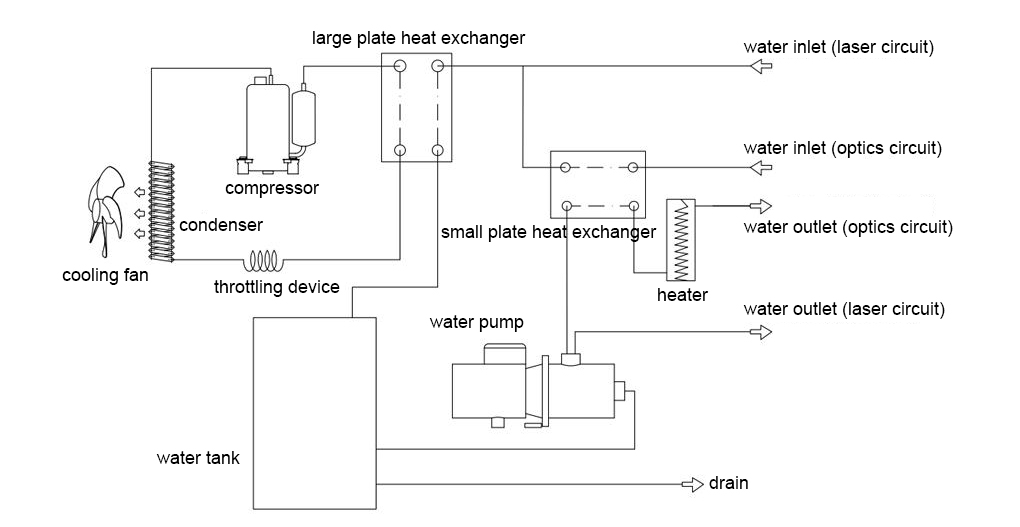

Industrial water cooling system CWFL-8000 is often used to mitigate the heat that is generated in the fiber laser machine up to 8KW. Thanks to its dual temperature control circuit design, both the fiber laser and the optics can be perfectly cooled. The refrigerant circuit system adopts solenoid valve bypass technology to avoid frequent start and stop of the compressor to prolong its service life. Water tank is made of stainless steel with 100L capacity while a fan-cooled condenser features superior energy efficiency. Available in 380V 50HZ or 60hz, CWFL-8000 fiber laser chiller works with Modbus-485 communication, allowing a higher level of connection between the chiller and the laser system.
1. Dual cooling circuit
2. Active cooling
3. Temperature stability: ±1°C
4. Temperature control range: 5°C ~35°C
5. Refrigerant:R-410A
6. Intelligent digital control panel
7. Integrated alarm functions
8. Back mounted fill port and easy-to-read water level check
9. RS-485 Modbus communication function
10. High reliability, energy efficiency and durability
| Model | CW-FL-8000ENPTY |
| Voltage | AC 3P 380V |
| Frequency | 50Hz |
| Current | 2.1~22.2A |
| Power consumption | 11.54kW |
| Heater power | 0.6kW+2.4kW |
| Refrigerant | R-410A |
| Precision | ±0.1℃ |
| Reducer | Capillary |
| Pump power | 1.1 KW |
| Tank capacity | 87L |
| Inlet and outlet | Rp1/2”+Rp1” |
| Max. Pump pressure | 6.15bar |
| Rated flow | 2 L/min+>65 L/min |
| N.W | 198Kg(436.5lb) |
| G.W | 226Kg(498.2lb) |
| Dimension | 1200mm x 640mm x 1160mm (47.2" x 25.2" x 45.7") |
| Package dimension | 1410mm x 840mm x 1370mm(55.5" x 33" x 54") |

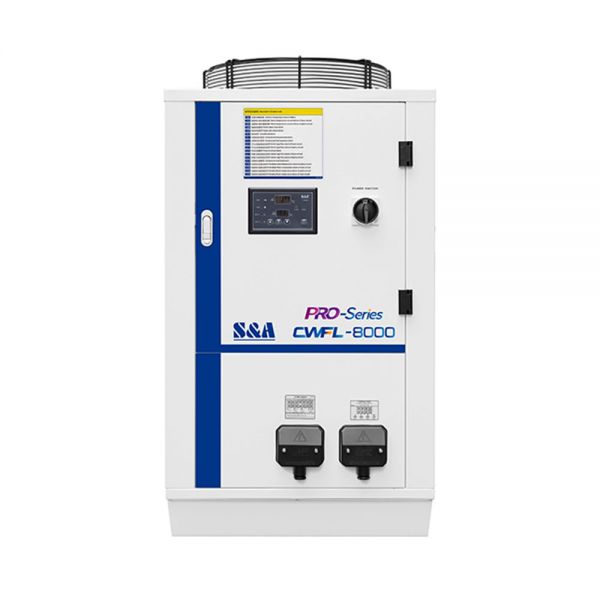

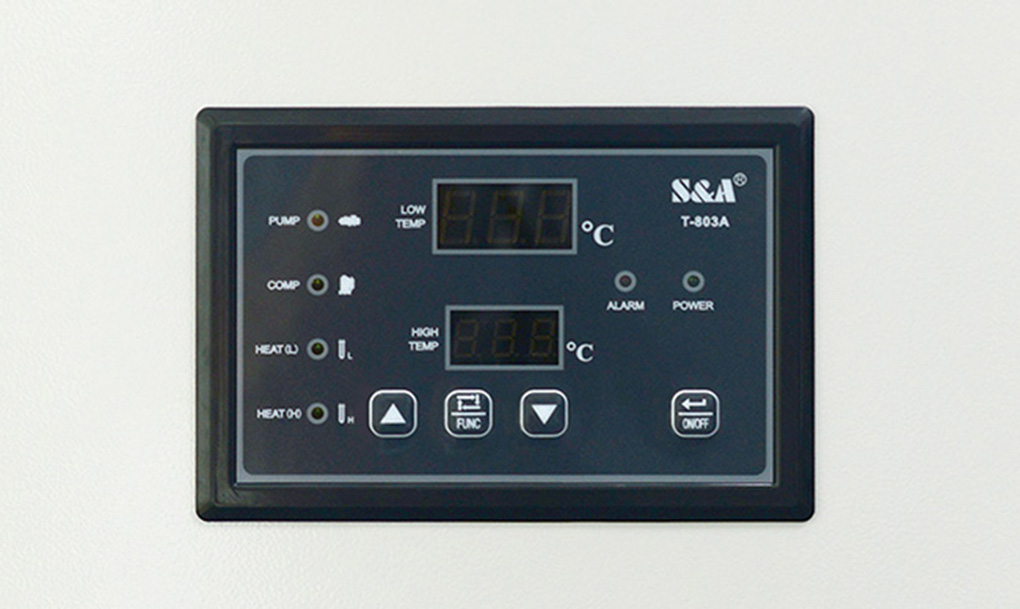

Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the optics.

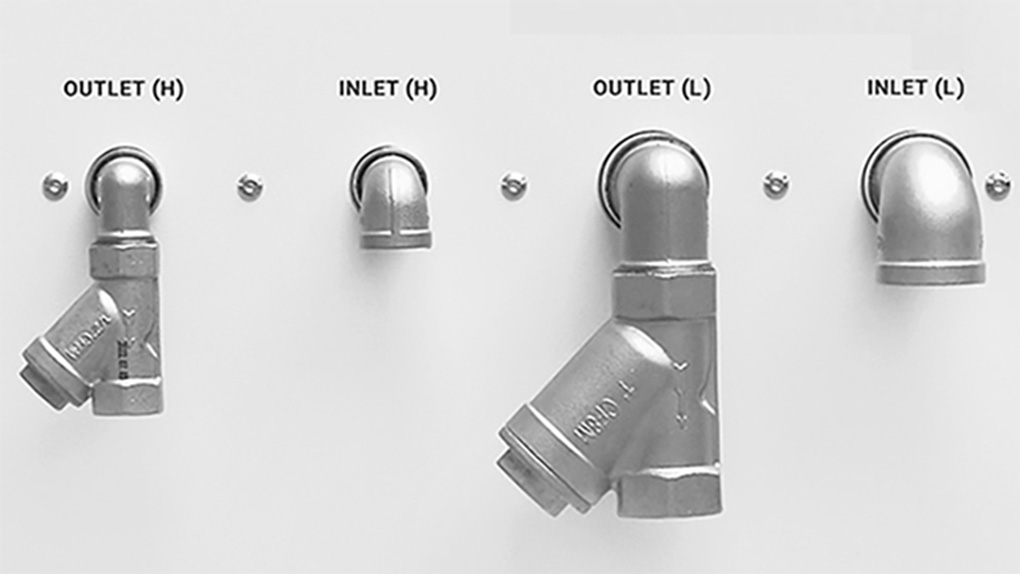

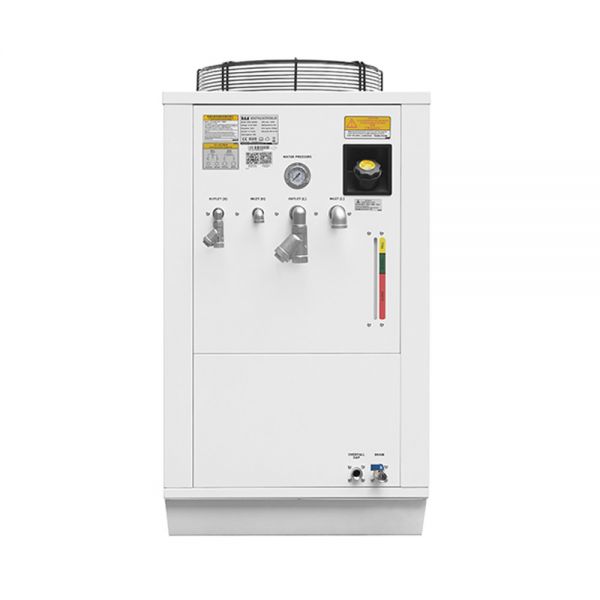

Dual water inlet and water outlet
Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

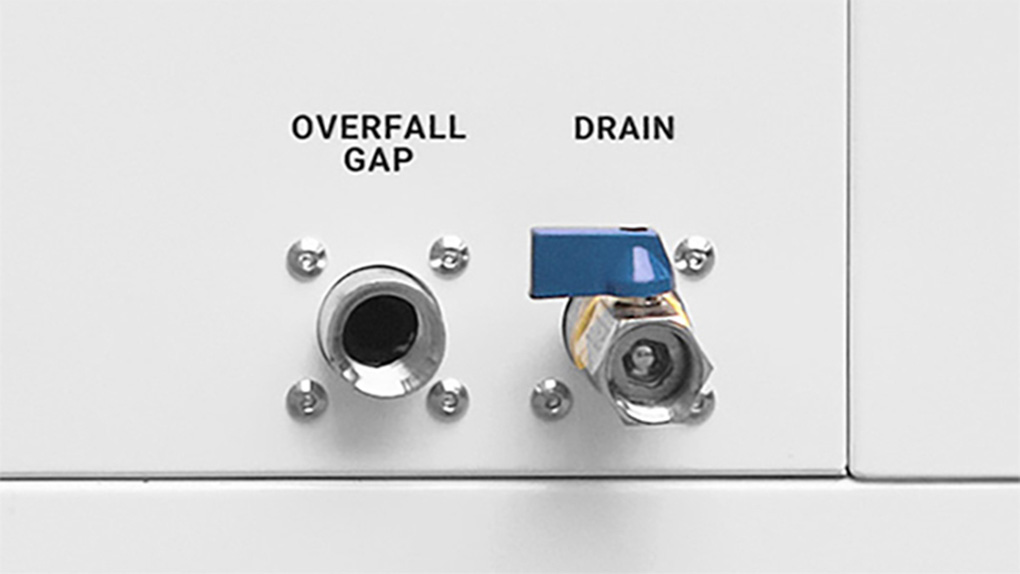

Easy drain port with valve
Draining process can be controlled very easily.
