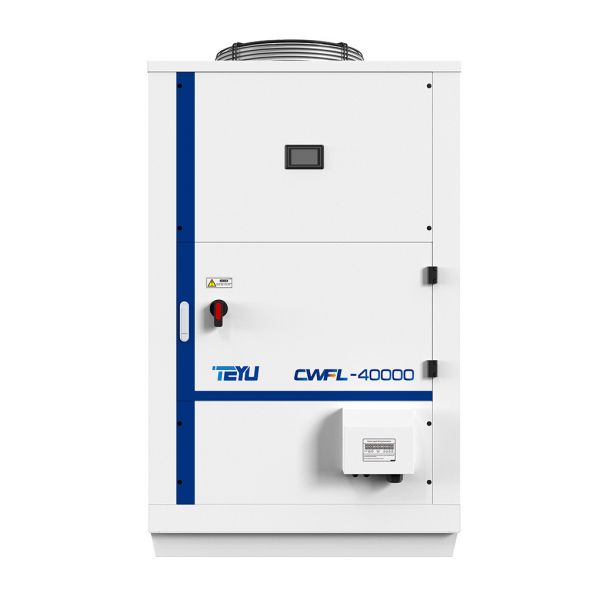

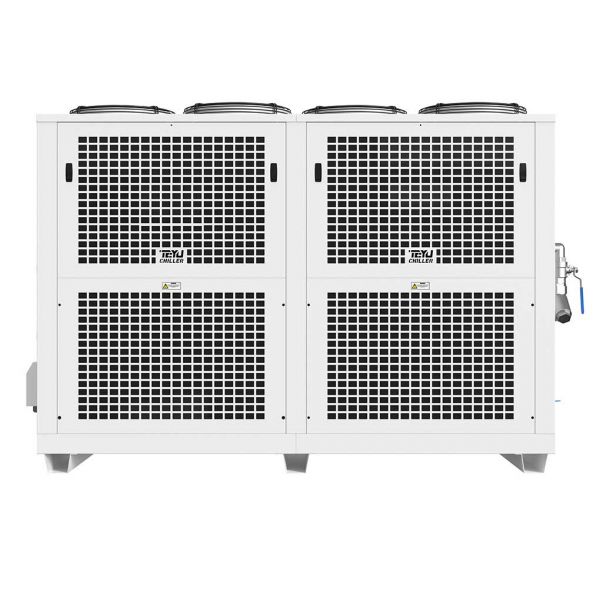

High Power Fiber Laser Cooling System CWFL-40000 For 40kW Fiber Laser Cutting Machine
TEYU High Power Fiber Laser Cooling System CWFL-40000 is a high-performance laser chiller specially designed for 40kW high power fiber laser cutting machine, which offers advanced features while also making cooling easier and more efficient. With dual cooling loops, this recirculating water chiller has enough capacity to cool the fiber laser and the optics independently and simultaneously. The refrigerant circuit system adopts solenoid valve bypass technology to avoid the compressor's frequent start/stop to prolong its service life. All of the components are carefully selected to ensure reliable operation.
Fiber Laser Chiller CWFL-40000 provides an RS-485 interface for communication with the high power fiber lasers. A smart temperature controller is installed with advanced software to optimize the water chiller's performance. A variety of built-in alarm devices to further protect the chiller and laser equipment. In compliance with CE, RoHS and REACH approval. Customization is available.
Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.

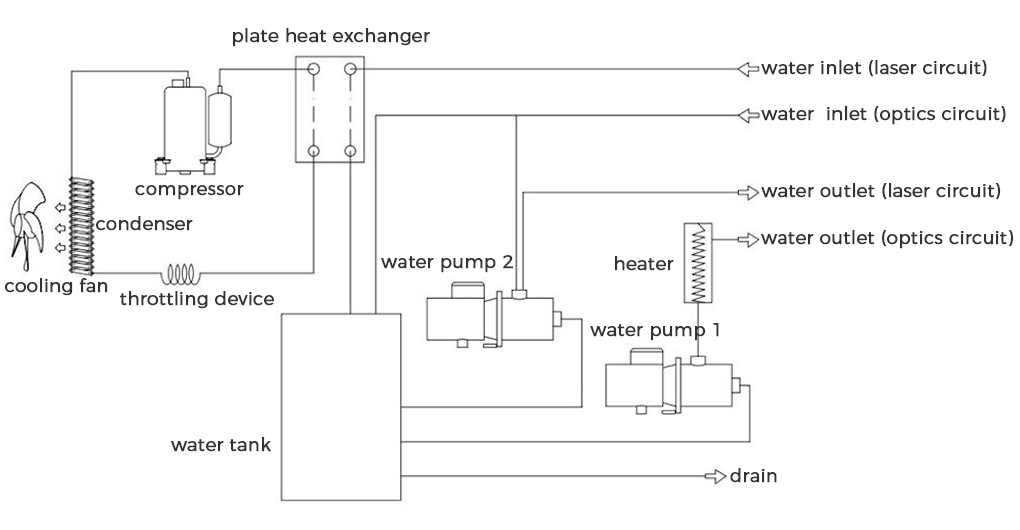

1. Dual cooling circuit
2. Active cooling
3. Temperature stability: ±1.5°C
4. Temperature control range: 5°C ~35°C
5. Refrigerant: R-32 / R-410A

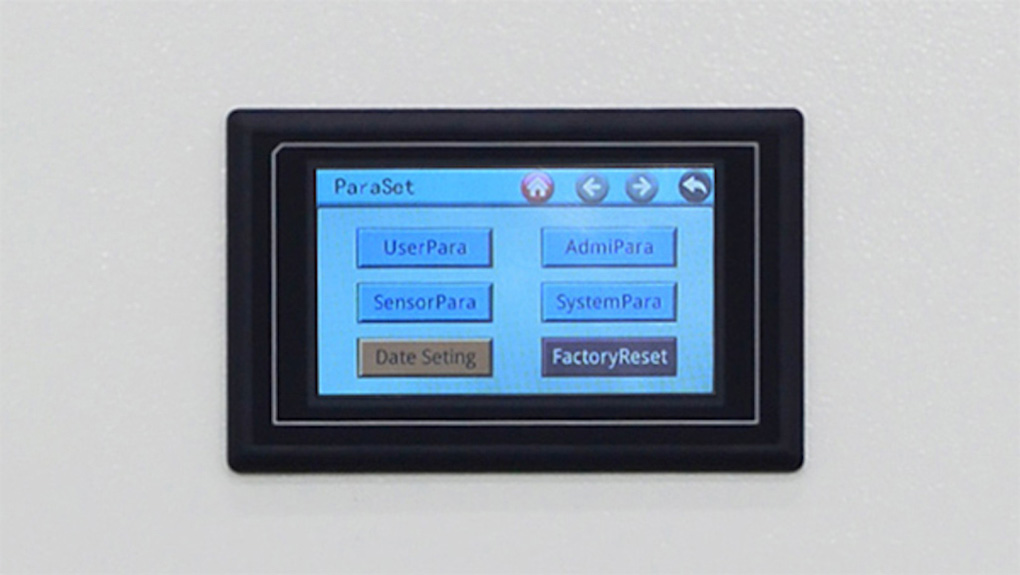

6. Intelligent digital control panel
7. Integrated alarm functions
8. Back mounted fill port and easy-to-read water level check
9. RS-485 Modbus communication function
10. High reliability, energy efficiency and durability
| Model | CW-FL-40000ETTY |
| Voltage | AC 3P 380V |
| Frequency | 50Hz |
| Current | 10.6~83.8A |
| Machine power | 43.86kW |
| Heater power | 1.8kW+12kW |
| Precision | ±1.5℃ |
| Pump power | 3.5kW+3.5kW |
| Tank capacity | 340L |
| Inlet and outlet | Rp1/2"+Rp1-1/2" x 2 |
| Max. Pump pressure | 8.5bar |
| Rated flow | 10L/min+＞400L/min |
| Warranty | 2 years |
| Standard | CE, REACH and RoHS |
| N.W | 712Kgs(1569.7lb) |
| G.W | 918Kgs(2024lb) |
| Dimension | 279cm x 96cm x 150cm (110" x 37.8" x 59") |
| Package dimension | 287cm x 120cm x 175cm (113" x 47" x 69") |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the optics.

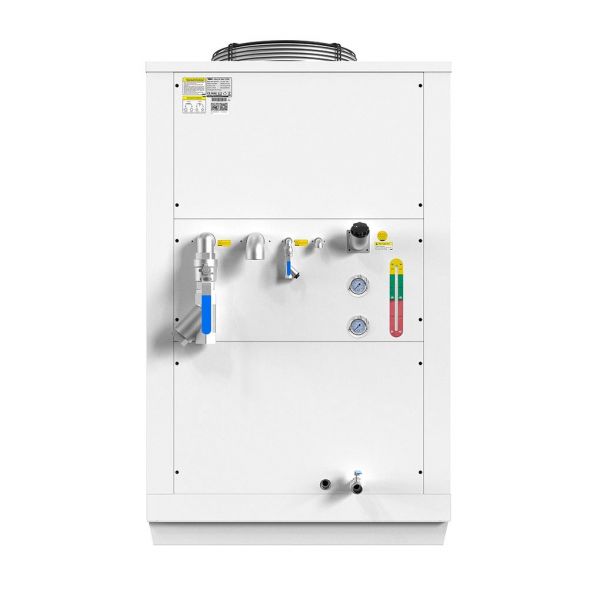

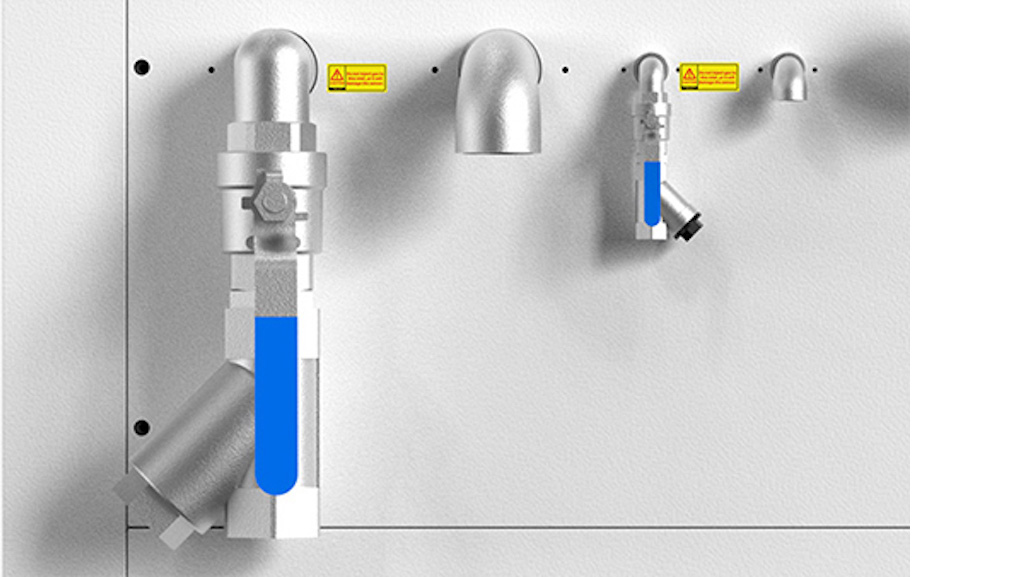

Dual water inlet and water outlet
Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

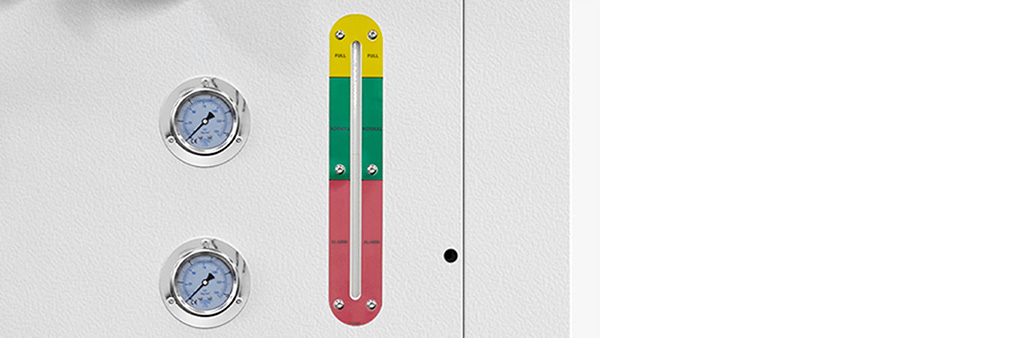

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

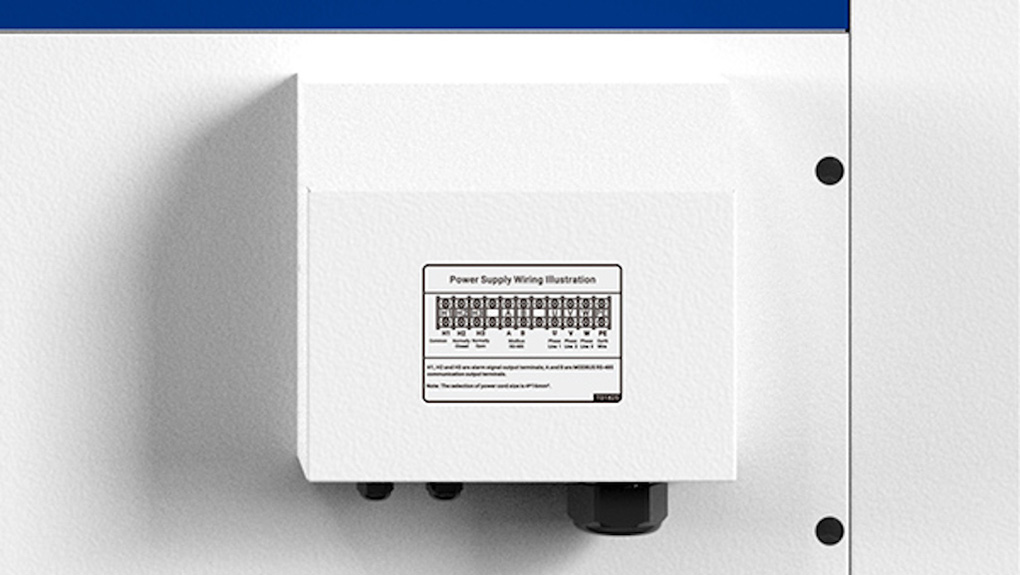

Junction Box
Professionally designed by engineers from TEYU chiller manufacturers, easy and stable wiring.
