Soluciones hechas para el negocio de la publicidad.
Precio unitario
MXN 174.049,10
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1+
0%
MXN 174.049,10
Costo total
MXN 174.049,10
Cantidad
/set
1
Description:

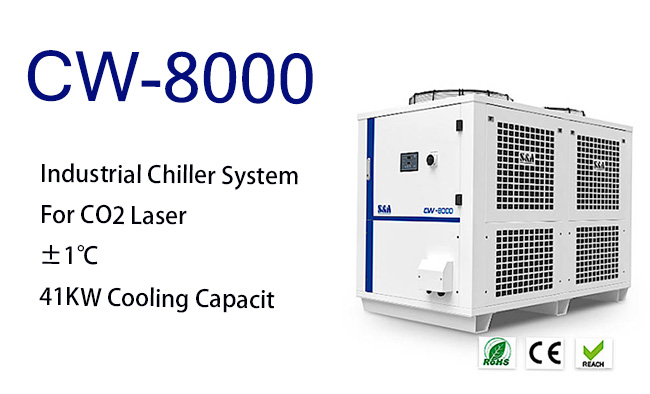

High-performance Industrial Water Cooling System CW-8000 offers exceptional cooling performance for sealed tube CO2 laser up to 1500W. It comes with a 210L stainless steel reservoir which has been specifically designed for process cooling applications. It allows high water flow rates with low pressure drops and ensures a reliable operation even in demanding applications. Cooling capacity can reach up to 41KW with ±1℃ control accuracy. The disassembly of side dust-proof filter in this air cooled water chiller unit for the periodic cleaning operations is easy with fastening system interlocking. RS-485 communication function is supported so that the chiller can have higher level of connection with your CO2 laser equipment.
Features:
1. 41200W cooling capacity
2. Active cooling
3. ±1℃ precise temperature control
4. Temperature control range: 5°C ~35°C
5. Intelligent temperature controller
6. Multiple alarm functions
7. High reliability, energy efficiency and durability
8. Easy maintenance and mobility
| Model | CW-8000ENTY |
| Voltage | AC 3P 380V 50Hz |
| Current | 6.4~40.1A |
| Max. power consumption | 21.36KW |
| Compressor power | 12.16kW, 16.3HP |
| Refrigerating Capacity | 143304Btu/h, 42kW, 36111Kcal/h |
| Refrigerant | R-410a |
| Precision/td> | ±1℃ |
| Reducer | Capillary |
| Pump Power | 2.2kW |
| Tank capacity | 210L |
| Max.flow | 200L/min |
| Pump pressure | 7.5bar |
| Inlet and Outlet | Rp1-1/2" |
| Net Weight | 460Kg(1014lb) |
| Gross Weight: | 513Kg(1131lb) |
| Dimension | 75" x 42.5" x 55" (190cm x 108cm x 140cm) |
| Package Dimension | 79.5" x 48" x 63.8" (202cm x 123cm x 162cm) |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

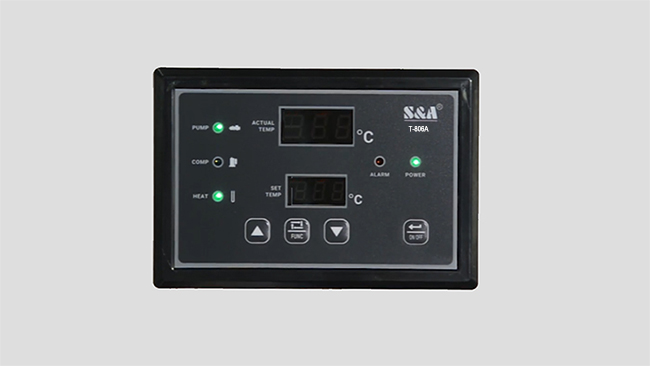

Intelligent temperature controller
The temperature controller offers high precision temperature control of ±1°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

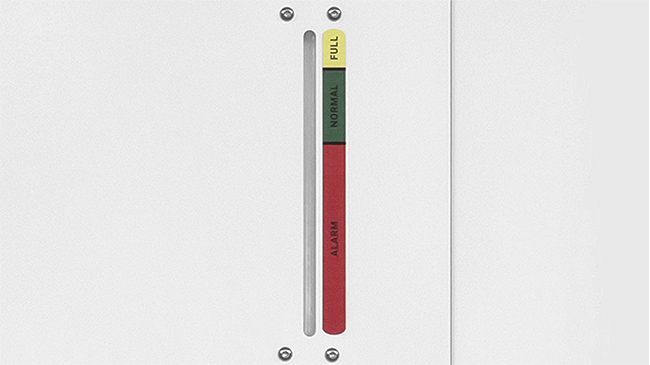

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

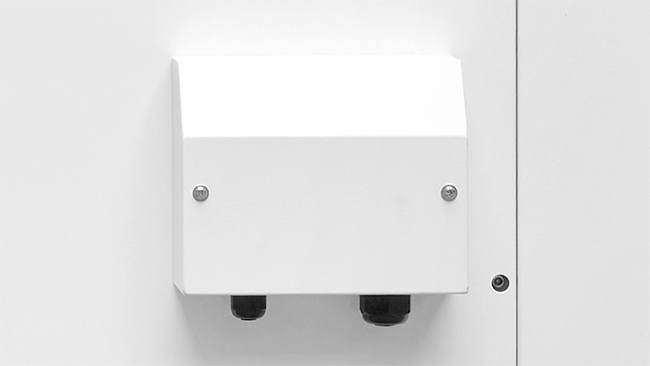

Waterproof Junction Box
S&A engineers' professional design. Safe and stable, flexible power cable installation.
