Full Color Indoor P2.5 LED Display Screen
Precio unitario
MXN 23.790,00
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 23.790,00
Costo total
MXN 23.790,00
Cantidad
/unidad
1
Full Color Indoor P2.5 LED Display Screen
Specification
| Parameter | Value | |
|
Physical |
Pixel Configuration | SMD2020 full black frame (Common configuration) SMD2020 full black frame(NationStar) |
| Pixel Pitch(mm) | 2.5 | |
|
Pixel matrix per panel module |
96x48 | |
|
Pixel density(pixels/sq.m.) |
160000 | |
|
Module Dimensions (LxWxH)/(mm) |
240x120 | |
| Ribbon cable type | 16P | |
|
Electronic |
Driving Type | 1/24 |
|
Optical |
Brightness(nit) | 1000 |
|
Optimal Horizontal Viewing Angle(°) |
120 | |
|
Optimal Vertical Viewing Angle(°) |
120 | |
|
Electrical |
Input Voltage(V) | DC5V |
|
Module Input Power Typical Value(W/sq.m) |
350 | |
|
Module Input Power Maximum Value(W/sq.m) |
880 | |
|
Circumstance |
Storage Temperature(℃) |
―30 - 60 |
| Operating Temperature(℃)/อุณหภูมิ ในการทำงาน (℃) | ―20 - 50 | |
| Storage Humidity(RH) | 10%~90% | |
| Operating Humidity(RH) | 10%~90% | |
|
Lifetime Typical Value(hrs) |
100000 | |

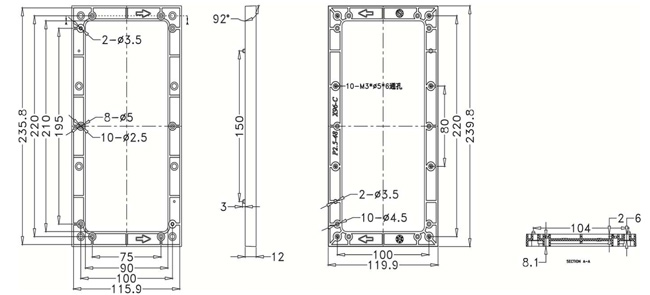

Module mounting holes bitmap
Remark: all the size of the unit for mm; Shape tolerance to 0, 0.1, pore size tolerance of + / - 0.05.
