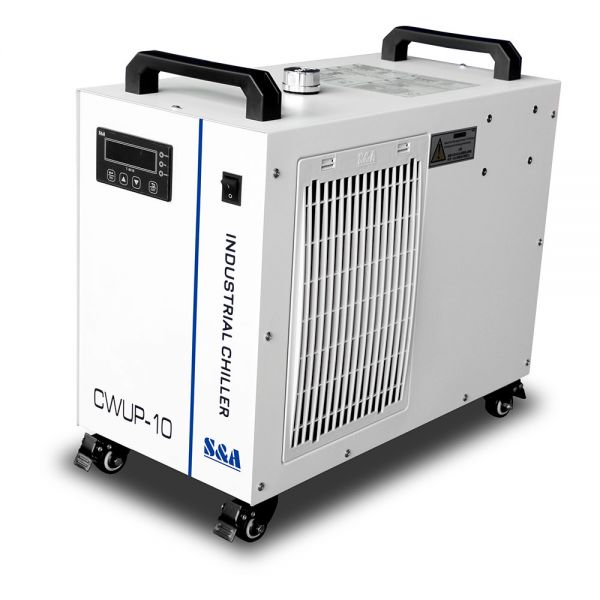

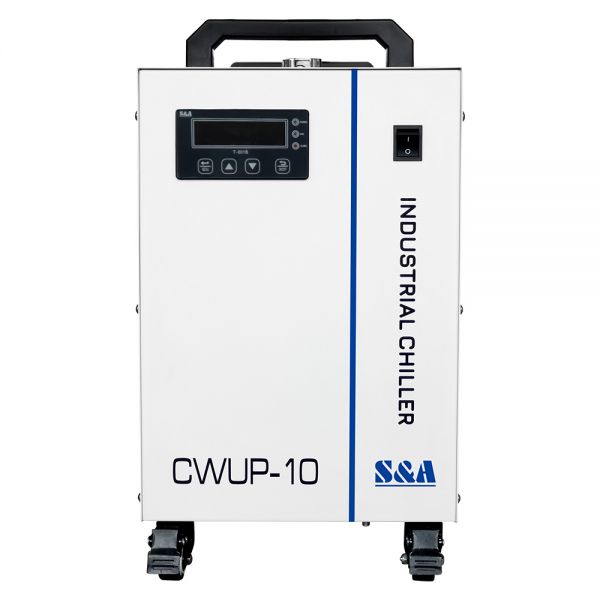

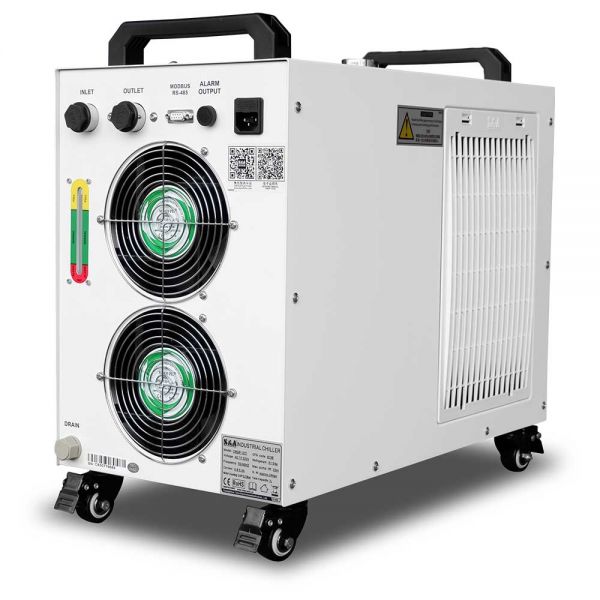

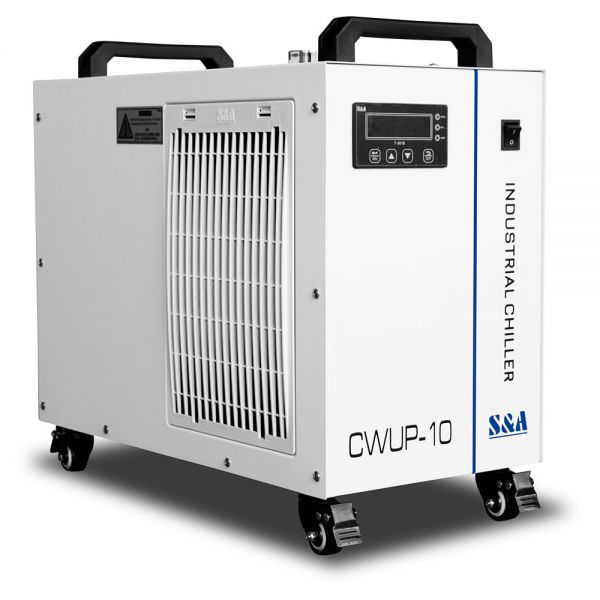

CWUP-10AI Industrial UV Laser Water Chiller System For 10W-15W UV laser or ultrafast laser
CWUP-10 is an industrial water chiller system with precision temperature control, which is applicable to cool 10W-15W UV laser or ultrafast laser.
Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.
Generally speaking, the defaulted setting for the temperature controller is intelligent temperature control mode. Under intelligent temperature control mode, the water temperature will adjust itself according to the ambient temperature. However, under constant temperature control mode, users can adjust the water temperature manually.
1. Cooling capacity of 810W; With environmental refrigerant;
2. Compact size, long working life and simple operation;
3. ±0.1℃ precise temperature control;
4. The temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE approval; RoHS approval; REACH approval;
7. Optional heater and water filter;
8. Support Modbus-485 communication protocol, which can realize the communication between the laser system and multiple water chillers to achieve two functions: monitoring the working status of the chillers and modifying the parameters of the chillers.
THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.
| Model | CW-UP-10AI |
| Voltage | AC 1P 220~240V |
| Frequency | 50Hz |
| Current | 0.6~5.3A |
| Machine Power | 1.04kW |
| Compressor power | 0.39kW |
| 0.52HP | |
| Nominal cooling capacity | 2559Btu/h |
| 0.75kW | |
| 644Kcal/h | |
| Precision | ±0.1℃ |
| Pump power | 0.09kW |
| Tank capacity | 6 L |
| Inlet and outlet | Rp1/2" |
| Max. Pump pressure | 2.5bar |
| Max. Flow | 15L/min |
| Refrigerant | R-134a |
| Reducer | Capillary |
| N.W. | 24Kg(53lb) |
| G.W. | 27Kg(59.5lb) |
| Dimension | 22.8" x 11.4" x 20.5" (58cm x 29cm x 52cm) |
| Package Dimension | 25.6" x 14.2" x 22" (65cm x 36cm x 56cm) |
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.
Independent production of sheet metal, evaporator and condenser
Adopt IPG fiber laser for welding and cutting sheet metal.
Temperature control accuracy can reach ±0.1°C.
Ease of moving and water filling.
The firm handle can help move the water chillers easily.

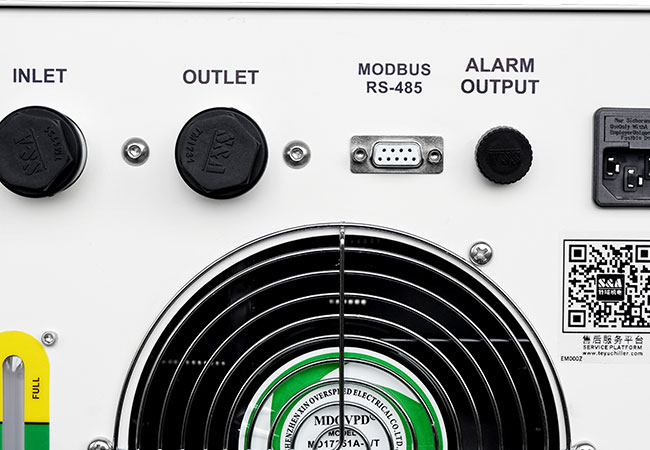

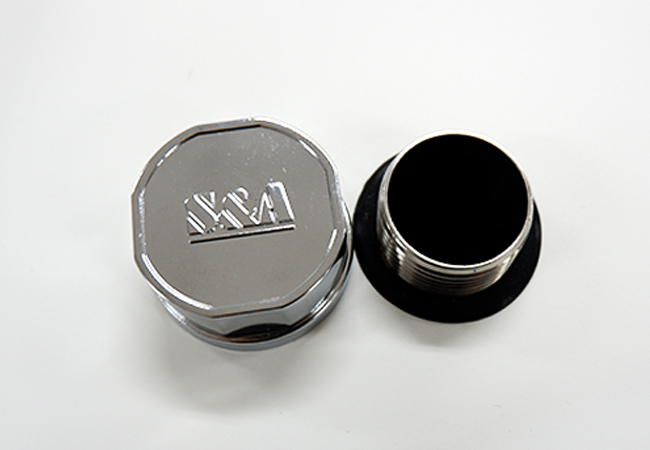

Inlet and outlet connector equipped
Multiple alarm protection.
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

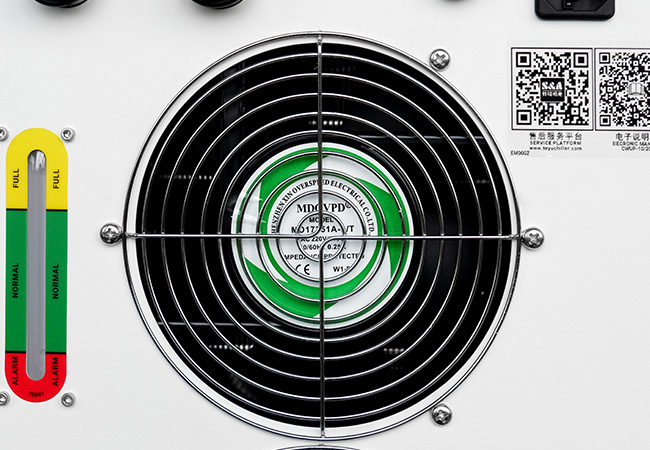

Cooling fan of famous brand installed.
Level gauge equipped.
Cooling fan with high quality and low failure rate.

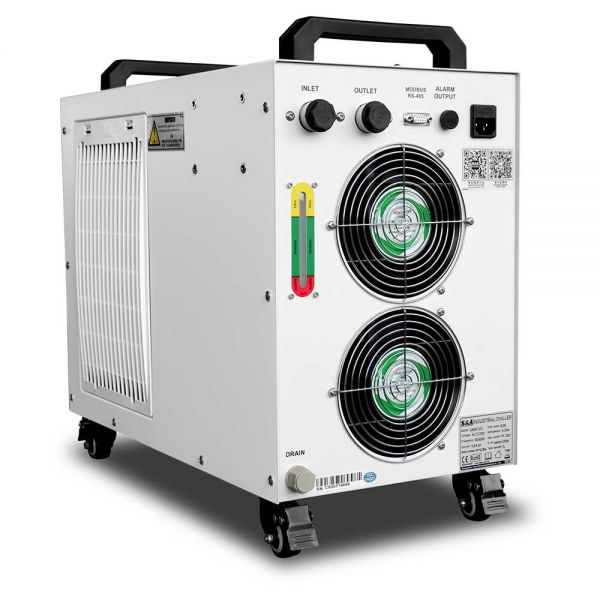

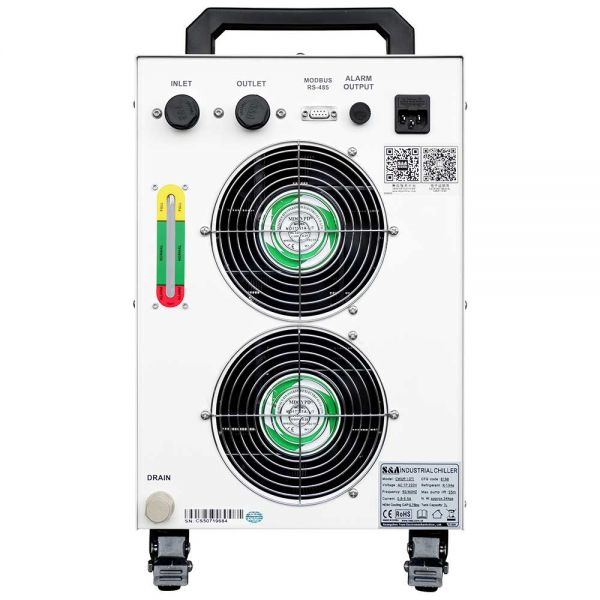

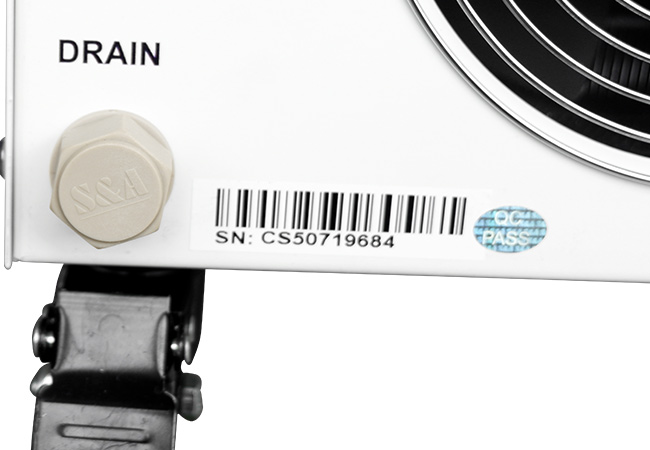

Equipped with drain outlet and universal wheels, while universal wheels facilitate the moving of the chiller.

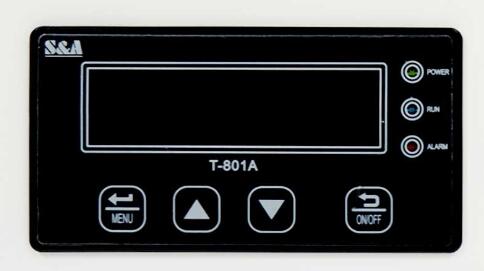

The intelligent temperature controller does not need to adjust the controlling parameters under normal circumstance. It will self-adjust controlling parameters according to room temperature for meeting equipment cooling requirements.
User also can adjust the water temperature as needed.

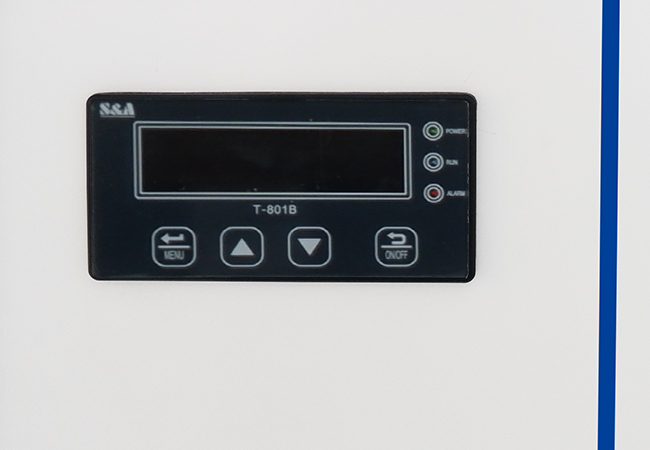

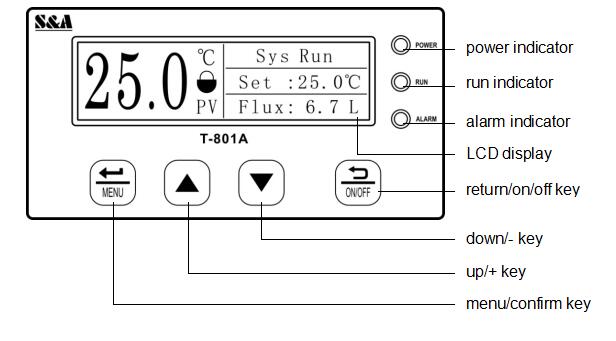

Temperature controller panel description:
In order to guarantee the equipment will not be affected while abnormal situation happens to the chiller, CWUP series chillers are designed with alarm protection function.

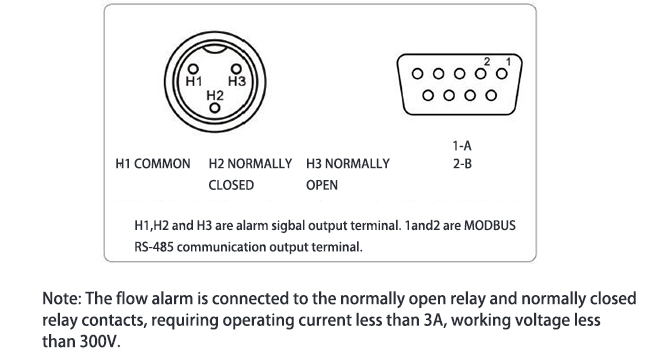

1. Alarm and Modbus RS-485 communication output terminal diagram

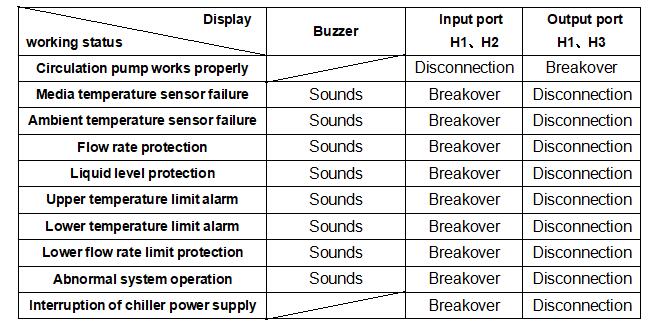

2. Alarm causes and working status table.
