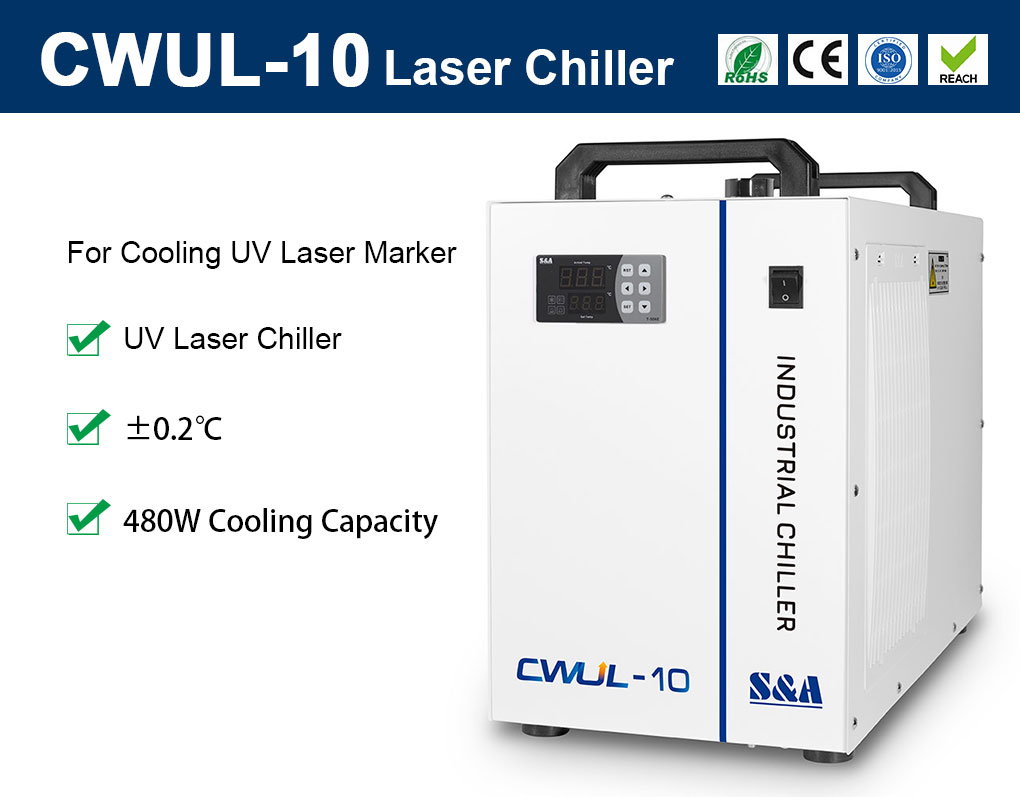

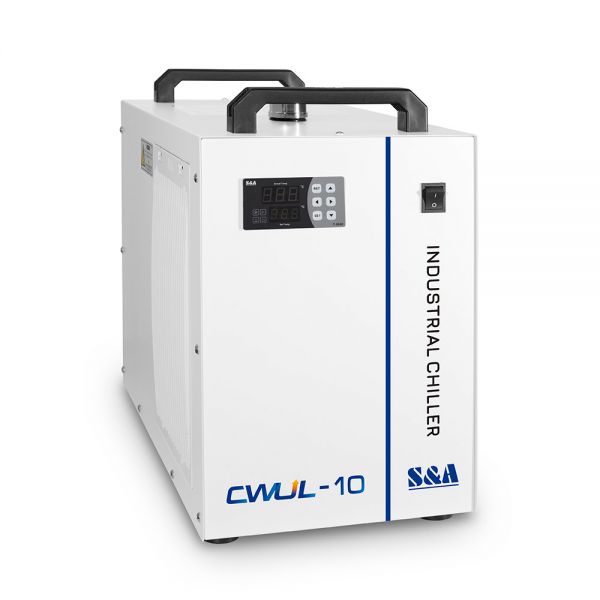

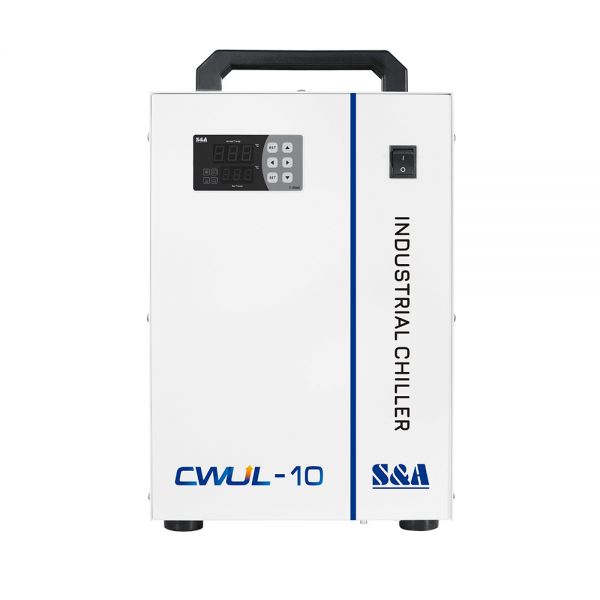

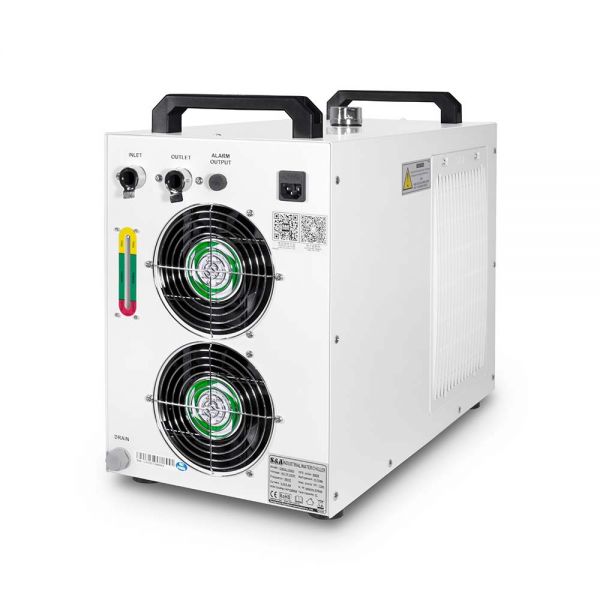

CWUL-10AHTY Industrial UV Laser Water Chiller System For 10W-15W UV Laser Marking Machines
Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.
TEYU high-efficiency heat dissipation industrial chiller CWUL-10 is the perfect cooling solution for your 10W-15W UV laser marking machines! It delivers high temperature stability of ±0.3℃ and a refrigeration capacity of up to 1080W, providing active cooling for UV laser marker to ensure stable laser output. Being in a compact and lightweight package, this portable water chiller is built to last with low maintenance, ease of use, energy efficient operation and high reliability.
1. Cooling capacity of 1080W
2. ±0.3°C precise temperature control
3. Temperature control range 5°C ~35°C
4. Active cooling
5. Compact and lightweight package

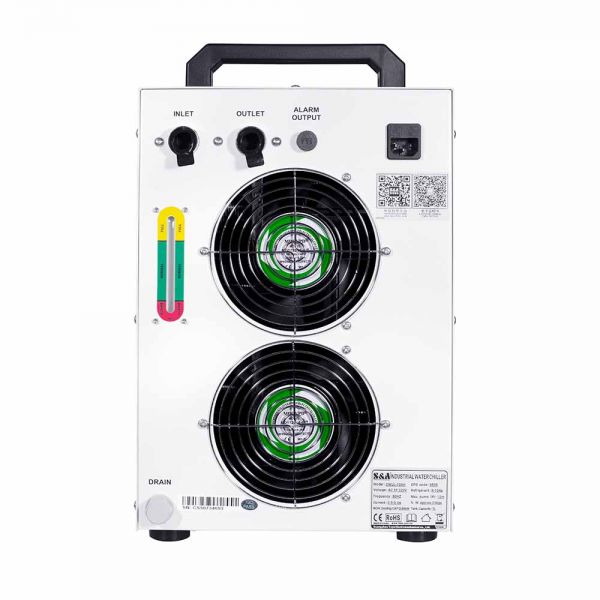

6. Easy water fill port
7. Visual water level
8. Integrated alarm functions
9. Easy maintenance and mobility
| Model | CWUL-10AHTY |
| Voltage | AC 1P 220-240V |
| Frequency | 50Hz |
| Current | 0.5~5.2A |
| Max. power consumption | 1kW |
| Compressor power | 0.39kW |
| 0.52HP | |
| Nominal cooling capacity | 2559Btu/h |
| 0.75kW | |
| 644Kcal/h | |
| Precision | ±0.3℃ |
| Pump power | 0.05kW |
| Tank capacity | 6 L |
| Inlet and outlet | Rp1/2" |
| Max. Pump pressure | 1.2bar |
| Max. pump flow | 13L/min |
| Refrigerant | R-134a |
| Reducer | Capillary |
| N.W. | 24Kg(53lb) |
| G.W. | 27Kg(59.5lb) |
| Dimension | 22.8" x 11.4" x 18.5" (58cm x 29cm x 47cm) |
| Package Dimension | 25.6" x 14.2" x 20.1" (65cm x 36cm x 51cm) |
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.

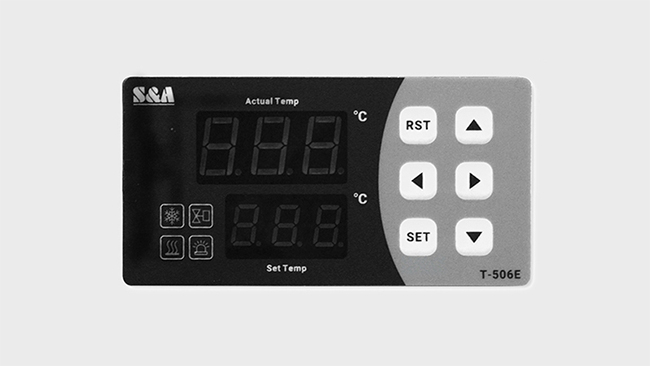

Intelligent temperature controller
The temperature controller offers high precision temperature control of ±0.2°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

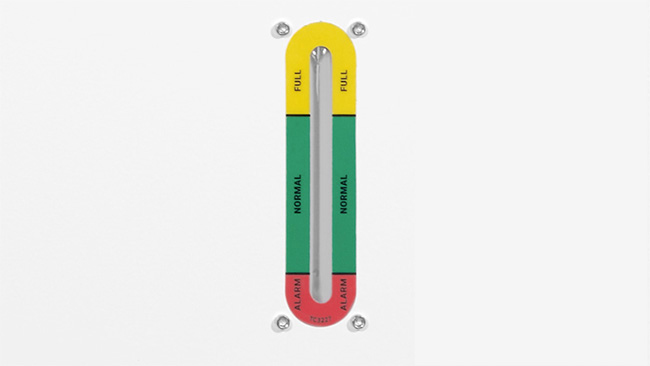

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

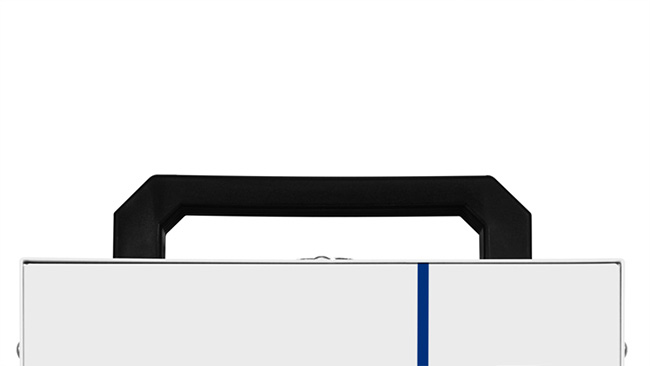

Integrated top mounted handles
The firm handles are mounted on top for easy mobility.
