Curve & Straight Edge Banding Machine

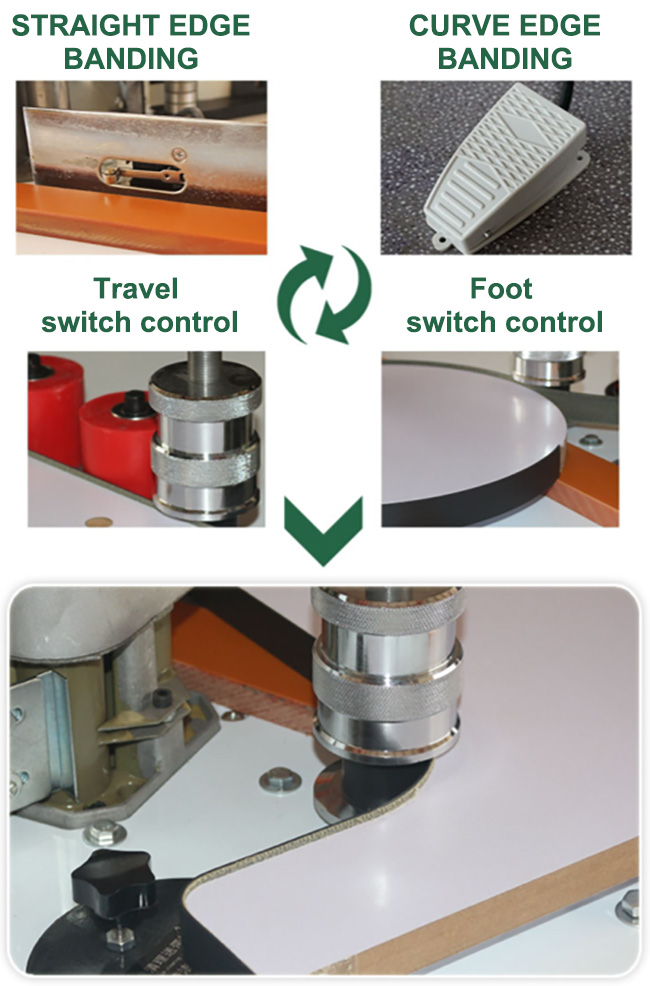

This machine is suitable for medium density fiber board, blockboard, wood panels, particleboard, plywood and other polymer doors, straight edge trimming, disposable with double-sided adhesive tape cutting edge bonding edge pressing, block, chamfer, Tinker, finishing, polishing and other functions of scraping edge, edge smooth, smooth, feel good sealing wire, flat and smooth. The equipment operation is stable, reliable and durable, is especially suitable for large and medium-sized furniture, cabinets and other furniture manufacturers plate using.
Fetaure:
- Easy operation
- Variable temperature and speed
- Multi-function an

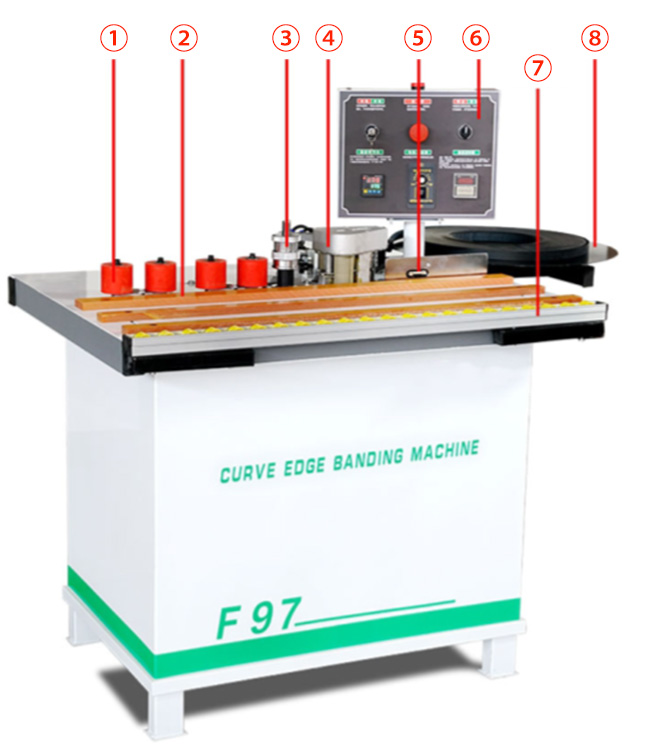

Details:
1. Auxiliary Wheel
2. Wooden board
3. Fitting wheel
4. Machine head
5. Travel switch
6. Control panel
7. Fluent strip
8. Pallet
Specification:
| Supply voltage | 220V 50Hz | Total power | 1.2KW |
| Heating power | 1.0KW | Motor Power | 0.18KW |
| Air source air pressure | 0.3-0.6Mpa | Edge width | 8-50mm |
| Edge thickness | 0.3-3mm | Edge banding speed | 0-26cm/s |
| Dimensions | 100x75x100cm | Weight | 120kg |
| Types of edge sealing materials | PVC veneer melamine plastic and other materials (U shape can be customized) | ||
| Optional | tilting platform | ||

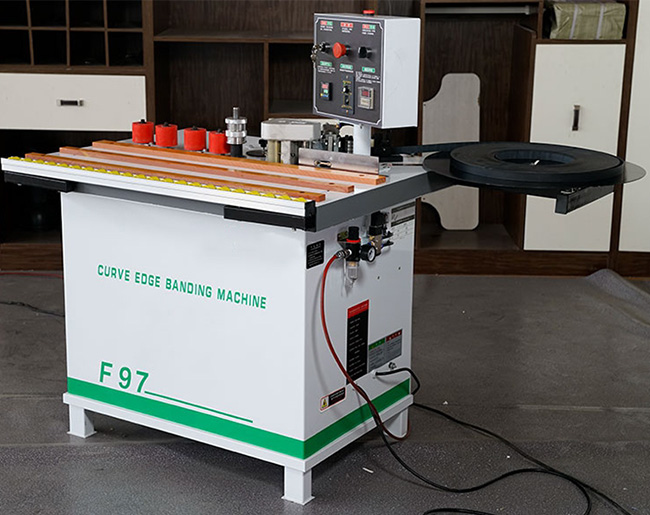

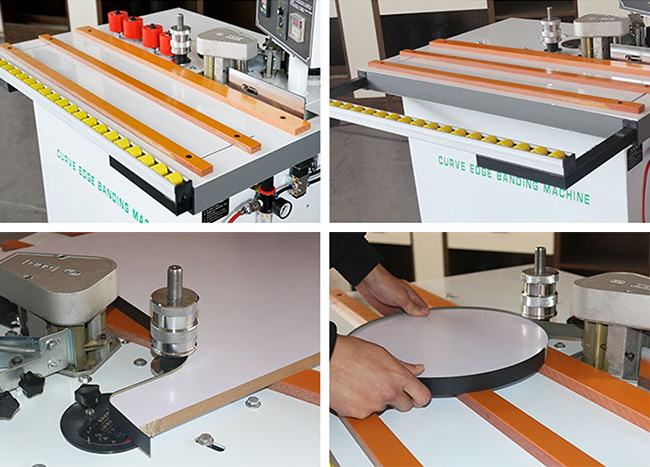

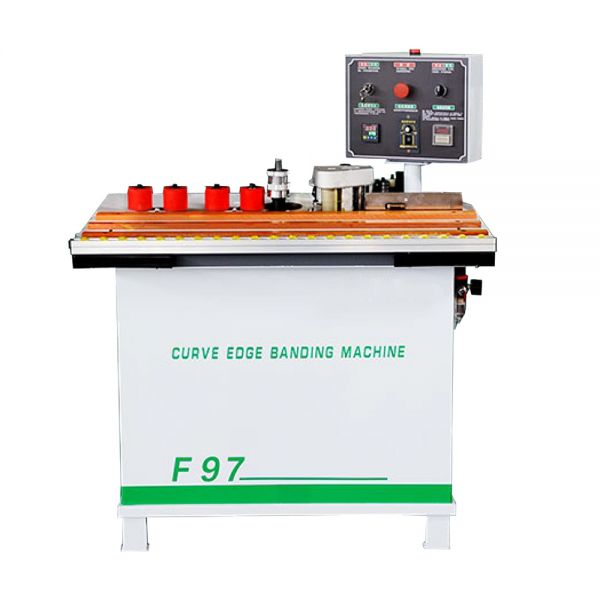

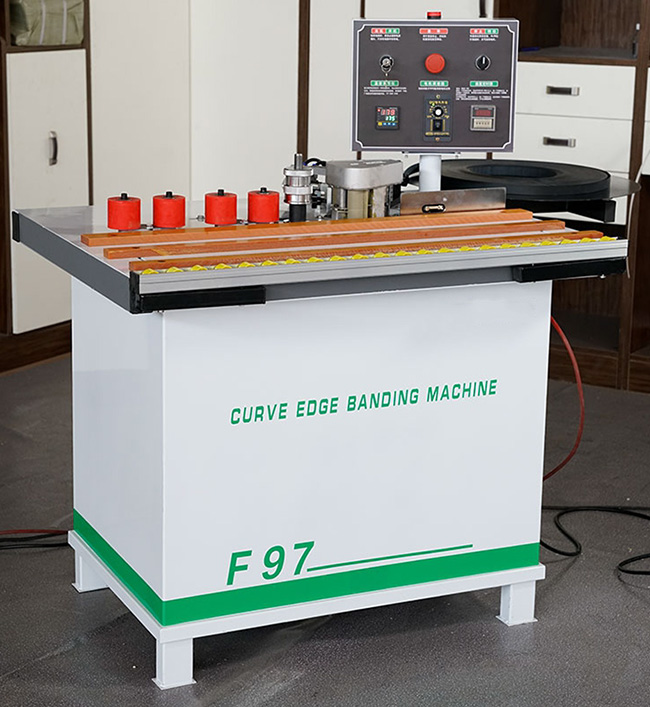

Product photos:
Application:
