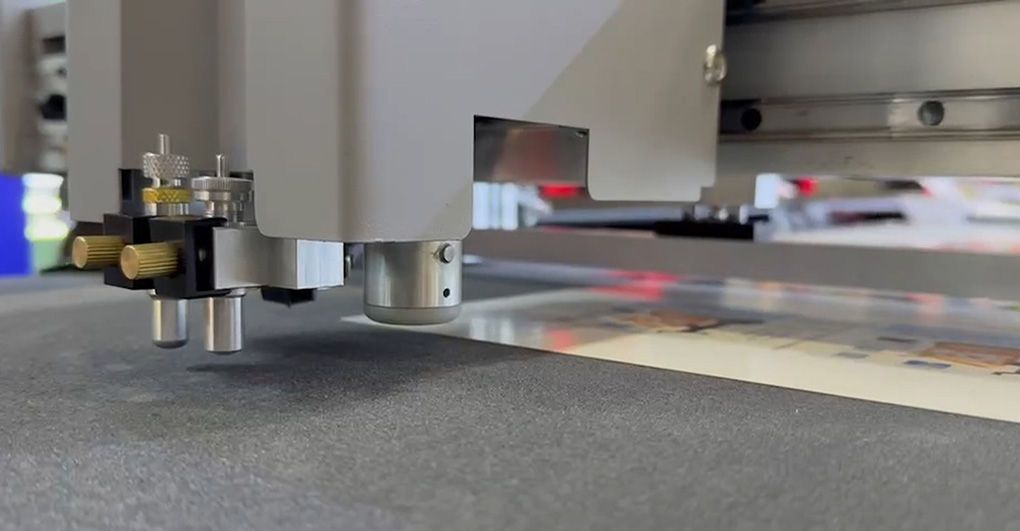

CALCA 6090 Auto-Feed DTF/UV Film Roll Cutter, Multi-Functional Cutting Machine (Oscillating Knife, Drag Knife, Creasing Tool Compatible)
Precio unitario
MXN 170.983,00
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 170.983,00
Costo total
MXN 170.983,00
Cantidad
/set
1
CALCA 6090M Auto-Feed DTF/UV Film Roll Cutter, Multi-Functional Cutting Machine (Oscillating Knife, Drag Knife, Creasing Tool Compatible)
2. Dual-layer vacuum table + gas storage ensures stronger adsorption, preventing material slippage during cutting.
3. Automatic roller feeder + auto-cutting – Reduces manual handling.
4. Multi-axis control system (self-developed) – Supports remote firmware upgrades via network for long-term compatibility.
5. 5MP industrial camera, with high scanning and positioning accuracy and fast speed.
6. The software can extract images automatically, and support multiple formats such as JPG, DXF, PDF, etc.
| Model | LPC-DTFC-6090M |
| Power Input | 220V, 50-60HZ |
| Power Consumption | 2700W, 12.3A |
| Working Size | 600mm x 900mm x 5mm (23.6in x 35.4in x 0.2in) |
| Feed Height | 10mm (0.39in) |
| Tool | Drag knife, Plotter knife, Creasing wheel |
| Driver | AC Servo |
| Control System | SIGNKEY |
| Camera | 5 Million pixels industrial camera |
| Machine Structure | Industrial steel pipe box structure |
| Transmission | Z ball screw, XY belt |
| XYZ Rail | Linear rail |
| Repetitive Accuracy | <0.05mm/300mm |
| Maximum No-load Speed | 150m/min |
| Max. Processing Speed | 10~100m/min |
| Working Table | Double layer adsorption vacuum table ＋ rolling feeding |
| Roll Material Feed Device | yes |
| Vacuum Pump | 1500W air cooling |
| Data Transmission | Ethernet |
| Instruction Format | HPGL or standard G-code |
| Machine Size | 2100mm x 1450mm x 1350mm (83in x 55in x 53in) |
| Net Weight | 500kg (1102.3lb) |
| 1950mm x 1610mm x 1590mm(77in x 63.4in x 63in) | |
| Gross Weight | 800kg (1764lb) |
