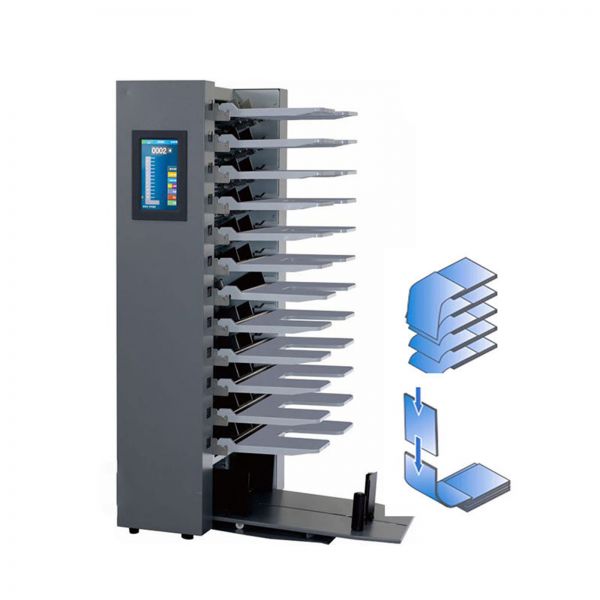

Automatic 10/12 Bins Trays Paper Collector Page Gathering Gather Matching Collecting Assemble Machine
Description:
1.Our Automatic Paper Collator Machine is designed for high-speed, accurate sorting and gathering of various documents, including A4 booklets, calendars, newspapers, manuals, and marketing materials.
2.Equipped with 6 10 and 12adjustable bins and an intuitive LCD touch screen, this machine automates the collating process, reducing manual labor and minimizing errors.
3. It features a dual detection system for missing or double sheets and supports cross-stacking for efficient sorting. Ideal for printing shops,offices, and small businesses.
4.this collator enhances productivity with speeds up to 3500 sets per hour while ensuring reliable performance. Its compact design and user-friendly operation make it a cost-effective solution for streamlining document production.

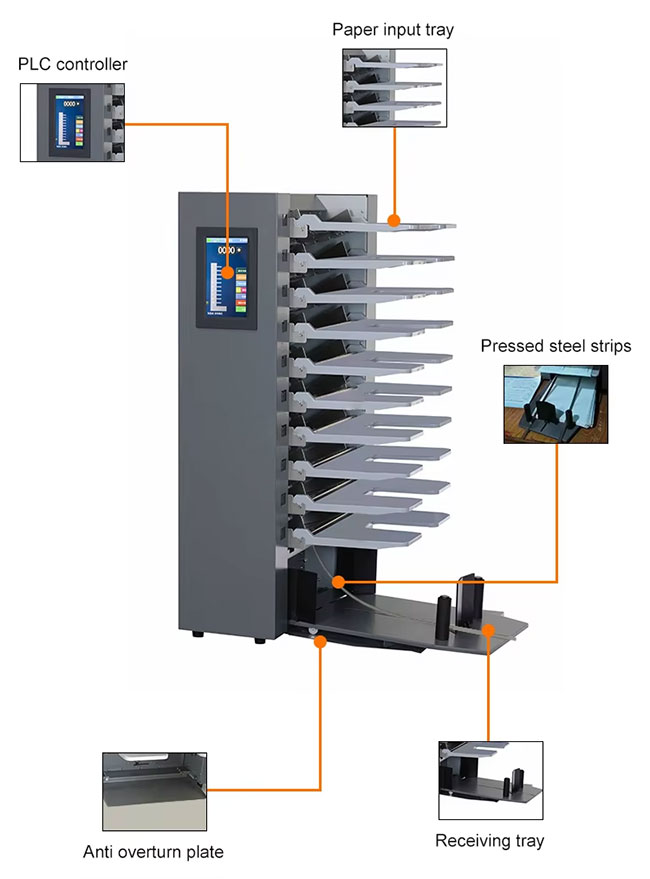

Features:
- High-Speed Efficiency: Achieves speeds up to 3500 sets/hour (A4 size) , handling large volumes quickly and reducing manual collating time by up to 90%.
- Intelligent Detection System: Includes photoelectric sensors to detect and alert for missing pages, double sheets, jams, and low paper levels, ensuring accuracy and reducing waste.
- User-Friendly Operation: Features an LCD touch screen for real-time monitoring and adjustments, with preset programs for common tasks like booklet sorting and calendar assembly.
- Flexible Paper Handling: Supports paper weights from 50-120 g/m² and sizes from A5 to A3, with each bin holding up to 300 sheets for versatile use.
Specification:
| Product | Crisscross Stacking Paper Collator Paper Gathering Machine | |

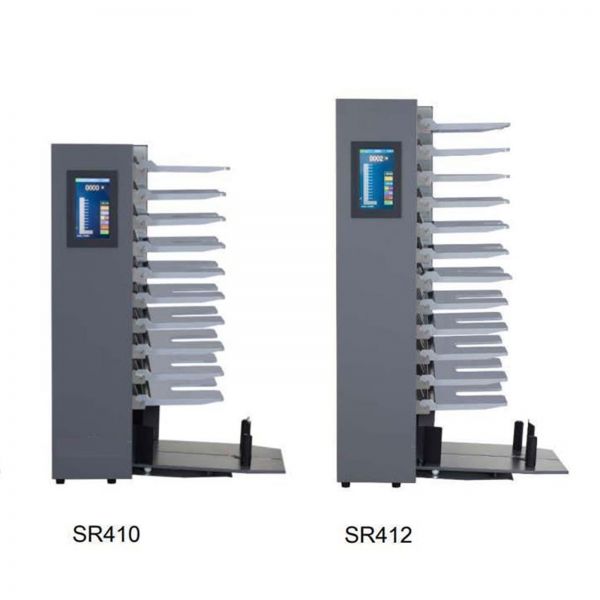

| Model number | R410 | R412 |
| Frames | 10 frames | 12 frames |
| Speed | 3500pcs/hour(A4); 3200pcs/hour(A3) | |
| Paper size | Width:120-330mm;Length:120-470mm | |
| Paper weight | 50g-120g | |
| Capacity of each tray | 28mm(300pcs) | |
| Paper receiving capacity | 65mm(900pcs) | |
| LCD Display | Feed error, Double feed, Jam, No paper, Stacker full | |
| Paper feed way | Pick roller | |
| Size | 530*550*1050mm | 530*550*1200mm |
| Voltage | AC110V-240V | AC110V-240V |
| Power | 180W | 180W |
| Weight | 95kg | 120kg |

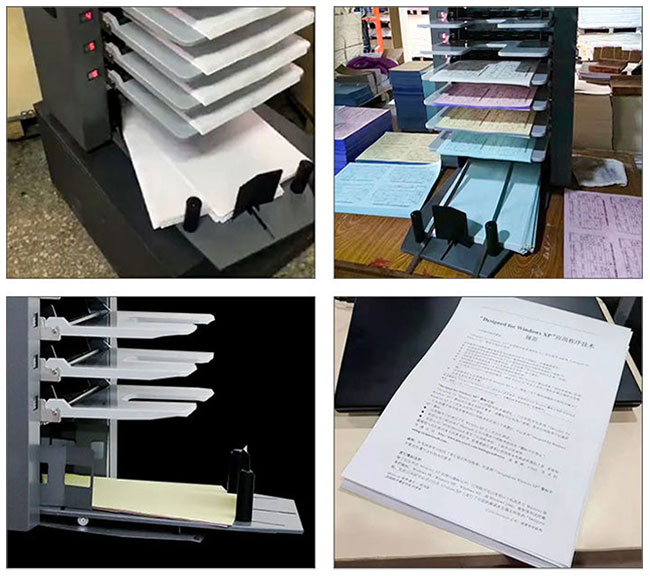

Details:
Application:
Certification:
Package:
