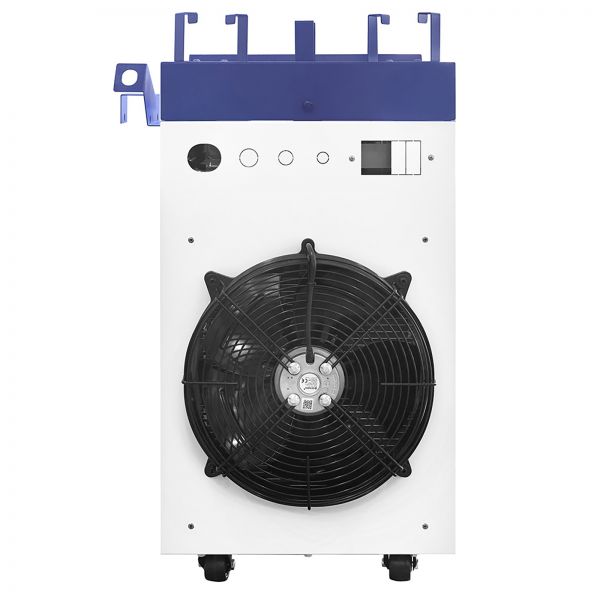

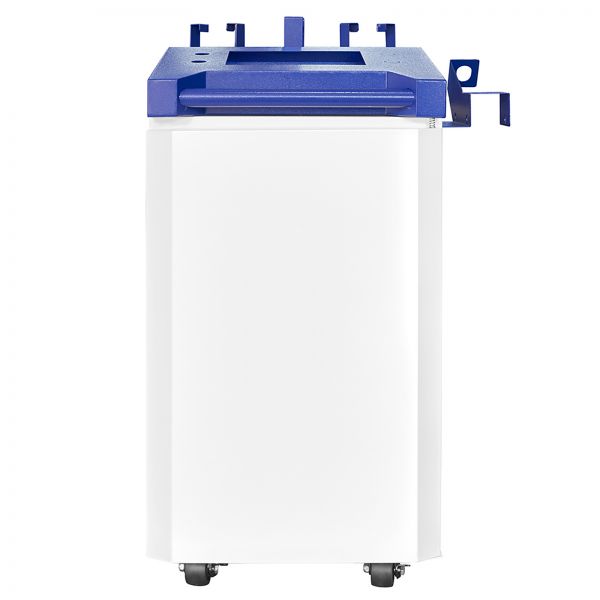

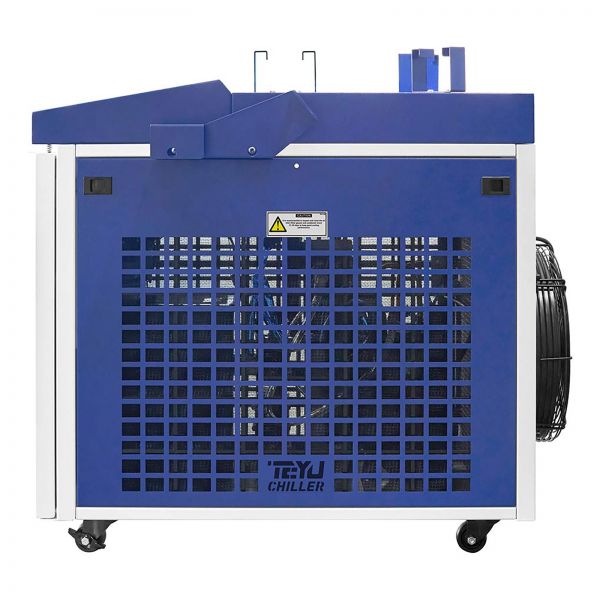

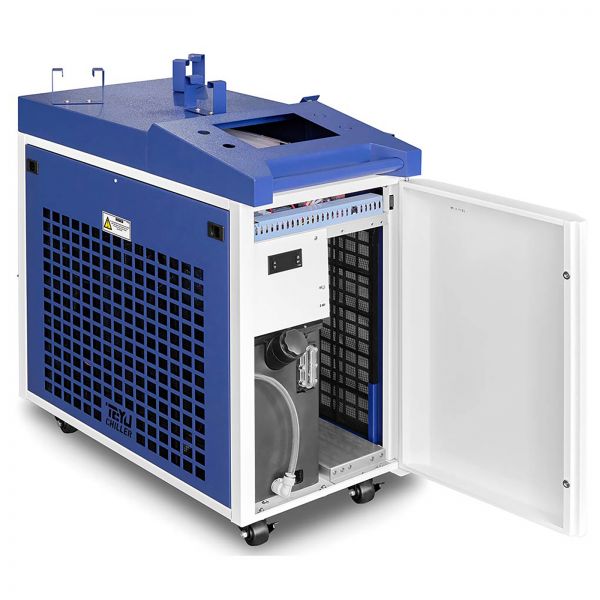

All-in-One Chiller Machine CWFL-1500ANW16 for Handheld Fiber Laser Welder Cutter Cleaner
Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.
All-in-one chiller machine CWFL-1500ANW16 boasts dual cooling circuits to simultaneously cool both the fiber laser and welding gun. It also has an intelligent digital control panel to display the temperature and multiple built-in alarm protection, while four caster wheels offer easy mobility and unmatched flexibility.
Are you seeking a mini and portable water chiller for your new handheld laser welding project? CWFL-1500ANW16 all-in-one chiller machine may be the ideal cooling solution. Specifically designed for 1.5kW handheld fiber laser welders, this compact water chiller features in small size and lightweight, stable and precise temperature control, and a sleek integrated design. With a built-in water chiller, after installing your fiber laser for welding, it constitutes a portable and mobile welder, ensuring efficient, convenient, and safe handheld laser welding. (Note that the fiber laser is not included in the package.)
1. Dual cooling circuit
2. Active cooling
3. Temperature stability: ±1°C
4. Temperature control range: 5°C ~35°C
5. All-in-one design, Space-saving
6. Lightweight, Movable
7. Easy to carry
8. User-friendly
9. Applicable to various application scenarios
(Note: fiber laser is not included in the package)
| Model | CWFL-1500ANW16TY |
| Voltage | AC 1P 220-240V 50Hz |
| Current | 1.2~10.1A |
| Max. power consumption | 2.18kW |
| Compressor power | 1.28kW, 1.75HP |
| Precision | +1℃ |
| Reducer | Capillary |
| Pump Power | 0.26kw |
| Tank Capacity | 10L |
| Inlet and Outlet | Ф6+Ф12 Fast connector |
| Max. pump pressure | 3bar |
| Refrigerant | R410A |
| Rated flow | 1.5L/min+＞15L/min |
| Net Weight | 50kg(110.2lb) |
| Gross Weight | 61kg(135lb) |
| Dimension | 35.4" x 15.8" x 28.4" (900mm x 400mm x 720mm) |
| Package Dimension | 40" x 19" x 36.2" (1010mm x 480mm x 920mm) |
Note:
1. The working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product;
2. Clean, pure, impurity free water should be used. The ideal one could be purified water, clean distilled water, deionised water, etc.;
3. Change out the water periodically (every 3 months is suggested or depending on the actual working environment);
4. Location of the chiller should be well ventilated environment. There must be at least 50cm from the obstacles to the air outlet which is on the top of the chiller and should leave at least 30cm between obstacles and the air inlets which are on the side casing of the chiller.

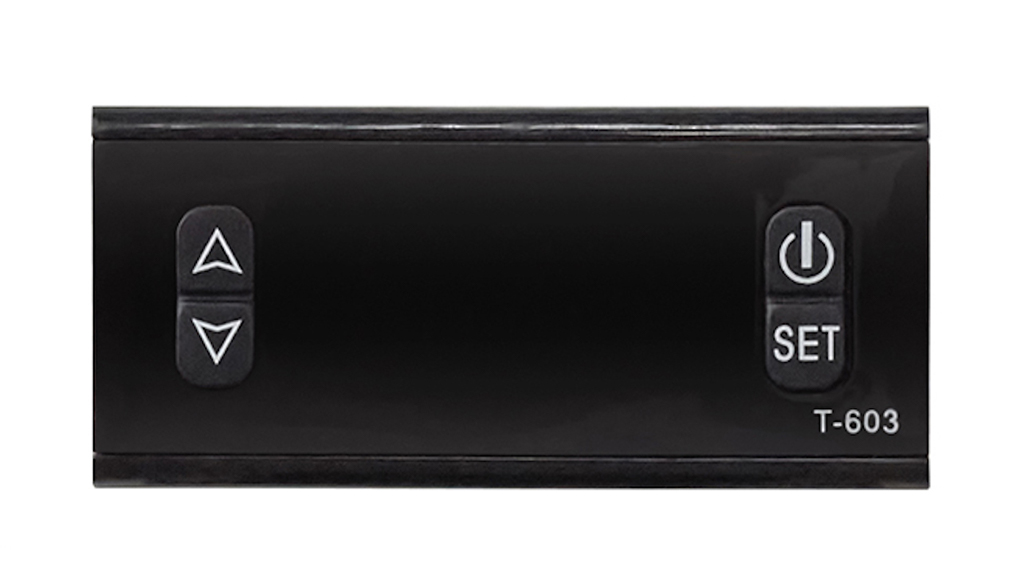

Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.
Laser Gun Holder & Cable Holder
Easy to place the laser gun and cables, saving space, easy and portable, and can easily carry to the processing site in various application scenarios.
Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
