Increase your printing output with faster drying times!
Generally, the printers have their own drying sections, but in normal situations, such own drying section can not dry completely (e.g. large volume of ink printed, rapid printing, rain season, humid area). So an external drying system to help medias dry fast is required.
Avoid wasted time and money from ruined projects and waiting for your prints to dry, instead boost your productivity and your business with the ceramic heating print dryer, your must-have tool to complete prints faster. Compatible with all solvent and eco-solvent printers, the ceramic heating print dryer is the ideal match for your machine.

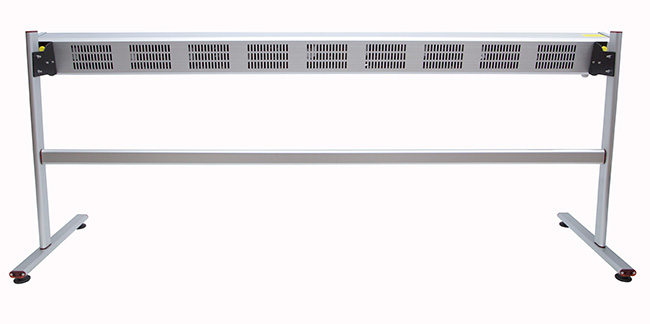

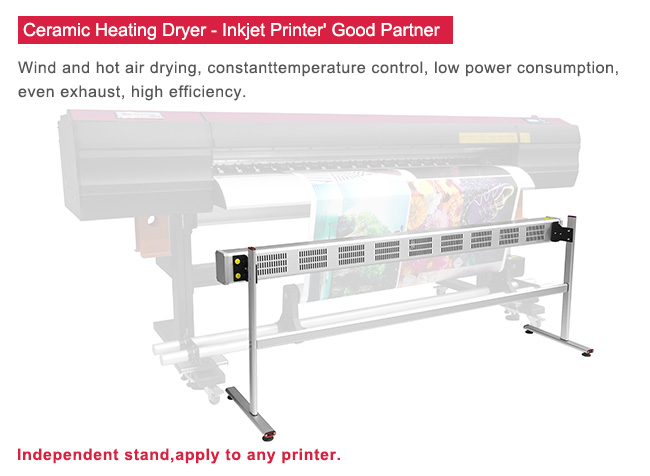

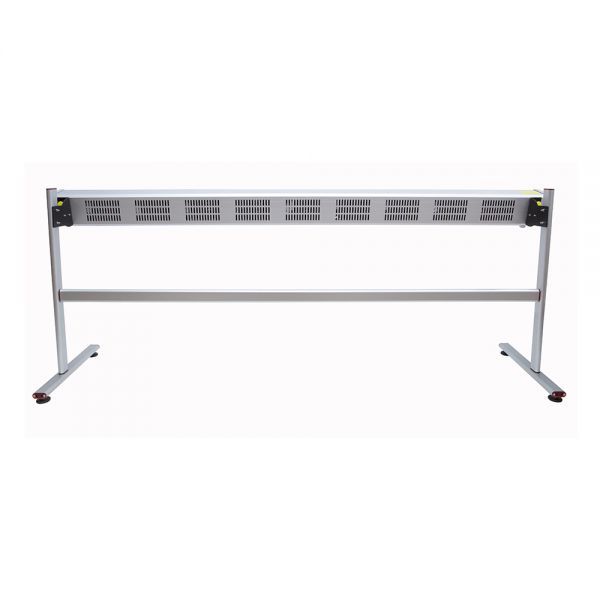

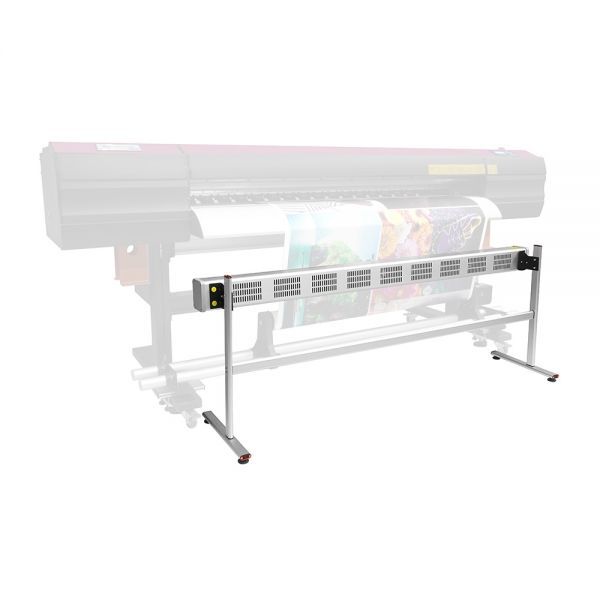

This printer dryer can be put in front of printer without connecting, equipped with independent stand, apply to any printer. It can dry the graphics quickly before rolling up, avoids the damage of the picture quality when rewinding because the printing ink is not dry and sticking together.
Applications:
Apply to any large format inkjet printers, such as Roland FJ740 / RA640 / RS640 / RF640 / VP540 / SP540 / FJ540, Canon, MUTOH VJ1938 / VJ1604 / VJ1638 / VJ1304 / 900C, MIMAKI JV33, EPSON 9700 / 9100 / S30680 / GS6000, HP and Chinese printers, etc.
Applied Materials:
Water-based printing materials, such as portrait cloth, PP, adhesive stickers, photographic paper, film, ect..
Eco-solvent printing materials, such as car stick, lamp cloth, leather, wall paper, soft film ceiling, ect.
Sublimation printing materials, such as transfer-paper, fabric textile, ect.
Features:
• Rapid and complete print-job drying with powerful 2000W module.
• Even and consistent drying with a uniform heat distribution across any kind of media.
• Wind and hot air drying, even exhaust, low power consumption, high efficiency.
• Adopts Ceramic heating module, constant temperature control, stable, safe and long lifespan.
• Sturdy, not fragile for long distance transportation.
• Module disassembly for replacement, easy to clean and maintain.

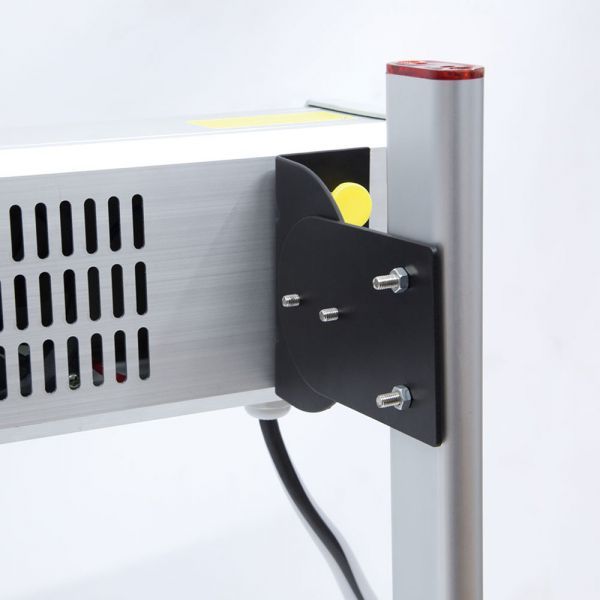

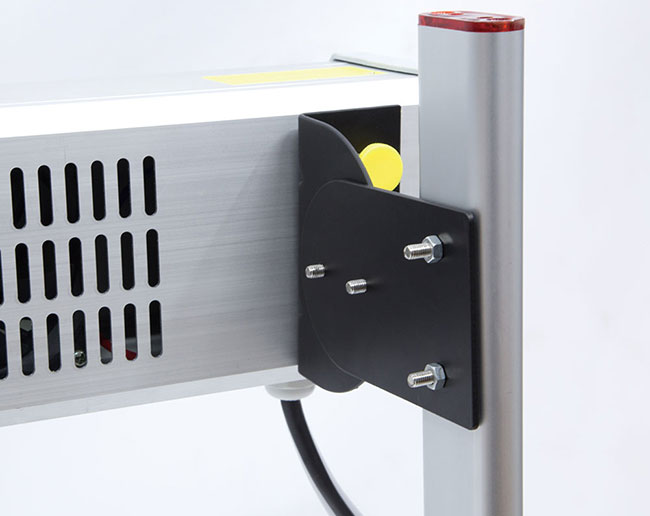

• Independent stand, conveniently move.
• Flexibility from machine to machine with a compatibility range including almost any wide-format printer.
• CE certification.
| Specification | |
| Model | HGQ-JXH6-64 |
| Max. Working Width | 1600mm (64in) |
| Working Mode | Wind & heat air in - one |
| Voltage | 220V, 50Hz, 9A |
| Working Power | 2000W |
| Drying Temperature | 45 - 50℃ (113 - 22℉) |
| Sunction Areas | 9 suction areas |
| Machine Size | 1850mm x 225mm x 600mm (72.8in x 8.9in x 23.6in) |
| Net Weight | 12kg (26.4lbs) |
| Carton Packing Size | 1950mm x 190mm x 265mm (76.8in x 7.5in x 10.4in) |
| Gross Weight | 14kg (30.8lbs) |
Remark: Both input and output voltage is 220V, please use voltage transformer if your voltage is 110V.
Details:

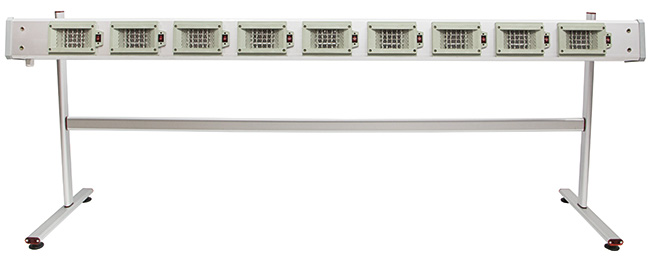

A: Sectional Controllable Thermostat: Closely arrayed air outlets，ensure even exhaust. Hot air possibly controlled in section, constant temperature, fast drying.
B. Elegant design of air intake: Appears fashionable and practical.

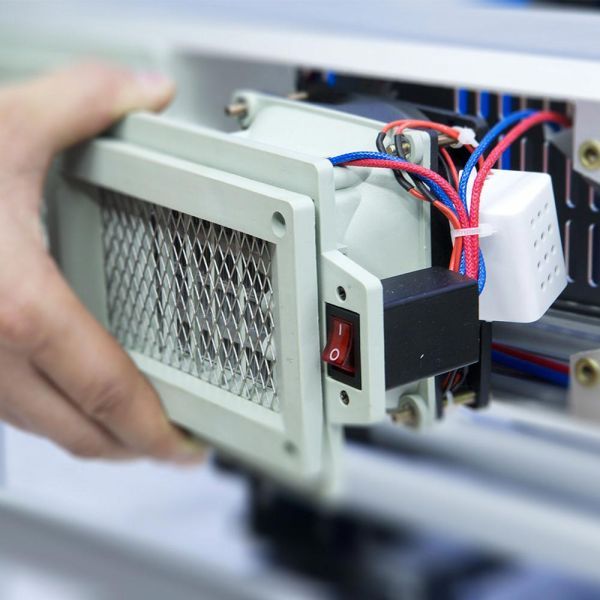

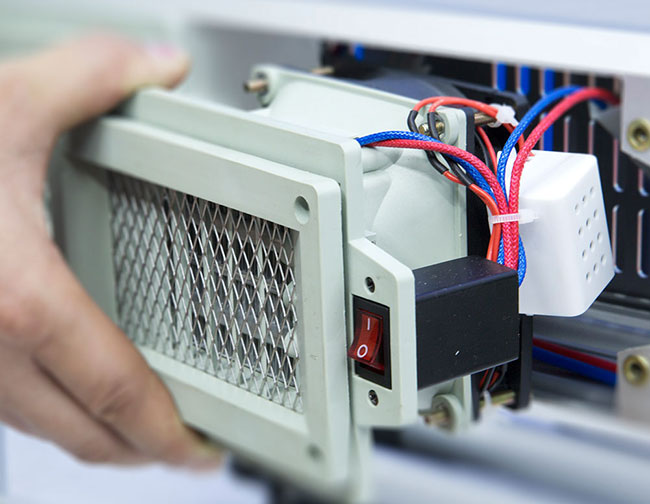

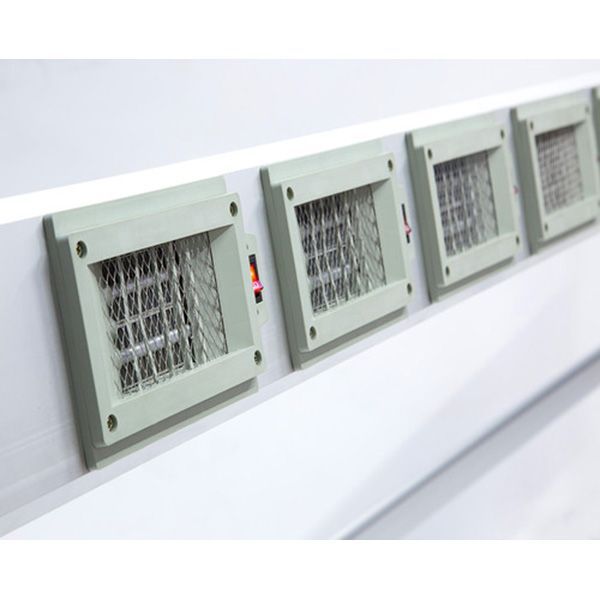

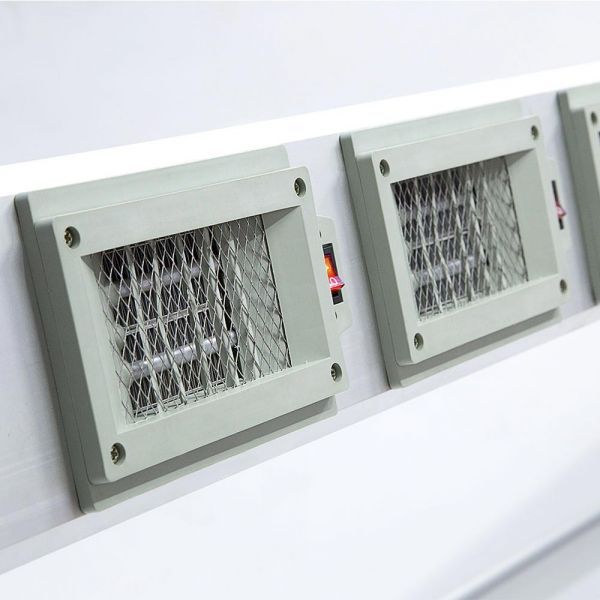

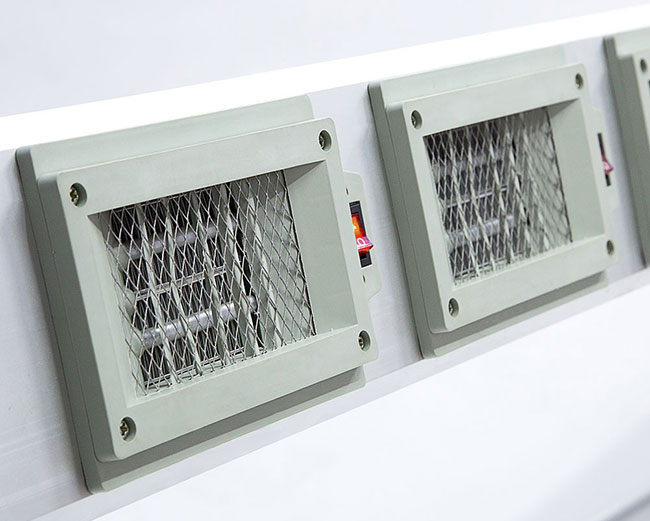

C. Heating Module: The ceramic heating module can be disassembled independently, easy for cleaning and maintenance.

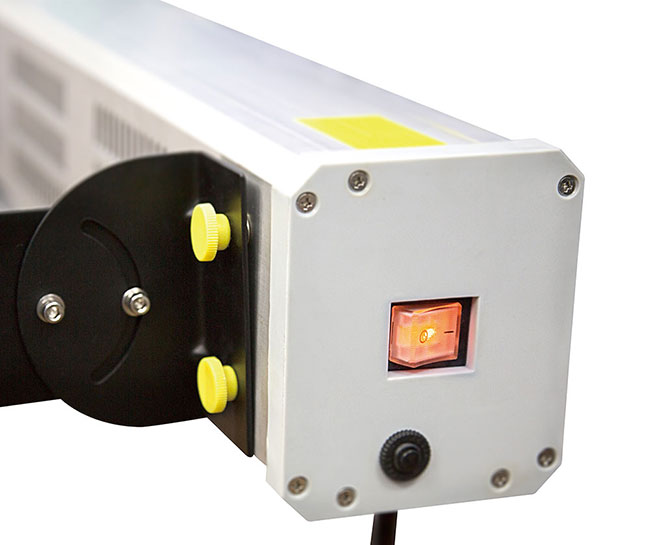

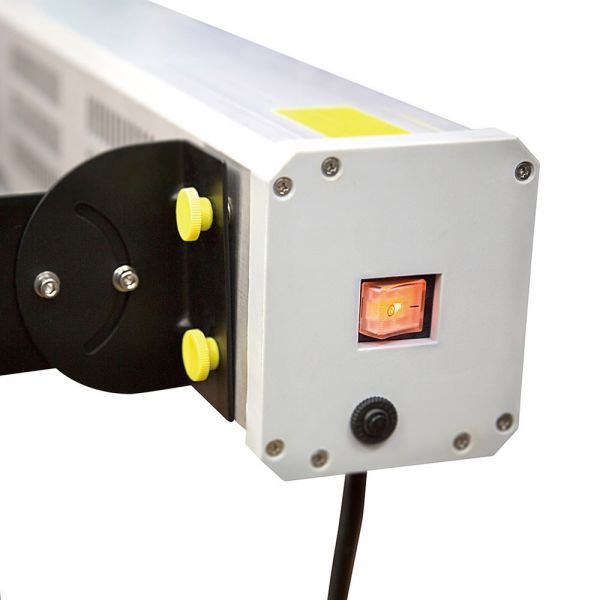

D. Separated Switch: The normal air or hot air, each has its own switch which realizes normal temperature air drying mode to dry media when hot air is not required.
At present, we supply two kinds of heating dryers, one is ceramic heating module (model H6), the other one is far infrared quartz tube heating (model H7), and both models are available in normal and hot airs (possible to use solely normal or hot air).
