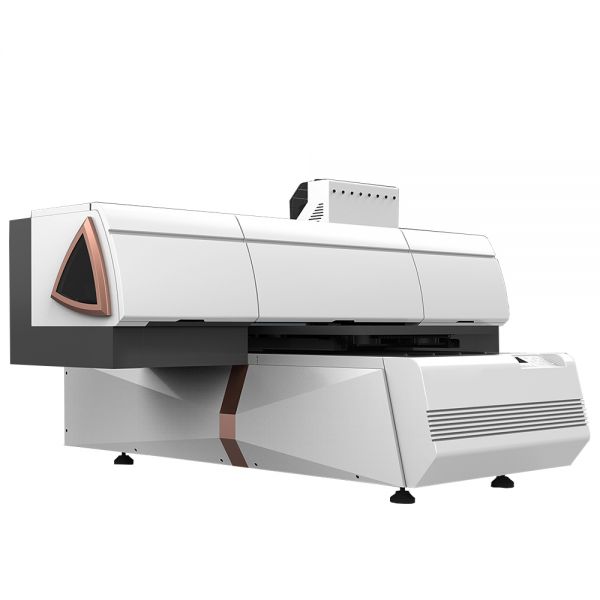

60*90 UV Printer with 3 Epson Printheads
Description:
It is the best choice for startups and medium-size businesses! Our ink delivery system prevents the white ink from clogging Printhead. Hassel-free operation. Breaking through the bottleneck of digital printing technology, can achieve a piece of paper printing, no plate-making, full-color image printing. The original design and manufacture was mainly used for the printing of rigid materials, which broke the limitation that inkjet technology can only print on soft materials.
1. Personalized design, unique suction platform to ensure flat printing;
2. Support CMYKLcLm+W+V printing at same time with fast speed, high efficiency and time saving;
3. Compared with the modified machine, more compact structure, less application boards, more stable performance, and more convenient maintenance;
4. Epson I3200 printhead, cost-effective, high precision, easier to maintain and replace;
5. Intelligent ink supply system: new board control, built-in ink heating system, ink circulation in the ink tube to prevent ink precipitation;
6. New ink stack design, cleaning and moisturizing function, ink car self-locking function, lock the ink cart when not printing, prevent the ink stack from rebounding;
7. Independent flashing setting: designed for printhead flashing, which makes the printhead use more smoothly. The aluminum beam is equipped with an air purification system to remove dust, moisture and other interference printing factors.
Application:
For printing gifts, crafts,paper, glass,cup,mobile phone cell, glass, acrylic, PVC,boards ,leather, canvas,etc.
Specification:
| Printhead configuration | Epson i3200-U1*1White | Epson i3200-U1HD*1Color | Epson i1600-U1*1Vanish | |

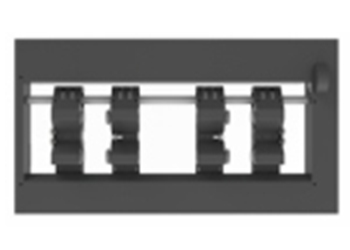

| Print head picture |  |
 |
 |
|
| Nozzle spray force rang | 2-12mm | 2-12mm | 2-12mm | |
| Number of nozzles | 3200(indivual) | 1600(indivual) | 3200(indivual) | |
| Distance between nozzls | 1/300(inch) | 1/300(inch) | 1/300(inch) | |
| Number of nozzle rows | 8 | 8 | 4 | |
| Maximum number of support ink colors | 4 | 8 | 4 | |
| Droplet ejection performance (droplet volume an dejection fre quency) |
2 levels of grayscale | 5pl(43.2kHz) | 5pl(43.2kHz) | 5pl(43.2kHz) |
| 3 levels of grayscale | 6,12.5 pl(21.6kHz) | 6,12.5 pl(21.6kHz) | 6,12.5 pl(21.6kHz) | |
| 4 levels of grayscale | 3.8,6.2,9.3 pl(21.6kHz) | 3.8,6.2,9.3 pl(21.6kHz) | 3.8,6.2,9.3 pl(21.6kHz) | |
| Print size | 600*900mm | |||
| Print height | 0-180mm | |||
| Print version | White,Color&Varnish | |||
| Print mode | CMYK Lc Lm Lk LIk+W+V | |||
| Resolution | 720*600dpi/720*900dpi/720*1200dpi | |||
| Printer dimension | 1676mm*1638mm*975mm | |||
| N.W. | 226KG | |||
| Packing size | 1.86m*1.81m*1.05m | |||
| G.W. | 430KG | |||
| Rip software | FlexiPRlNT MiniServer 22 Nocai Edition | |||
| Print speed range | High quality mode (8pass) | 9-23min/version | ||
| Standard production mode (6pass) | 7-17min/version | |||
| High-speed production mode (4pass) | 4-12min/version | |||
| Graphic and text format | Tiff,Jpg,Eps,Pdf,Png,AI | |||
| Connection method | Cable | |||
| Voltage | AC220V/110V+10，50HZ~60HZ | |||
| Rated power | 470W | |||
| Working environment | Temperature | 20°C-28°C | ||
| Humidity | 35%-65% | |||
| Operating conditions | Dust | Avoid dusty environments | ||
| Illumination | Avoid direct sunlight | |||
| Ink type | Environmentally friendly UV curing ink | |||
| Fixture (optional) | |
| Electric cylinder fixture |  |
| Support cylinder diameter | Φ30-120mm |
| Support cylinder length | 40~430mm |
| Applicable materials | Spray paint cup, stainless steel, plastic, glass, ceramic,wood, acrylic,etc. |
| Round bottle printing method | C+W (Round bottle mode does not support varnish printing) |
| Round bottle printing speed | 3-20min/indivual |
| Cylindrical fixture packaging dimensions | 68*39*14cm |
| Cylindrical fixture packaging weight | 12KG |

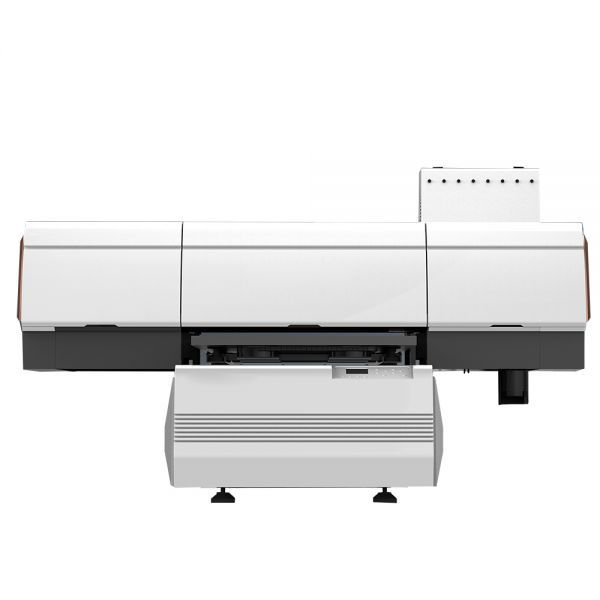

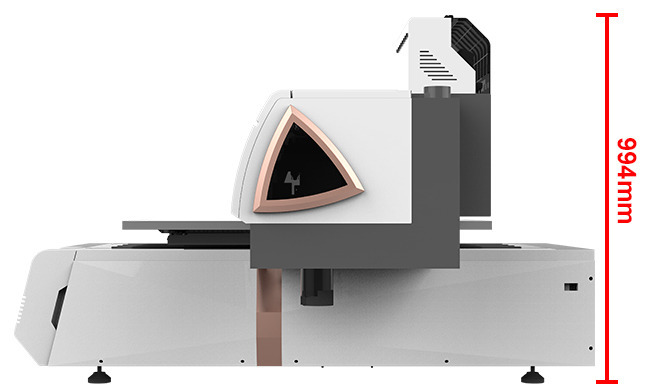

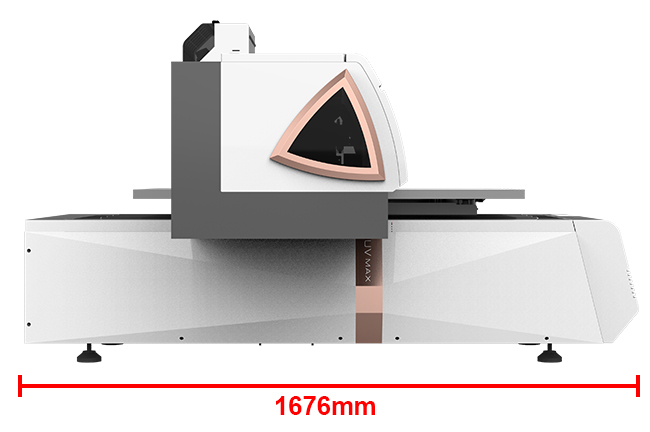

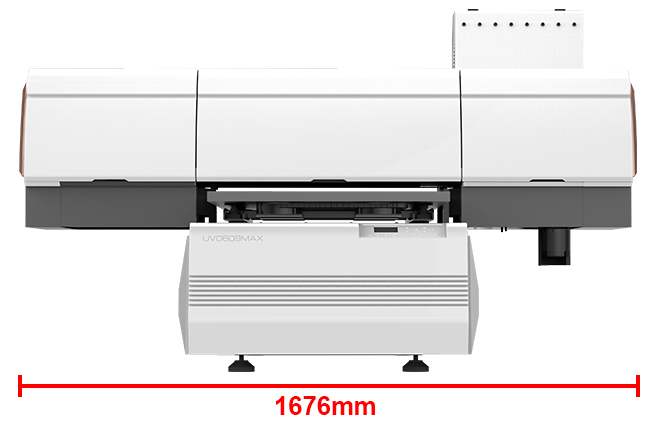

Product size:
Details:

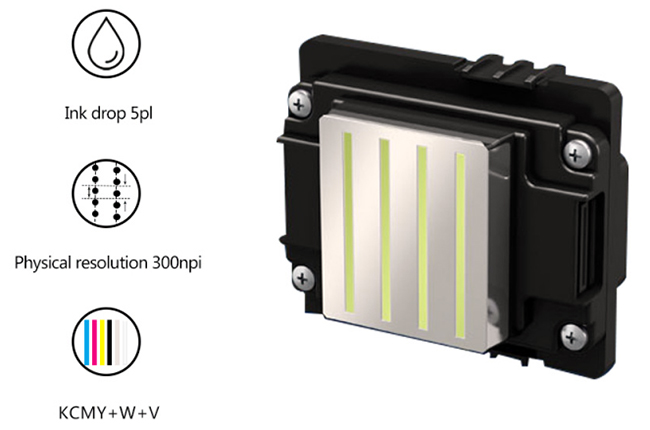

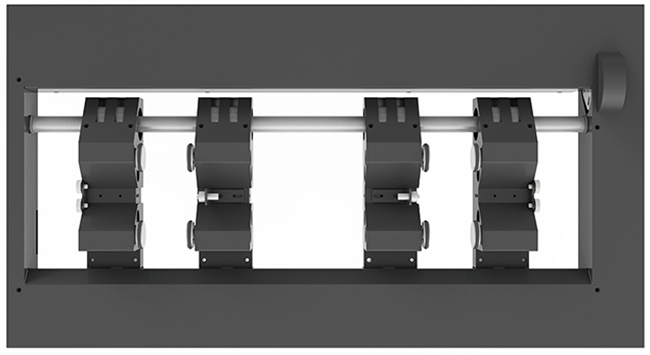

EPSON I3200-U1 Printhead
High precision, high efficiency, bright and delicate colors.

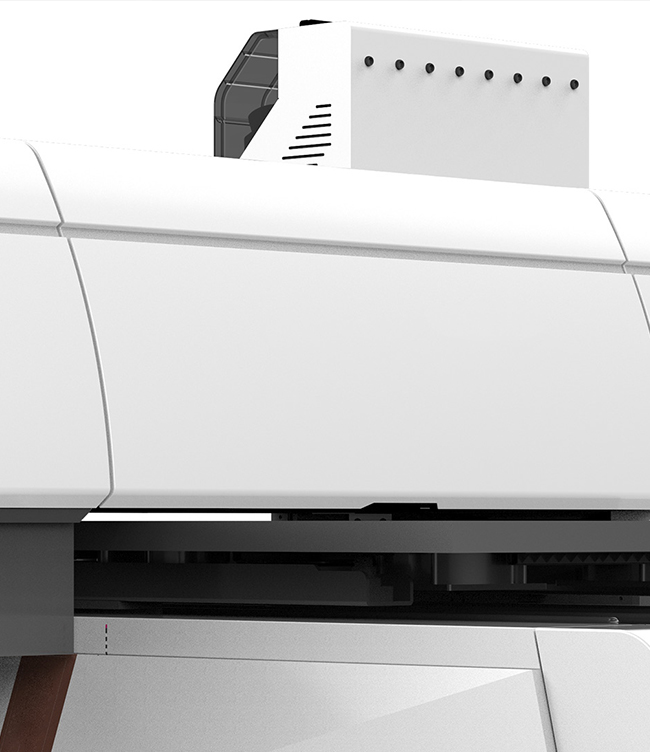

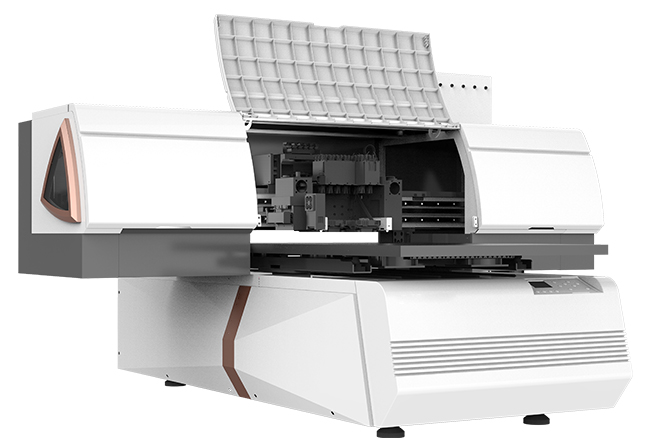

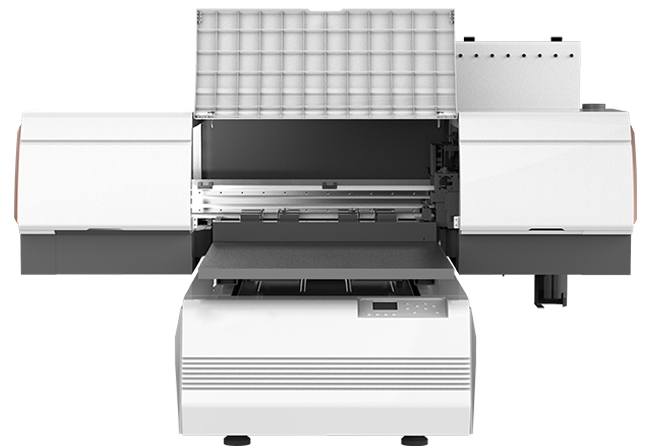

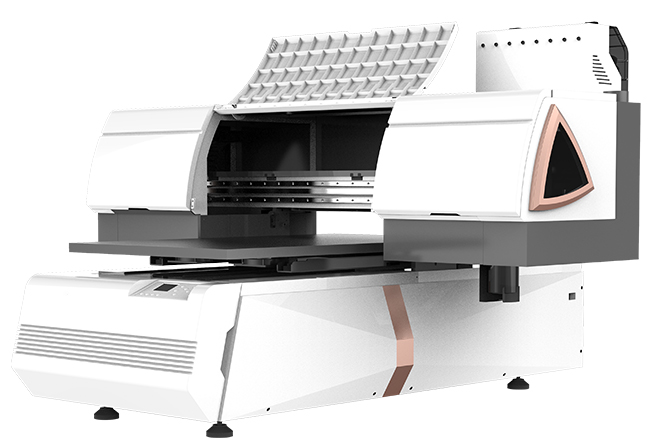

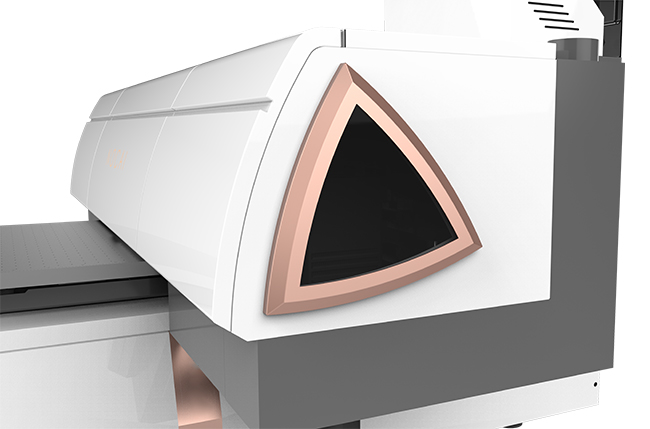

Full Coverage Shade Cover
Light, dustproof, more safety.

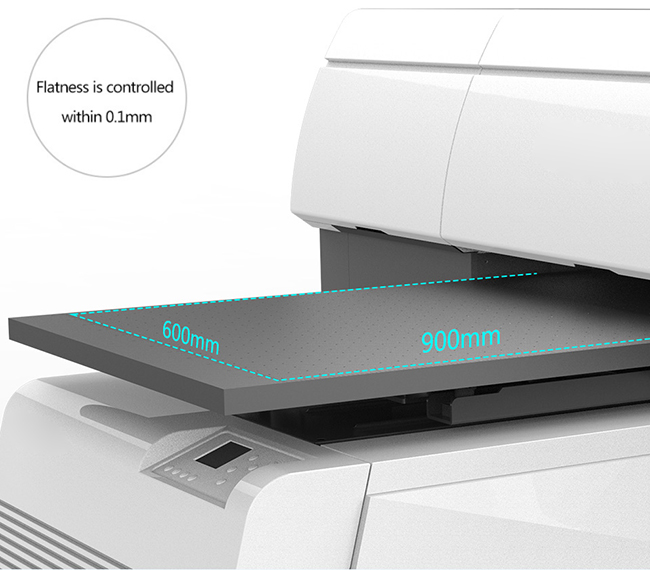

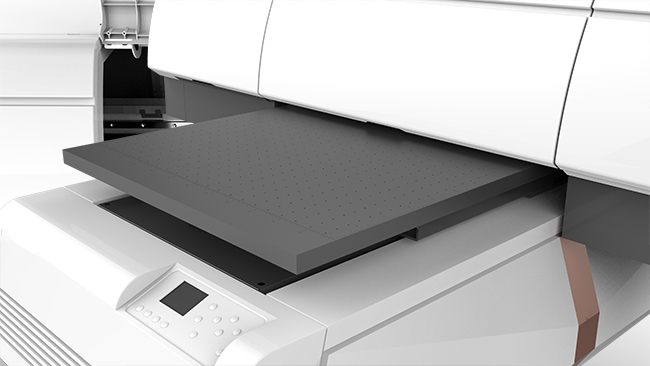

Standard scale printing platform
Made of aluminum plate material, internal honeycomb structure, Not easy to deform, high flatness.

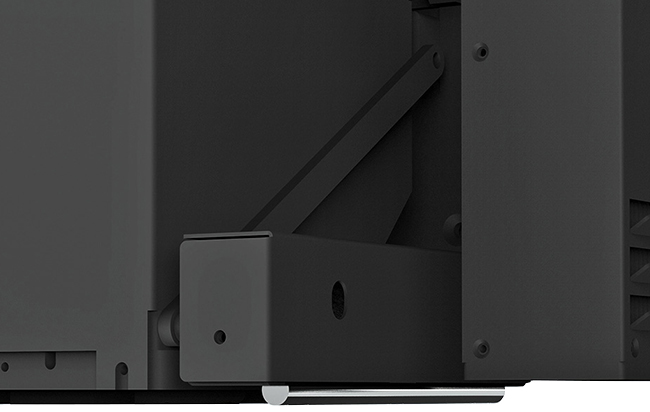

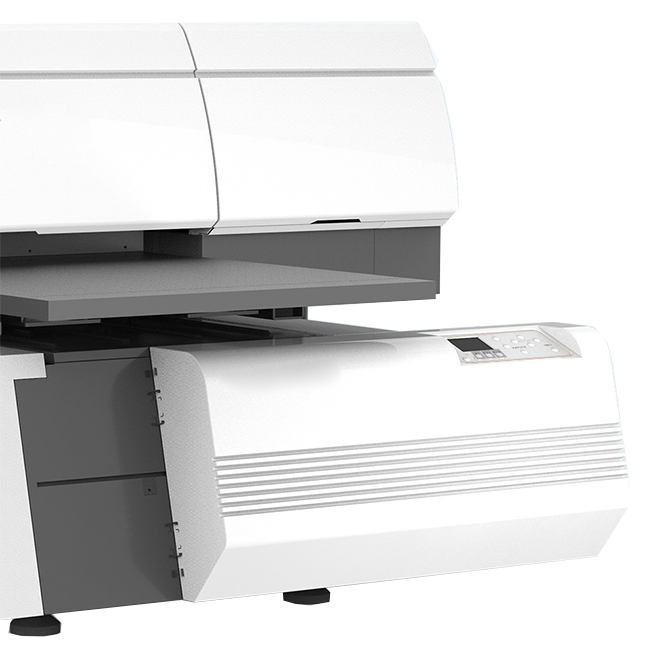

Retractable control panel
The panel can be stretched and adjusted, and the operation is convenient.

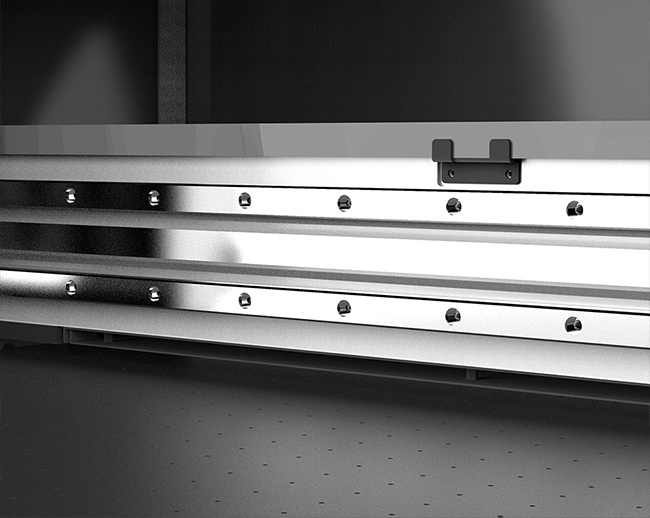

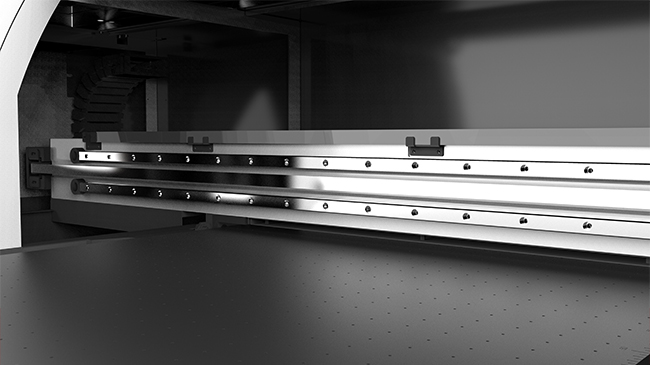

Double row linear guide
x-axis adopts double-row linear guides, which makes printing more stable and ensures printing accuracy.

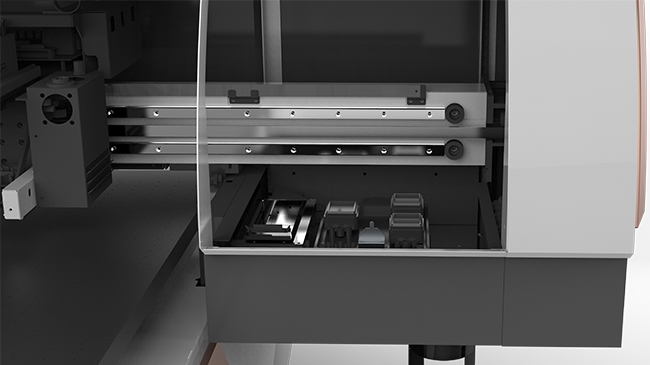

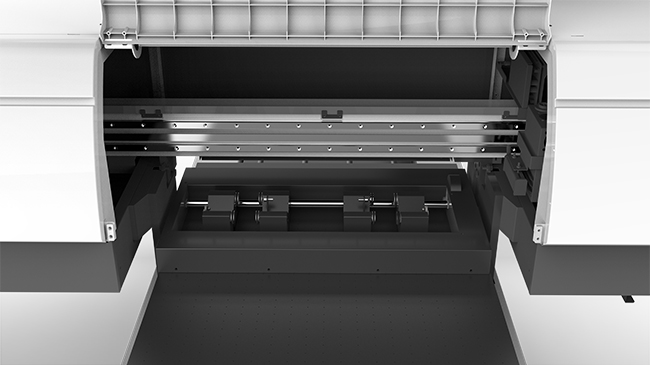

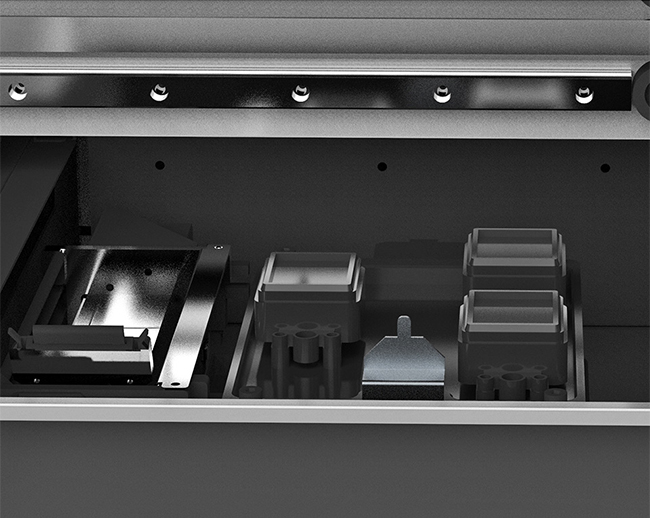

Lifting ink station design
Driven by motor, accurately control the position, intelligently protect the print head.
Smart Touch Collision Avoidance System
The bottom of the ink car is equipped with an anti-collision sensing device to protect the print head and the product from being scratched.
Electric Cylindrical Fixture
Accurate alignment, convenient operation, and 360 degree rotation printing.
Application:

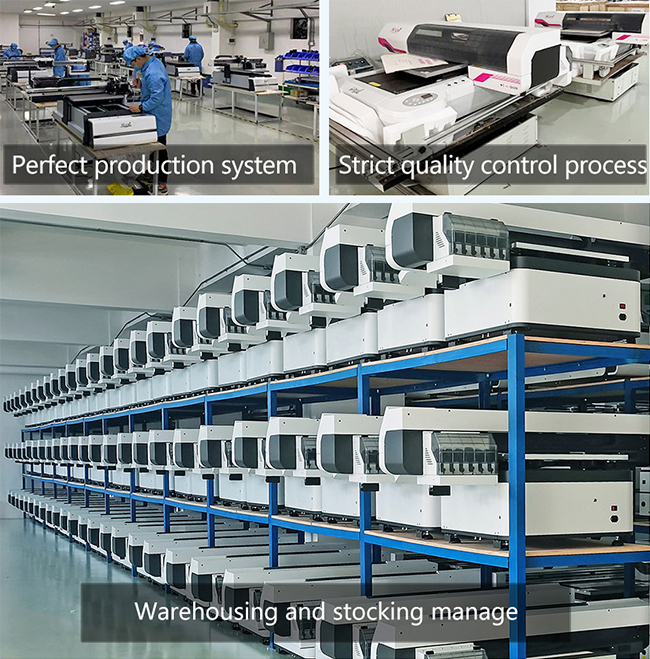

Factory:
