520C/720C/920C Semi-automatic Hydraulic Oil Heating Laminating Machine
520C
Precio unitario
MXN 102.014,00
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 102.014,00
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
MXN 102.014,00
Cantidad
/set
1

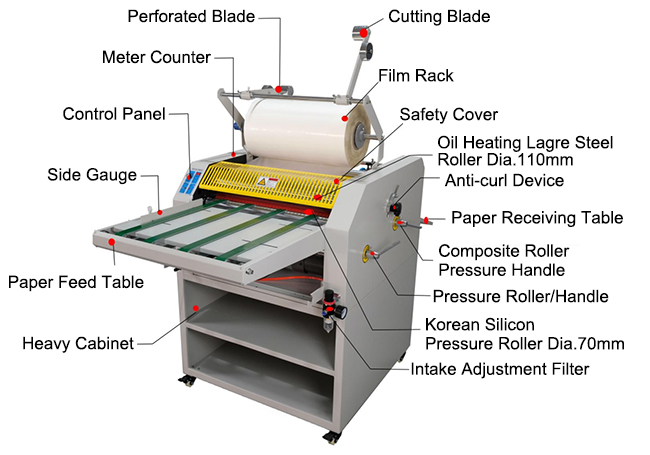

520C/720C/920C Semi-automatic Hydraulic Oil Heating Laminating Machine
Description:

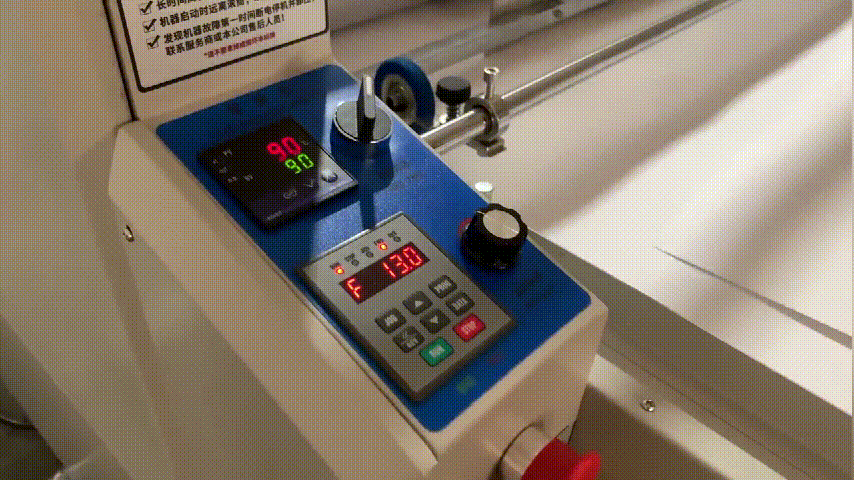

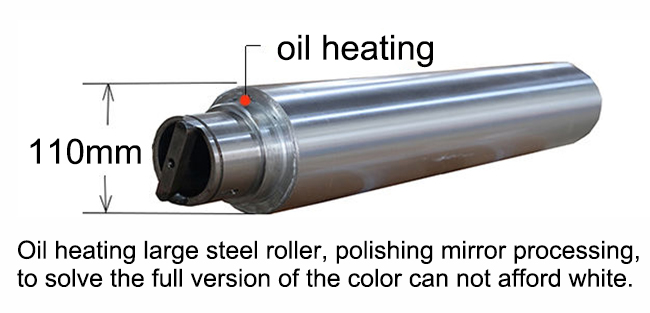

This machine is a semi-automatic hydraulic oil heating laminating machine. it uses computer touchscreen to operate and has a PLC control system.lt adopts energy-saving inverter control speed motorto adjust speed.lt has a hydraulic pump to provide high pressure.lt has double film racks, anti curl deviceIt can cut off paper and overlap automatically and collect papers orderly.The heating roller is treated withhigh brightness mirror.The pressure roller uses imported silicon material, which is pressure resistant andhigh temperature resistant and non-adhesive.
Specification:
| Model | SMFM-520C | SMFM-720C | SMFM-920C |
| Max paper size | 490*580mm | 690*580mm | 890*580mm |
| Min paper size | 150*200mm | ||
| Max height of paper | 30mm | ||
| Operating speed | 0-25m/min | ||
| Laminating temperature | 0~120°C | ||
| Total power | 3.3kw | 3.7kw | 4kw |
| Dimensions(LxWxH) | 2x0.9x1.4m | 2x1.1x1.4m | 2x1.3x1.4m |
| Voltage | 220V/50Hz | ||
| Hydraulic pressure | 3~6Mpa | 3~8Mpa | |
| Feeding mode | Conveyor belt | Conveyor belt | Conveyor belt |
| With slitting function | with | with | with |
| Anti-curl function | with | with | with |
| Automatic cut-off | yes | yes | yes |
Details:
Application:
