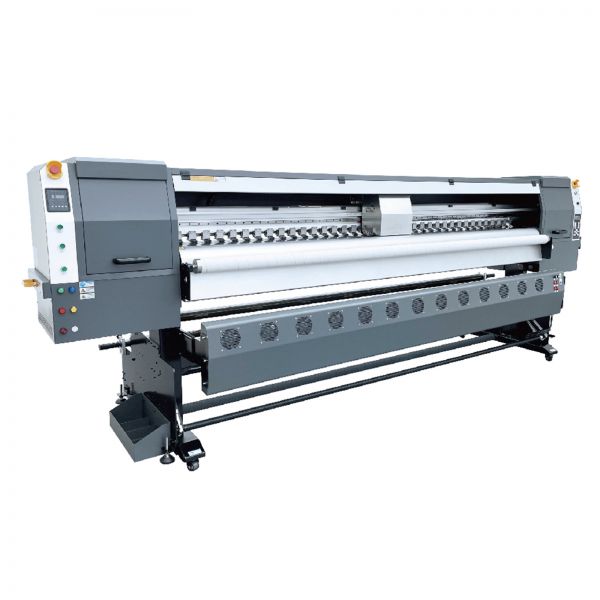

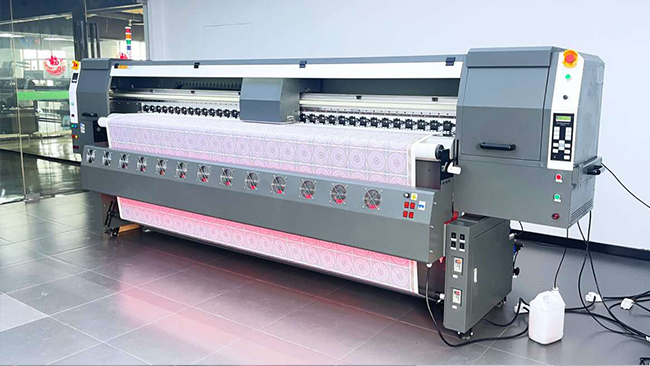

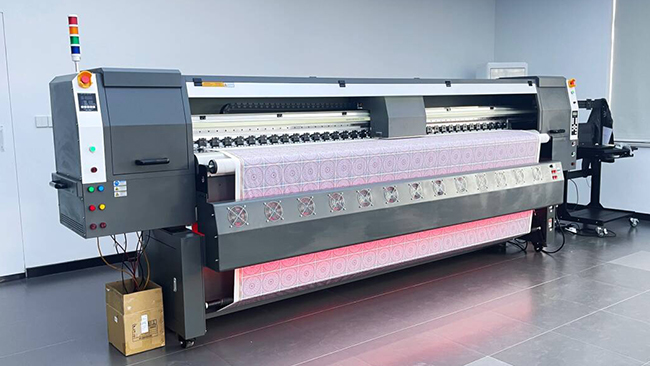

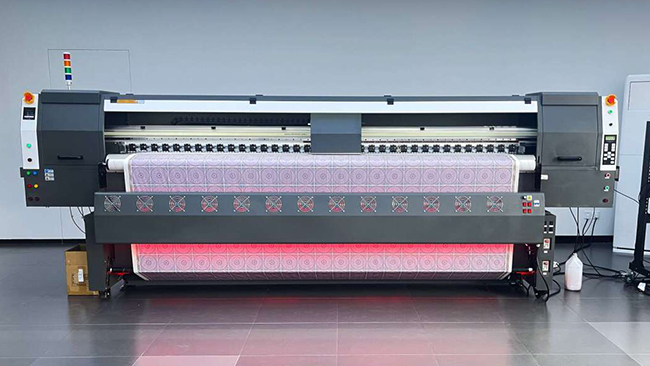

3.2m Sublimation Printer for Fiber Fabric (4 Epson I3200A1 Heads)
Specification:
| Model | GT3204-3200A |
| Print format | 3.2M |
| Number of nozzles | 4 Epson I3200A1 |
| Ink compatible | Sublimation ink |
| Print Speed (360*1200DPI) |
1pass: 300m²/h |
| 2pass: 162m²/h | |
| 3pass: 116m²/h | |
| Operating system | Win7/Win10 64-bit |
| Power requirements | AC220V 50/60HZ 3000W |
| Boards& RIP | Boards | AT Boards |
| Password | Build in Boards&Showing in Printer | |
| Rip Software | Maintop Rip Software | |
| Body | Main Girder Structure | 200*100*5mm Square Tube |
| Y-Axis | 20mm Diameter | |
| Beam | Aluminum Beam | |
| Linear Guide Way | THK linear guide way With One Blocks | |
| Pinch Roller | High Precision 3 Level Pinch Roller | |
| Printing Bed | 225mm Wide Printing Bed | |
| Suction System | Adjustable Vacuum Suction System | |
| LED lighting System | Printing Bed Lighting System | |
| Carriage | Carriage Belt | ltaly MEGADYNE Belt |
| Carraige Chain | Germany lgus Drag Chain | |

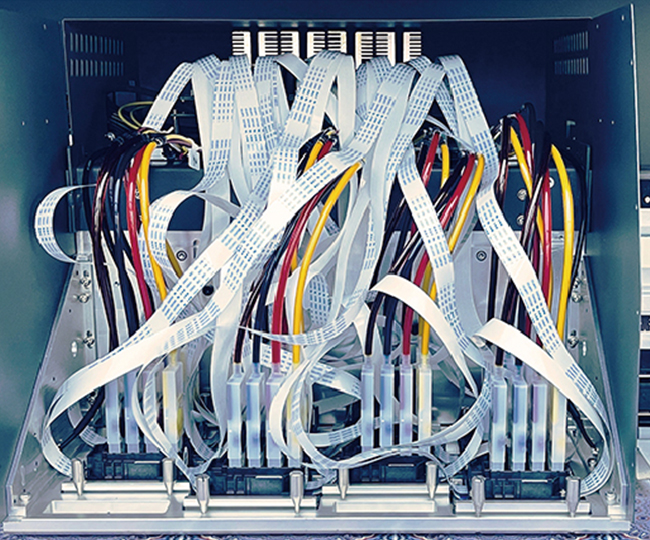

| Carriage Data Cable | Fiber Optical | |
| Carriage Power Cable | Germany lgus Power Cable | |
| Carriage Encoder | 180DPI(9730) | |
| Carraige Lifting | Manual Screw type | |

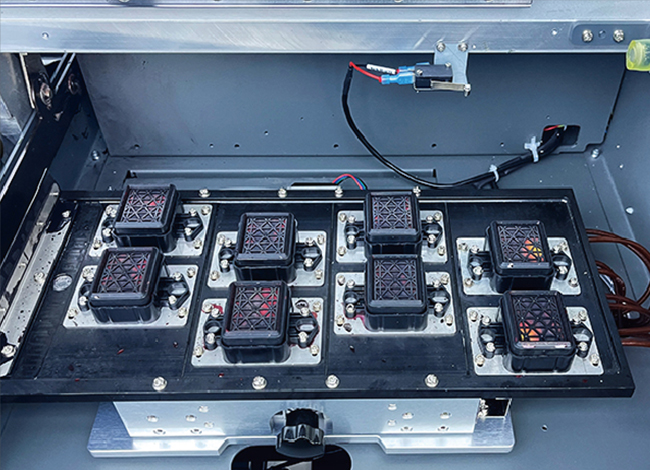

| Carriage Capping | Automatic Capping & wipping System | |
| Anti Collision | Anti Collision System | |
| Motor | X Motor | Leadshine 400W AC Servo Motor |
| Y Motor | Leadshine180wDC Servo Motor | |
| XY Motor Bracket | Metal Brackets | |
| F&T | Paper Sensor | Paper Out Waming Sensor |

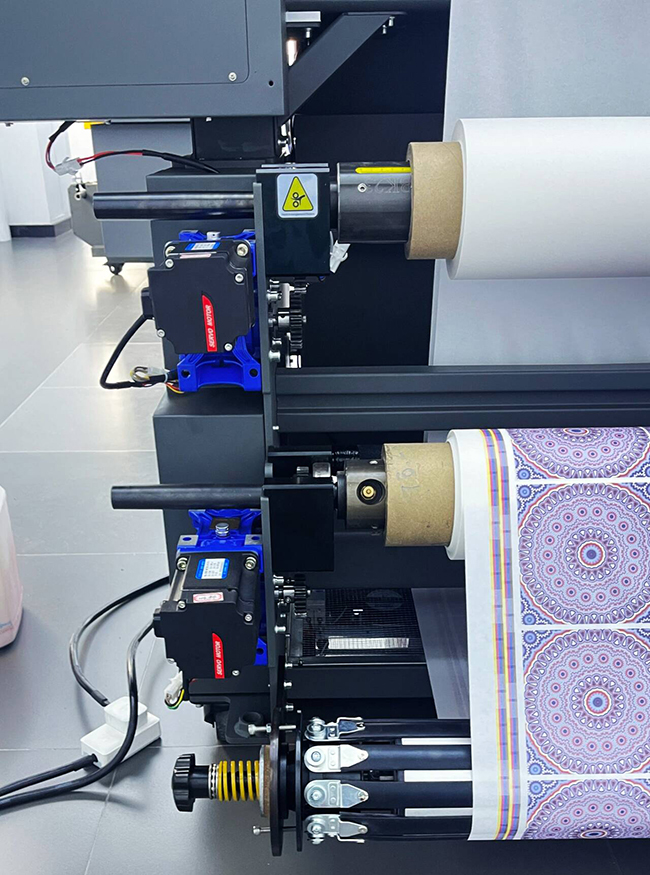

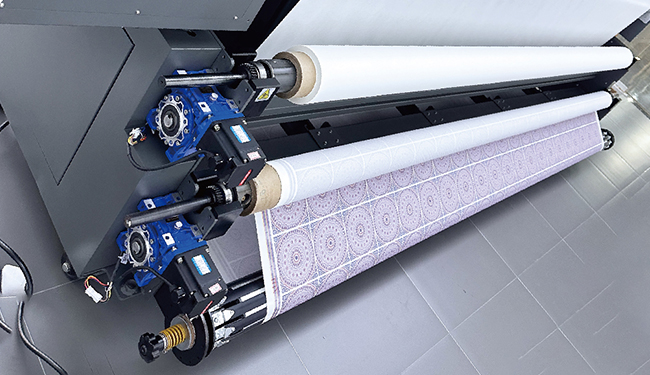

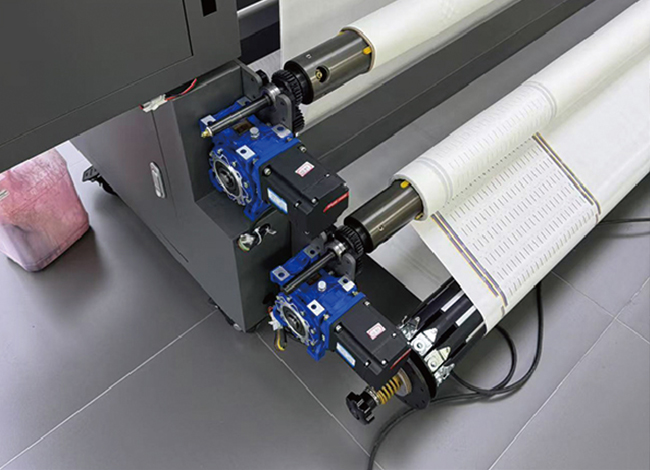

| Feeding And Take Up | AirShaft Feeding&Take up | |
| Leveling Stand | Leveling Stand | |
| Ink Supply | Ink Supply System | Bulk Ink Supply System |
| Main Ink Tank | 10L Main Ink Tank | |
| Damper | Negative Type Damper | |
| Ink Pump | SPD Ink Pump | |

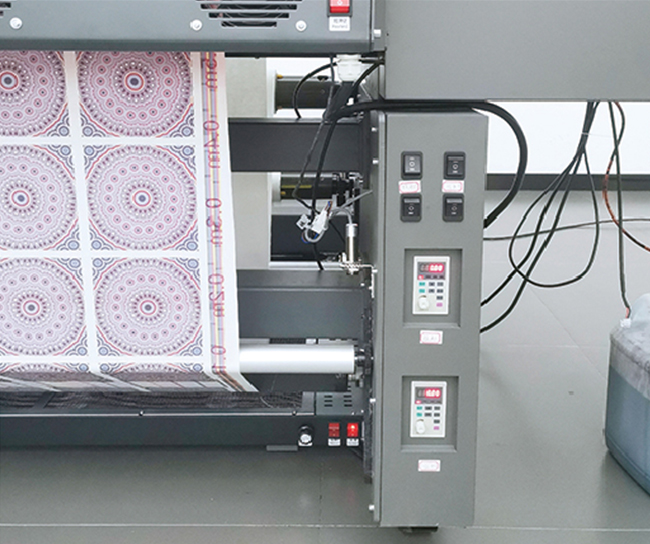

| Heating &Drying | Dryging System | 7000W VIR Heater |
| Heating Control Pane | 3in 1 Heating Control Panel | |
| Heating System | Rear-Printing Bed-Front 3 Heaters | |
| Carriage Plate Heater | 24V DC Heater | |
| Heating &Drying | Printer Size | 4580*980*1550mm |
| Printer Packing | Wooden Box | |
| N.W./G.W. | 1100KG/1270KG | |
| Packing size | 5300*1150*1950mm |
Details:

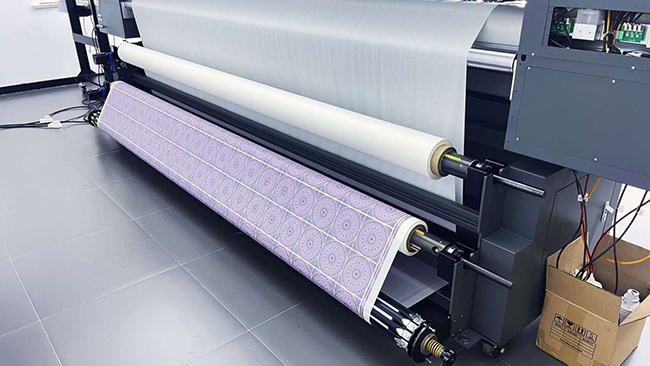

Application:
Aplicaciones：
