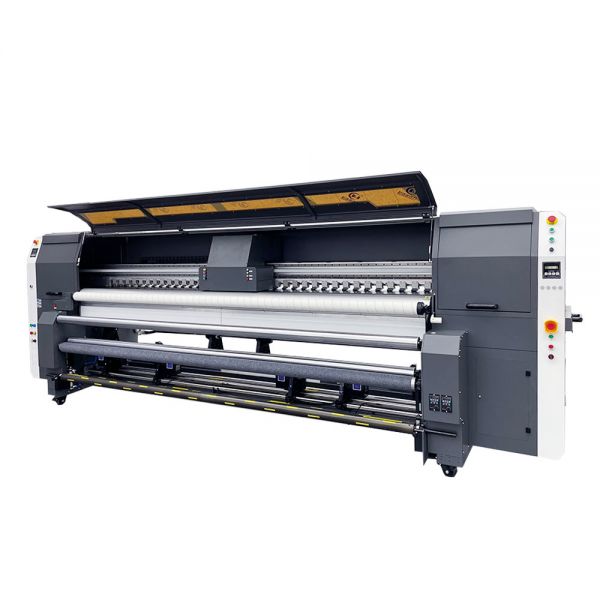

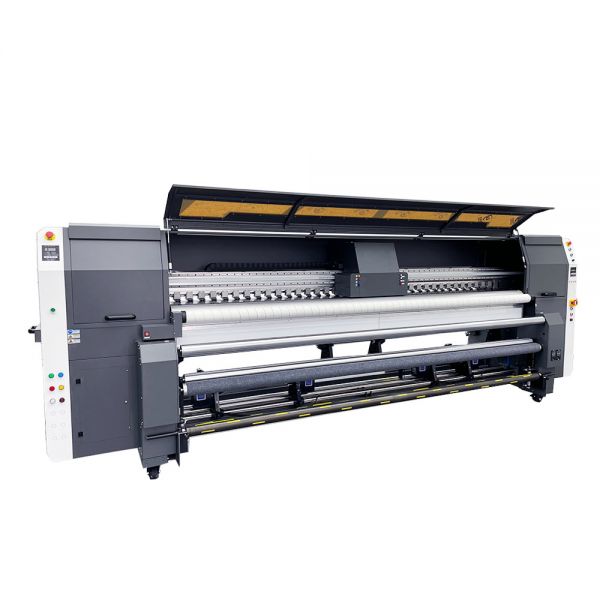

3.2m Roll to Roll UV Printer With 4/8 Konica KM1024A UV Printheads
4-head
Precio unitario
MXN 517.644,00
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 517.644,00
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
MXN 517.644,00
Cantidad
/set
1
| Print format | 3.2M |
| Number of nozzles | 4/8 |
| Print color | CMYK 4 colors/six colors and eight colors are available |
| Ink compatible | UV ink |
| Printing material | Printing cloth, car stickers, soft film etc. |
| Media transfer | Inkjet, car sticker retracting and unwinding system |
| Operating system | Win7.Win10 64-bit |
| Printing software | PhotoPrint |
| Data interface | Cable |
| Power requirements | AC220V 50/60HZ 3000W |
| Working environment | Temperature: 15-30°C Humidity: 40-60% |
| 5020x1420x1680mm | |
| 5300x1150x1950mm | |
| Net weight | 1400kg |
| Gross weight | 1520kg |
| Main Configurations | Standard | High Standard | |
| UMC Boards With 2 Head PCB (AUV3202) | Standard | √ | √ |
| Add More Head PCB (Each one) if you need totally 6 pcs , you need to add 4 pcs | Optional | ||
| Upgrade to Gen6 Boards | Optional | ||
| Password Dongle for 36 times | Optional | ||
| LED UV Lamper with Chiller | Standard | √ | √ |
| Add Varnish Lamper | Optional | √ | |
| Upgrade to Hi-UV Printing Mode(2 times Curing) | Optional | ||
| PhotoPrint Rip Software | Standard | √ | √ |
| Upgrade to Onyx Rip Software | Optional | ||
| Double Roll Vinyl feeding system | Standard | √ | √ |
| Step free feeding system | Standard | √ | √ |
| Backlit Light Box | Standard | √ | √ |
| Reduction Gear Box for Carriage moving | Standard | √ | √ |
| Water cooling Printing bed with Matrix Suction groove | Standard | √ | √ |
| Upgrade to Double THK linear guide | Optional | √ | |
| Upgrade to Magnetic grid instead of Raster bar | Optional | ||
| Anti-Static bar for Carriage | Optional | √ | |
| Softfilm Feeding&Take Up System | Optional | √ | |
| Material holding system | Optional | √ | |
| Air Shaft Feeding System | Optional | √ | |
| Air Shaft Take Up System | Optional | √ | |
| Acer 18.5 inch LCD screen (long cable included) | Optional | ||
| Aluminium LCD &Key board bracket | Optional | √ | |
| Vacuum bag for Packing | Standard | √ | √ |
| Boards& RIP | Boards | UMC Boards |
| Password | Dongle 36 Stages | |
| Rip Software | PhotoPRINT UV Rip Software | |
| LCD&Key board Bracket | Aluminium LCD & Key board bracket | |
| Body | Main Girder Structure | 20*20*7mm Square Tube |
| Y-Axis | 20mm Diameter | |
| Beam | 4600mm Aluminum Beam | |
| Linear Guide Way | Double THK linear guide way With Four Blocks | |
| Pinch Roller | 36 PCS High Precision Aluminum Made Pinch Roller | |
| Printing Bed | 225mm Wide Printing Bed With Water cooling system | |
| Printing Bed Suction System | Adjustable Vacuum Suction System | |
| LED lighting System | Printing Bed Lighting System | |
| Carriage | Carriage Belt | ltaly MEGADYNE Belt |
| Carraige Chain | Germany lgus Drag Chain | |
| Carriage Data Cable | Fiber Optical | |
| Carriage Power Cable | Germany lgus Power Cable | |
| Carriage Encoder | 180DPI(9730) | |
| Carraige Lifting | Manual Screw type | |
| Carriage Protection | Anti Collision System | |
| Carriage Anti-Static | Carraige Anti-Static bar | |
| Carriage Capping | Unique Printhead Protection Stack | |
| Motor | X Driving Mode | Panasonice 400WAC Servo Motor With Reduction Gear Box |
| Y Driving Mode | Leadshine 180WDC Servo Motor with belt and Gear | |
| XY Motor Bracket | Aluminum Machined Brackets | |
| F&T | Roll Material Feeding System | 3600mm Step-Free Feeding System |
| Feeding&Take up Sensor | Black&White Detect sensor | |
| Material Holding System | Big Roll Material Holding System | |
| Softfilm Feeding&Take Up System | Softfilm Feeding&Take Up System | |
| Vinyl Feeding & Take up System | Double roll & Single Motor | |
| Anti Shake Leveling Stand | Metal Leveling Stand | |
| Ink Supply | Air pressure System | Double Negative pressure system |
| Subtank | Solenoid valve Subtank 8 PCS | |
| Air Pump | SPD Air Pump | |
| Ink Pump | SPD Ink Pump | |
| Magnetic Valve | Anti-Solvent 3 way Magnetic Valve | |
| Tube Connector | Amercian ValuePlastics Tube Connector | |
| Ink Supply Alarm System | Build in Boards & Showing in Software | |
| Airtank Alarm System | Built on Carraige LED & Beep | |
| Ink Purging System | Individual Ink Purging System | |
| Ink flash Control system | Suction Type Waste Ink Tank | |
| Ink Refiling bottle with sensor | 1.5L Capacity with Sensor KCMYW | |
| Heating &Drying | Dryging System | LED UV Curing With Water Cooling System |
| Heating Control Pane | 4 in 1 Heating Control Panel | |
| Heating System | Rear Cover--Front Cover | |
| Subtank Heater | Subtank Heater |
Details:
Application:
