Soluciones hechas para el negocio de la publicidad.
Precio unitario
MXN 321.715,13
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1+
0%
MXN 321.715,13
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
MXN 321.715,13
Cantidad
/set
1
3.2m GT3204 Roll to Roll UV Inkjet Printer With 2/4pcs Epson Printheads
Specification:
| Head details | DPI | PASS | 4H |
| i3200-U1 | 720x1200 | 4 | 44m²/h |
| 720x1800 | 6 | 30m²/h | |
| 720x2400 | 8 | 22m²/h |
| Boards& RIP | Boards | Hoson Boards |
| Password | Build in Boards & Showing in Software | |
| Software | Photoprint | |
| Body | Main Girder Structure | 200*100*7mm Square Tube |
| Y-Axis | 20mm Diameter | |
| Beam | Aluminium Beam | |
| Linear Guide way | THK linear guide way With One Block | |
| Pinch Roller | Hi Precision 3 level Pinch roler | |
| Printing Bed | 195mm Wide Printing Bed | |
| Sucton System | Adjustable Vacuum Sucton System | |
| LED lighting | Printing Bed Lighting System | |
| Carriage | Belt | Italy MEGADYNE Belt |
| Chain | Germany lgus Drag Chain | |
| Cable | Fiber | |
| Power Cable | Germany lgus Power Cable | |
| Encoder | 180DPI(9730) | |
| Carraige Lifting | Manual type Carraige Lifting System | |
| Capping | Automatic Capping & Wipping system | |
| Anti Colision | Anti Colision System | |
| Motor | X MMotor | Leadshine 400w DC Servo Motor |
| YMotor | Leadshine 180W DC Servo Motor | |
| XY Motor Bracket | Alumnium Brackets | |
| F&T | Paper Sensor | Paper Out Warning Sensor |
| Feeding and Take up | Multi-Function &Double Industry Moto | |
| Leveling Stand | Leveling Stand | |
| Ink supply | INK Supply System | Bulkink Suppy system |
| Main lNK tank | 3L Main lNK tank | |
| Damper | Negative type Damper | |
| Ink Pump | SPDInk Pump | |
| Heating &Drying | Dryging System | 3500WIR Heater |
| Heating Control Panel | 3in 1 Heating Control Panel | |
| Heating System | Rear-Printing Bed-Front 3 Heaters | |
| Carriage Plate Heater | 24V DC Heater |

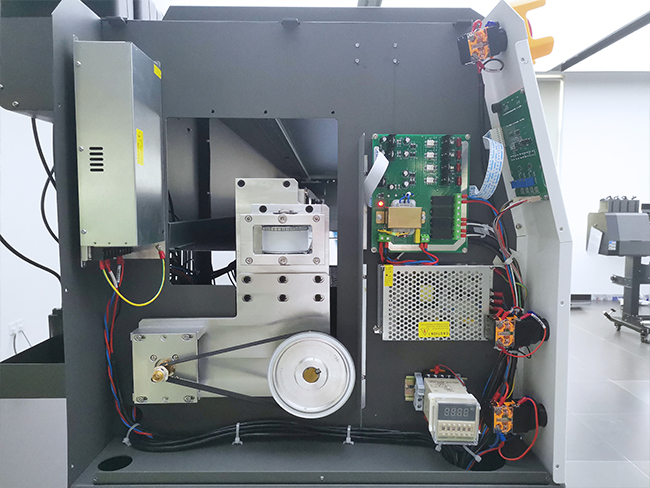

Details:
Tip：Computer not included
Application:
