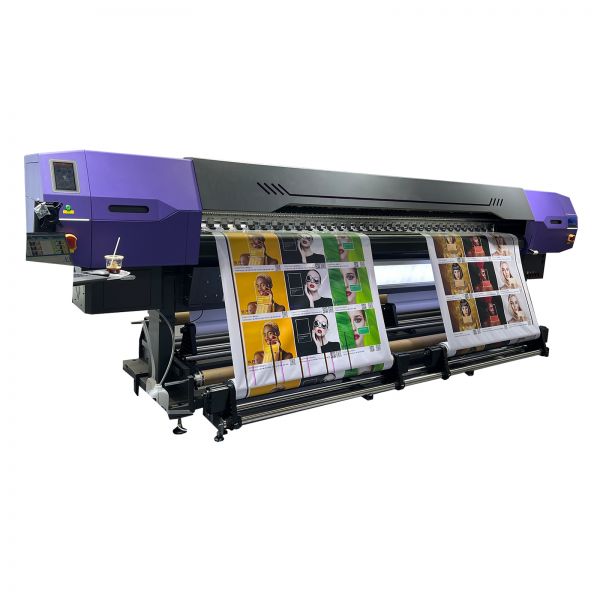

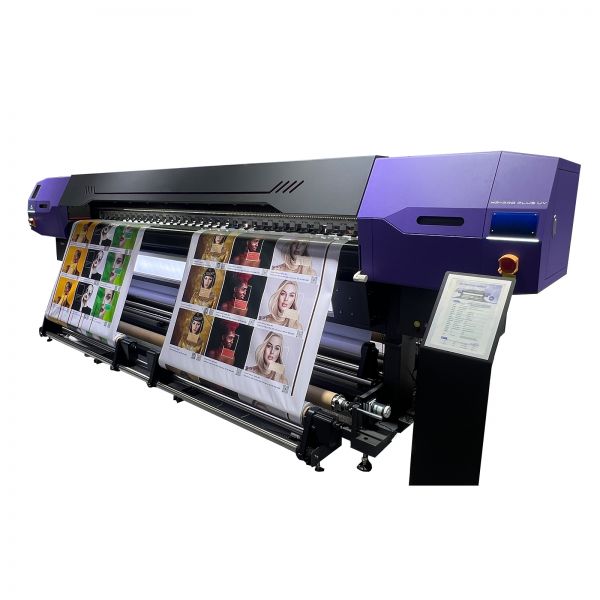

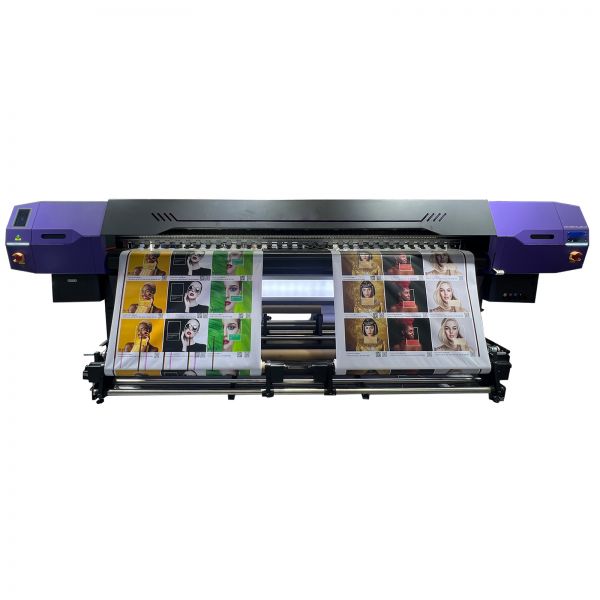

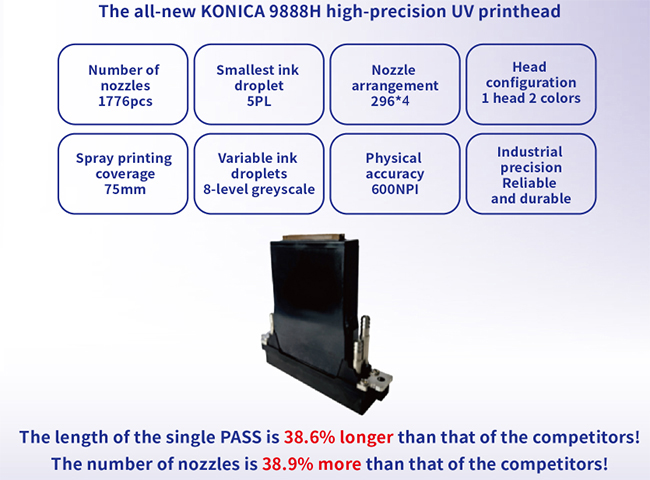

3.2m Double Rows Pinch roller UV Printer with 2/3/4pcs Konica 9888H Printhead
3-head
Precio unitario
MXN 521.085,00
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 521.085,00
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
MXN 521.085,00
Cantidad
/set
1

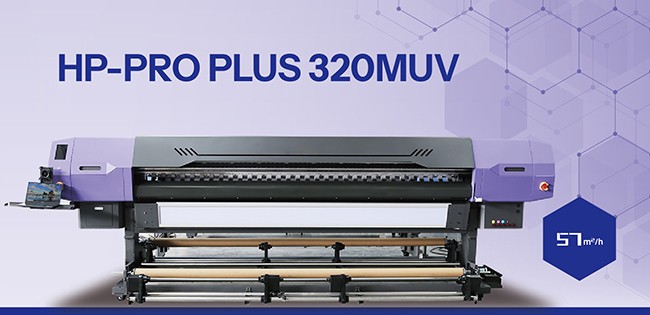

The advantages of HP-PRO PLUS 320MUV
2. Compared to four-groove roller machines, the loading and unloading process is convenient and flexible, reducing the frequency of operators changing materials and the workload, reducing waste of leftover materials and material scrap, and lowering production costs;
3. The entire machine has a low cost, enabling customers to quickly connect to various small orders for production; energy-saving and 50% less power consumption;
6. Optimized design supports dual-roll printing mode, one machine is equivalent to two machines in use. Compared to traditional roller UV roll material equipment, it saves at least 1 meter of material head each time.
Specification:
| Printhead | 6pcs KM9888H | |
| Print speed | 4pass 480*1200dpi Gloss coating |
57 m²/h |
| 4pass 480*1200dpi Color-white-color |
19 m²/h | |
| 6pass 480*1800dpi Matte coating |
38 m²/h | |
| Color configuration | CMYK+W/CMYK+LCLM (OPTION) | |
| Drop volume | 5/10/15PL | |
| Drying system | Solidify UV LED | |
| Print width | 3300mm | |
| Rip software | Photo Print | |
| Electricity requirement | 220V/60A/50HZ | |
| Machine max power | 3500W | |
| Printing system | 3000W | |

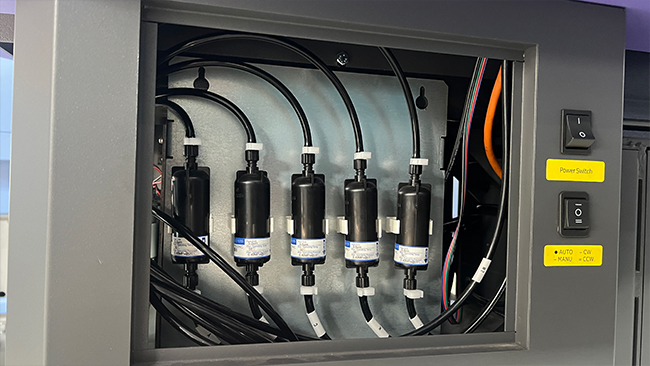

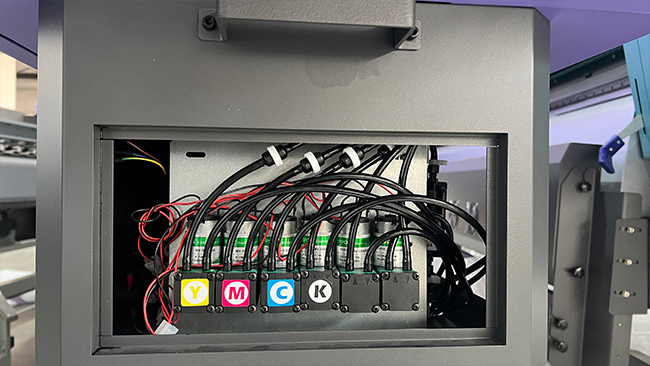

| Ink system | Negative pressure ink system | |
| Brand of board | BYHX | |
| 5600*760*1260mm(L*W*H) | ||
| Machine size | 4950*940*1600mm(L*W*H) | |
| GW | 1300kg | |
| NW | 1200kg | |
| Configuration | Touch Screen & computer bracket & Segmented intelligent infrared heating system & MAGLEV & THK linear guide rail | |

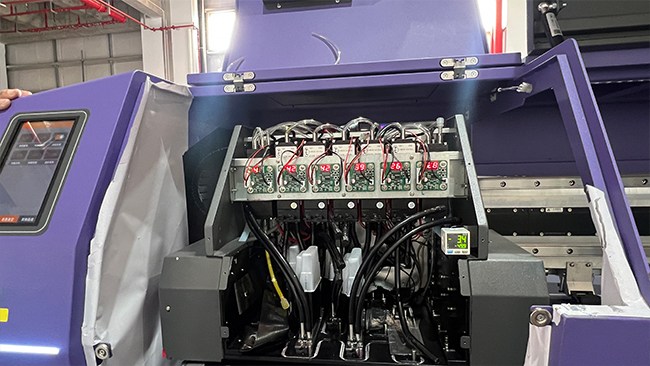

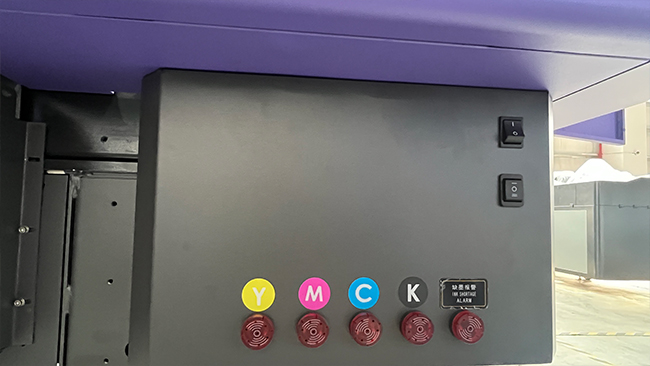

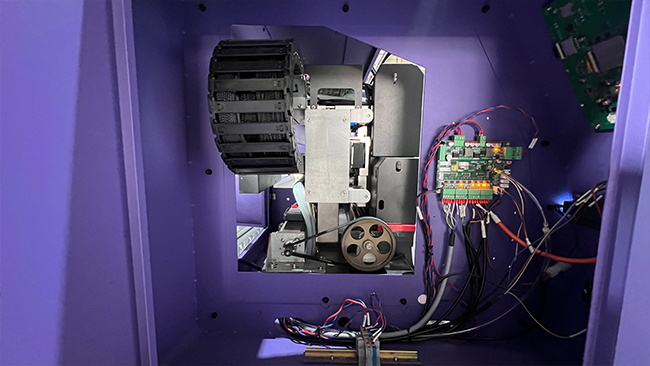

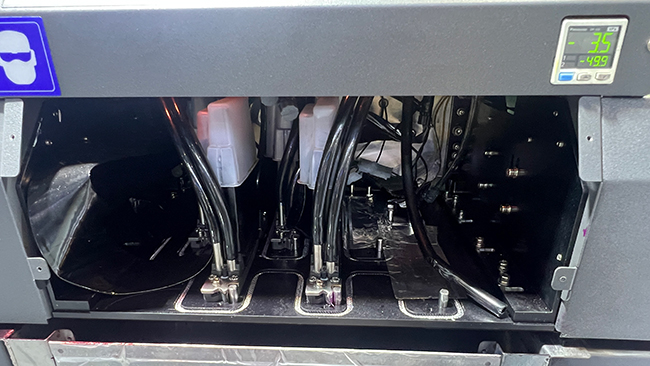

Details:
Application:
