3.2M Digital Inkjet Solvent Printer with 12PCS HS1000/6988H Head
Konica 1024i-30pl
Precio unitario
MXN 806.468,00
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 806.468,00
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
MXN 806.468,00
Cantidad
/set
1

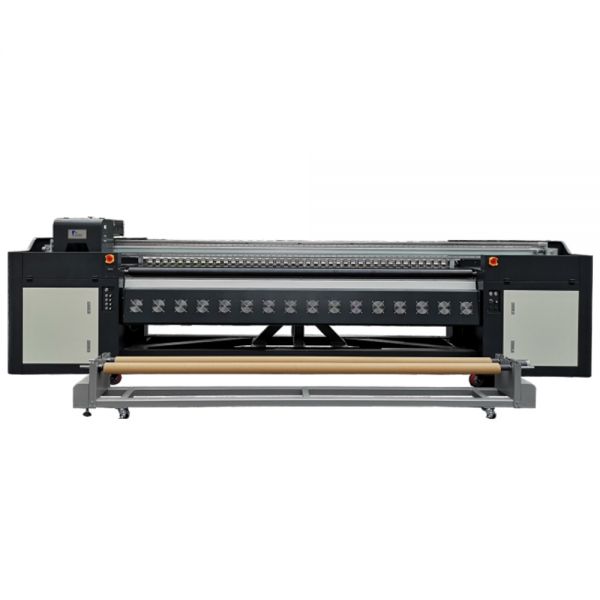

3.2M Digital Inkjet Solvent Printer with 12PCS HS1000/6988H Head
Specification:
| Printhead | HS1000 | 6988H | |
| Printhead quantity | 12 | 12 | |
| Print speed | 1pass 480*360dpi | 700m²/h | 350m²/h |
| 2pass 360*360dpi | 450m²/h | 225m²/h | |
| 2pass 480*360dpi | 350m²/h | 175m²/h | |
| 3pass 360*540dpi | 315m²/h | 157m²/h | |
| 3pass 480*540dpi | 240m²/h | 120m²/h | |
| Drop volume | 30PL | 13PL | |
| Drying system | Infrared- heater fan | ||
| Print width | 3350mm | ||
| Rip software | UltraPrint / MainTop / Photo Print / PrintFactory | ||
| Electricity requirement | 220v/40A/50HZ & 380V/30A | ||
| Machine max power | 14545W | ||
| Printing system | 1845W | ||
| Front&rear heater | 4300W | ||
| Infrared heater | 8400W | ||
| Machine package size | 5675(L)*1260(W)*1680(H)mm | ||
| Machine body size | 5870(L)*1300(W)*2100(H)mm | ||
| Gw | 1500KG | ||
| Nw | 1300KG | ||
Tip: This speed is preliminary. The actual print size and width are different. The speed will change by 10% - 20%.
Details:
 |

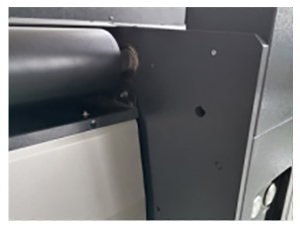

● The machine frame uses an integrated wall panel structure, pin positioning, the whole machine is more stable, and the printing is more accurate; |

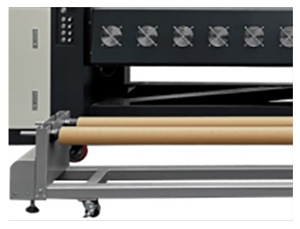

| ● Double-row infrared heating and professional external rewinding system ensure the picture drying fast with high-speed printing, convenient for post picture processing; |  |
 |

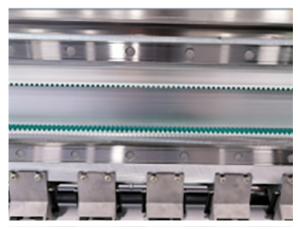

● With double guide rails, the carriage moves more smoothly; |

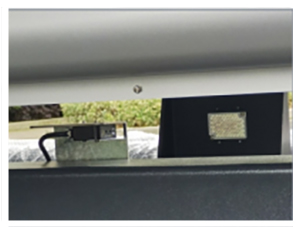

| ● Adopting reflective photo electric switch, capable of printing on black light cloth; |  |
 |

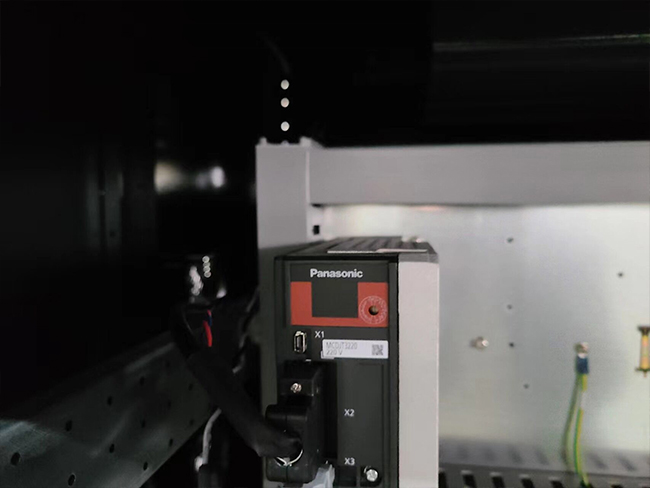

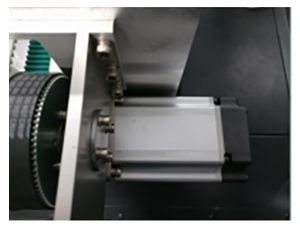

● The carriage movement adopts750W AC servo motor and reducer to ensure the stability of continuous work; |

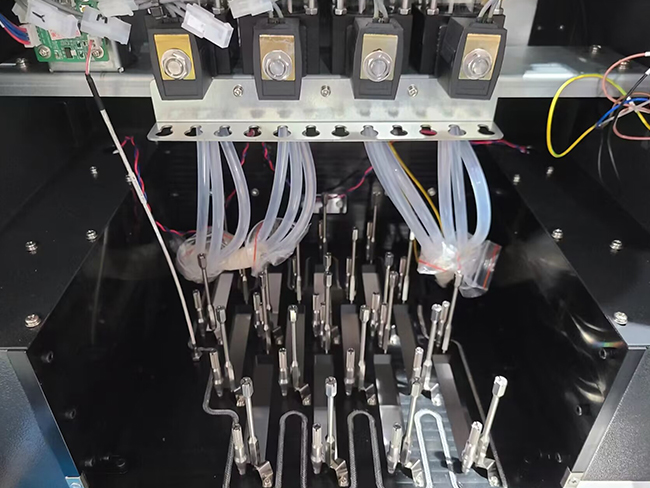

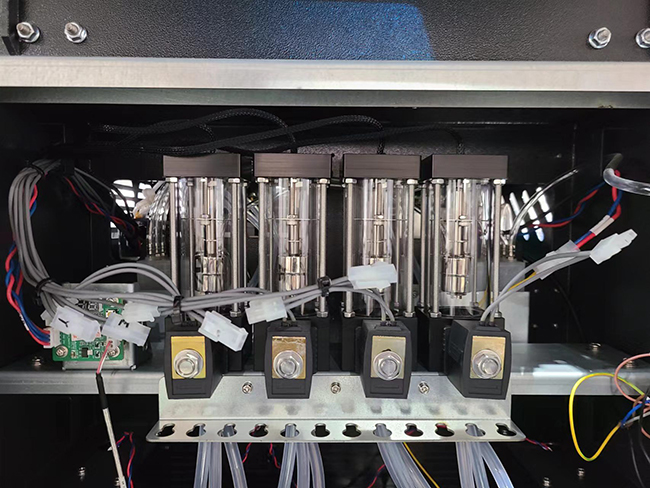

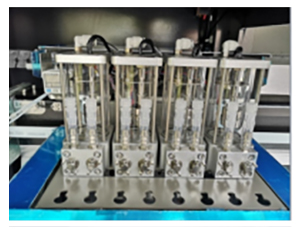

| ● With negative pressure system, ink supply is more stable and ink saving; |  |
 |

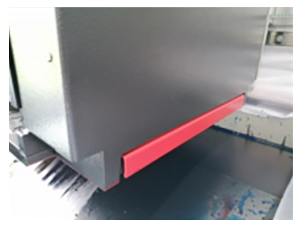

● The printhead anti-collision system can effectively prevent head damage during printing; |

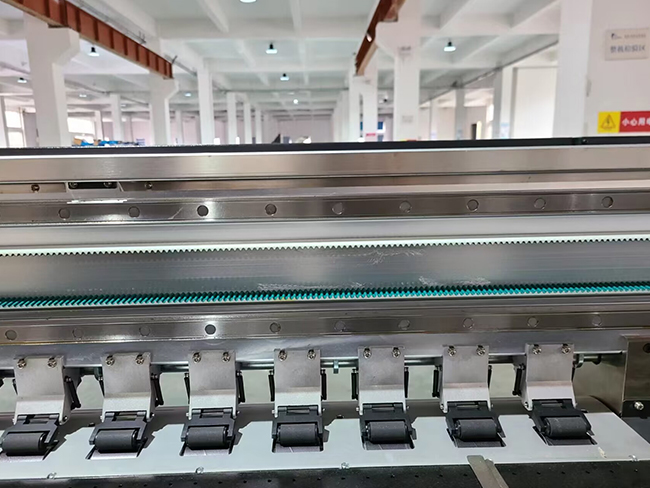

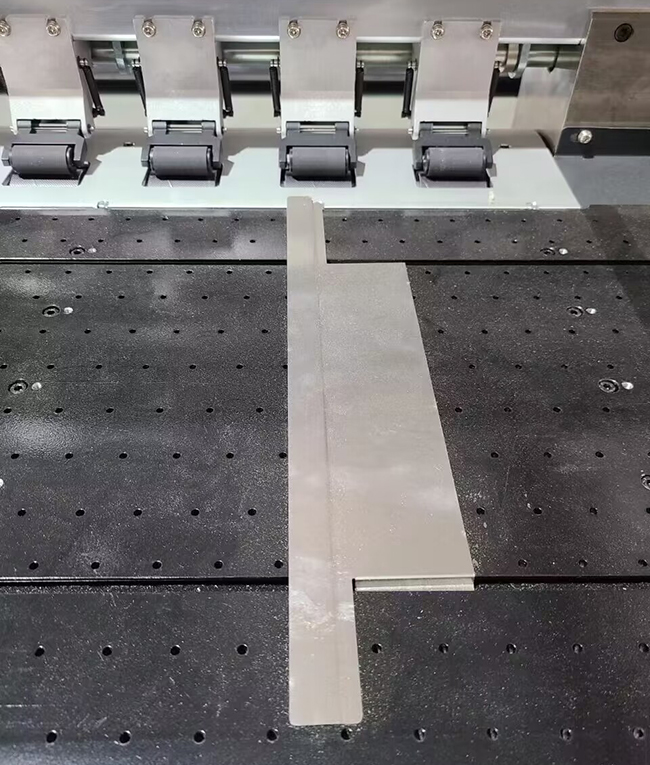

| ● Electric pinch roller. |  |
 |

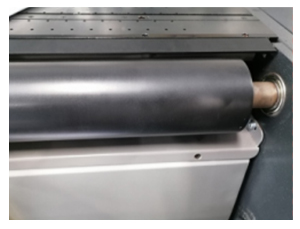

● Materialguidedevice,materialcollectionis moresmooth |

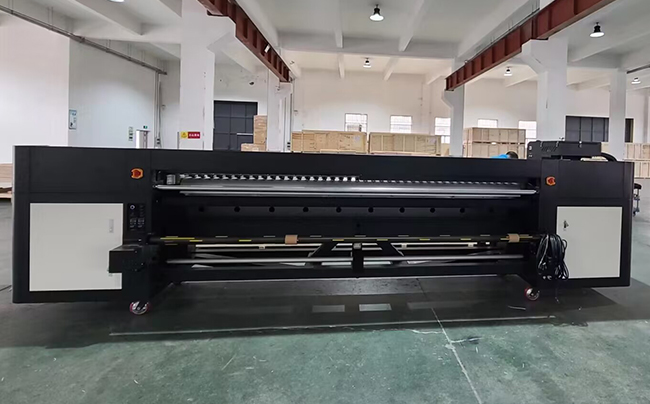

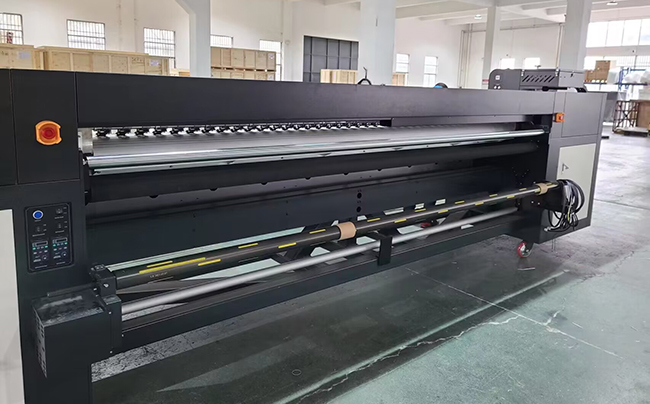

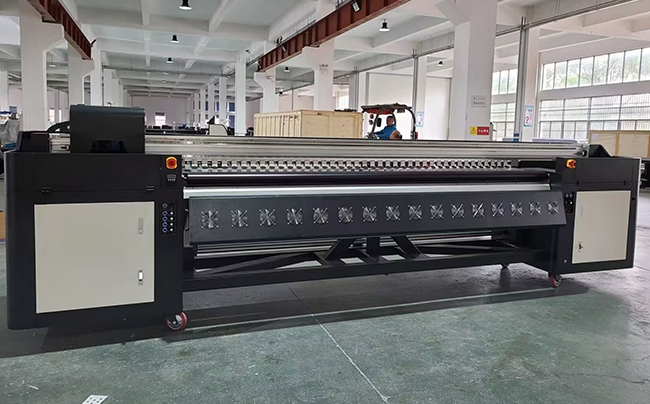

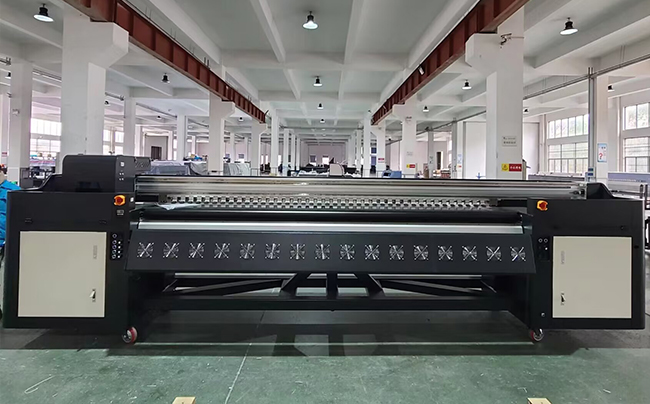

Product photos:
