3.2m 4 Rubber Roller UV RTR Printer with Konica 1024A Printhead
6-head
Precio unitario
MXN 1.231.236,00
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 1.231.236,00
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
MXN 1.231.236,00
Cantidad
/set
1
| Printhead | KONICA 1024i-6PL/ 1024i-13PL/ 1024A |
| Printhead No. | Optional 18pcs, 4ROW*CMYK+2W |
| Resolution | 1440dpi/ 2160dpi |
| Out put(4rows) | Draft mode: 212m²/h |
| Production mode: 170m²/h | |
| High-precision mode: 87m²/h | |
| Maximum media width | 3300mm |
| Maximum media thickness | 1.5mm |
| Applicable media | Soft film, knife scraping cloth, car sticker, banner,lamp film and other various coils |
| Ink type | Soft UV ink |
| Ink color | C M Y K W |
| Cleaning system | Positive purge each colour |
| Machine size(L*W*H ) | 5740x1225x1780mm |
| Machine Nw | 3200KG |
| Machine Gw | 3400KG |
| Power | 10.6KW(46A) |
| Electricity | 230VAC.50HZ/60HZ L/N/PE |
| Rip software | PHOTOPRINT ,CALDERA |
| UV Curing method | LED lamp |
| Data transmission method | High-speed USB3.0 transmission |
| Environmental requirements | Independent, clean,low-light, well-ventilated workplace |
| Environmentaltemperature: 18°C-30°C | |
| Relative humidity: 30%-70%(no condensed) |
| Head Mode | Speed |  |
 |
||
| KM Atom Printhead (1024a) | Production | High-precision | Production | High-precision | |
| 4pass | 180m²/h | 120m²/h | 60mm²/h | 40m²/h | |
| 6pass | 100m²/h | 70m²/h | 40mm²/h | 20m²/h | |
 |
◆ Separately color cleaning button and sub ink tank, full head plate pre-heating, and can add the 2 more white heads in option Convenient maintenance heads constant temperature control for ink supply |
 |
◆ High quality mute double guide rails for support the carriage stable and high precision printing and stable running Exclusive patented constant temperature printing platform ensure the material dose not bulge or lose color during the printing ◆ Water-cooled printing platform & adjustable suction area One-piece printing platform with water cooling and adjustable vacuum suction; |
 |

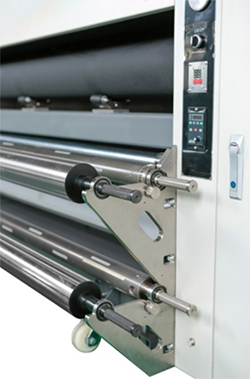

◆ Auto/ Manual Tension system Patented soft film printing system ensure dimensional accuracy in high speed production and for the heavy material system for the (coated banner and mesh banner), the machine can print every material for the roll in option |
 |
◆ 4 rubber roller Y movement system Machine Y movement with double 1.5KW servo motor, stable moving when printing |
 |
◆ Multi-roll printing support Machine support 2 or more rollers printing in one time |
