24"x24" Fast Self Stretching Screen Frame Type Multi-functional Stretcher
Precio unitario
MXN 3100,00
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 3100,00
Costo total
MXN 3100,00
Cantidad
/unidad
1
24"x24" Fast Self Stretching Screen Frame Type Multi-functional Stretcher
This stretcher can be used for aluminum alloy screen frame, wooden frame and iron frame.
The maximum size screen frame can be stretched is outer size 60cm , the maximum tension can be up to 18N. It is suitable for 90% screen plate tension.The quality of the stretched frame is similar to the traditional rubber tension stretcher.
Parameter:
Stretch size : below 60x60cm(24x24inch)
Net weight: 7 kg /15 lb
Packing size: 75 x 13 x 13 cm/30 x 5 x 5 inch
Gross weight: 7.7 kg /17 lb
Operation:

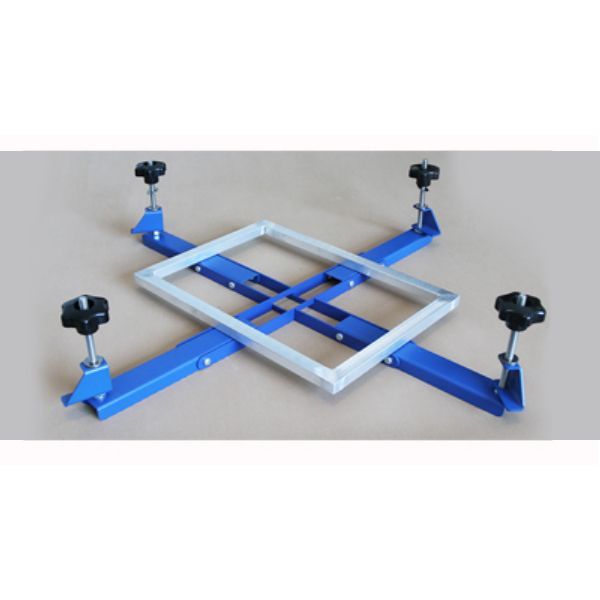

1.Install the base: install the base stand screw on the base; Install the clamp part and handle on the stand screw; Connect the two bases with a connecting plate; The two connected bases are placed crosswise; (note the direction of the concave buckle of the four connecting strips)

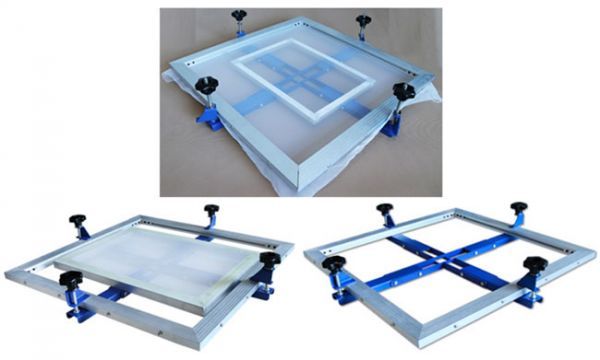

2.Install the stretching screen frame, first connect the four frame bars with corner parts and tighten.
3.Loosen the concave bars and push them inwards.
4.Open the buckle,put the mesh into one side, try to tighten the mesh, put the mesh into the other side of the groove.
5.Use hexagon socket wrench to tighten all around, to achieve the required tension, wait for use.
6.Coating glue on the screen frame for the first time to achieve the degree of non-stick hand,then put into the frame base.
7.As for screen frame with thickness less than 30mm,place the screen frame with mesh side down into the stretcher.
As for screen frame with thickness more than 30mm,place the screen frame with mesh side up into the stretcher .
8.Press the screen frame with the clamp part, rotate the handle to increase the pressure ,and the screen frame with mesh will close - fitting combination further increases tension.
9.The second time coating mesh glue (wooden screen frame can be fixed with nail gun )
10.After the glue is dry and solid, cut the mesh from the outside of the frame, take down the frame.
