20W 5.5"x 4" Universal LED Ultraviolet Dual Fixed Exposure Machine UV Exposure Unit DIY
Precio unitario
MXN 3292,00
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 3292,00
Costo total
MXN 3292,00
Cantidad
/unidad
1

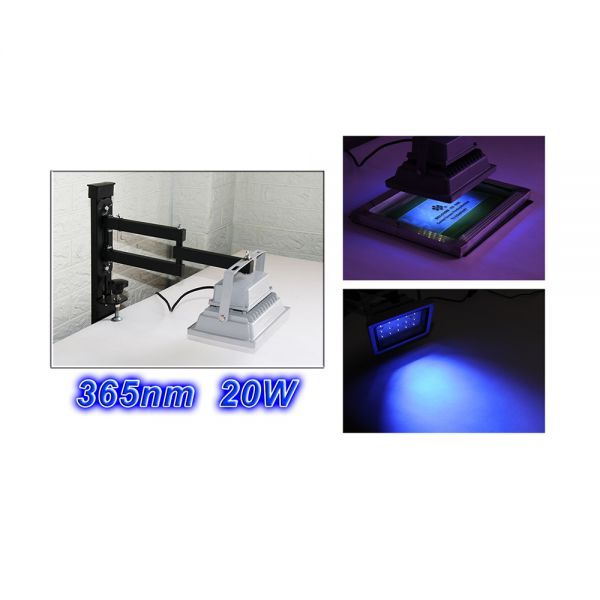

20W Universal LED Ultraviolet Dual fixed Exposure Machine
This machine is mainly used for exposing in screen printing, pad printing, bronzing, etc. It can also be used for curing products with wavelength of 365nm.
Features:
1.The light can rise and fall according to the need , the minimum distance from bottom of the machine to the surface of the desktop is 1.18"(3 cm), the highest distance is 7.8"(20 cm).
2.The machine can be installed in two ways: it can be directly clamped in the table edge with thickness of 1 cm to 5 cm ; It can also be fixed directly on the table with self - tapping.
3.the lamp can be expanded and rotated according to the need; Maximum extension distance is 36 cm (LED light center); The lamp holder can be rotated in 280 degrees. After using, the lamp holder can be rotated outside the table.
4. In order to facilitate the user to exposing, the machine is additionally equipped with a flat 9.8" x 9.8"(25 x 25 cm) rubber plate with thickness of 0.8"(0.2 cm), a glass chuck and a countdown timer.
Parameters:
Voltage: 220V or 110V
Exposure area: 5.5"x 4" (14 x 10 cm)
Light Tubes' Power: 1W/pc
Total Power: 20W
Led lamp quantity: 20pcs
The wavelength: 365 nm
Lamp life: 50,000 hours
Product color: black
Machine material: steel plate
Machine surface treatment: electrostatic spraying
The operation methods:
1.Spread the black rubber on a flat table;
2.Place the coating mesh frame on the rubber sheet, and stick the mesh side to the rubber sheet.
3.Put the film on the top of the mesh exactly (in order to prevent the film sliding, it is best to use a little transparent tape to stick the film and the four sides of the mesh together);Use a glass sucker to lift the glass and place it on the film;(This machine is not configured with the glass for transportation safety, users can configure locally according to the frequently used size, 4-5 mm glass plate is appropriate).
4.Move the machine to the top of the screen frame. The distance between the lower edge of the case and the screen frame is 1.2"x2"(3-5 cm).According to the actual exposure time of photosensitive adhesive to set the countdown time.
5.Turn on the power and start the countdown timer;
6.After the countdown, The timer beeps and lights off,remove the machine, take out the glass and film, exposure is completed.
Package:
Packing size: 14 x 8 x 10 inch /36 x 20 x 25 cm
Net weight: 5.5lb/2.5 kg
Gross weight: 6.2lb/2.8 kg
