Soluciones hechas para el negocio de la publicidad.
Precio unitario
MXN 1888,92
/pc
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1-10
0%
MXN 1888,92
11-30
10%
MXN 1700,03
31+
18%
MXN 1548,91
Opciones
Por Favor Eliga el Tipo Specifications / 12x12x65mm 12x12x75mm 12.7x12.7x45mm 12.7x12.7x55mm Series
Costo total
MXN 1888,92
Cantidad
/pc
1
About Materials: At present, we have N, A, AA, 3A, four kinds of materials.
· The N series material stands for tungsten steel material made in China and its rigidity is at 88-89HRA (Rockwell Hardness, A Scale).
· The A series cnc router bits are made of tungsten steel material from Taiwan and their rigidity at 90-91HRA., HRC of material to be processed is 45.
The better quality of material is, the higher rigidity and durability as well as materially longer lifespan.
The stronger rigidity it is, the bits won’t distort during process and give better processing effect.
And the more fine tungsten steel’s particle is, the sharp bits of the blade polished as a result for better processing effect.
Usage Tips:
Remark: Please Choose the Model when ordering.
Specification:

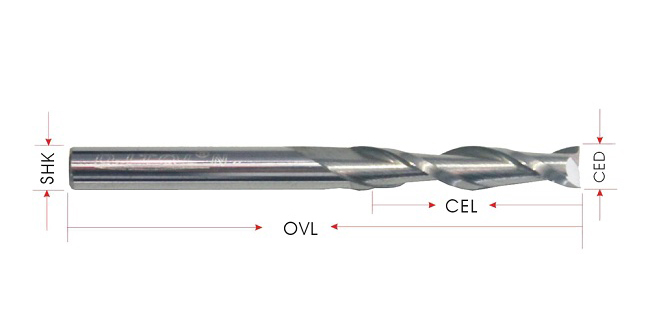

| Model | CED(mm) | CEL(mm) | SHK(mm) | OVL(mm) |
| EC-2LX6.17 | 6.35 | 17 | 6.35 | 50 |
| EC-2LX6.22 | 6.35 | 22 | 6.35 | 50 |
| EC-2LX6.25 | 6.35 | 25 | 6.35 | 55 |
| EC-2LX6.35 | 6.35 | 35 | 6.35 | 70 |
| EC-2LX825 | 8 | 25 | 8 | 60 |
| EC-2LX835 | 8 | 35 | 8 | 80 |
| EC-2LX845 | 8 | 45 | 8 | 90 |
| EC-2LX855 | 8 | 55 | 8 | 100 |
| EC-2LX865 | 8 | 65 | 8 | 110 |
| EC-2LX875 | 8 | 75 | 8 | 120 |
| EC-2LX1025 | 10 | 25 | 10 | 60 |
| EC-2LX1035 | 10 | 35 | 10 | 80 |
| EC-2LX1045 | 10 | 45 | 10 | 90 |
| EC-2LX1055 | 10 | 55 | 10 | 100 |
| EC-2LX1235 | 12 | 35 | 12 | 80 |
| EC-2LX1245 | 12 | 40 | 12 | 90 |
| EC-2LX1255 | 12 | 55 | 12 | 100 |
| EC-2LX1265 | 12 | 65 | 12 | 110 |
| EC-2LX1275 | 12 | 75 | 12 | 120 |
| EC-2LX12.45 | 12.7 | 45 | 12.7 | 90 |
| EC-2LX12.55 | 12.7 | 55 | 12.7 | 100 |
