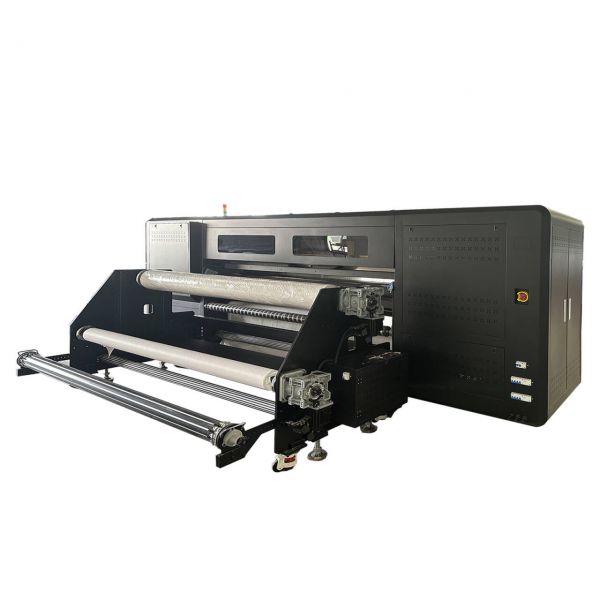

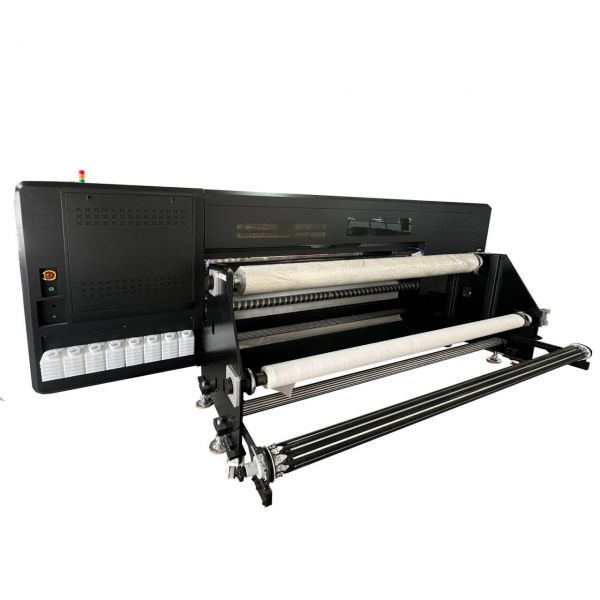

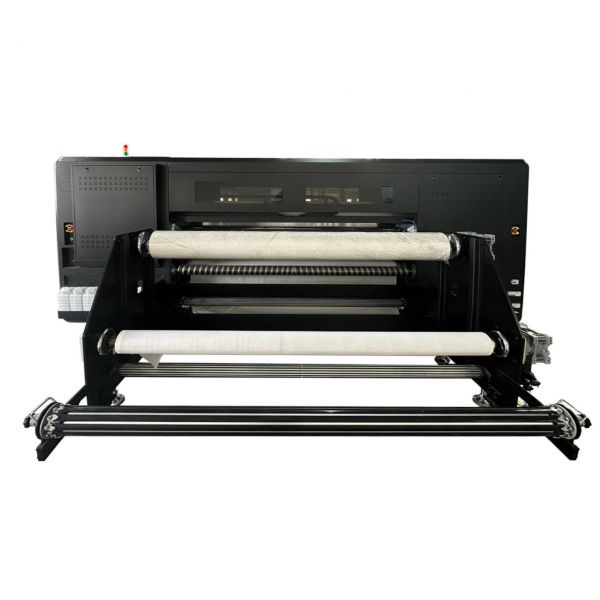

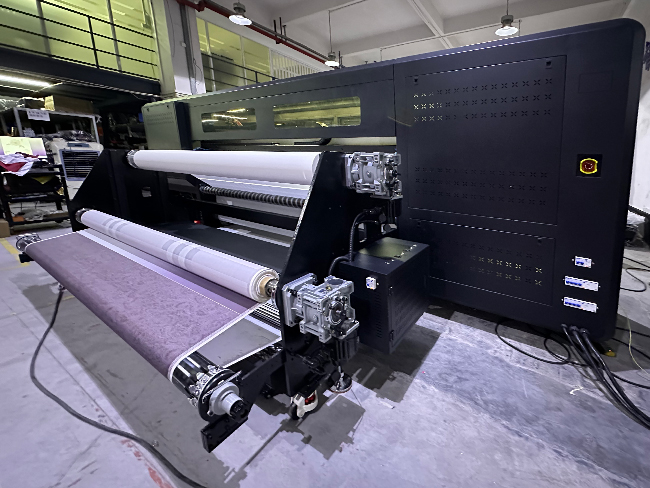

2.2m Industrial Sublimation Printer for Fiber Fabric with 30/36pcs Epson I3200A1 Heads
Specification:
| Model | JC2330 | JC2336 | |
| Print Heads | 30PCS Epson i3200 printhead | 36PCS Epson i3200 printhead | |
| Print Resolution/Speed | Produce Mode/1 pass: 1300m²/h | ||
| Resolution Mode /2pass: 650m²/h | |||
| Maximum Print Width | 2280mm | ||
| Ink type | Sublimation lnk | ||
| Media | Width | 2300mm | |
| Thickness | 1.5mm to 8mm adjustable | ||
| Weight | 10000 Meters | ||
| Type | Heat transfer paper | ||
| High Printing Quality | VSD technology | ||
| Media feeding Device | 850Kg | ||
| Drying System | External air drying system | ||
| Guide Rail | THK (Japan) guide rail | ||
| Interface | 1000Mbit/s | ||
| RIP Software | MainTop7.0 ,FlexiPRINT DX 22 SaiTu Edition | ||
| Voltage | AC3 | ||
Features:

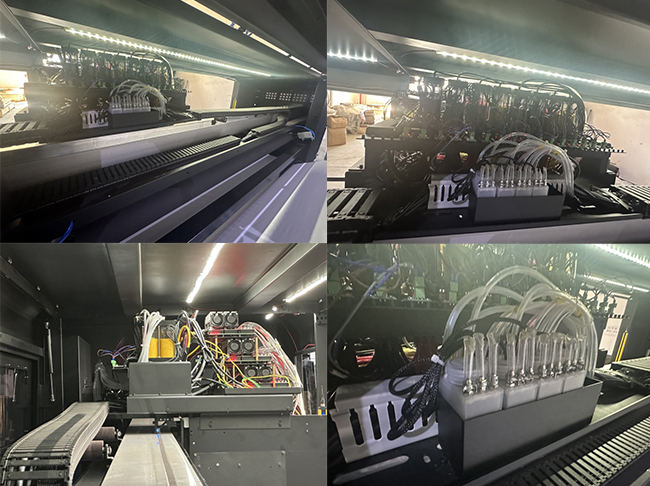

1.Thickened ink base plate,adjustable nozzle,more precise,integrated lifting ink station.

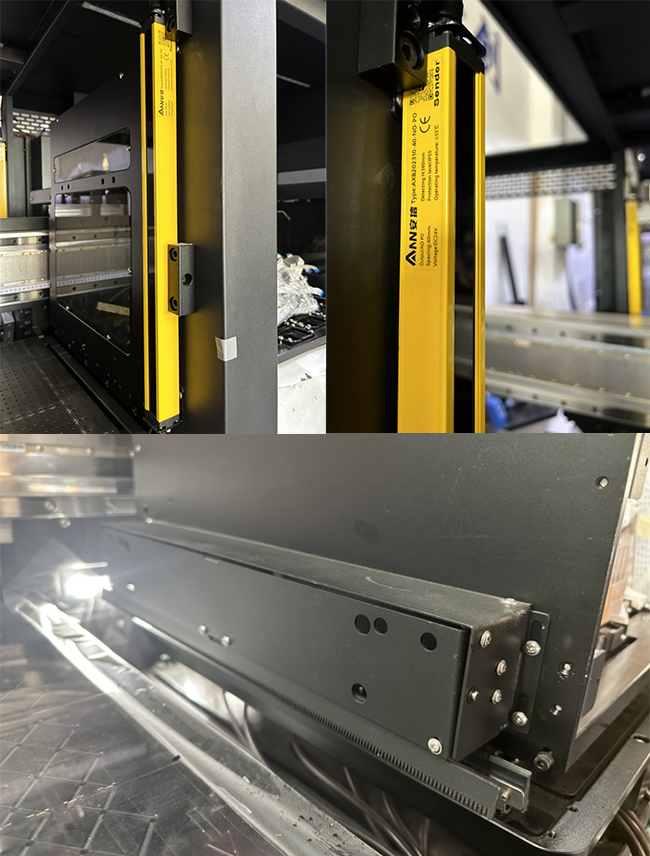

2.Multiple protection:A:Anti-collision on nozzle, more sensitive. B：Raster protection triggers the nozzle cart head to stop printing.

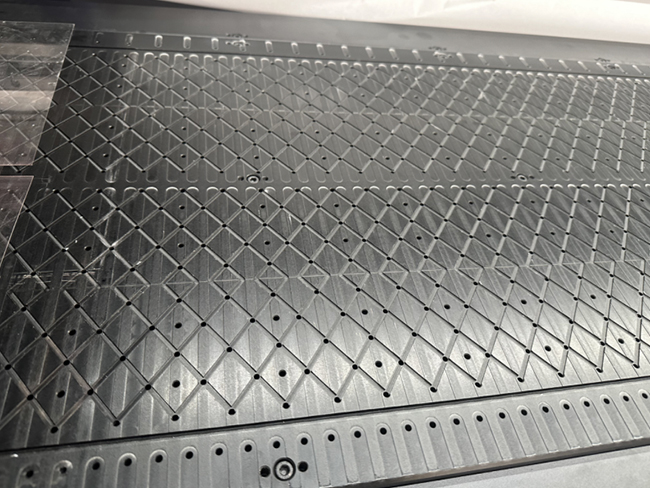

3.Using a textured printing platform with high precision, the paper feed is stable and less prone to wrinkling, ensuring high-quality output over extended periods.
4.THK Double guide rails (THK 2.0),nozzles running cart more smoothly,less noise.

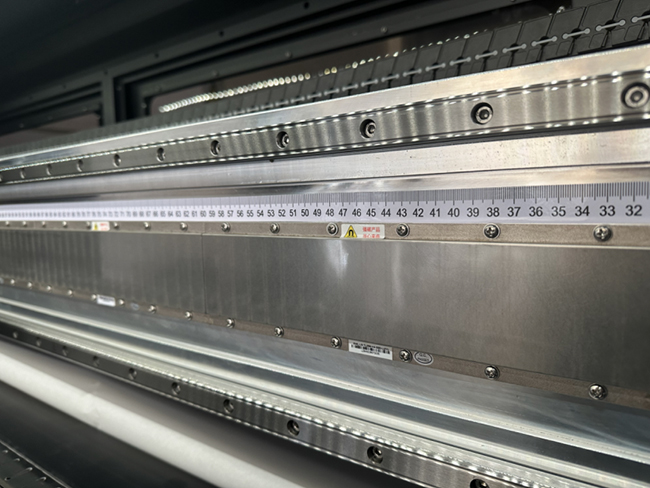

5.Magnetic levitation linear motor, high quality metal magnetic grid, more accuracy and quieter.

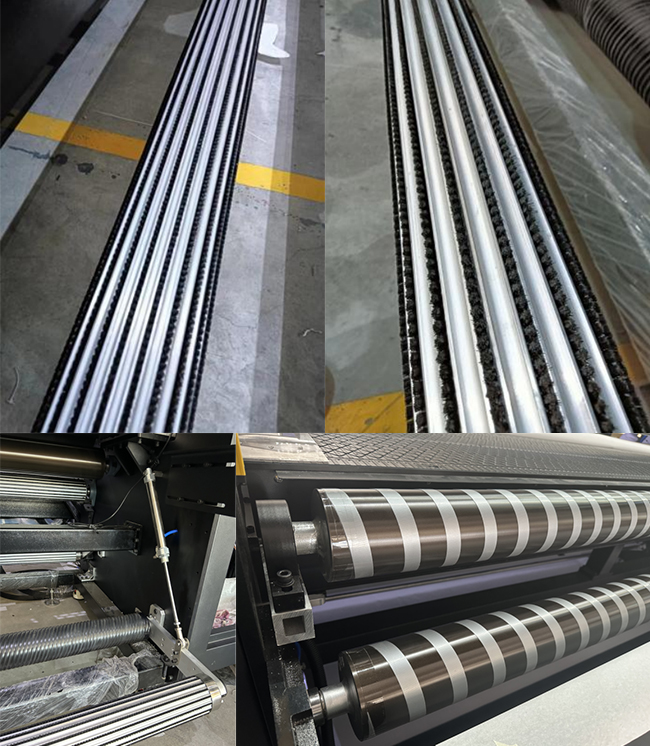

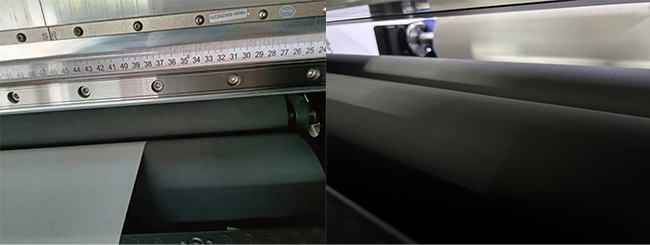

6.Large diameter rubber roll (one in diameter of 240mm,the other diameter:120mm) transmission, smooth media feeding, stepping more accurately, and wear resistance.

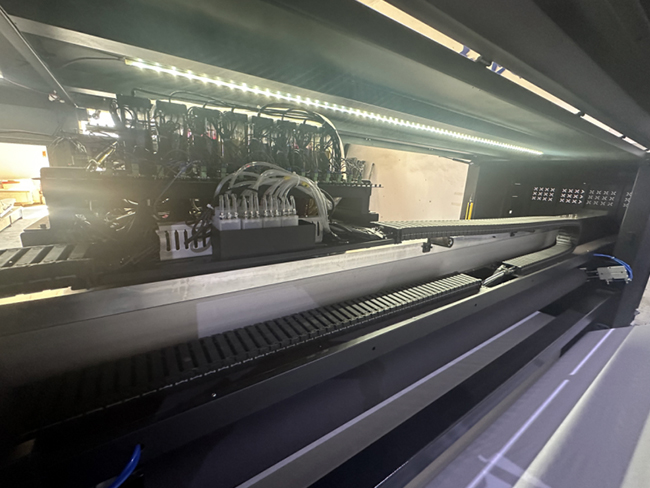

7.Double support chain drive ensures stable ink delivery and continuous ink supply.

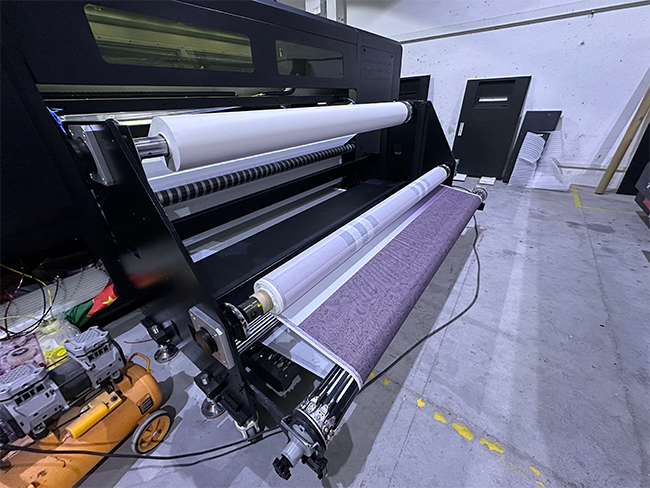

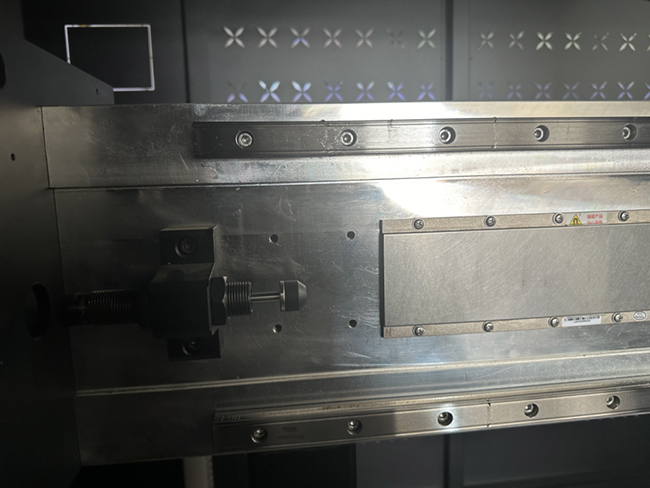

we have added a left-right adjustment function for the balancing bar. When the paper itself is not flat enough, fine-tuning can be conducted to ensure better flatness of the paper.

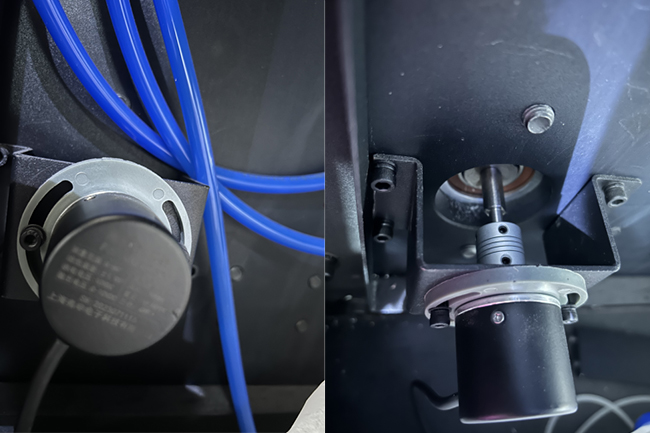

9.Laser sensor for media feeding and collecting.

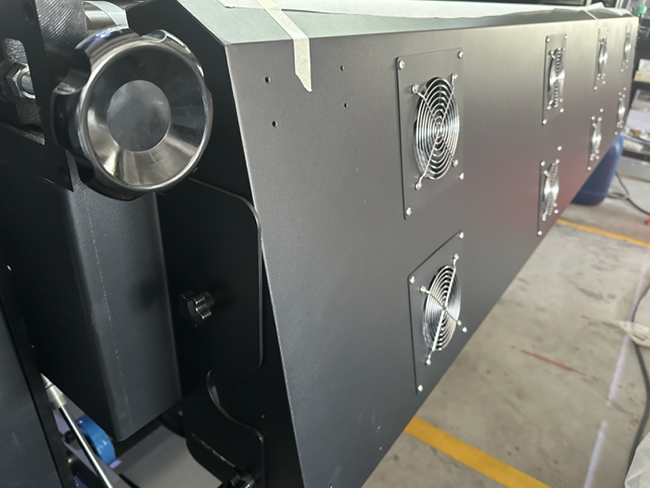

10.Three drying box , two strips of drying light each （1200W * 24 strips ).

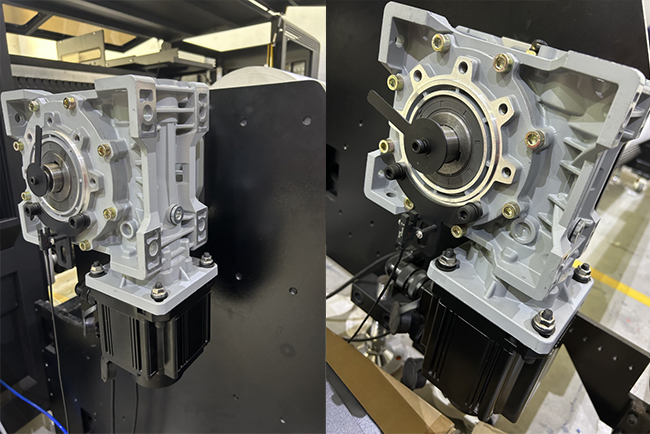

11.10000M media feeding system, continuously releasing servo motor: 1000W + collecting servo motor: 1500W . One click reset ( feeding system ), 10000M standard device.

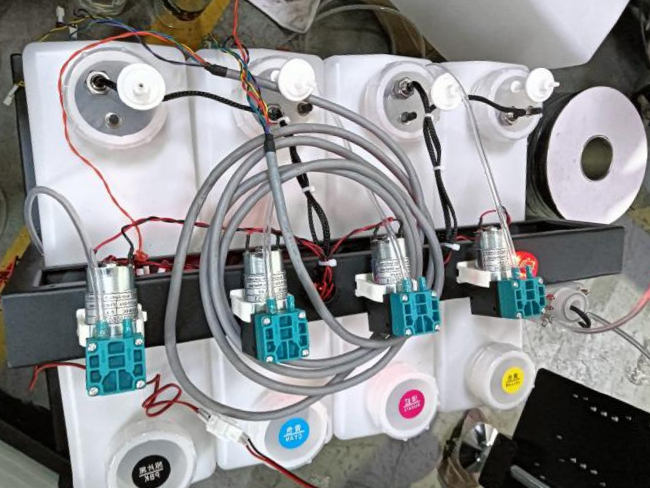

12.10L ink bucket with detector, automatically supply ink when used out.

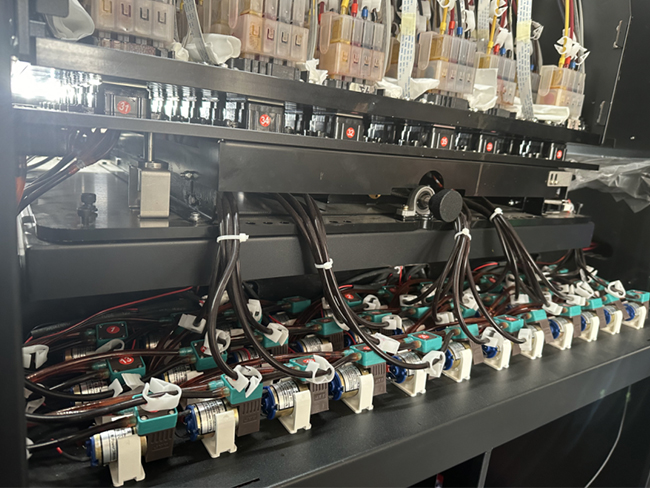

13.The newly upgraded glass bottle design reduces the number of ink tubes, ensuring uninterrupted ink flow during long periods of high-speed printing.

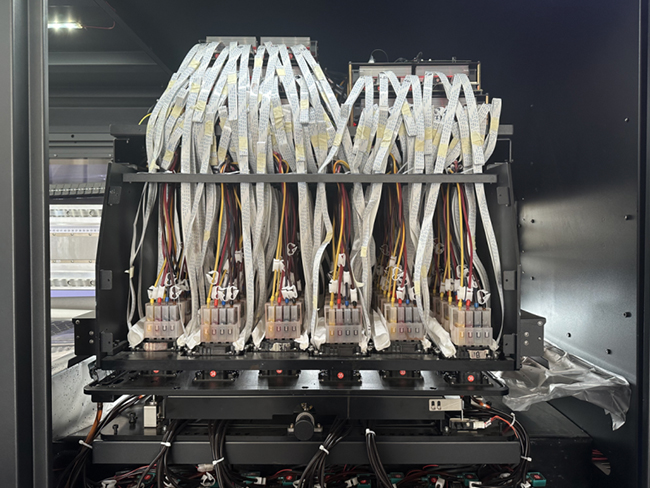

14.Comprehensive upgrade AT board, more suitable for long-time and high-speed printing to reduce failure. Boards can be switched at will （ 3*6 arrangement, 3*8 arrangement, 3*10 arrangement).
Application：
