1600mm/ 2200mm/ 3300mm Full-auto Large Format Liquid Laminator
1600mm
Precio unitario
MXN 182.477,00
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
MXN 182.477,00
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
MXN 182.477,00
Cantidad
/set
1
1600mm/ 2200mm/ 3300mm Full-auto Large Format Liquid Laminator
Description:
Support Roll To Roll Operation.
Mainly used for roll to roll coating of vinyl, banner, canvas etc.
Especially fit for the wide-breadth advertisement picture.
 |
 |
| Mayer bar | Taking up machine |
| Model | FMJ-3300-WL |
| Max. Coating Width |
126.0" (3200mm) |
| Max. Laminating Thickness | 0.007-0.01mm |
| Max. Laminating Speed | 39.4"-59.1" (1-1.5m)/min |
| Laminating Temperature | 100-130 degree |
| Max. Heating Temperature | 150 degree |
| Forward / Reverse | Yes |
| Emergency Stops | Yes |
| After Laminating Pickup | Yes |
| Heating Power | 6KW+6KW |
| Film Supply Mode | Magnetic suspension liquid pump, circulation supply |
| Heating Method | Infrard heating lamp |
| Motor Power |
100W |
| Power Supply | AC 380V; 50Hz or 60Hz |
| Machine Weight | 1543.2lb (700kg) |
| Machine Dimension | 150"*43.3"*42.7" (3810*1100*1084mm) |
| Package | Fumigation free package |
| Packing Size | 156.7"*52.4"*51.6" (3980*1330*1310mm) |
| Gross Weight | 2116.4lb (960kg) |
Products Highlights:
• This liquid laminator has both drying system and cooling system, which make the coating film from `liquid` state to solid state. After laminating, the media can be crack resist, more flexible, UV protection, scratch resist etc.
• Easy operation panel:
Dryer, fan, motor, pump button
Various speed and temperature adjustment
Temperature indication
Emergency Stop Button
• In order to save energy, you may use right part of the heating box to reduce the power (50%) when the picture width is less than 63.0" (1600mm).
• Works simply and safely with low noise, the liquid laminator uses liquid water-soluble film, which is innocuous and flavorless, also be clean out without pollution. It is good for protecting environment very well.
• Liquid film is formed directly on the picture surface, and the film thickness is up to the size of Mayer bar. You can change the Mayer bar to increase film thickness according to requirement.
• Has both flash drying system and cooling system, which make the coating film from `liquid` state to solid state, especially for hard-to-dry inks.
• The liquid laminator is cost-effective and environmentally friendly. Coating costs range from $0.25 to $0.32 per sqm, depending on application and coating used.
• Easy to operate and clean, requires minimal operator training.
• Due to the price of liquid film is lower than cold laminating film, this make output rate is very high. Using liquid laminator can reduce the film laminating cost much more than ever before. You can get back your investment in a short time.
• The picture laminated will show more bright-color and beautiful, with the function of waterproof, sun proof, and anti-ultraviolet radiation, hence prolong its lifetime much more, of course the liquid film quality, which you select, is vital to the picture.

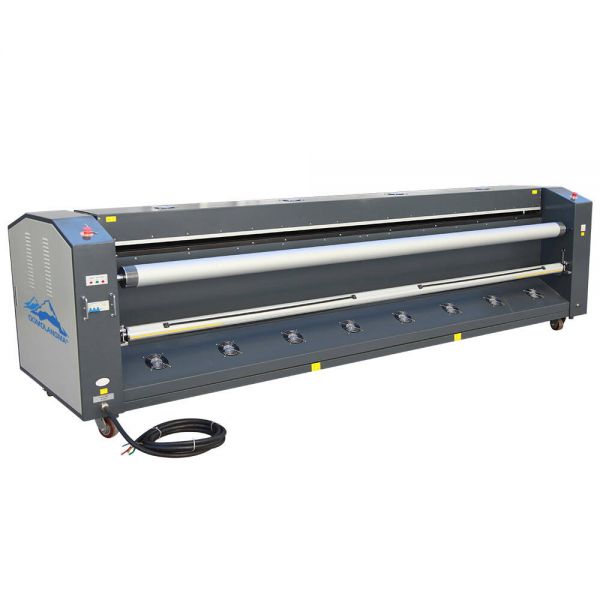

Front of 3m liquid laminator

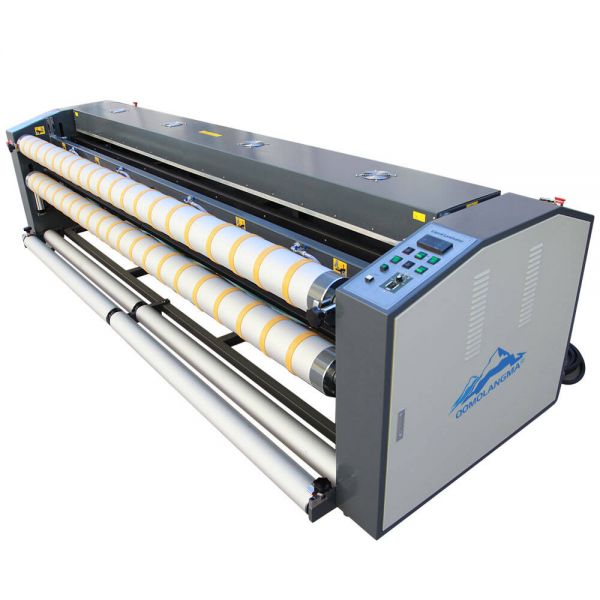

Back of 3m liquid laminator
Fumigation free package
Typical applications:
