Features:
1.KH series of laser engraving cutting machines adopt new type, hi-speed laser tubes, which make beam more stable than common laser tubes.
2.Compared with common laser engravers,QL series of laser engravers adopt more specific design of machine-body,higher strength steel frame structure,which makes strength forty percent higher, never deformable, and guarantee high speed and high precision operation.
3.Humanized and most modernized design of appearance reflects caring idea of QILI,it is simple to operate and maintenance.

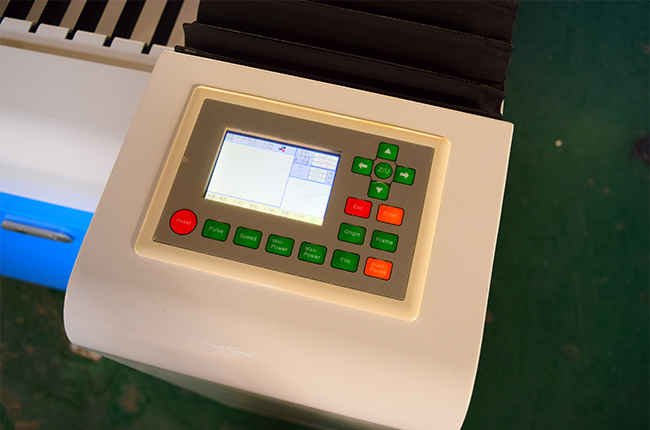

4. Zhiyuan CCD control system and special motion control chip make the machines cut curve continuously and rapidly,the selection function of the shortest path makes efficiency higher.
5. All machines are configurated with U-disk offline control system, so it is more simple and easier to operate.

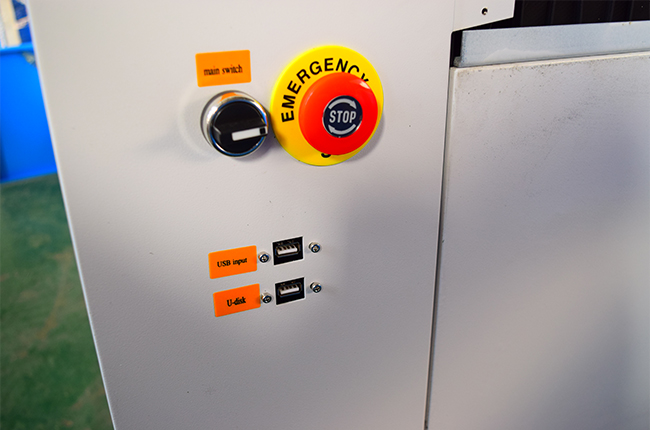

6.The red-light positioning device can indicate process site of laser head to avoid trouble of manual position.
Details:
Specifications:
| Name |
Laser cutting 1325CCD |
| Processing area | 1300mm*2500mm |
| Laser power | 130W |
| Laser type | C02 glass laser tube |
| Software | Laser cut 5.3 |
| Dimension | 3.2m*2m*1.3m |
| Engraving speed | 1-60000mm/min |
| Cutting speed | 1-24000mm/min |
| Cutting thickness | 0-25mm acrylic (others determined by materials) |
| Resolution ratio | ≤0.0125mm |
| Position system | Red dot |
| Interface | USB |
| Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
| Support graphic format | DST, PLT, BMP, DXF |
| Gross power | 1000W |
| Driving mode | DC0.8A 24V stepper motor |
| Cooling mode | Circulation water cooling |
| Working voltage | AC220V/50HZ |
| Operating temperature | 0-45℃ |
| Operating humidity | 5-95% |
| Packing | wooden box |
| Guarantee time | 1 year of whole machine |
| Option | Rotary attachment for column materials |
| Operation | Video to tell customer how to operate the machine |
Applicable materials for laser cutting tools:
Non-metal materials such as acrylic, double color board, Plexiglas, Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industries for laser cutting tools:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.
