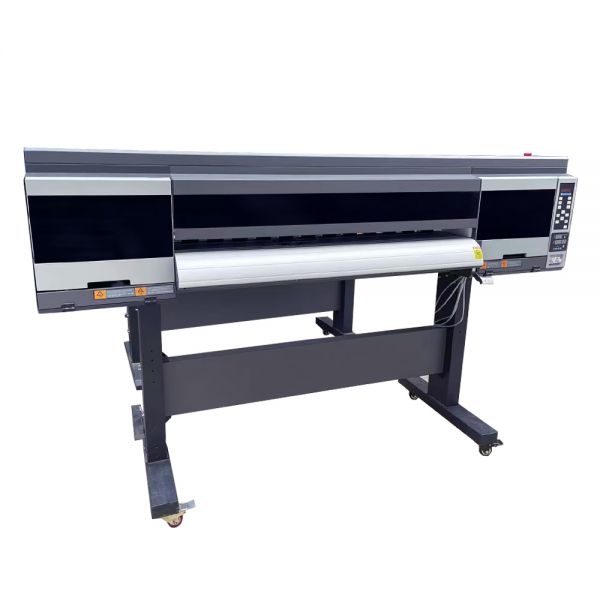

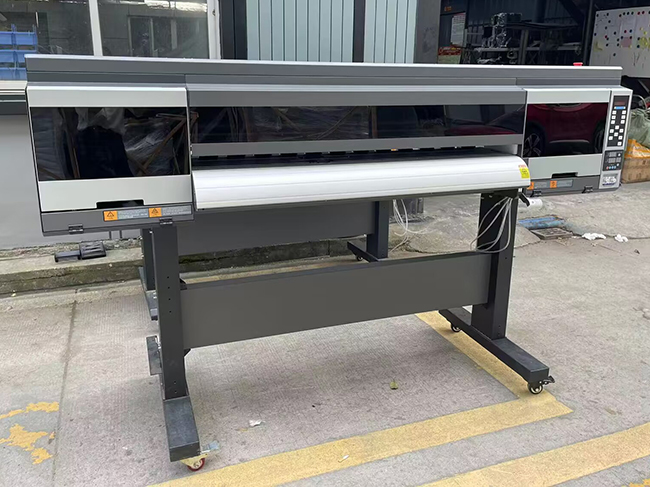

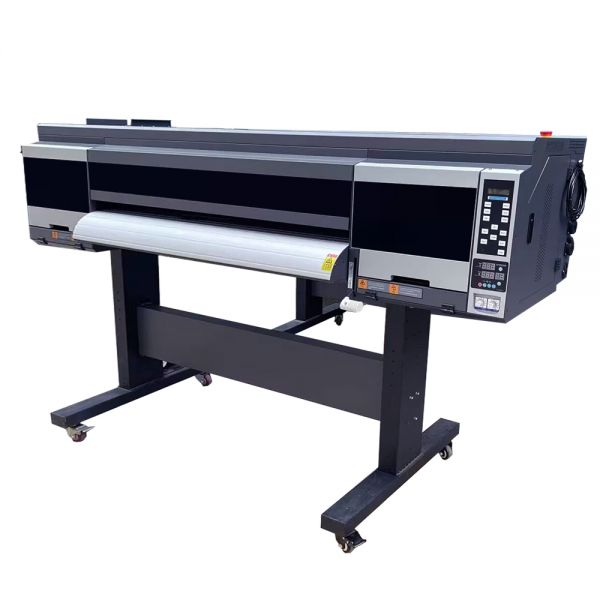

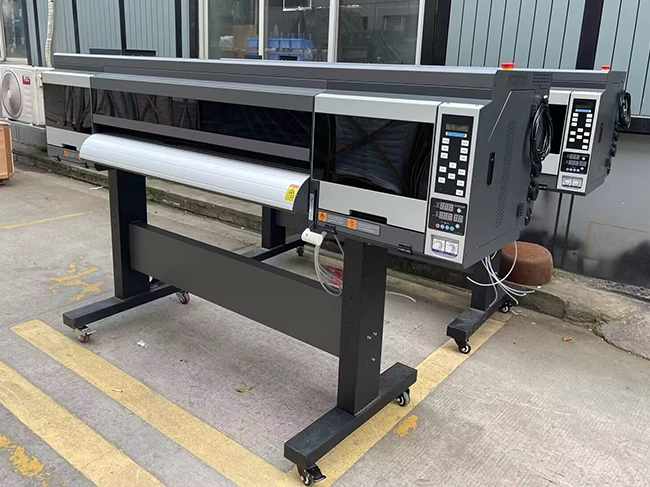

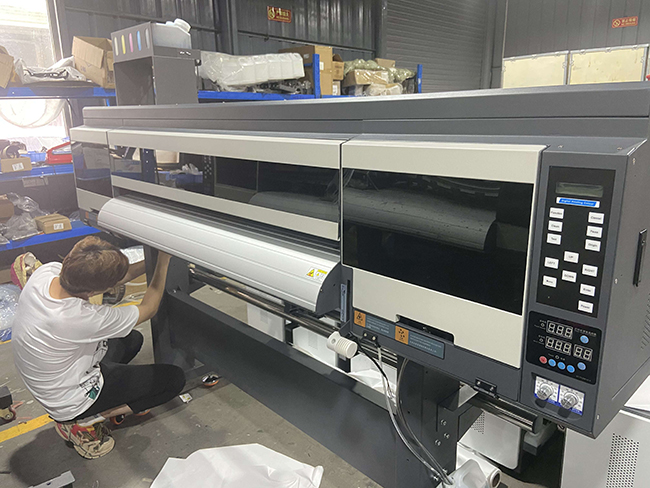

1.2m DTF Printer Powder Shaker and Dryer with 4 Epson i3200A1 Printheads
Features:
- Universal matching, easy to use, labor saving.
- Digital offset heat transfer, one-time forming.
- Suitable for industries such as digital printing.
- No engraving, no waste discharge, no engraving, no white edges, environmental protection.
Specifications:
| 650 DTF Printer | ||
| Printing width | ≤1200mm | |
| Print head | Epson i3200A1 | |
| Print head qty. (pc) | 4 | |
| Printing speed | 4pass | 28 m²/h |
| 6pass | 21m²/h | |
| 8pass | 14 m²/h | |
| Suitable media | PET film | |
| Heating and drying function | Front guide plate heating, solidified upper drying, and cold air cooling function | |

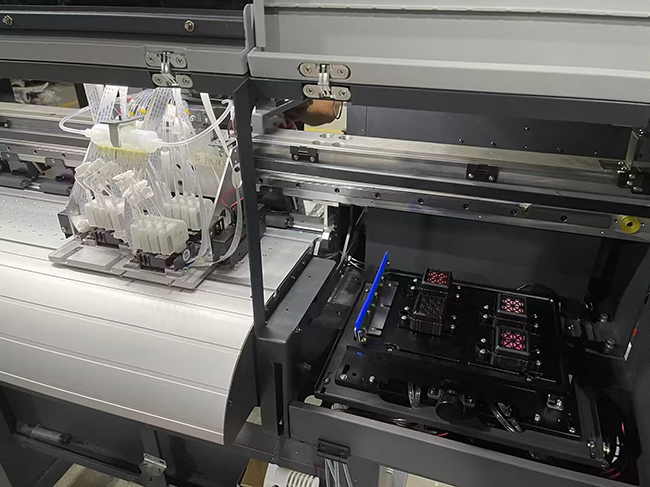

| Print head cleaning | Automatic | |
| Heating method | Front guide plate heating (30~65°C) | |
| Platform suction adjustment | Yes | |
| Working environment | Temperature 20~28°C | |
| Relative humidity | 40-60% | |
| Software | Maintop | |
| Operating system | XP/ Win7/ Win10 | |
| Rewinding function | Automatic induction rewinding | |
| Rated power | 450W | |

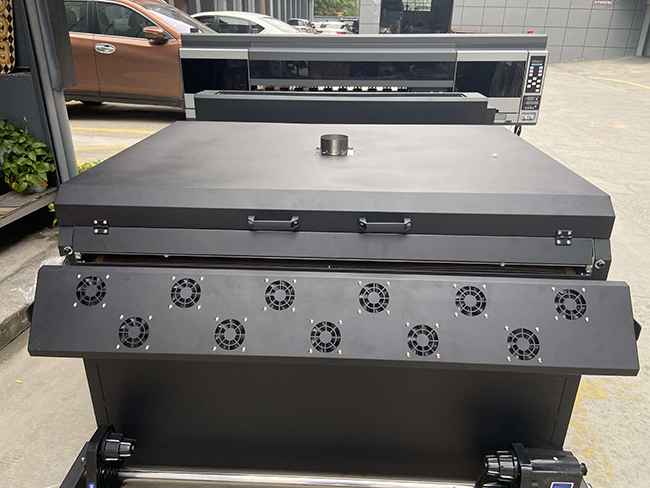

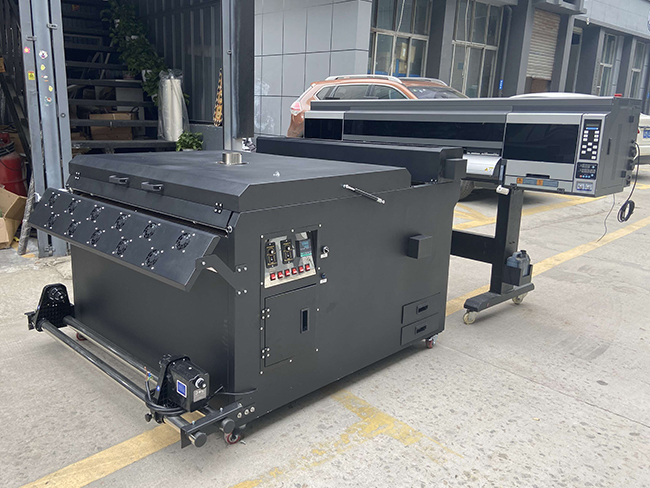

| Powder Shaker and Dryer | ||
| Shake powder width | ≤1200mm | |
| Drying area length | 1100mm | |
| Number of heating pipes | 9pcs | |
| Applicable medium | Nylon, chemical fiber, cotton, leather, swimsuit, diving suit, PVC, EVA, etc. | |
| Fan control | Shake powder control, dusting control, direction and quantity control | |
| Heating and drying function | Front guide plate heating, upper drying and curing, cold air cooling function | |
| Rewinding function | Automatic induction winding | |
| Rated voltage | 220V | |
| Rated current | 38.6A | |
| rated power | 8500W | |

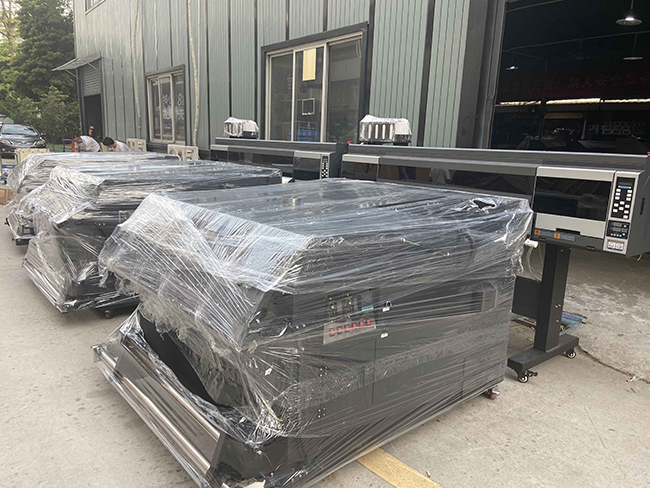

| Packaging size | 1950x1680x1200mm 280kg | |
Digital printing solution:
1. Pictures typesetting and printing out
2. Powder feeding, shaking, drying, rewinding
3. Pictures waiting for heat transferring
4. Heat transferring
5. Finished printing effect
Details:
1. Powder feeding shaft: automatic powder feeding, evenly spreading powder.
2. Smoke outlet: It can be equipped with a smoke extractor, which is environmentally friendly and pollution-free.

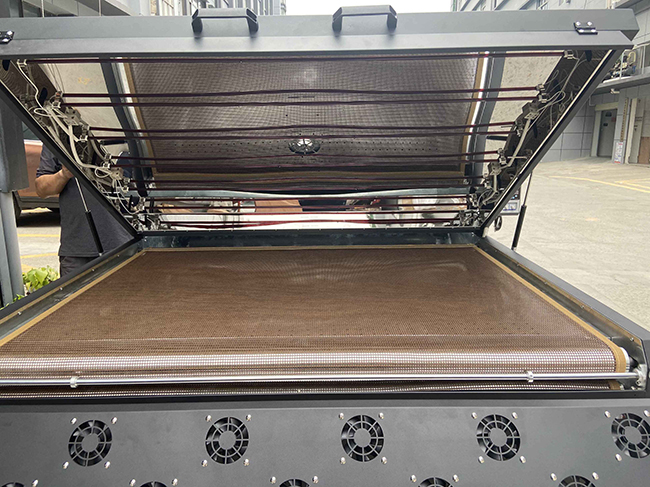

3. Drying zone: Lengthen and widen the drying heating zone to evenly heat the screen.
4. Control panel: Chinese and English button panel, simplified operation, easy to understand.
5. Intelligent take-up device: The resistance of the take-up device can be adjusted, and the maximum load-bearing capacity of the thickened 5cm steel pipe is 70kg.

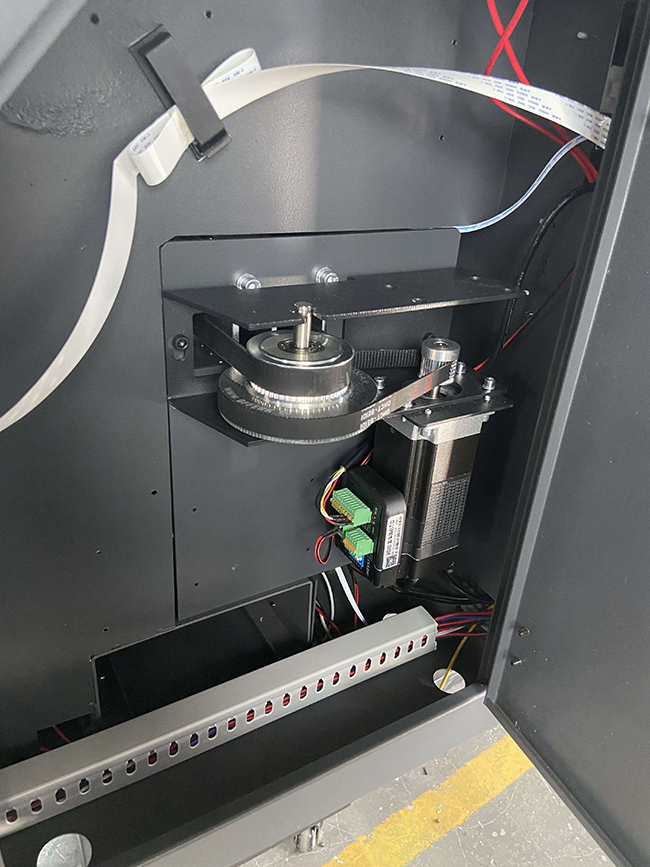

6. Powder shaking motor: Stepless speed regulation, shaking powder cleanly.
