Epson T3200-U3 UV Printhead
Unit cost
MXN 31,989.00
/unit
Wholesale discounts
Quantity
Discount
Price per unit
1
3%
MXN 31,989.00
Total Cost
MXN 32,978.00
MXN 31,989.00
Amount
/unit
1
Epson T3200-U3 UV Printhead
Product size:
Specification:
| Ink type | UV | |
| Type | PrecisionCore Micro TFP printhead | |

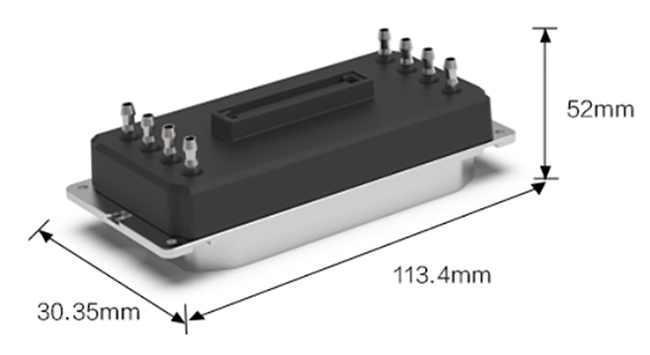

| Product size | 113.4*52.0*30.4 mm | |
| Weight | 328g | |
| Number of nozzle | 3200 (Net:3176) | |
| Nozzle pitch / nozzle row | 1/300 inch | |
| Nozzle rows | 4rows | |
| Nozzle Resolution | 300 npi/row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Effective print width | 67.2mm (2.65inches) | |
| Droplet ejection performance | Binary | 7.5 pl at 48 kHz |
| 4 levels grey scale | 6.2, 9.5, 15.6pl at 24 kHz | |
| Viscosity range | 7-8 mPa·s | |
| lnk recirculation | Not available | |
| lnternal heater | Available | |
| Positioning Mechanism | Reference hole | |
